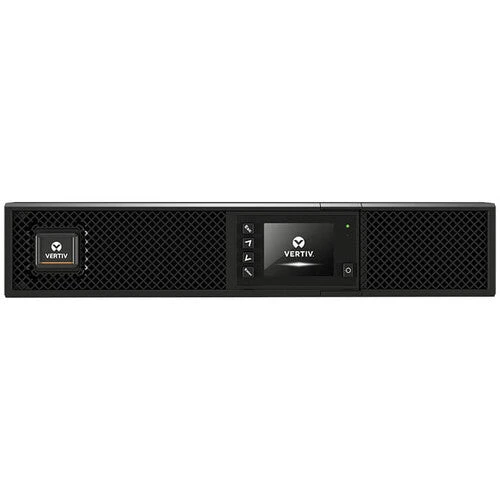

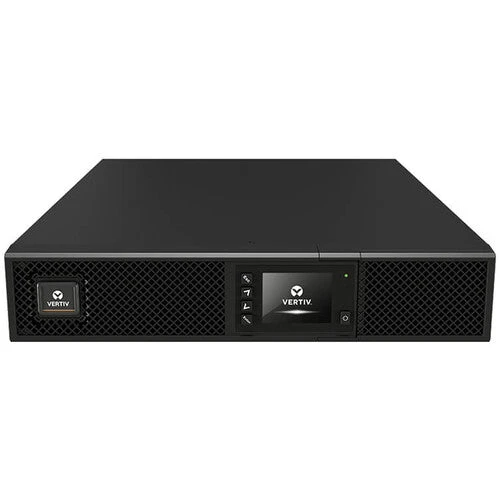

Liebert GXT5 UPS 3000VA Online Rack Tower(Liebert Gxt5 Ups 3000va Online Rack Tower)

LCD Display Panel

Provides information about the utility and UPS conditions:

• Power On/Off
• Power Mode
• AVR On/Off
• Battery Mode
• Estimated Backup Time
• Warnings and Fault Codes
• UPS Operation Parameters
• Alarms On/Off
• Overload Information
• Programmable Outlet Information

USB Connection

Basic monitoring of the GTX5 and unattended controlled shutdown of your computer in case of a power failure can be done using the Liebert Power Assist software via the USB port.

Programmable Outlets

The GTX5 features programmable outlets that can be tweaked to run for a certain amount of time.

Modes of Operation

Normal Mode: When utility power is normal, Normal mode employs the rectifier and inverter to provide voltage and frequency stabilized power to the load. The charger charges the battery in normal mode. On the front panel display, the run-indicator (green) is ON, the alarm indicator is OFF, and the buzzer is silent

Bypass Mode: Bypass mode supplies power to the load from the bypass source (utility power) if an overload or fault occurs during normal operation. On the front panel display, the run indicator (green) is ON, the alarm indicator (yellow) is ON, and the buzzer beeps once every two seconds. The LCD Flow screen displays On Bypass.

Battery Mode: Battery mode supplies battery power to the load if utility power fails or if the utility voltage goes outside of the permissible range. On the front panel display, the run indicator (green) is ON, the alarm indicator (yellow) is ON, and the buzzer beeps once each second. The LCD Flow screen displays On Battery

Eco Mode: The energy-saving ECO mode reduces power consumption by powering the load via bypass if the bypass voltage is normal or by powering the load via the inverter when the bypass voltage is abnormal. You can use ECO mode to power equipment that is not sensitive to power grid quality to via bypass and reduce power consumption.

Maintenance Bypass Mode: Used in the unlikely event that the UPS requires maintenance or repair, maintenance bypass mode powers the connected equipment with utility power while electrically isolating the internal UPS components.
