Lian Li Edge Overview

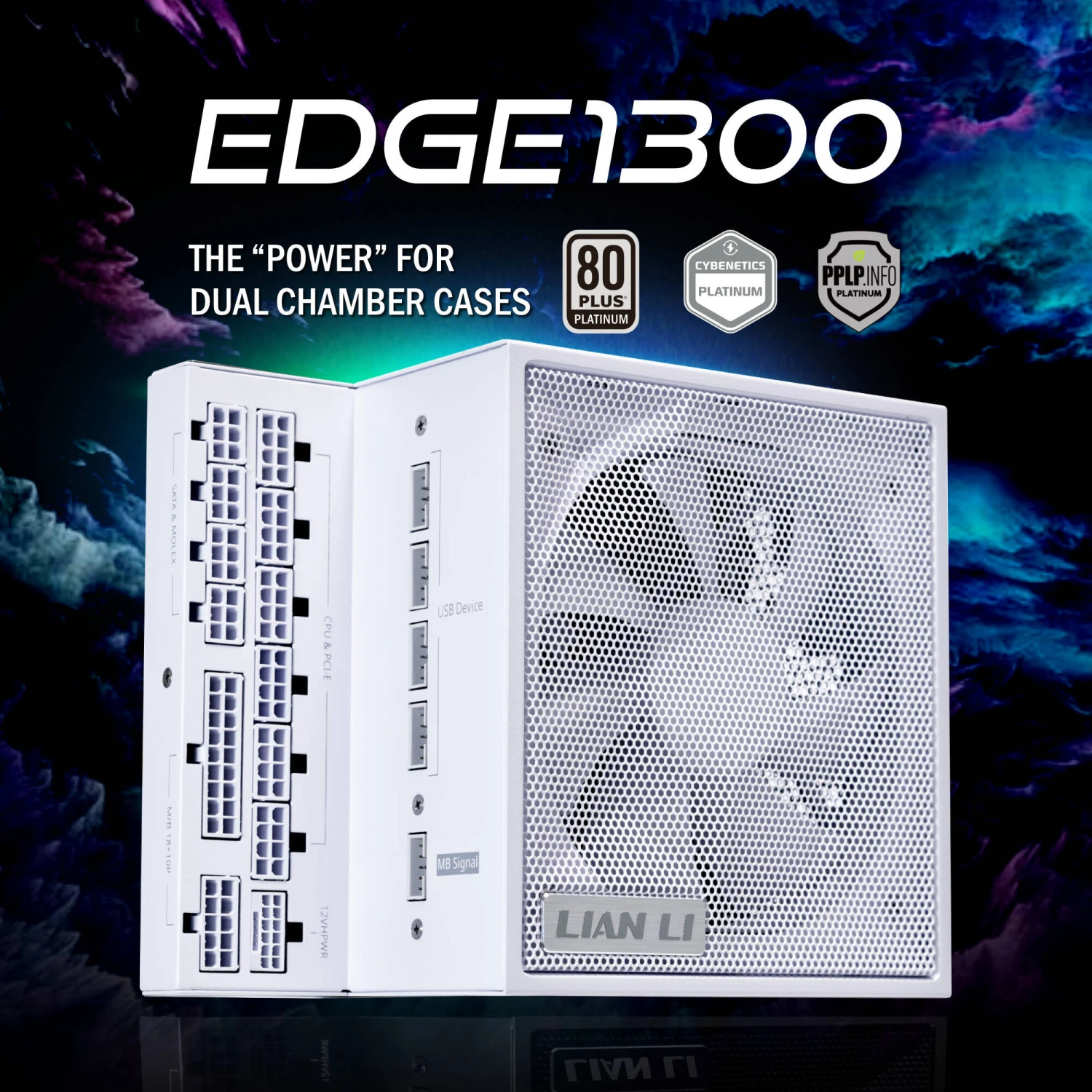

For users who prioritize clean aesthetics, convenience, and airflow, this white L-shaped Lian Li Edge Series 1300W 80 Plus Platinum Modular ATX Power Supply is an ideal solution. Sporting a built-in USB hub, this PSU enables optimized cabling for dual-chamber PC cases so users can showcase high-end components while enhancing airflow.

Connectivity

The Edge features a single +12V 1300W rail, meeting ATX 3.1 motherboard compliance to efficiently operate your resource-demanding components. It features a multitude of connectors to suit your needs, such as a 20+4 pin, a 4+4 pin, and 8 pin motherboard connectors, alongside 4 PCIe connectors, 14 SATA connectors, one peripheral cable, a 9-pin USB cable, and a USB-A to 9-pin cable. It includes one 16-pin 12VHPWR for high-powered NVIDIA 40 series graphics cards, as well as an additional 12VHPWR 8-pin cable for dual GPU configurations.

Modular & Clutter-free

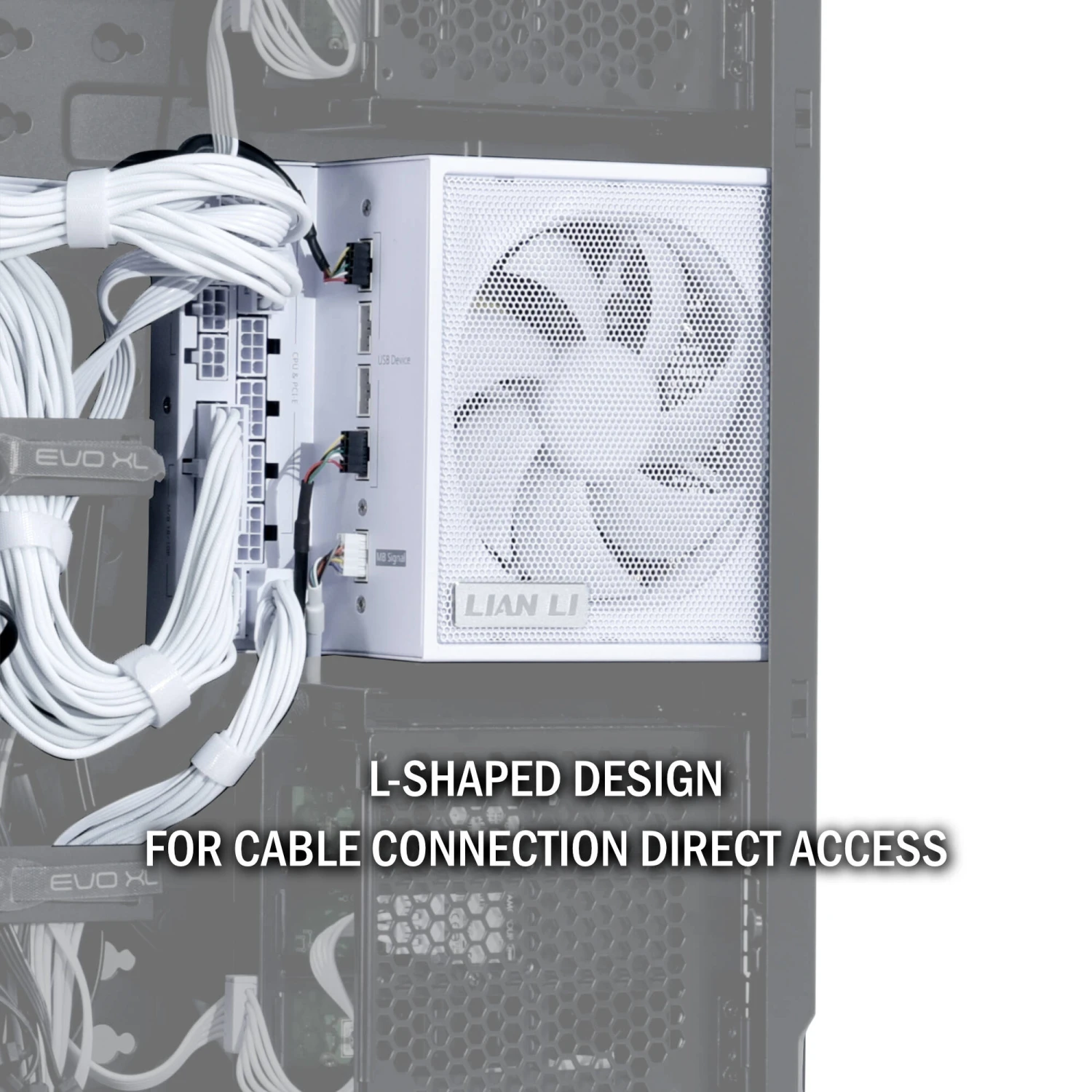

Say goodbye to messy power supply cables. The Edge Series features a fully modular design, so users can leave out unnecessary cables. Its unique L-shape connector strip enables convenient cabling in the back of dual-chamber vertical PC cases, such as the Lian Li O11, meaning improved airflow and clutter-free component aesthetics.

USB Expansion

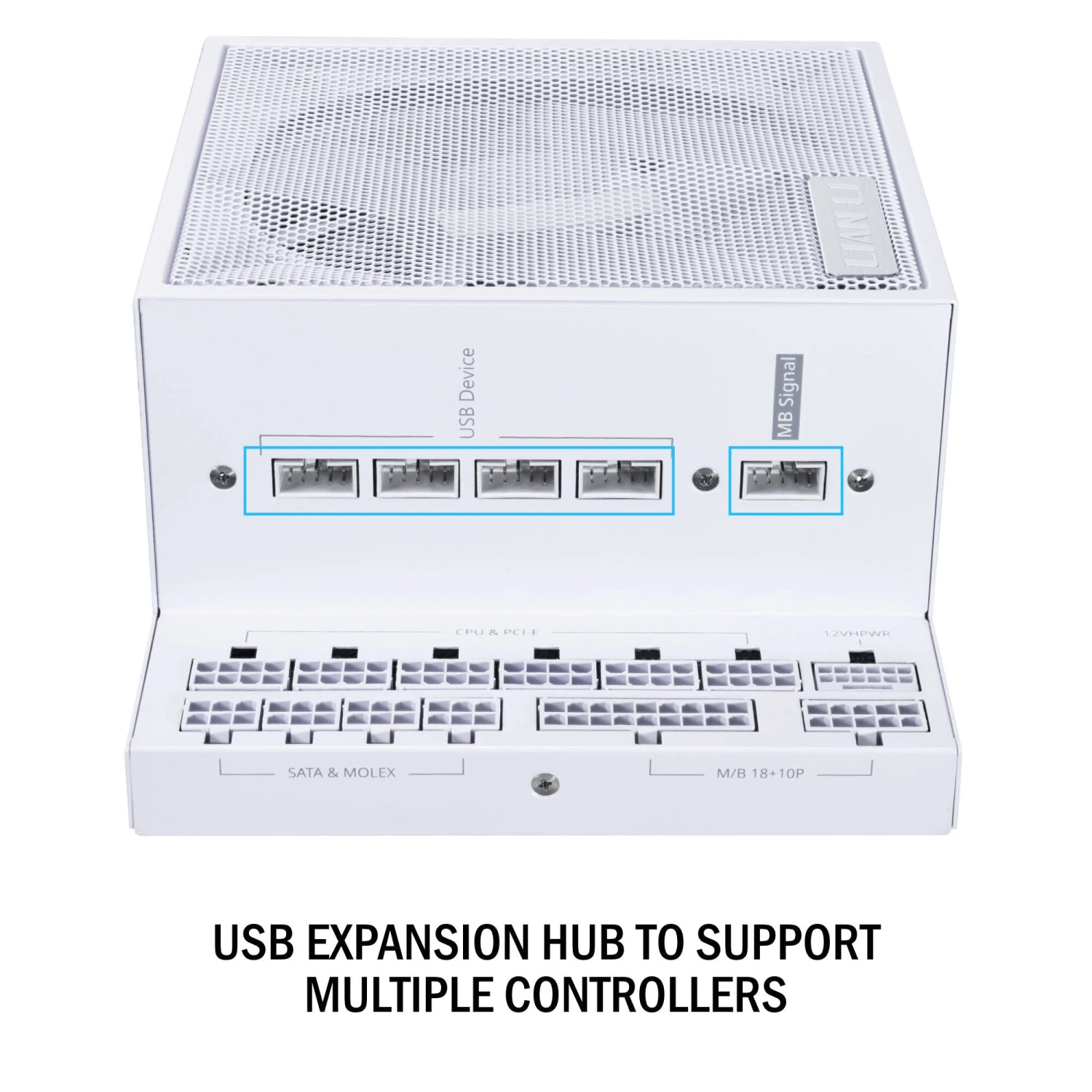

Connect UNI fans, Strimer Plus, RGB controllers, and more directly to the Edge Series. This PSU delivers uninterrupted power to four built-in USB ports. Each port provides up to 500mA for internal accessories expansion, supporting up to seven simultaneous devices when used with separately purchased 1-to-2 USB splitter cables.

Premium Cabling

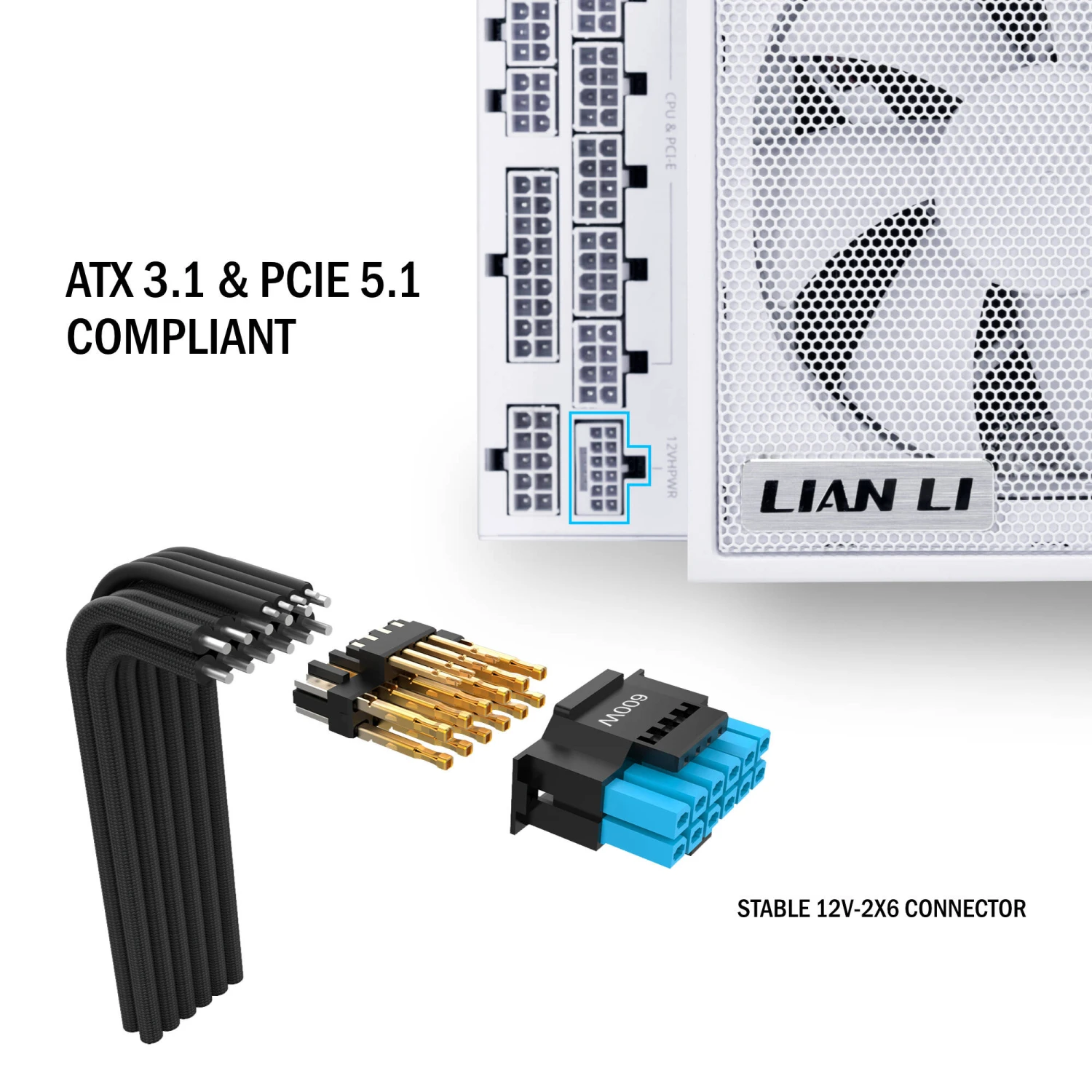

Included with this Edge Series PSU are flexible braided sleeved cables and adjustable cable combs to maintain a clutter-free build. Each cable features custom dual color PCIe 5.1 connector shells for secure connections, gold plating, soldered wire terminal connections, and .25mm copper thickness to mitigate short circuits, enhance current stability, and reduce contact resistance for long-term stability.

Cool and Quiet

The power supply comes equipped with a 120mm cooling fan within its steel chassis. Combined with an open mesh design, the fan operates at a maximum of 2000 rpm while producing up to 26 dBA acoustic noise to quietly dissipate heat from internal components even under heavy load.

Efficient and Stable Operation

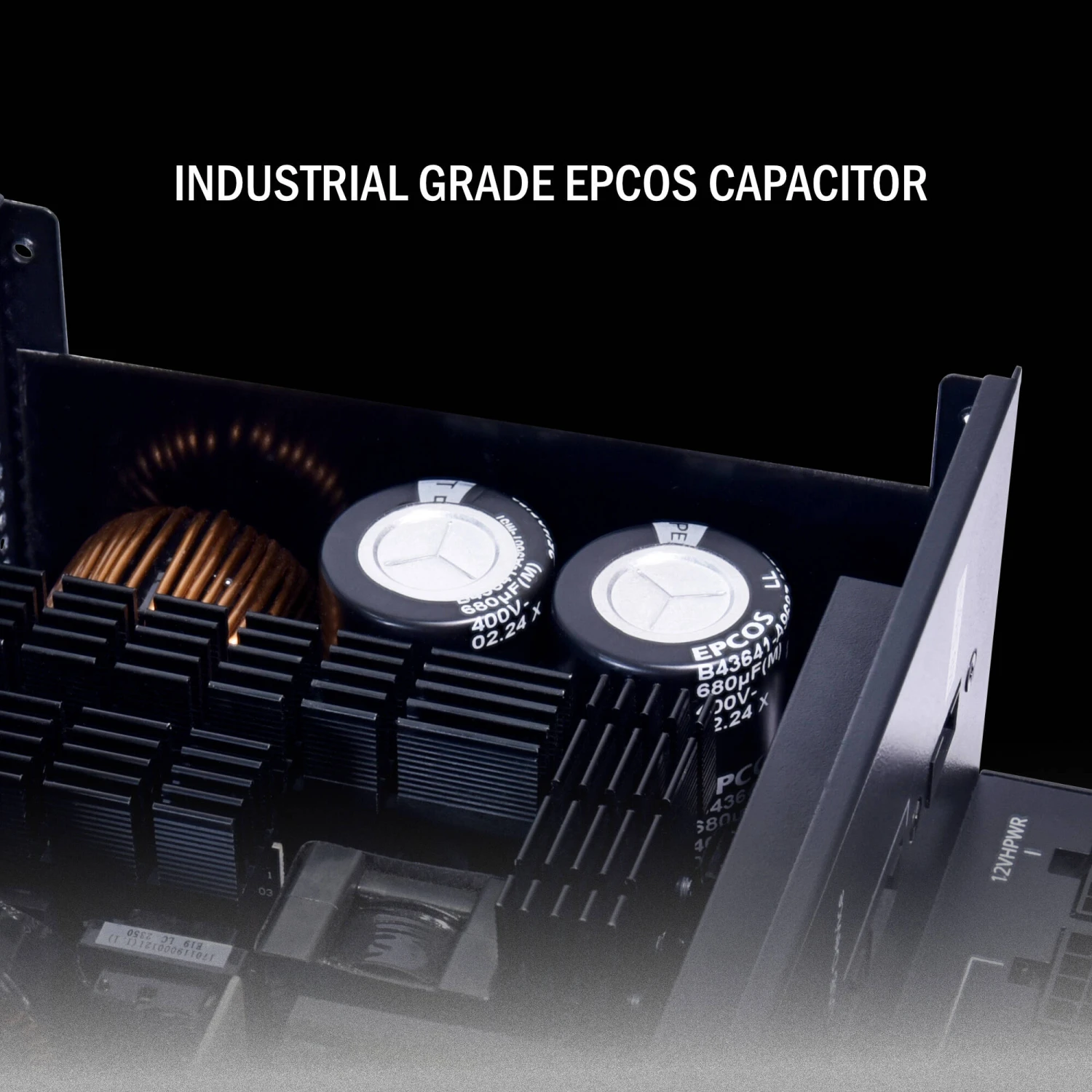

The Edge Series is backed by the 80 PLUS Platinum rating, ensuring optimal power efficiency. It features the German EPCOS capacitors, LLC topology, and Active PFC, for further efficiency and heat reduction.

UPC: 840353046252

Items Included

Lian Li Edge Series 1300W 80 Plus Platinum Modular ATX Power Supply (White)
20+4 Pin Motherboard Cable
8 Pin CPU Power Cable
4+4 Pin CPU Power Cable
4 x 6+2 Pin PCIe Power Cable
12V-2×6 12VHPWR Cable
12VHPWR 8-Pin Cable
2 x SATA Cable
4×4 Pin Peripheral Cable
USB 9 Pin Cable
USB 9-Pin to USB-A Cable
I/O Shield
AC Power Cord
Limited 10-Year Manufacturer Warranty

Additional Resources

User Manual

6.0 MB

Lian Li Edge Specs

Key Specs

Total Connectors	1x 20+4-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 1x 6+2-Pin PCIe 1x 6+2-Pin PCIe 4x 4-Pin Peripheral / Molex 8x 15-Pin SATA
Cable Design	Modular
Total Wattage	1300 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Platinum
Form Factor	ATX

Connectivity

Total Connectors	1x 20+4-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 1x 6+2-Pin PCIe 1x 6+2-Pin PCIe 4x 4-Pin Peripheral / Molex 8x 15-Pin SATA
Cable Design	Modular
PCIe Connector Distances	21.7″ / 550 mm
SATA Connector Distances	11.8″ / 300 mm 12.4″ / 315 mm 13″ / 330 mm 13.6″ / 345 mm 14.2″ / 360 mm 15.7″ / 400 mm 20.7″ / 525 mm 21.7″ / 550 mm 27.6″ / 700 mm 33.5″ / 850 mm
Peripheral Connector Distances	19.7″ / 500 mm 25.6″ / 650 mm 31.5″ / 800 mm 37.4″ / 950 mm
ATX Connector Distance	21.7″ / 550 mm
EPS Connector Distances	19.7″ / 500 mm

Electrical

Total Wattage	1300 W
Number of +12 V Rails	1
Combined Power for +12 V	1296 W
Combined Power for +3.3/+5 V	120 W
Input Power	100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating	80 PLUS Platinum
Active Power Factor Correction	No

Cooling

Fan Size	120 mm
Bearing Type	Fluid Dynamic Bearings (FDB)
Noise Level	33.6 dBA

Physical

Form Factor	ATX
Compliance	ATX v3.1
Protection	No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection
Certifications	CCC, CE, EAC, FCC, ICES, UKCA
Dimensions	7.2 x 5.9 x 3.4″ / 182 x 150 x 86 mm

Packaging Info

Package Weight	8.68 lb
Box Dimensions (LxWxH)	16.8 x 9.1 x 5.4″
