Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black)

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 2

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 3

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 4

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 5

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 6

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black) - Image 7

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)(Lian Li Edge Gold 850w 80 Plus Gold Modular Atx Power Supply Black)

Original price was: $256.34.Current price is: $97.99.

SKU: DGFUB 7132788818005 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Lian Li EG0850G, Power Supplies

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Lian Li EG0850G Overview

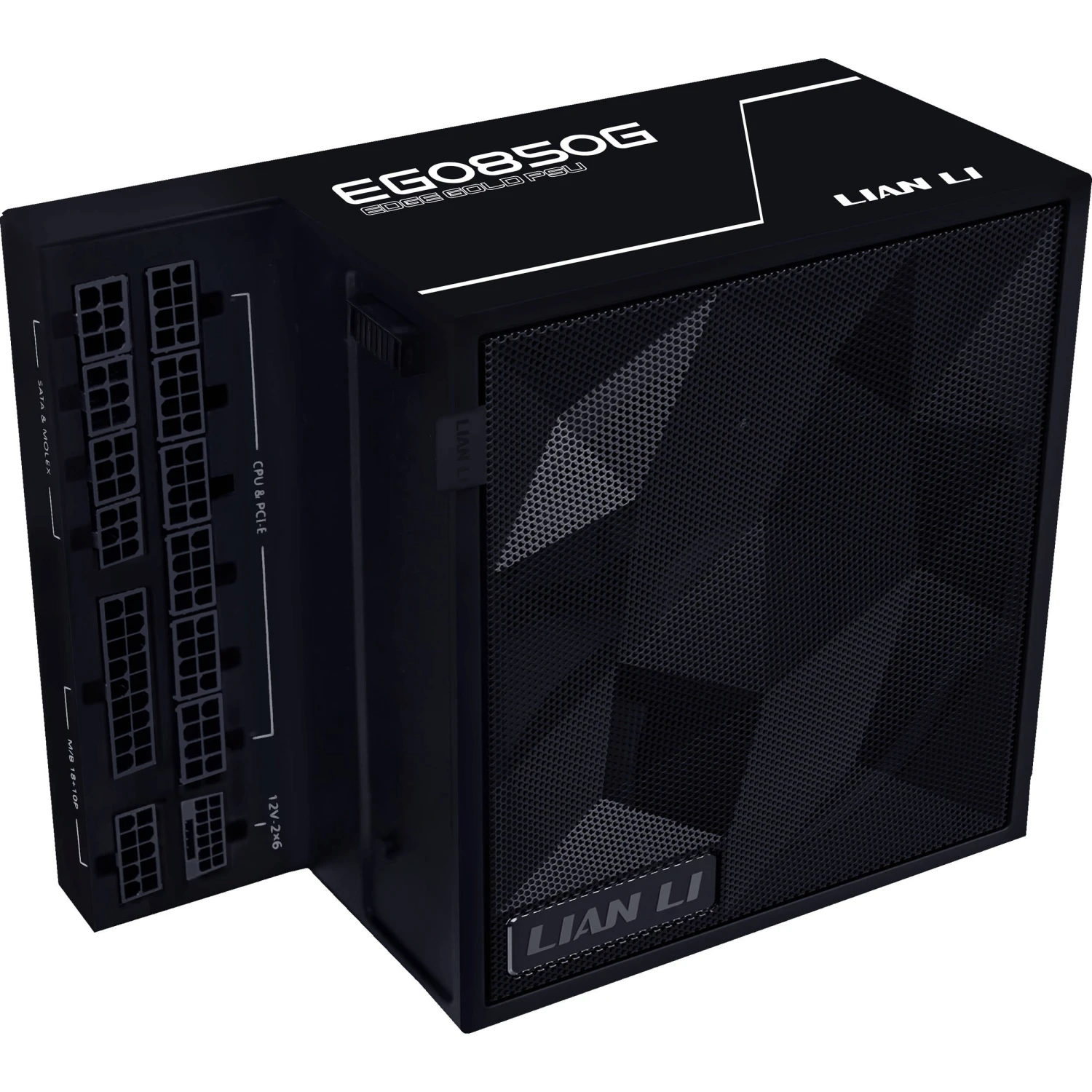

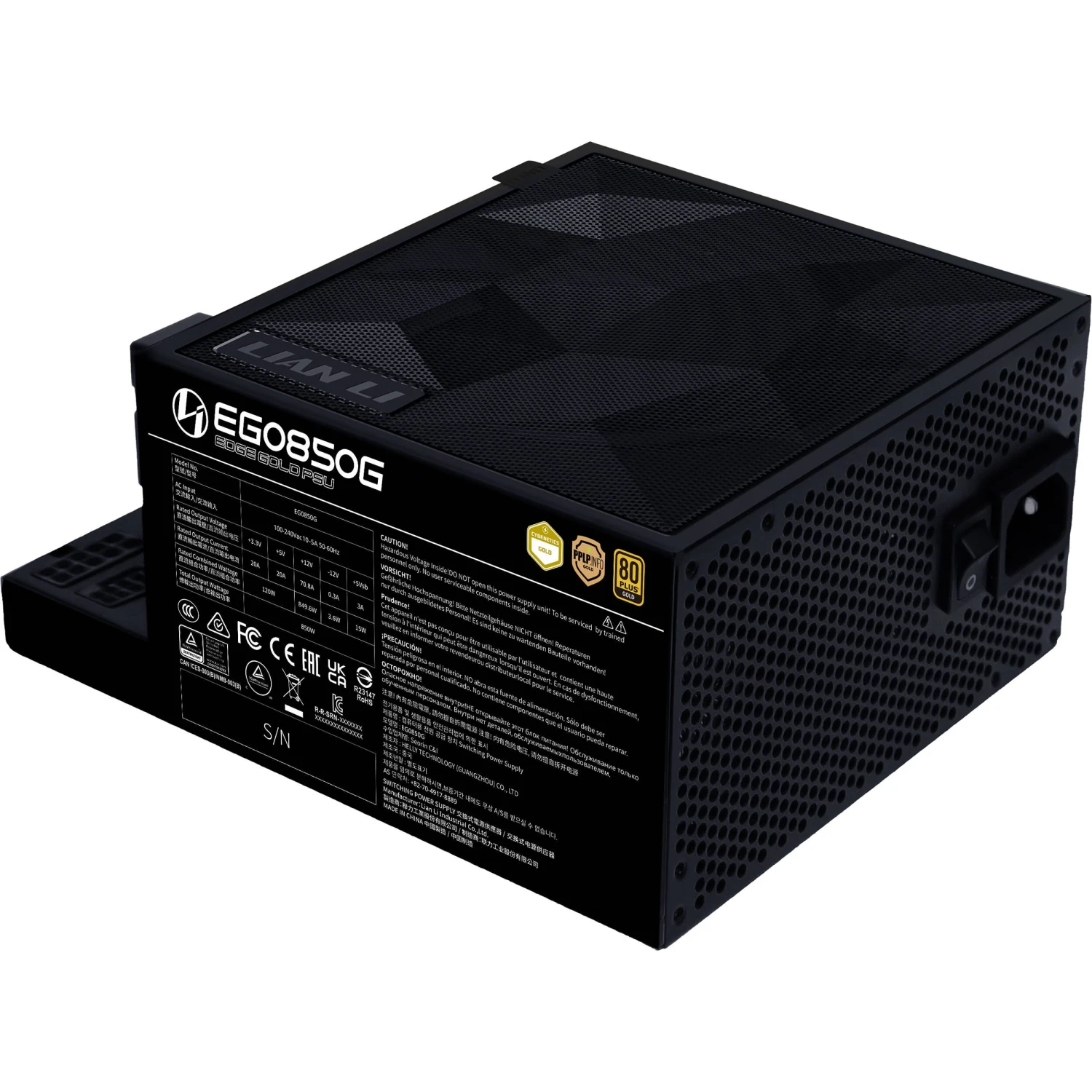

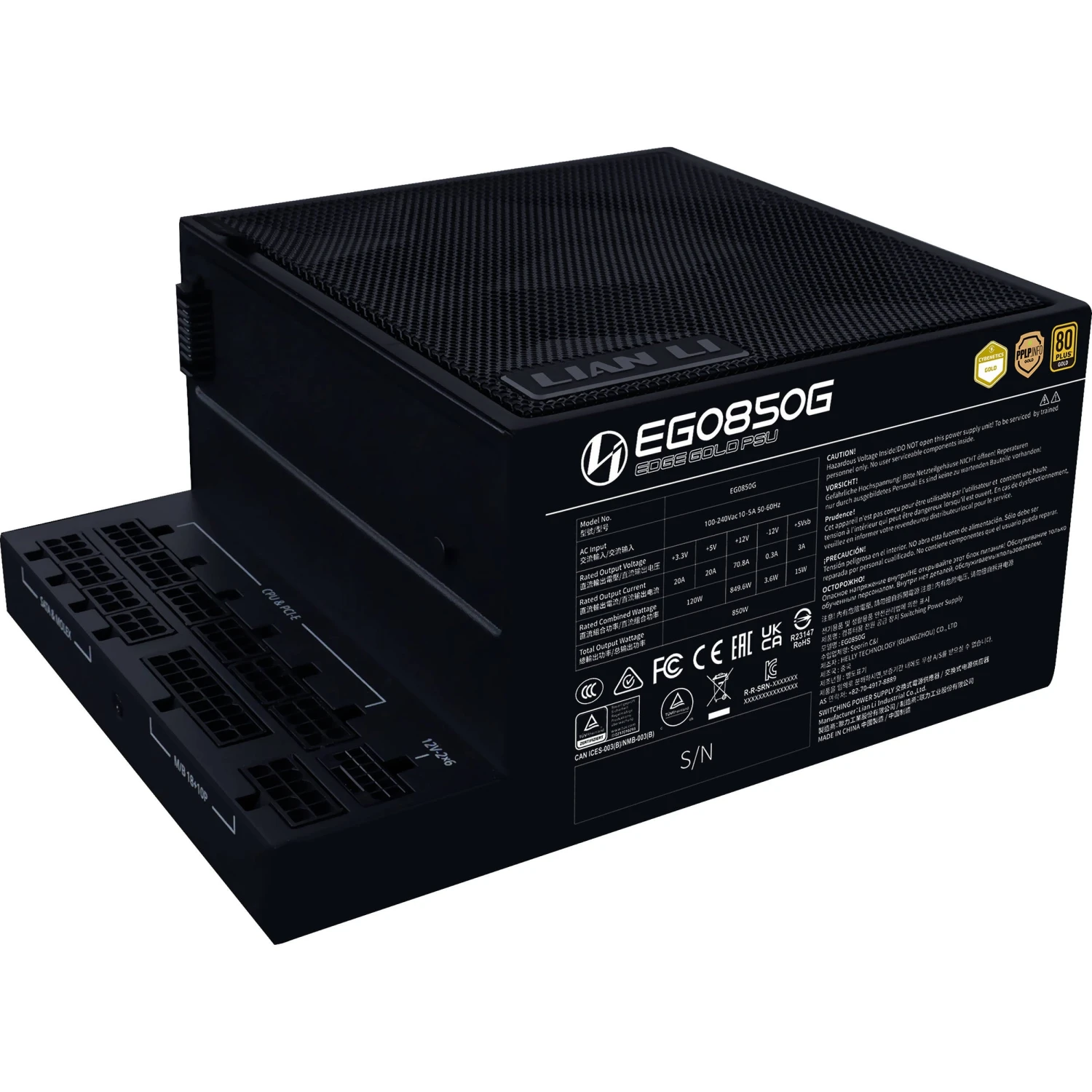

Designed for dual-chamber PC cases, the L-shaped Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply provides a unique cabling solution, making it a highly capable PSU for users who prioritize clean aesthetics, convenience, and airflow.

Connectivity

The EDGE GOLD features a single +12V 850W rail, meeting ATX 3.1 motherboard compliance to efficiently operate your resource-demanding components. It features a multitude of connectors to suit your needs, such as 20+4 pin, 4+4 pin, and 8-pin motherboard connectors alongside five PCIe connectors, 12 SATA connectors, and one peripheral connector.

Longer Cable Reach for Versatile Builds

The included cables are considerably longer compared to other Edge PSU models, offering flexibility for dual-chamber or regular towers, and ensuring optimal cable management for all kinds of builds.

80 PLUS Gold Rating

Achieving the 80 PLUS Gold rating, the EDGE GOLD ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.

Cool and Quiet

The power supply comes equipped with a 120mm PWM fan under an open-style mesh vent for excellent heat dissipation. Even under heavy load, the fan operates efficiently with minimal noise, as well as offering a fanless mode, where the fans remain at zero rpm during low power loads for quiet operation.

Dual-Color PCIe 5.1 Connector

Lian Li’s in-house designed 12V-2×6 connector features copper alloy soldered terminals and a dual-colored shell to ensure secure connections.

Industrial-Grade Capacitors

The EDGE GOLD PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.

Sufficient Protection

This PSU features OCP, OVP, SCP, OPP, UVP, OTP, SIP, and NLO protections, as well as an inrush current limiter that ensures the Edge Gold delivers continuously stable and reliable power.

UPC: 840353047020

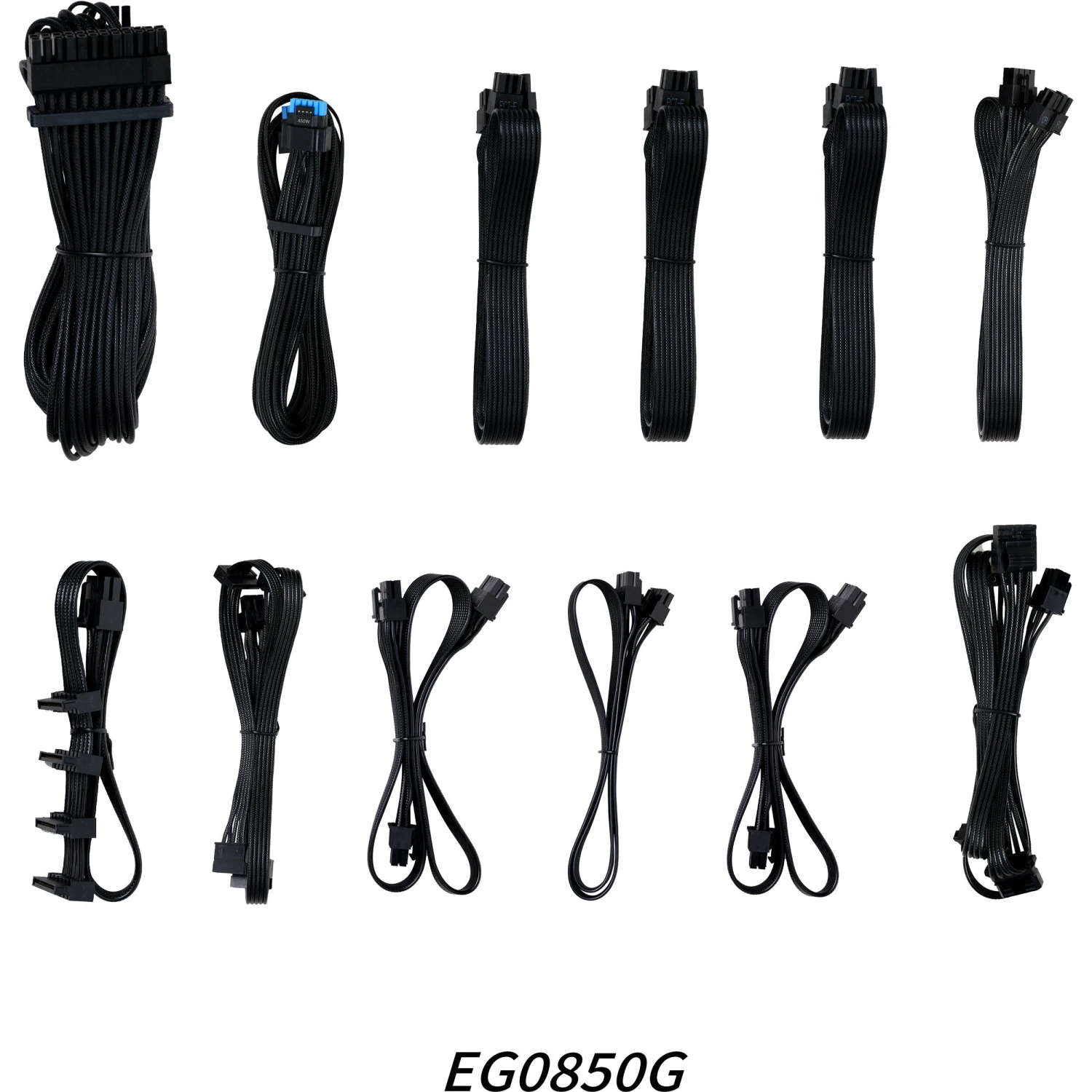

Items Included

Lian Li EDGE GOLD 850W 80 PLUS Gold Modular ATX Power Supply (Black)
20+4 Pin Motherboard Cable
8-Pin CPU Power Cable
4+4 Pin CPU Power Cable
2 x 8/6+2 Pin PCIe Power Cable
6+2 Pin PCIe Power Cable
12 x SATA Cable
4×4 Pin Cable
Limited 10-Year Manufacturer Warranty

Additional Resources

No additional resources available

Lian Li EG0850G Specs

Key Specs

Total Connectors	1x 20+4-Pin ATX Motherboard 1x 8-Pin EPS CPU 1x 4+4-Pin EPS CPU 1x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
Total Wattage	850 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Gold
Form Factor	ATX

Connectivity

Total Connectors	1x 20+4-Pin ATX Motherboard 1x 8-Pin EPS CPU 1x 4+4-Pin EPS CPU 1x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex
Cable Design	Modular
PCIe Connector Distances	25.6″ / 650 mm 29.5″ / 750 mm
SATA Connector Distances	11.8″ / 300 mm 12.4″ / 315 mm 13″ / 330 mm 13.6″ / 345 mm 14.8″ / 375 mm 16.7″ / 425 mm 21.7″ / 550 mm 22.6″ / 575 mm 27.6″ / 700 mm 33.5″ / 850 mm
Peripheral Connector Distances	19.7″ / 500 mm
ATX Connector Distance	29.5″ / 750 mm
EPS Connector Distances	24.4″ / 620 mm

Electrical

Total Wattage	850 W
Number of +12 V Rails	1
Combined Power for +12 V	849 W
Combined Power for +3.3/+5 V	120 W
Max Power for +5 Vsb	120 W
Input Power	100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes

Cooling

Fan Size	120 mm
Bearing Type	Fluid Dynamic Bearings (FDB)
Noise Level	30.9 dBA

Physical

Form Factor	ATX
Compliance	ATX v3.1
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Dimensions	7.2 x 5.9 x 3.4″ / 182 x 150 x 86 mm

Packaging Info

Package Weight	7.04 lb
Box Dimensions (LxWxH)	13.2 x 8.9 x 5.1″
