LG BU53RG Overview
John Foldi

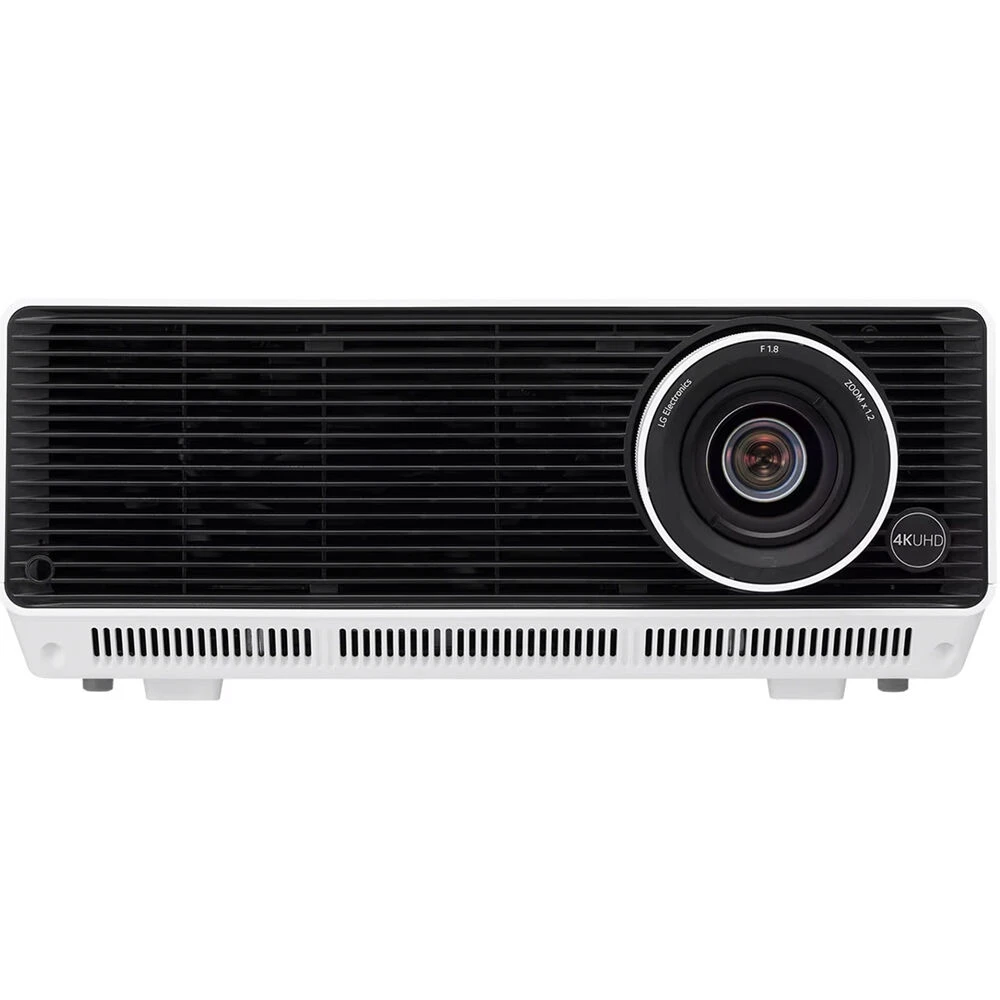

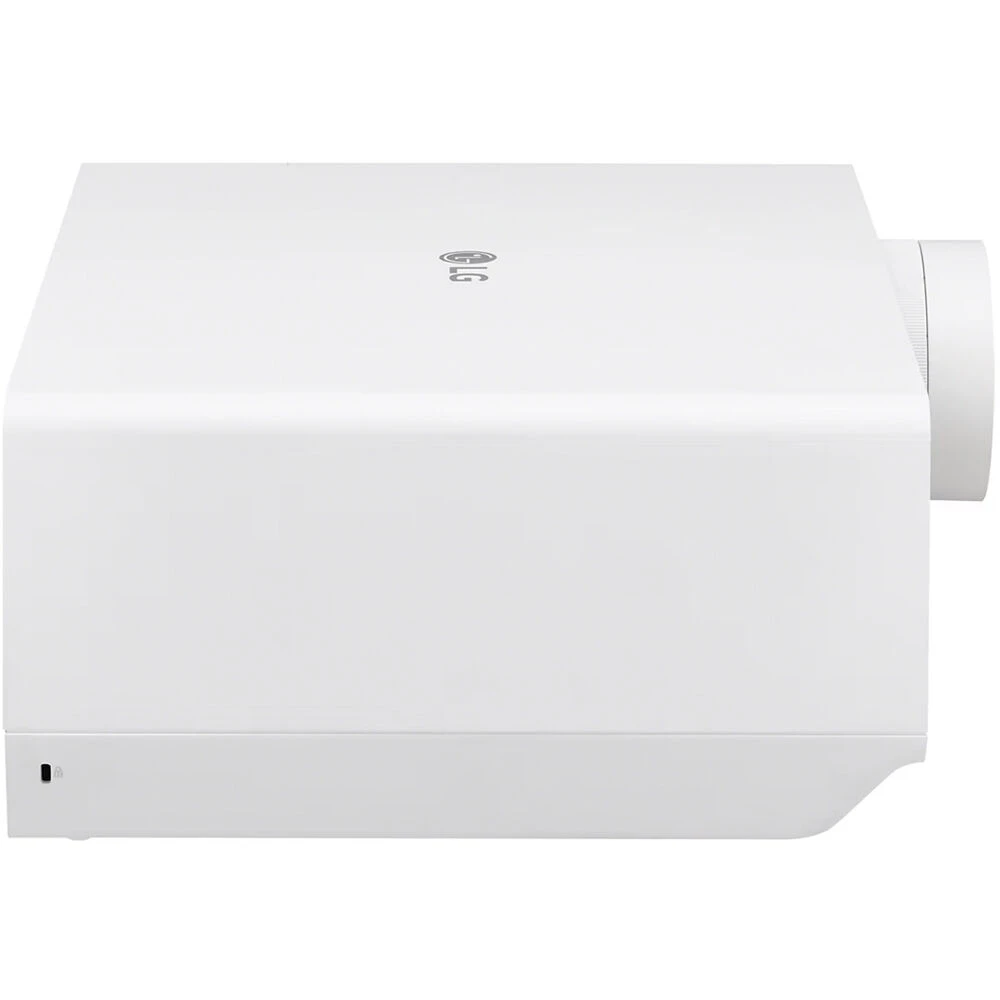

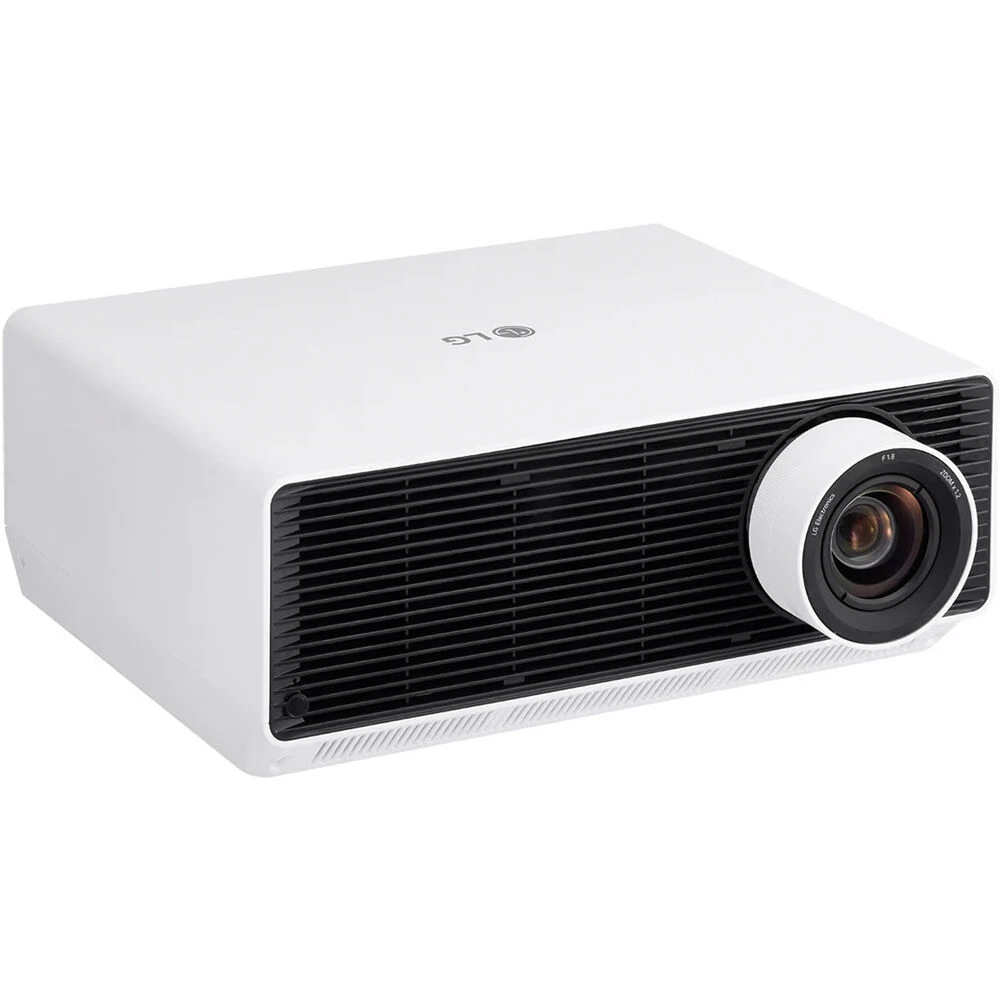

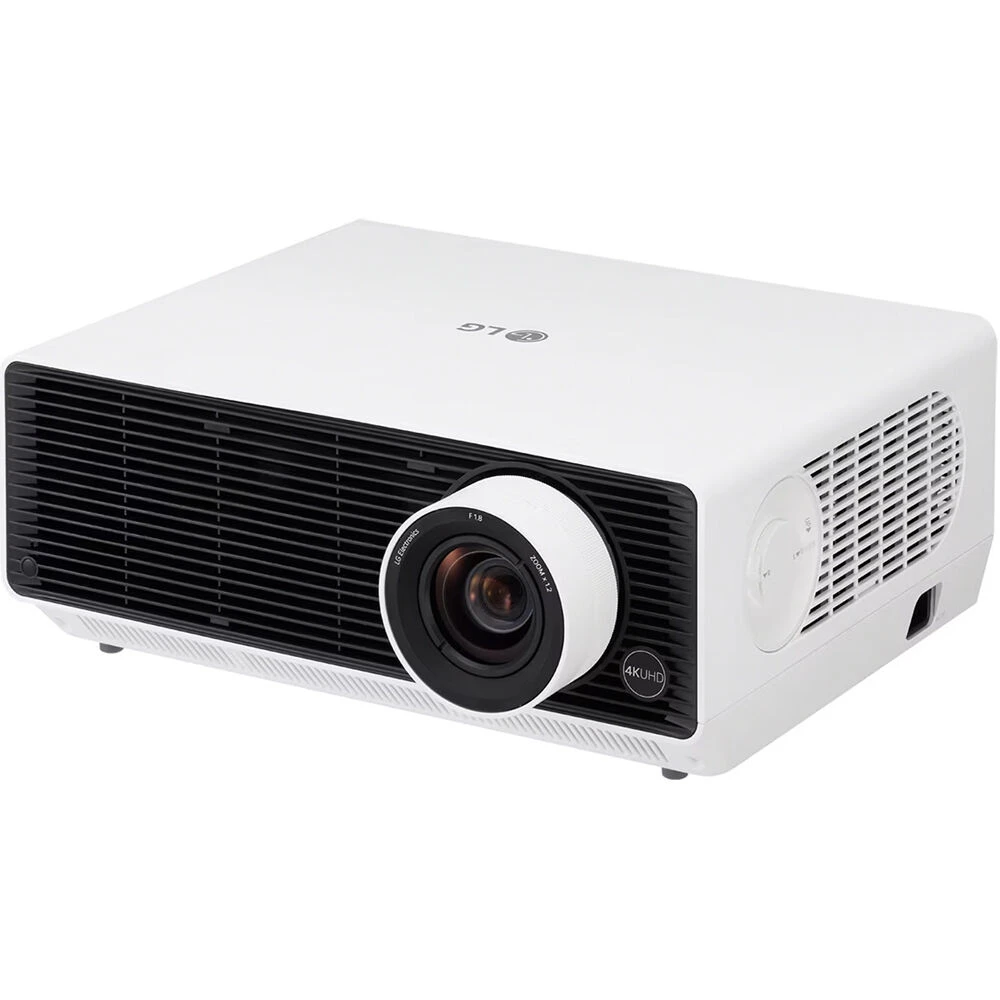

A compact solution for entertainment, business, and education, the ProBeam BU53RG 5000-Lumen XPR UHD 4K Short-Throw Laser DLP Smart Projector from LG provides a stunning 4K HDR projection with a daytime-friendly 5000 lumens of brightness. The size of the BU53RG is combined with a short throw to accommodate smaller spaces. While helpful in lecture halls or conference rooms, it is ideal for entertainment uses, such as indoor golf simulation or a museum exhibit. You can provide content onsite via HDMI or USB devices, or remotely and wirelessly using Wi-Fi, Bluetooth, Miracast, or Ethernet. For the ultimate in remote management and distribution, use HDBaseT for a single-cable solution that can transmit audio/video, control signals, up to 100W of power, and other data.
- +/- 20% vertical lens shift
- +/- 50% horizontal lens shift
- 25 points of image warping
- 1.2x zoom
- Projections can be rotated and flipped
- SuperSign: This is a CMS that supports multiple displays and accounts, letting multiple projectors access a centralized server via PC or mobile device. This allows for management of content creation and editing, scheduling, and distribution.
- LG ConnectedCare: This is a cloud-based service that allows you to remotely manage the operating status of this and other projectors, ensuring stable business operations, remote monitoring, and fault diagnosis.
- Project an image from 40 to 300″ in size
- Dual 5W speakers
- Picture-in-picture
- Picture-by-Picture
- LG One: Quick Share compatible
- Crestron RoomView
- IP Control
In the Box
- LG ProBeam BU53RG 5000-Lumen XPR UHD 4K Short-Throw Laser DLP Smart Projector
- Limited 3-Year Manufacturer Warranty (Up to 15,000 Hours)
Additional Resources
No additional resources available
LG BU53RGSpecs
| Display System |
DLP |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
5000 Lumens (ANSI) |
| Throw Ratio |
0.94 to 1.14:1 |
| Projection Size |
40 to 300″ / 1.0 to 7.6 m |
| HDR Support |
Yes |
| Inputs/Outputs |

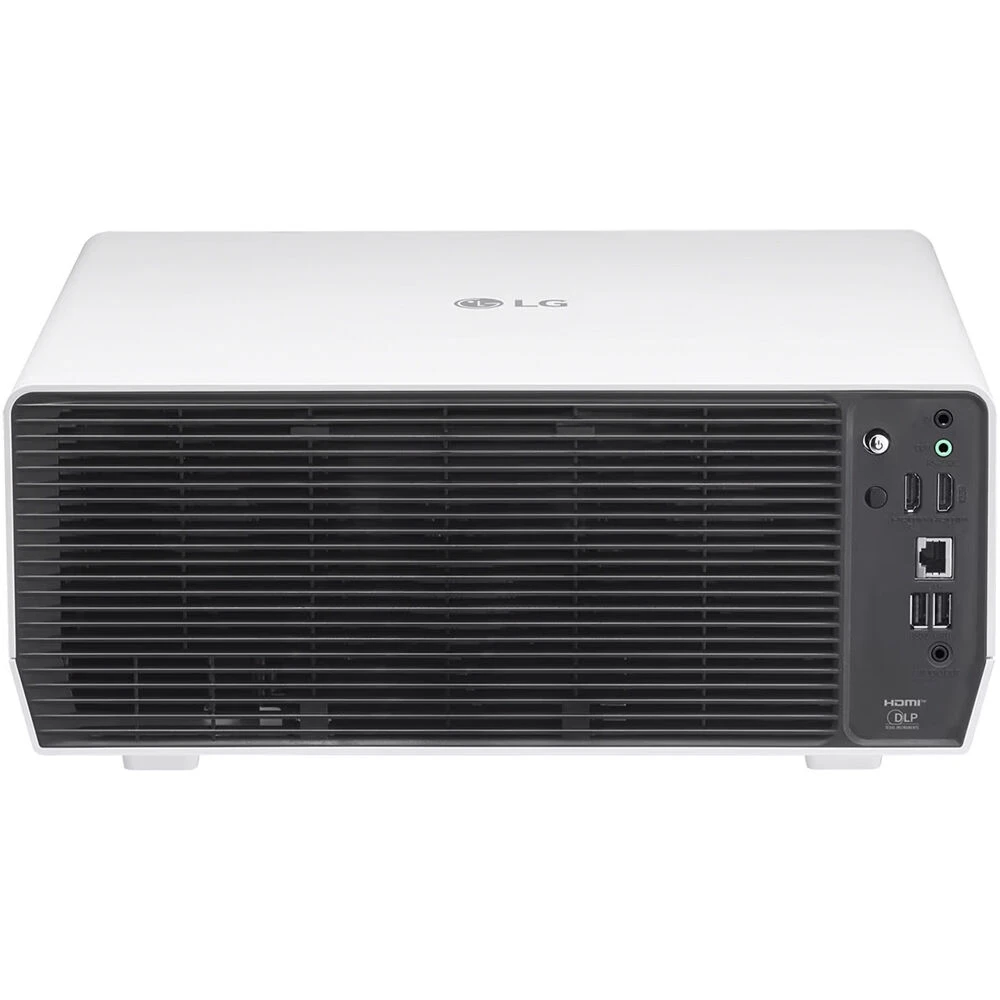

2x HDMI 2.0 Audio, Video Input 2x USB-A 2.0 Data Input 1x RJ45 (Ethernet) Data Input 1x RJ45 (HDBaseT) Audio, Data, Power, Video Input 1x DE-9/DB-9 (RS-232) Control Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output |
| Light Source |
Laser Phosphor |
| Display System |
DLP |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
5000 Lumens (ANSI) |
| Aspect Ratio |
16:6 16:9 16:10 21:9 |
| Dynamic Contrast Ratio |
3,000,000:1 |
| Includes Lens |
Yes |
| Lens Shift |
Vertical: ± 50% Horizontal: ± 20% |
| Optical Zoom |
1.2x |
| Throw Ratio |
0.94 to 1.14:1 |
| Projection Size |
40 to 300″ / 1.0 to 7.6 m |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Ceiling Mountable |
Yes |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
10 W |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 2x USB-A 2.0 Data Input 1x RJ45 (Ethernet) Data Input 1x RJ45 (HDBaseT) Audio, Data, Power, Video Input 1x DE-9/DB-9 (RS-232) Control Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output |
| HDCP Support |
Not Specified by Manufacturer |
| Media/Memory Card Slot |
No |
| Operating System |
webOS 6.0 |
| Mobile App Compatible |
No |
| Bluetooth |
Yes |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 15,000 Hours |
| Fan Noise |
Low Brightness: 29 dB Full Brightness: 33 dB |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 380 W Standby Mode (Lamp Off): < 0.5 W |
| Dimensions (W x H x D) |
14.6 x 6.1 x 11.4″ / 37.1 x 15.5 x 29.0 cm |
| Weight |
21.4 lb / 9.7 kg |
| Package Weight |
24.965 lb |
| Box Dimensions (LxWxH) |
22.6 x 17.5 x 11.2″ |
