LG LSBF015 Overview
Create bright, high-definition video wall displays with the LG LSBF015-GDR Indoor LED Series dvLED Cabinet. With a brightness of 600 nits, the LSBF015-GDR delivers clear, attention-grabbing images. A pixel pitch of 1.56mm allows for a minimum viewing distance of 4.9′, ideal for indoor displays in retail, entertainment venues, transportation hubs, and more.

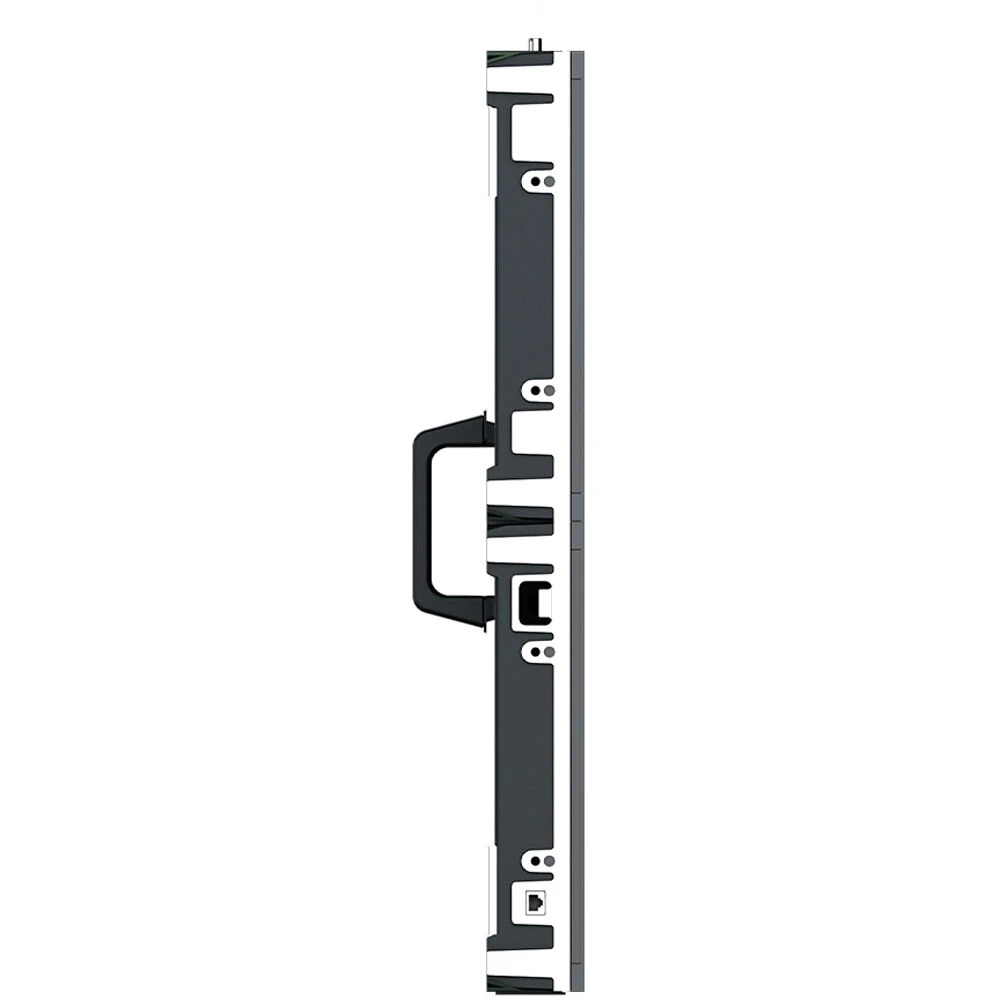

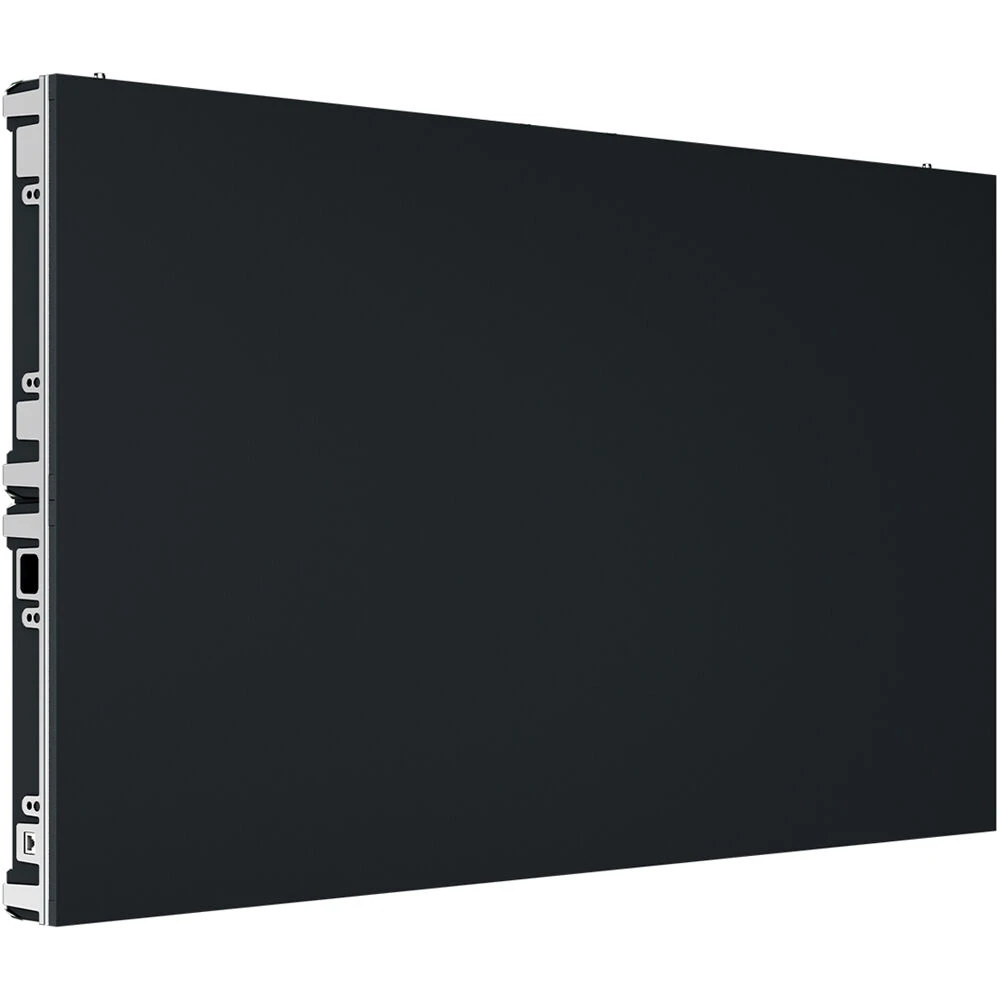

The LSBF015-GDR features a 45° cut on the right side of the cabinet to create displays with 90° corners. Each LSBF cabinet consists of eight LSBE modules to create a large seamless screen; they are equivalent to a 2 x 2 configuration of the smaller LSBE cabinets and compatibility with those cabinets allows for versatile sizing options. The modules permit front access for easy maintenance and the attached safety wire helps prevent drops. The cabinet frame is made from aluminum for strength and durability. Connect with an LG CVBA system controller to form a complete display solution.
Items Included
- LG LSBF Indoor LED Series 1.56mm Pixel Pitch dvLED Cabinet with Right 45° Miter
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
LG LSBF015 Specs
| Display Size |
54″ |
| Native Resolution |
768 x 432 |
| Maximum Brightness |
600 nits / cd/m2 |
| Inputs |
No |
| Outputs |
No |
| USB I/O |
No |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet) |
| Display Size |
54″ |
| Panel Type |
Direct View LED |
| Aspect Ratio |
16:9 |
| Native Resolution |
768 x 432 |
| Maximum Brightness |
600 nits / cd/m2 |
| HDR Support |
Yes, HDR10 |
| Contrast Ratio |
5000:1 |
| Refresh Rate |
60 Hz |
| Viewing Angle (H x V) |
160 x 150° |
| Screen Area |
47.2 x 26.6″ / 1200 x 675 mm |
| Pixels Per Inch (ppi) |
16 ppi |
| Inputs |
No |
| Outputs |
No |
| HDCP Support |
Yes |
| Wireless |
No |
| USB I/O |
No |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet) |
| Other I/O |
No |
| Built-In Speakers |
No |
| Mobile App Compatible |
No |
| Media Card Reader |
No |
| Power Consumption |
Maximum: 428.0 W Typical: 182.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 80% Humidity |
| Certifications |
CE, FCC, cTUVus, CB, KC, CCC, EN 13501-1, REACH |
| Mounting-Hole Pattern |
No |
| Lighting Lifespan |
100000 Hours |
| Material of Construction |
Aluminum |
| Environmental Resistance |
Dust-Resistant (IP50) |
| Bezel Thickness |
Bezel Less |
| Duty Cycle |
24 Hours / 7 Days |
| Dimensions |
47.2 x 26.6 x 2.8″ / 1200 x 675 x 72 mm |
| Weight |
50.7 lb / 23 kg |
