Joyusing V500S Overview

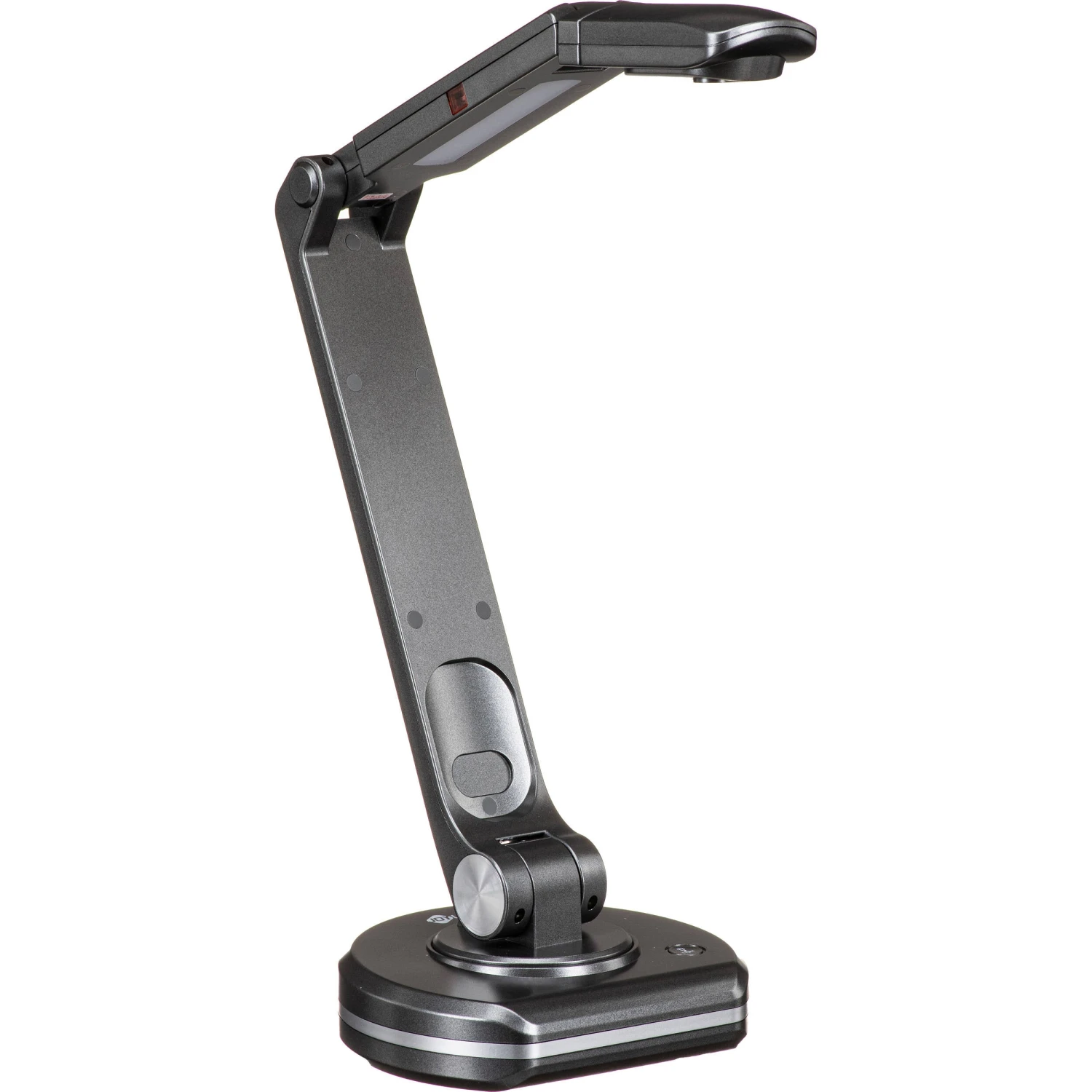

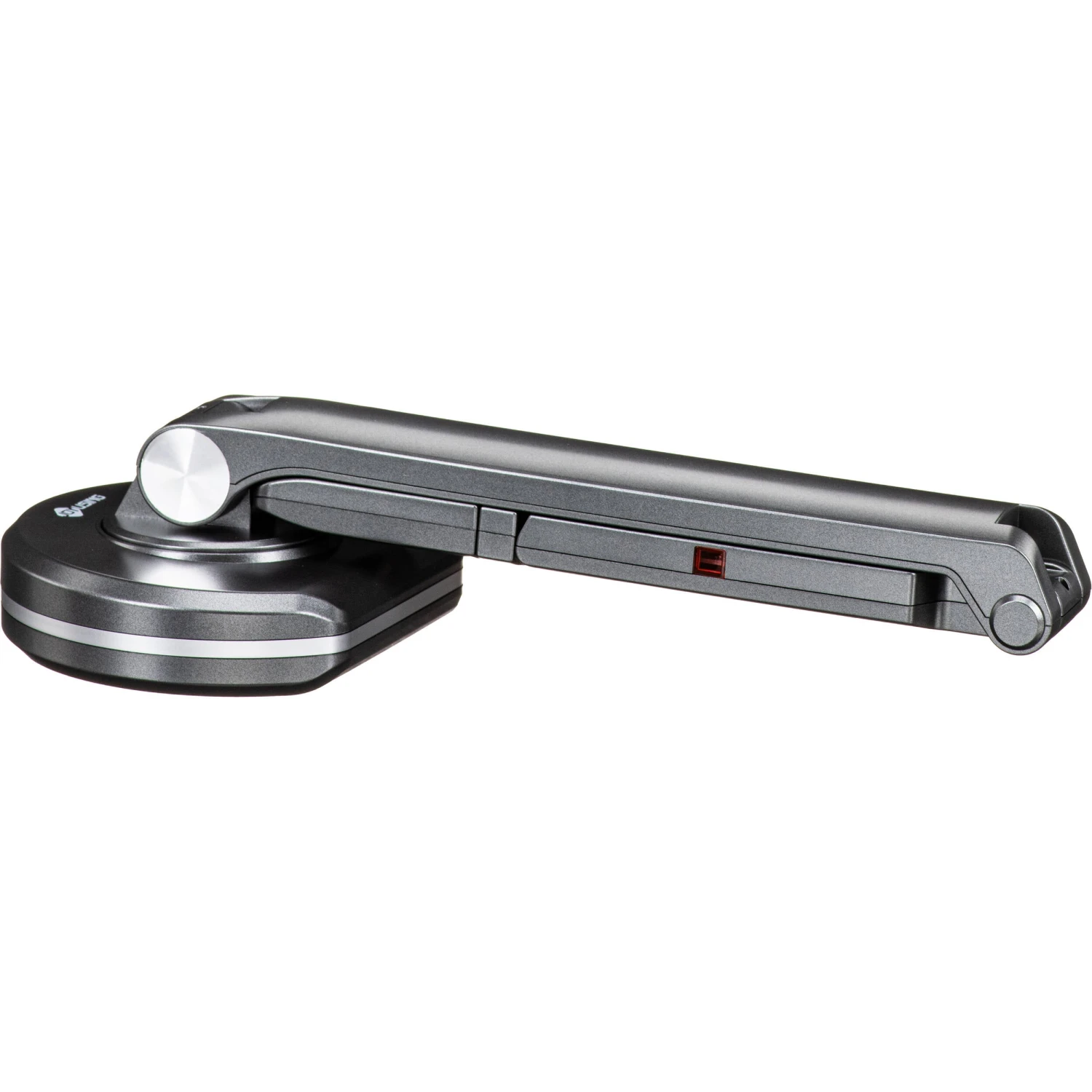

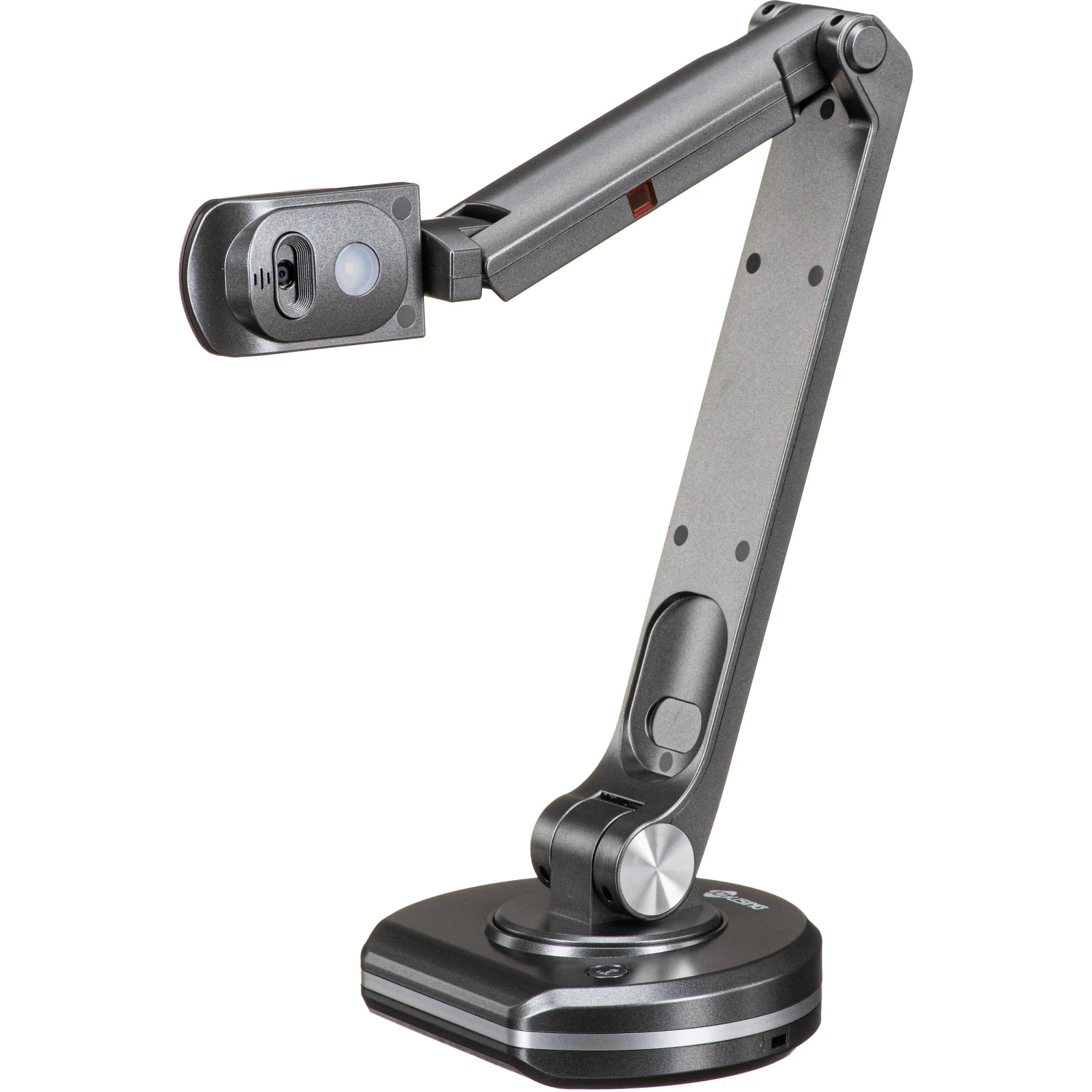

V500S HD USB Document Camera from
Joyusing. Share crystal-clear document video using the camera’s 8MP 1/3.2″ CMOS sensor that can capture up to 3256 x 2440 video at 30 fps. The camera covers an A3 document size, it adjusts using its five joints, and it can output video via the mini-USB port to your host computer. It features a built-in mic to capture all the local audio as well as an LED fill light for performing in dark classrooms or conference spaces.
Items Included
- Joyusing V500S HD USB Document Camera
- Mini-USB to USB-A Cable
- Soft Pad
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
4.8 MB
Joyusing V500S Specs
| Sensor |
1/3.2″ CMOS |
| Sensor Resolution |
Effective: 8 Megapixel (3256 x 2440) |
| Zoom |
100x |
| Capture Area |
16.5 x 11.7″ / 42 x 29.7 cm |
| Video I/O |
No |
| Media Card Slots |
No |
| Sensor |
1/3.2″ CMOS |
| Sensor Resolution |
Effective: 8 Megapixel (3256 x 2440) |
| Zoom |
100x |
| Aperture |
f/2.8 |
| Frame Rate |
3256 x 2440 @ 30 fps 1920 x 1080 @ 30 fps |
| Output Resolution |
3256 x 2440 1920 x 1080 |
| Capture Area |
16.5 x 11.7″ / 42 x 29.7 cm |
| Video I/O |
No |
| Audio I/O |
No |
| Other I/O |
1x Mini-USB 2.0 |
| Media Card Slots |
No |
| Storage Capacity |
No |
| Built-In LED Lighting |
11 (Head) |
| Built-In Mic |
Yes |
| Focus Modes |
Auto |
| Exposure Modes |
Auto |
| Multi-Input Support (PIP/PBP) |
Yes, Picture-in-Picture (PIP) |
| Remote Control |
No |
| OS Compatibility |
Chrome OS / Windows / macOS |
| Power Source |
USB Bus-Powered Port |
| Certifications |
RoHS, WEEE |
| Kensington Lock Slot |
Yes |
| Dimensions |
5.5 x 12.6 x 11.0″ / 140.0 x 321.0 x 280.0 mm |
| Weight |
34.4 oz / 976 g |
| Package Weight |
3.26 lb |
| Box Dimensions (LxWxH) |
14.9 x 7.5 x 4.1″ |
