Joyusing V500-4K Standalone Document Camera(Joyusing V500 4k Standalone Document Camera)

Upgrade your presentations with the
V500-4K UHD Standalone Document Camera from
Joyusing. Share crystal-clear document video using the camera’s 13MP 1/3″ CMOS sensor that can capture up to 4160 x 3120 video at 30 fps. The camera covers an A3 document size, adjusts using its adjustable joints, and can output video via the USB port to your host computer. You can also use the camera without a computer and output to a display via the HDMI or VGA ports. It features a built-in mic to capture all the local audio and an LED light for performing in dark classrooms or conference spaces.

There are physical touch summarys on the back of the camera for quick operation, including LED control, snap, zoom in/out, and manual/autofocus.

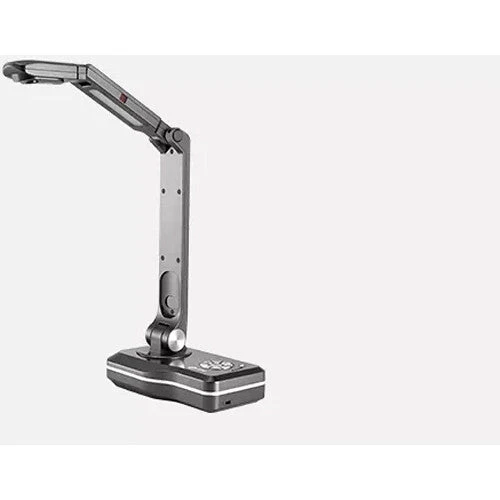

The camera sits on the end of an arm featuring multiple joints that allow you to capture a large A3 size from every angle. It can fold down when it is not in use for easy portability.

The camera features high performance in dim conditions thanks to the built-in LED light.

A professional built-in microphone provides high-quality voice recording for output with your videos.

The V500-4K features a USB host connection, providing fast data transfer and a stable connection for recording and streaming.

As a webcam, it can be used with popular conferencing applications such as Zoom, Teams, and more.

The Visualizer software for the document camera is optimized for use in classrooms, remote classes, and video conferencing, and it can be installed on Windows, macOS, and Chrome OS systems.

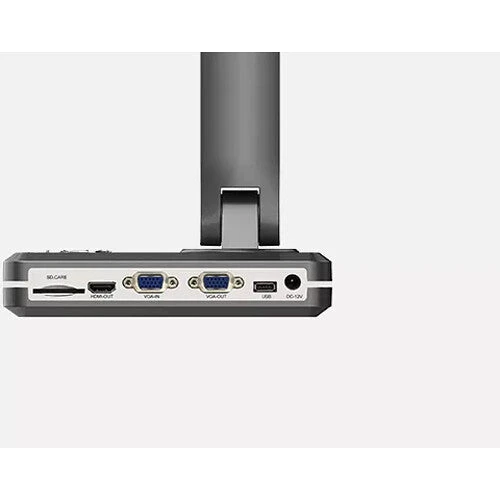

The document camera can also be used on its own, without a computer, and output video to a monitor, TV, or projector via its VGA and HDMI outputs.

Joyusing V500-4K Specs

Sensor	1/3″ CMOS
Sensor Resolution	Effective: 13 Megapixel (4160 x 3120)
Zoom	100x
Capture Area	16.5 x 11.7″ / 42 x 29.7 cm
Video I/O	1x HD15 VGA Input 1x HD15 VGA Output 1x HDMI Output
Media Card Slots	SD/SDHC

Sensor	1/3″ CMOS
Sensor Resolution	Effective: 13 Megapixel (4160 x 3120)
Zoom	100x
Aperture	f/2.8
Frame Rate	4160 x 3120 @ 30 fps 3840 x 2160 @ 30 fps 1920 x 1080 @ 30 fps
Output Resolution	4160 x 3120 3840 x 2160 1920 x 1080

Capture Area	16.5 x 11.7″ / 42 x 29.7 cm
Video I/O	1x HD15 VGA Input 1x HD15 VGA Output 1x HDMI Output
Audio I/O	No
Other I/O	1x USB-A 2.0
Media Card Slots	SD/SDHC
Storage Capacity	No

Built-In LED Lighting	11 (Head)
Built-In Mic	Yes
Focus Modes	Auto, Manual
Exposure Modes	Auto, Manual
Multi-Input Support (PIP/PBP)	Yes, Picture-in-Picture (PIP)
Remote Control	Yes

OS Compatibility

Chrome OS / Windows / macOS

Power Source	USB Bus-Powered Port
Input Power	12 VDC at 1 A

Certifications	RoHS, WEEE
Kensington Lock Slot	Yes
Dimensions	11.6 x 7.3 x 12.6″ / 295.0 x 185.0 x 320.0 mm (Folded)
Weight	2.4 lb / 1.1 kg

Package Weight	4.35 lb
Box Dimensions (LxWxH)	14.9 x 7.5 x 6.3″
