JBL Stage XD-6 Overview

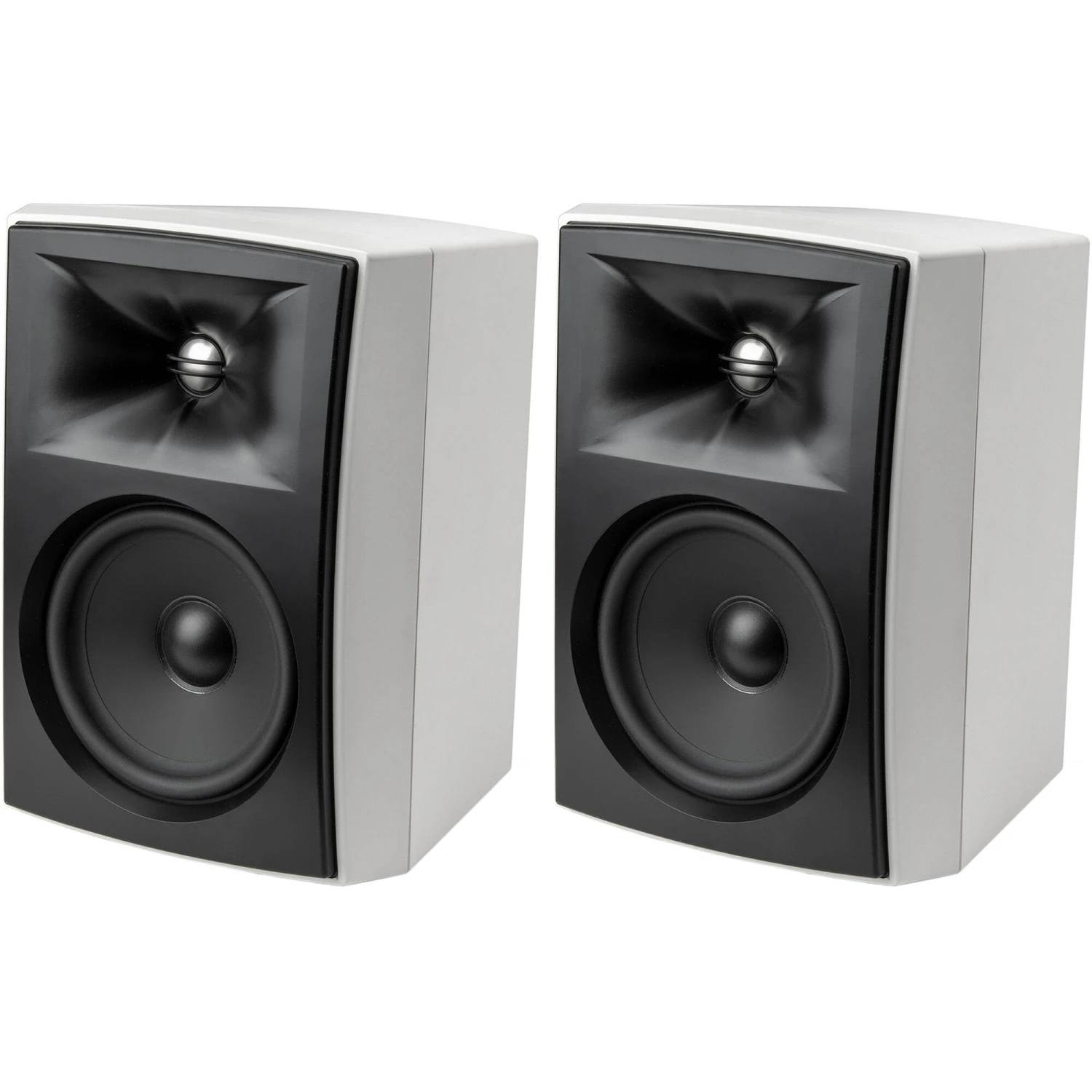

Designed with style and mounting flexibility, the white JBL Stage XD-6 is a pair of all-weather loudspeakers that are perfect for indoor or outdoor applications. The speaker can handle up to 100W of power to drive the 6.5″ polypropylene woofer and 1″ aluminum-dome tweeter, which offer a combined frequency response of 55 Hz to 25 kHz (-6 dB) and plenty of volume to fill your space.
The integrated acoustic lens and patented High-Definition Imaging (HDI) waveguide geometry ensure the sound is clear and accurate. The XD-6 includes two zero bezel grilles, four rubber feet, a grille removal tool, and two wall installation kits (mounting brackets).
- IP67 waterproof rating provides protection from the harshest of outdoor conditions

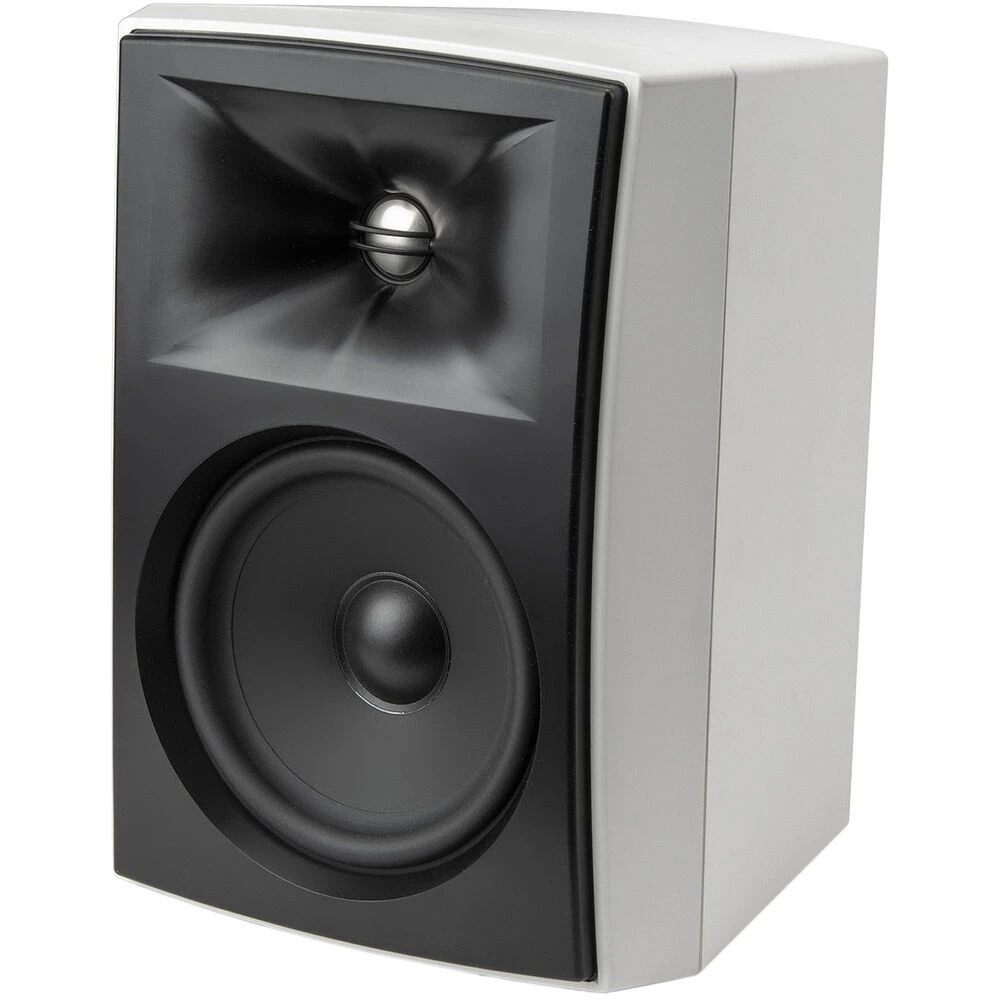

- Aluminum-dome tweeter with acoustic lens for smooth on- and off-axis frequency response
- High-Definition Imaging (HDI) waveguides with optimized geometry for smooth dispersion and low distortion

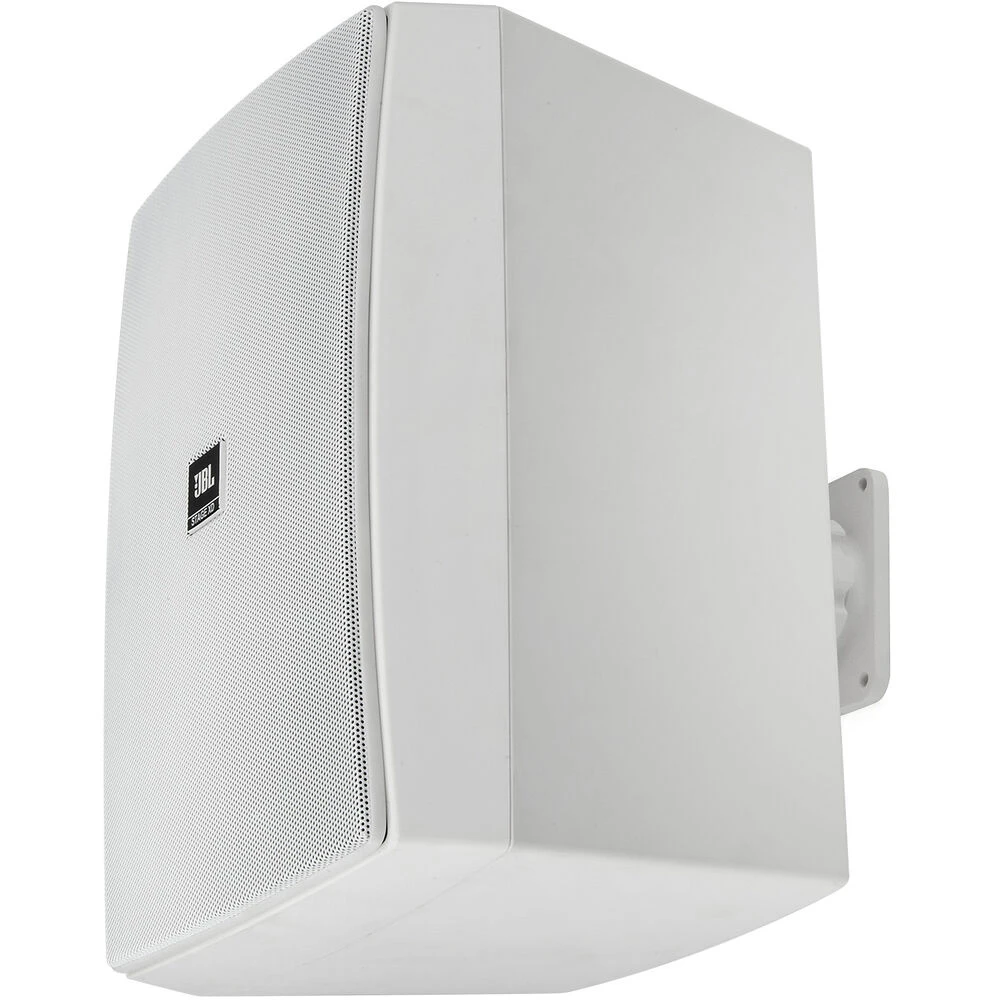

- Included wall-mount bracket allows for easy installation and angle adjustment
- Zero bezel magnetically attached grilles
- Rotatable logo for horizontal and vertical applications
- Sustainably designed packaging and product�the first repairable IP67 outdoor loudspeaker
Items Included
- JBL Stage XD-6 2-Way 6.5″ Indoor/Outdoor All-Weather Loudspeaker (White, Pair)
- 2 x Zero Bezel Grilles
- 4 x Rubber Feet
- Grille Removal Tool
- 2 x Wall Installation Kit (Mounting Bracket)
- Limited 5-Year Manufacturer Warranty (Electronics)
- Limited 2-Year Manufacturer Warranty (Enclosure)
Additional Resources
No additional resources available
JBL Stage XD-6 Specs
| Speaker Configuration |
2-Way |
| Power Handling |
20 to 100 W RMS |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter 1x 6.5″ / 165.1 mm Polypropylene Cone Woofer |
| Frequency Response |
55 Hz to 25 kHz (-6 dB) |
| Inputs/Outputs |

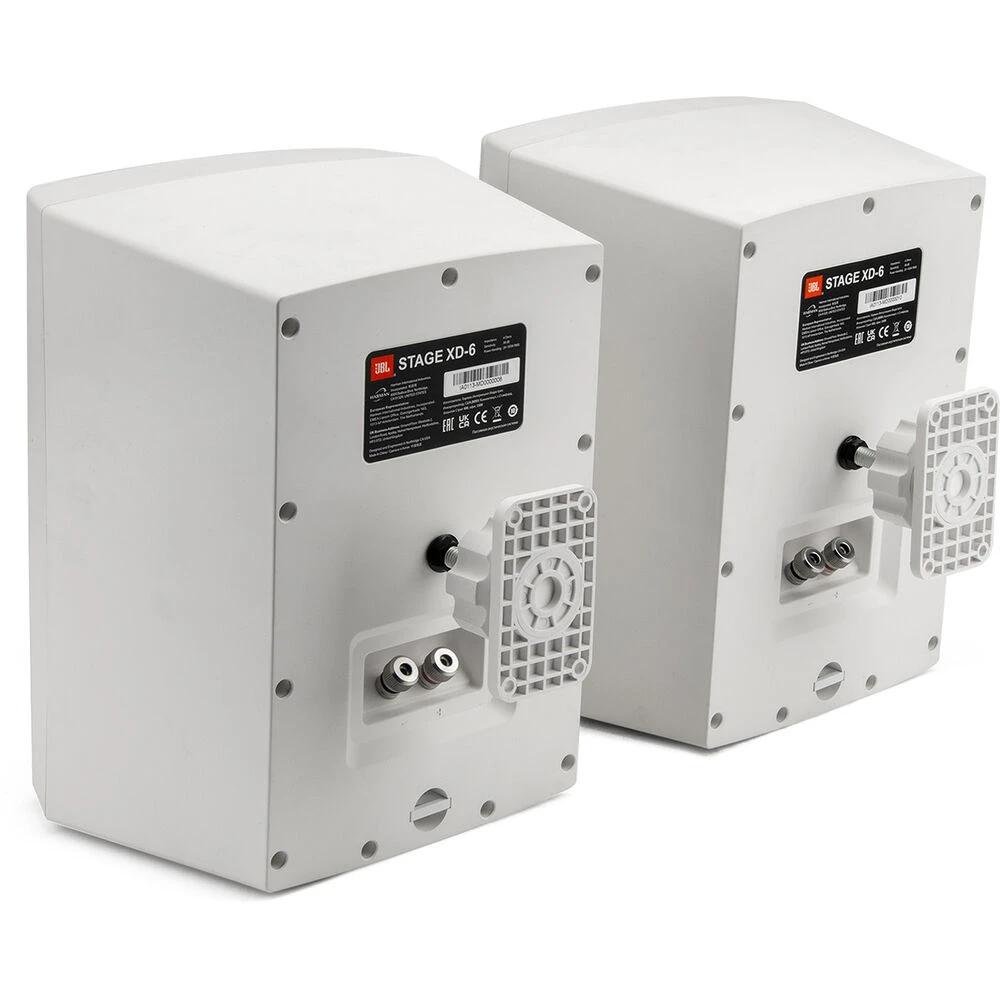

2x Spring Clip Pair Input |
| Speaker Configuration |
2-Way |
| Power Handling |
20 to 100 W RMS |
| Recommended Amplifier Power |
20 to 100 W RMS |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter 1x 6.5″ / 165.1 mm Polypropylene Cone Woofer |
| Passive Radiators |
No |
| Enclosure Type |
Sealed |
| Frequency Response |
55 Hz to 25 kHz (-6 dB) |
| Impedance |
6 Ohms |
| Inputs/Outputs |
2x Spring Clip Pair Input |
| Maximum Wire Gauge |
10 AWG |
| Crossover |
2.5 kHz |
| Sensitivity |
88 dB |
| Color |
White |
| Environmental Resistance |
Dust/Water-Resistant (IP67) |
| Placement & Mounting Options |
Wall-Mount (with Included Hardware) |
| Grille |
Perforated Metal (Removable) |
| Dimensions |
8.7 x 11.8 x 10.1″ / 22.1 x 30 x 25.7 cm |
| Weight |
2.9 lb / 1.3 kg |
| Package Weight |
18.28 lb |
| Box Dimensions (LxWxH) |
19.6 x 15.2 x 10.9″ |
