JBL Stage XD-5 Overview

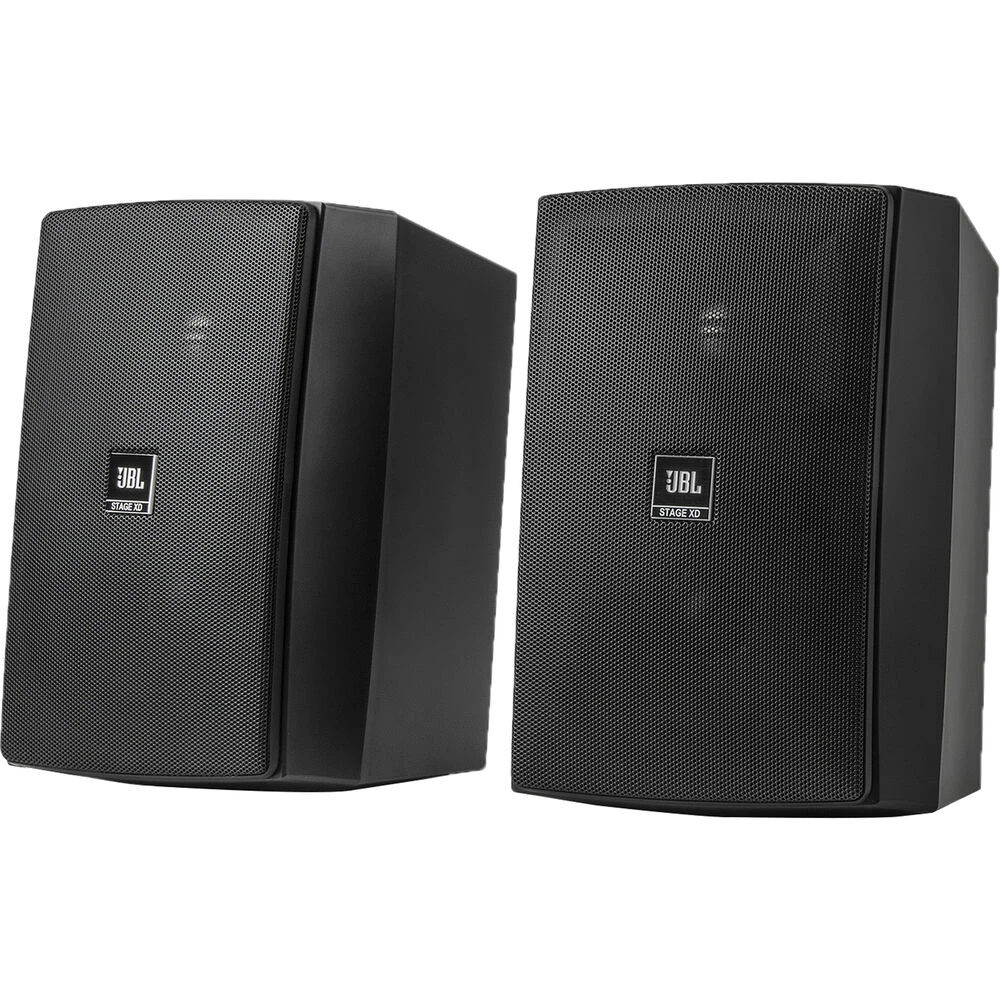

Designed with style and mounting flexibility, the black JBL Stage XD-5 is a pair of all-weather loudspeakers that are perfect for indoor or outdoor applications. The speaker can handle up to 100W of power to drive the 5.25″ polypropylene woofer and 1″ aluminum dome tweeter, which offer a combined frequency response of 75 Hz to 25 kHz (-6 dB), with plenty of volume to fill your space.
The integrated acoustic lens and patented High-Definition Imaging (HDI) waveguide geometry ensures the sound is clear and accurate. The XD-5 includes two zero bezel grilles, four rubber feet, a grille removal tool, and two wall installation kits (mounting brackets).
- IP67 waterproof rating provides protection from the harshest of outdoor conditions

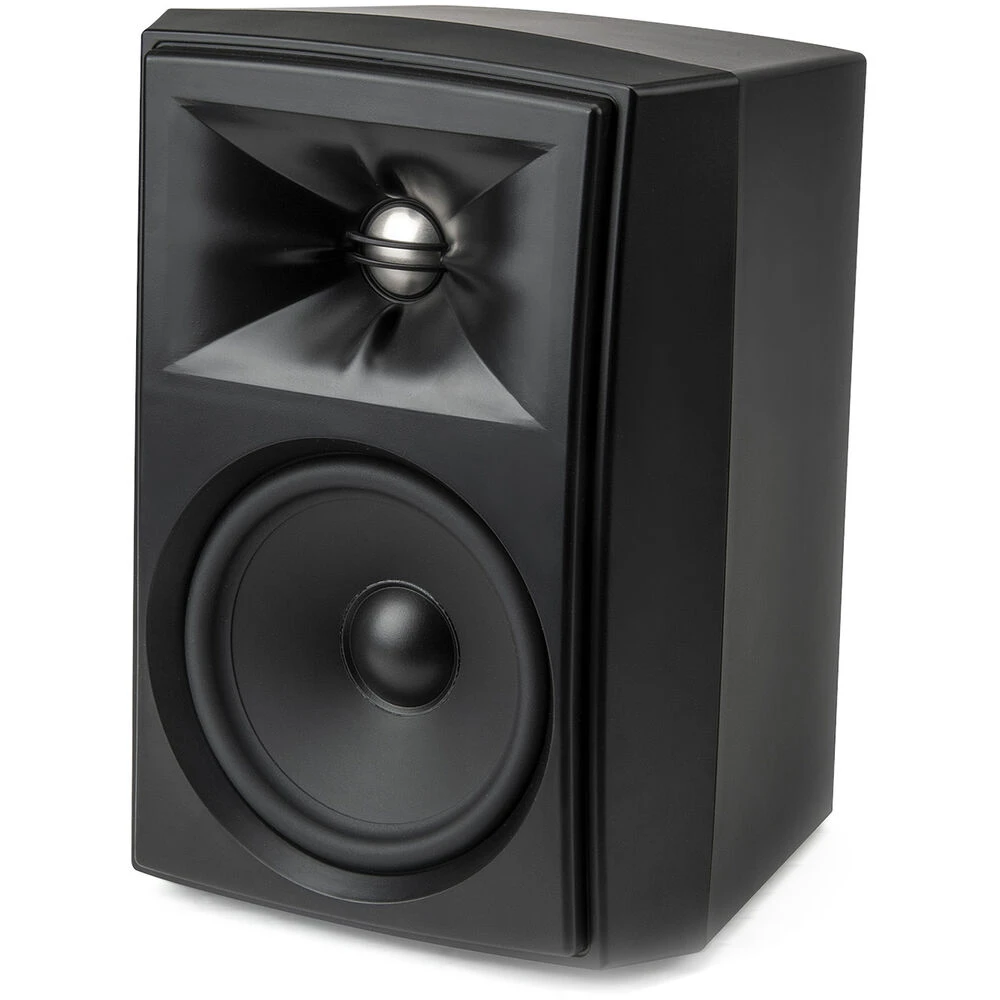

- Aluminum-dome tweeter with an acoustic lens for smooth on and off-axis frequency response
- High-Definition Imaging (HDI) waveguides with optimized geometry for smooth dispersion and low distortion
- Included wall-mount bracket allows for easy installation and angle adjustment
- Zero bezel magnetically attached grilles
- Rotatable logo for horizontal and vertical applications
- Sustainably designed packaging and product�the first repairable IP67 outdoor loudspeaker
Items Included
- JBL Stage XD-5 2-Way 5.25″ Indoor/Outdoor All-Weather Loudspeaker (Black, Pair)
- 2 x Zero Bezel Grilles
- 4 x Rubber Feet
- Grille Removal Tool
- 2 x Wall Installation Kit (Mounting Bracket)
- Limited 5-Year Manufacturer Warranty (Electronics)
- Limited 2-Year Manufacturer Warranty (Enclosure)
Additional Resources
No additional resources available
JBL Stage XD-5 Specs
| Speaker Configuration |
2-Way |
| Power Handling |
20 to 100 W RMS |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter 1x 5.25″ / 133.35 mm Polypropylene Cone Woofer |
| Frequency Response |
75 Hz to 25 kHz (-6 dB) |
| Inputs/Outputs |
2x Spring Clip Pair Input |
| Speaker Configuration |
2-Way |
| Power Handling |
20 to 100 W RMS |
| Recommended Amplifier Power |
20 to 100 W RMS |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter 1x 5.25″ / 133.35 mm Polypropylene Cone Woofer |
| Passive Radiators |
No |
| Enclosure Type |
Sealed |
| Frequency Response |
75 Hz to 25 kHz (-6 dB) |
| Impedance |
6 Ohms |
| Inputs/Outputs |
2x Spring Clip Pair Input |
| Maximum Wire Gauge |
10 AWG |
| Crossover |
2.5 kHz |
| Sensitivity |
86 dB |
| Color |
Black |
| Environmental Resistance |
Dust/Water-Resistant (IP67) |
| Placement & Mounting Options |
Wall-Mount (with Included Hardware) |
| Grille |
Perforated Metal (Removable) |
| Dimensions |
7 x 9.9 x 6.4″ / 17.8 x 25.1 x 16.3 cm |
| Weight |
2.3 lb / 1.0 kg |
| Package Weight |
13.865 lb |
| Box Dimensions (LxWxH) |
17 x 12.7 x 10.7″ |
