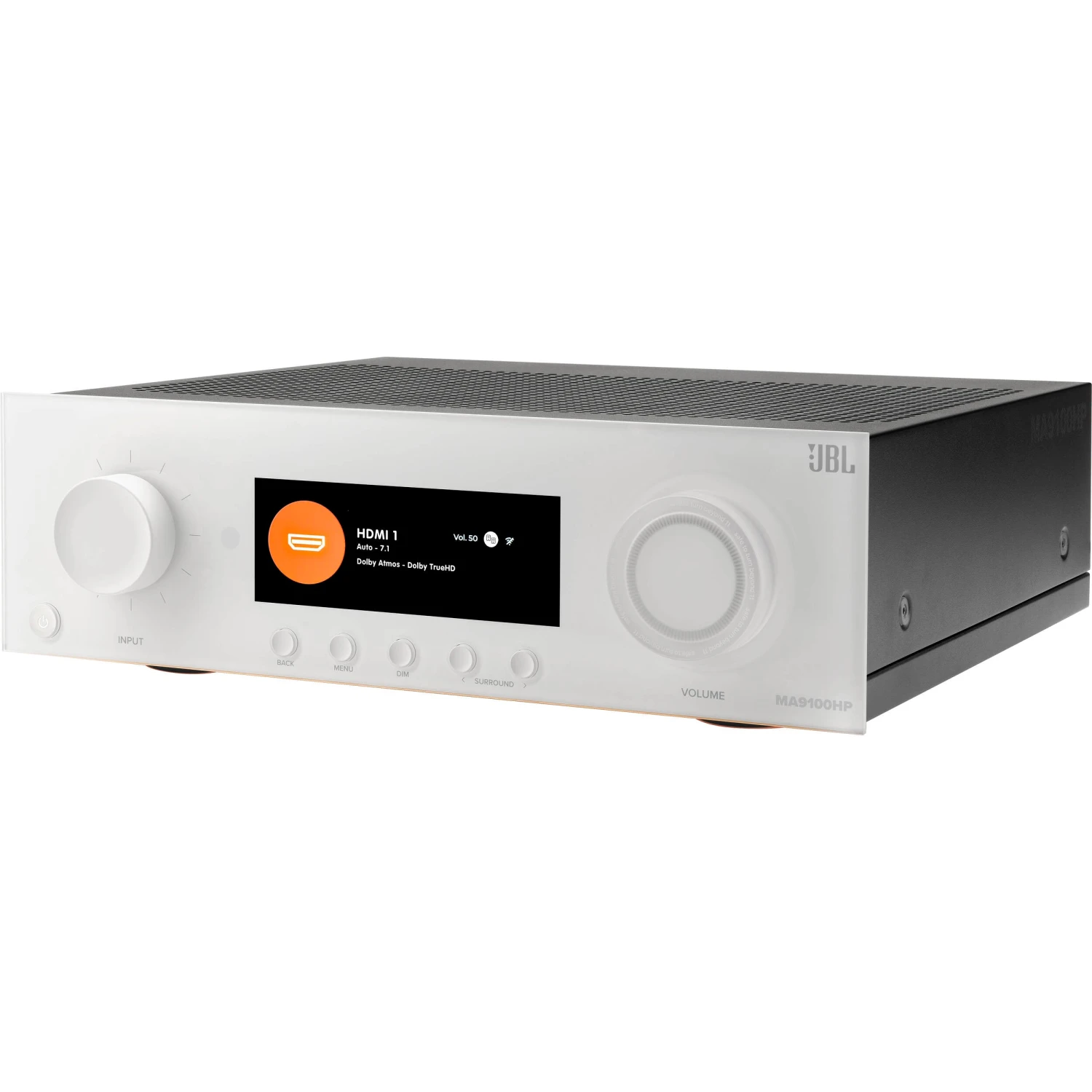

JBL MA9100HP 9.2-Channel Network A/V Receiver (White)(Jbl Ma9100hp 9 2 Channel Network A V Receiver White)

Create a movie theater atmosphere in your home with the
MA9100HP 9.2-Channel Network A/V Receiver from
JBL. Cinema fans looking to build a high-end home theater system will appreciate the white-colored MA9100HP’s ability to output at 8K60 and 4K120 resolutions as well as support 9.2-channel audio. With Dolby Atmos and DTS:X decoding, there’s even flexibility for connecting either 7.1.2 or 5.1.4 speaker configurations. Music lovers can stream from almost anywhere, thanks to Bluetooth aptX Adaptive for mobile devices and support for online services via dual-band Wi-Fi or Gigabit Ethernet connectivity. For the gamers in the family, specific technologies are available for achieving smooth frame rates. All of this content can be enjoyed in your theater or living room, or in a secondary location, thanks to Zone 2 audio out and a second HDMI output.

Dirac Live Ready

You have the option of using Dirac Live to optimize sound specifically for your room. The MA7100HP is Dirac Live Ready, which requires the purchase of a license to activate it.

Additional Features

• HDR10+ and Dolby Vision
• Apple AirPlay 2 and Google Chromecast support
• VRR, ALLM, QFT, and HFR at 4K120 gaming features
• 6 x HDMI inputs and 2 x HDMI outputs
• eARC support for one HDMI output
• Dual subwoofer outputs
• Phono input for turntable connection
• Low-noise Class-D amplification
• EZ Set EQ room equalization for optimized sound quality
• Supports IP control from third-party control systems

JBL MA9100 Specs

Channels	9.2 Object-Based Configuration: 7.1.2 Object-Based Configuration: 5.1.4
Power Output per Channel	140 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 140 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 240 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)
DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
Rear A/V Inputs	6x HDMI 2.1 1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw
Front I/O	No
Wi-Fi	Yes
Bluetooth	5.3 LE

Channels	9.2 Object-Based Configuration: 7.1.2 Object-Based Configuration: 5.1.4
Amplifier Class	Class-D
Power Output per Channel	140 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 140 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 240 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)

DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
Auro 3D Support	No
Supported File Formats	AAC, MP3

HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
GUI	Yes

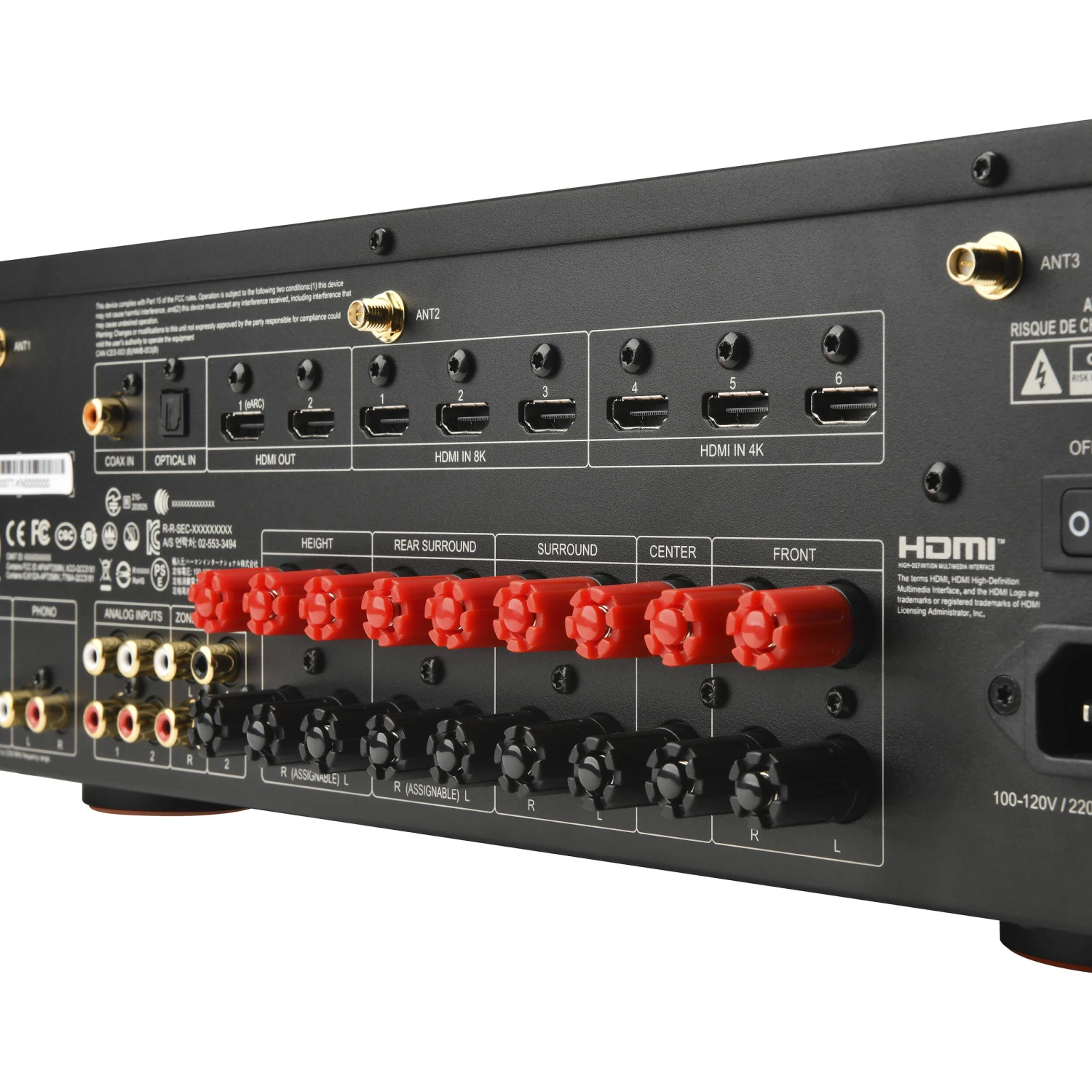

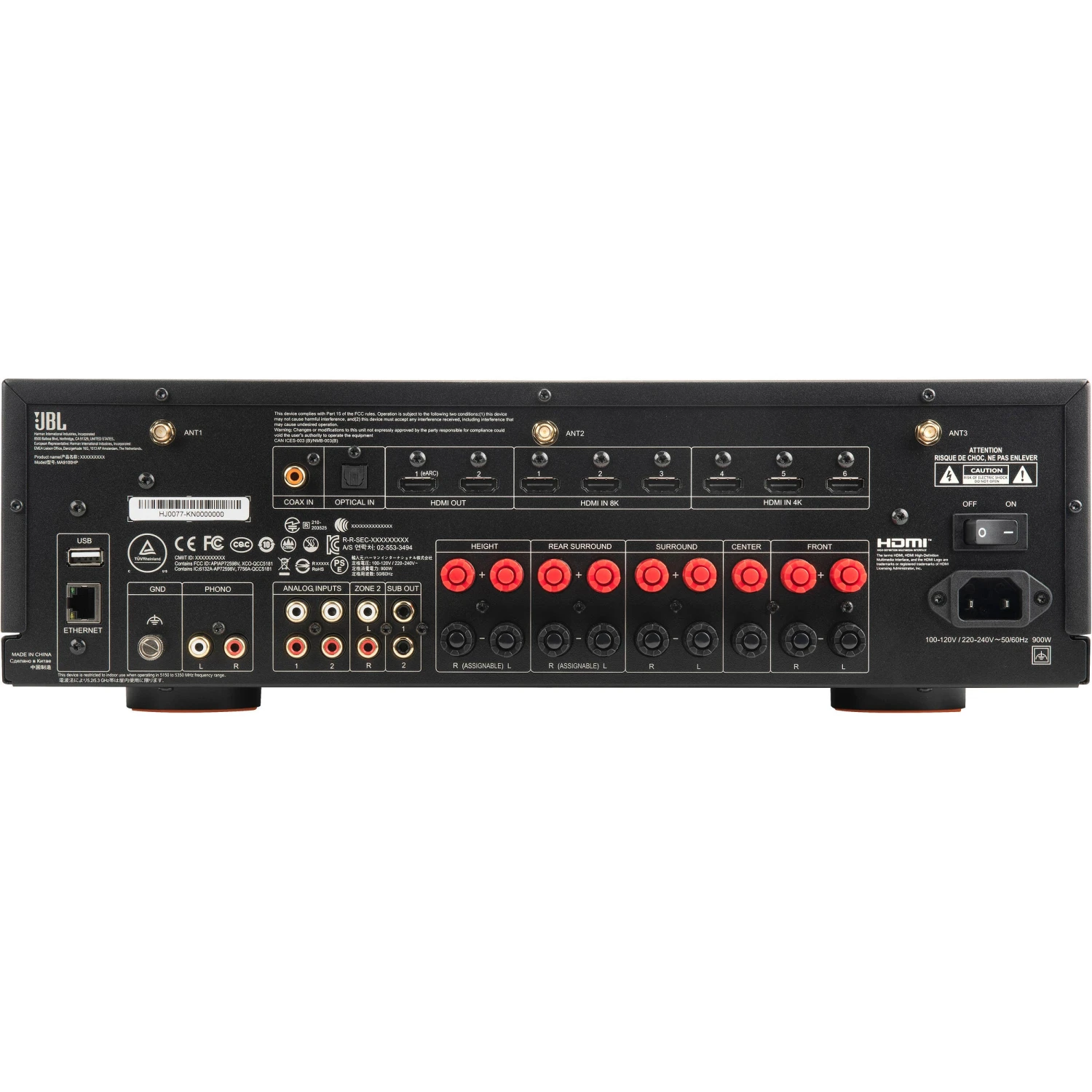

Rear A/V Inputs	6x HDMI 2.1 1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA 1x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs	2x HDMI 2.1 1x Stereo RCA Zone 2 2x RCA Subwoofer
Front I/O	No

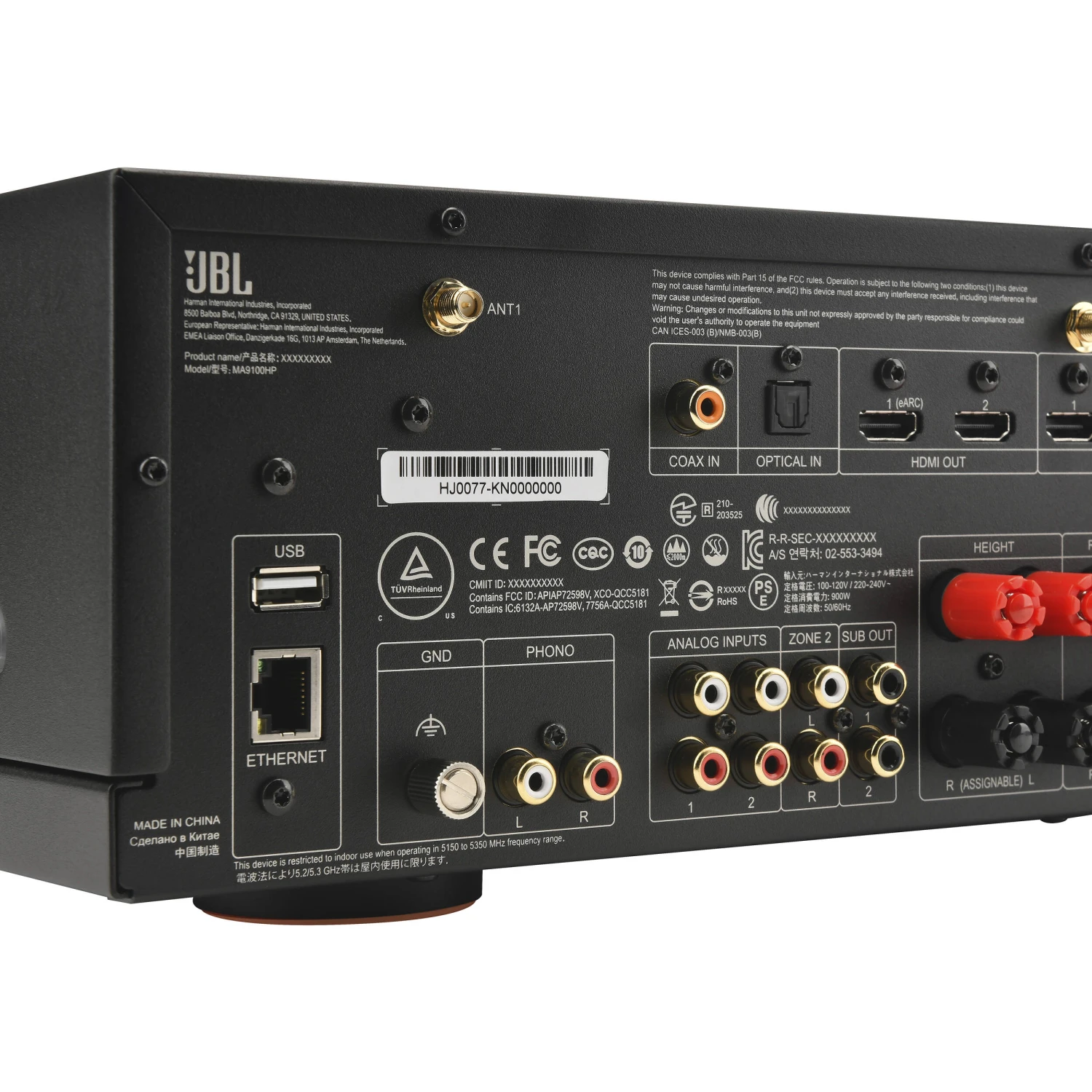

Other Rear I/O	3x Bluetooth/Wi-Fi Coaxial F-Type 1x USB-A 1x RJ45 (Ethernet)
Speaker I/O	9x Binding Post Pairs (Front, Center, Height, Rear, Rear Surround)
HDCP Support	Yes, Version 2.3
HDMI Compression Modes	Not Specified by Manufacturer
Audio Return Channel (ARC)	eARC
HDMI CEC	Yes
Bi-Amp Capability	Yes

Wi-Fi	Yes
Bluetooth	5.3 LE
Wireless Audio Protocols	AirPlay 2, Chromecast built-in

Mobile App Compatible

No

Input Power	110 to 240 VAC, 50 / 60 Hz
Power Consumption	Maximum: 900 W Standby: 0.5 W

Dimensions (W x H x D)	17.0 x 5.3 x 15.6″ / 432.0 x 135.0 x 396.4 mm
Weight	16.8 lb / 7.6 kg

Package Weight	23.74 lb
Box Dimensions (LxWxH)	20.8 x 19.3 x 10.4″
