JBL MA7100HP 7.2-Channel Network A/V Receiver (White)(Jbl Ma7100hp 7 2 Channel Network A V Receiver White)

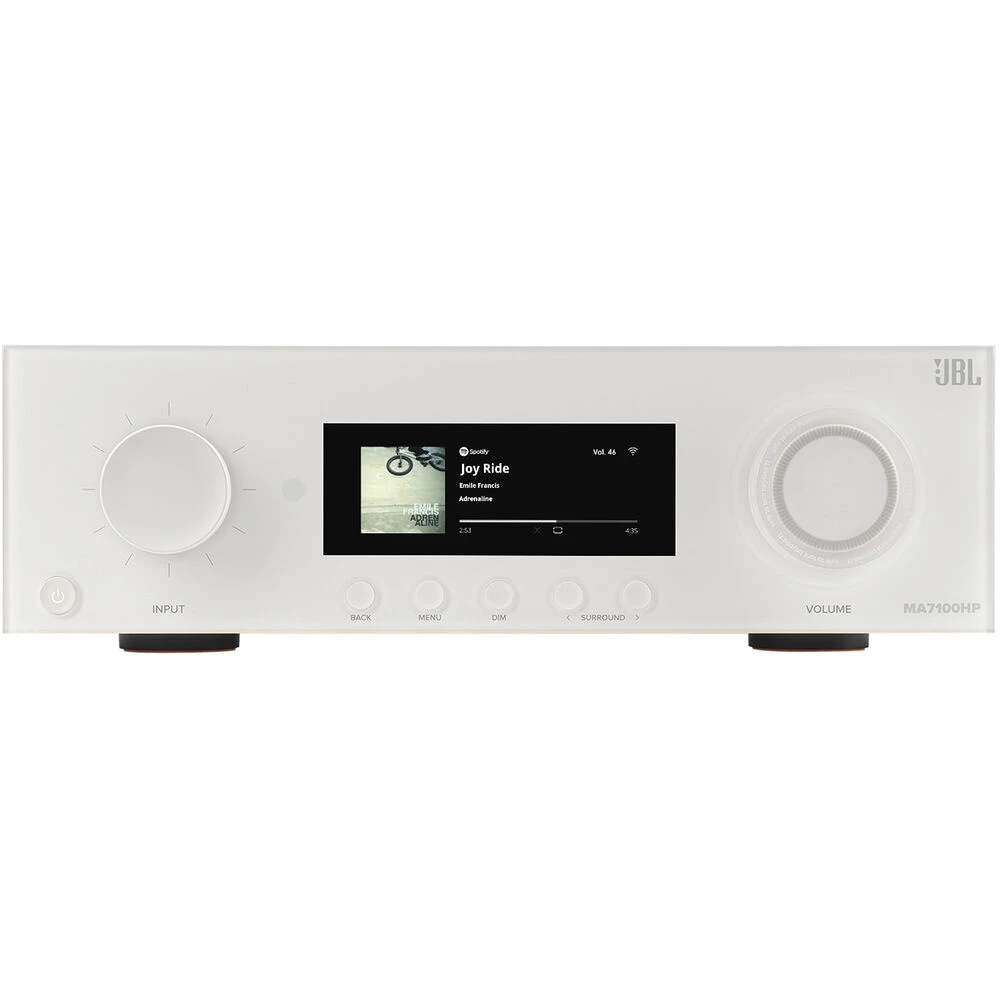

Fill your home with music and create a cinema atmosphere with the white-colored
MA7100HP 7.2-Channel Network A/V Receiver from
JBL at the heart of your home entertainment center. For movies, the MA7100HP supports multiple speaker configurations, such as 7.2, 7.1, and 5.1.2, thanks to its ability to decode Dolby Atmos and DTS:X soundtracks with object-based positioning. Hook up your Blu-ray player, gaming console, streaming box, and other components to the receiver’s six HDMI inputs, which can output 8K60 or 4K120 resolution. When using the MA7100HP to play music through your system, you can choose from mobile Bluetooth or home network streaming over Gigabit Ethernet or dual-band Wi-Fi. Control it all using the included remote or from the sleek, minimalist control panel with a full-color digital display.

Two-Way Bluetooth

In addition to being able to receive and playback Bluetooth audio streams from your mobile devices, the MA7100HP can also transmit audio via Bluetooth to an optional pair of wireless headphones.

Dirac Live Ready

You have the option of using Dirac Live to optimize sound specifically for your room. The MA7100HP is Dirac Live Ready, which requires the purchase of a license to activate it.

Additional Features

• HDR10+ and Dolby Vision
• 2 x HDMI outputs and eARC support
• Phono input for turntable connection
• Dual subwoofer outputs
• Apple AirPlay 2 and Google Chromecast support
• EZ Set Q room equalization
• Low-noise Class-D amplification

JBL MA7100HP Specs

Channels	7.2 7.1 Object-Based Configuration: 5.1.2
Power Output per Channel	125 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 125 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 175 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)
DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
Rear A/V Inputs	6x HDMI 2.1 1x Optical TOSLINK 1x Digital Coaxial 1x Stereo RCA (Phono) with Ground Screw 2x Stereo RCA
Front I/O	No
Wi-Fi	Yes
Bluetooth	5.3 LE

Channels	7.2 7.1 Object-Based Configuration: 5.1.2
Amplifier Class	Class-D
Power Output per Channel	125 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 125 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 175 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)

DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
Auro 3D Support	No
Supported File Formats	AAC, MP3

HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
GUI	Yes

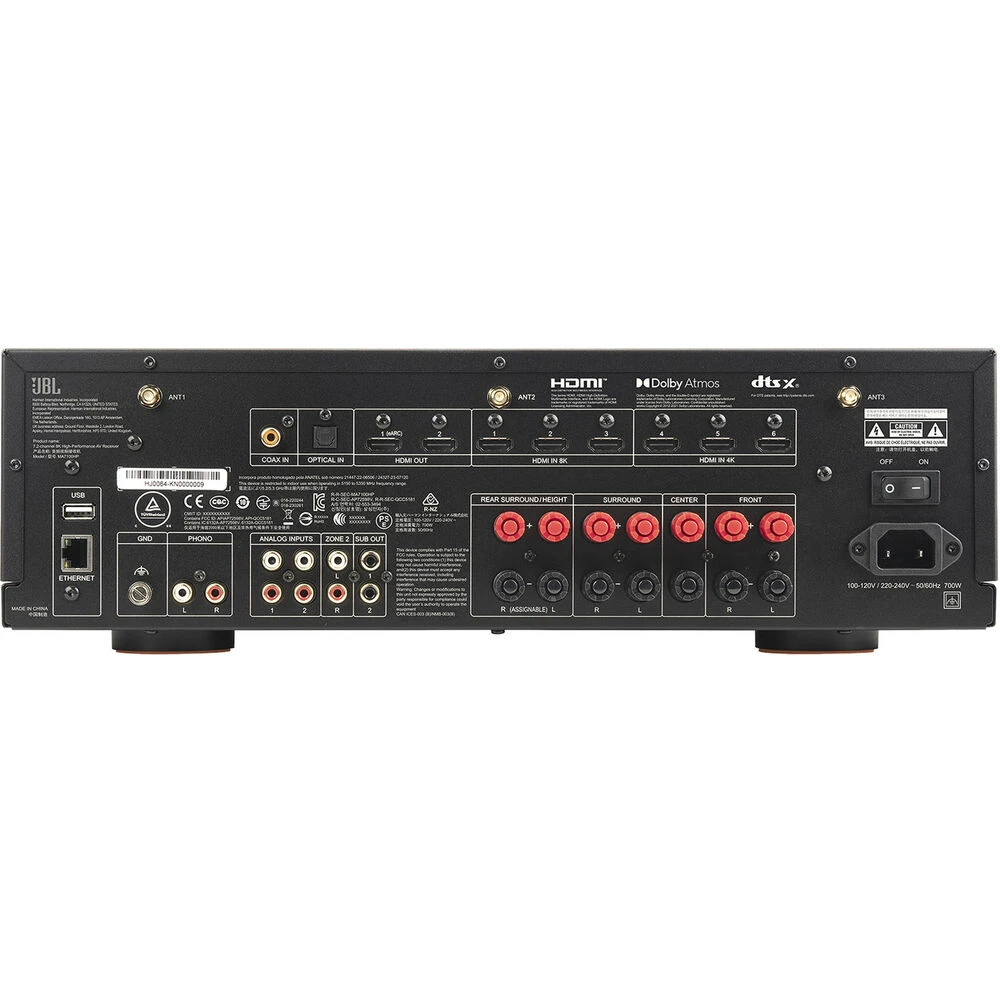

Rear A/V Inputs	6x HDMI 2.1 1x Optical TOSLINK 1x Digital Coaxial 1x Stereo RCA (Phono) with Ground Screw 2x Stereo RCA
Rear A/V Outputs	1x Stereo RCA Zone 2 2x RCA Subwoofer
Front I/O	No
Other Rear I/O	3x Bluetooth/Wi-Fi Coaxial F-Type 1x USB-A 1x RJ45 (Ethernet)
Speaker I/O	7x Binding Post Pairs (Front, Center, Height, Rear Surround)
HDCP Support	Yes, Version 2.3
HDMI Compression Modes	Not Specified by Manufacturer
Audio Return Channel (ARC)	eARC
HDMI CEC	Yes
Bi-Amp Capability	Yes

Wi-Fi	Yes
Bluetooth	5.3 LE
Supported Audio Codecs	aptX Adaptive, aptX HD
Wireless Audio Protocols	AirPlay 2, Chromecast built-in

Mobile App Compatible

No

Input Power	110 to 240 VAC, 50 / 60 Hz
Power Consumption	Maximum: 700 W Standby: 0.5 W

Dimensions (W x H x D)	17.0 x 5.3 x 15.6″ / 432.0 x 135.0 x 396.4 mm
Weight	16.3 lb / 7.4 kg

Package Weight	23.425 lb
Box Dimensions (LxWxH)	20.9 x 19 x 11″
