JBL MA710 7.2-Channel Network A/V Receiver (Black)(Jbl Ma710 7 2 Channel Network A V Receiver Black)

From the latest in cinema, gaming, and streaming, to the vintage warmth of vinyl, the black-colored
MA710 7.2-Channel Network A/V Receiver from
JBL has your home’s entertainment covered. Built a home theater system around the MA710 and enjoy support for 7.2-channel, 7.1-channel, or 5.1.2-channel speaker configurations, thanks to its ability to decode Dolby Atmos & DTS:X signals. Even gamers will benefit from the MA710 as it supports various technologies for smooth framerates. Music can be streamed through the MA710 using your mobile device over Bluetooth, or from your personal library or favorite service using Gigabit Ethernet and dual-band Wi-Fi network access. It even has a moving magnet phono input for connecting a turntable and spinning your record collection.

Additional Features

• HDR10+ and Dolby Vision
• Zone 2 output for sending audio to a second location
• Apple AirPlay 2 and Google Chromecast support
• VRR, ALLM, QFT, and HFR at 4K120 gaming features
• 6 x HDMI inputs and 1 x HDMI eARC output
• Dual subwoofer outputs
• EZ Set EQ room equalization for optimized sound quality
• Easy on-screen setup and operation via HDMI
• Supports IP control from third party control systems

JBL MA710 Specs

Channels	7.2 7.1 Object-Based Configuration: 5.1.2
Power Output per Channel	110 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 110 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 160 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)
DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
Rear A/V Inputs	6x HDMI 1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA 1x Stereo RCA (Phono MM) with Ground Screw
Front I/O	No
Wi-Fi	Yes
Bluetooth	5.3 LE

Channels	7.2 7.1 Object-Based Configuration: 5.1.2
Amplifier Class	Class-D
Power Output per Channel	110 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 110 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 160 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS)

DTS Compatibility	DTS:X
Dolby Compatibility	Dolby Atmos
Auro 3D Support	No
Supported File Formats	AAC, MP3

HDR Support	Yes, HDR10+/Dolby Vision
Pass-Through Support	Not Specified by Manufacturer
Upscaling	No
GUI	Yes

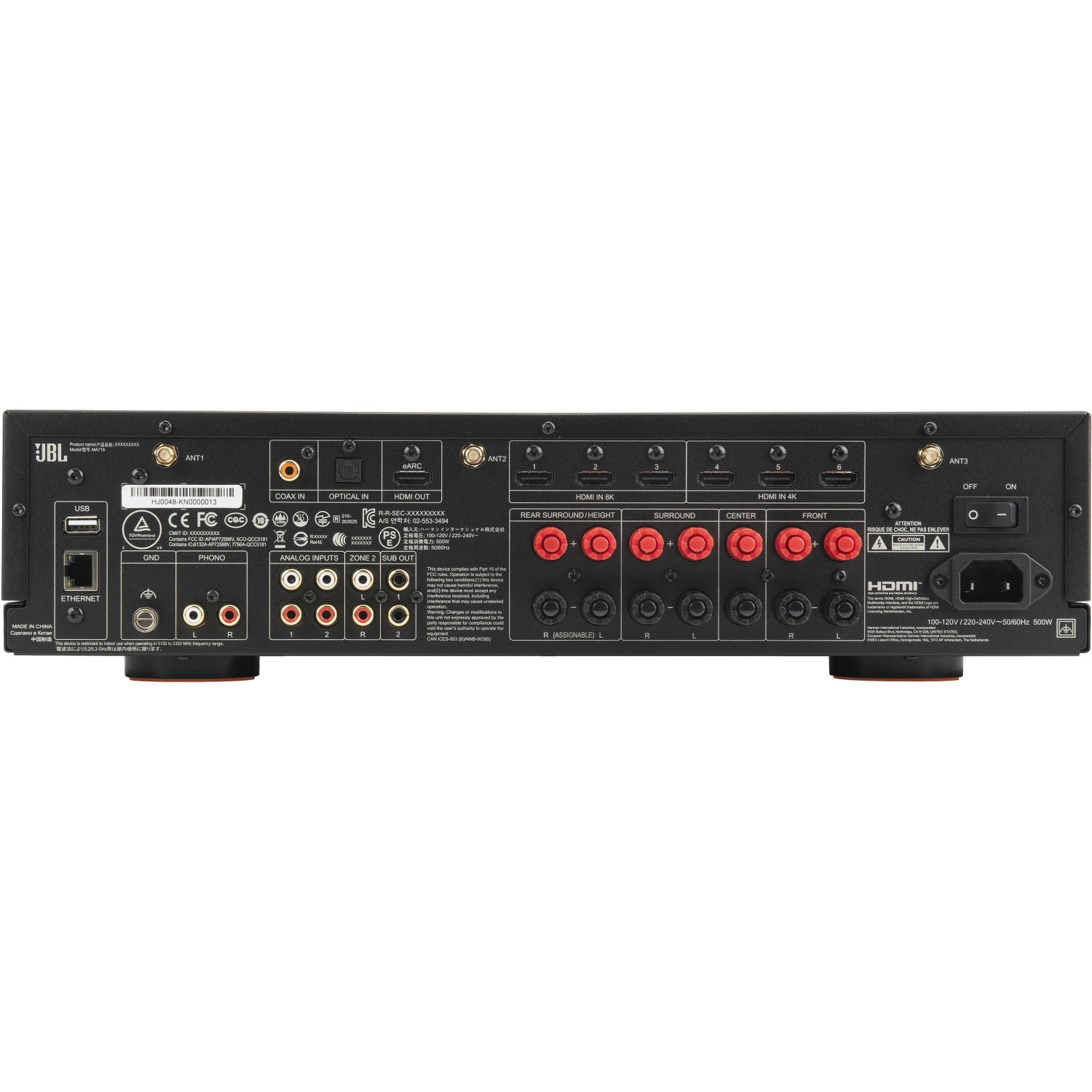

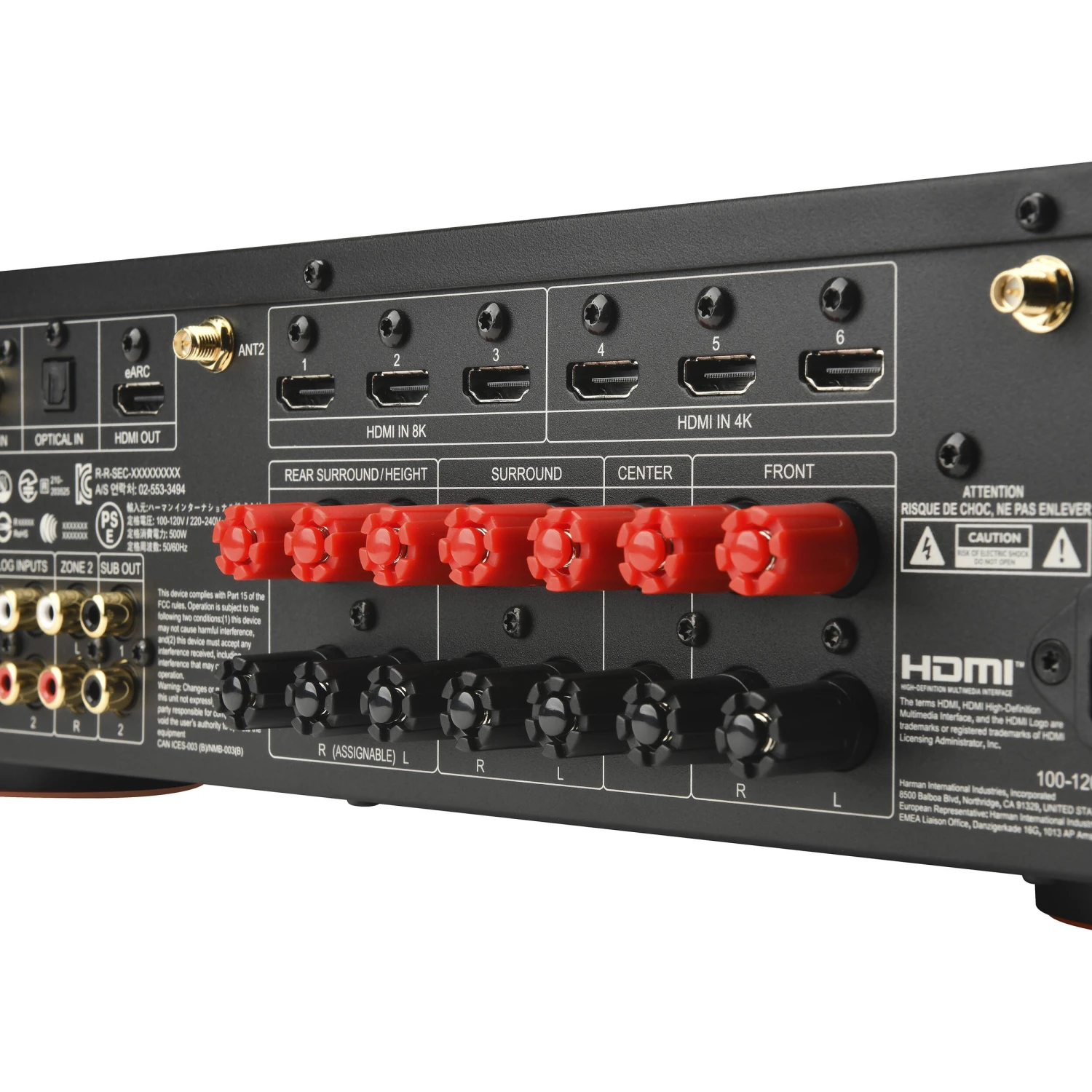

Rear A/V Inputs	6x HDMI 1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA 1x Stereo RCA (Phono MM) with Ground Screw
Rear A/V Outputs	1x HDMI 1x Stereo RCA Zone 2 2x RCA Subwoofer
Front I/O	No
Other Rear I/O	1x USB-A 1x RJ45 (Ethernet) 3x Bluetooth/Wi-Fi Coaxial F-Type
Speaker I/O	7x Binding Post Pairs (Front, Center, Height, Rear Surround)
HDCP Support	Yes, Version 2.3
HDMI Compression Modes	Not Specified by Manufacturer
Audio Return Channel (ARC)	eARC
HDMI CEC	Yes
Bi-Amp Capability	Yes

Wi-Fi	Yes
Bluetooth	5.3 LE
Supported Audio Codecs	AAC, aptX Adaptive, aptX HD
Wireless Audio Protocols	AirPlay 2, Chromecast built-in

Mobile App Compatible

No

Input Power	110 to 240 VAC, 50 / 60 Hz
Power Consumption	Maximum: 500 W Standby: 0.5 W

Dimensions (W x H x D)	17.0 x 4.3 x 13.7″ / 432.0 x 109.2 x 347.6 mm
Weight	13.9 lb / 6.3 kg

Package Weight	19.225 lb
Box Dimensions (LxWxH)	20.7 x 17.2 x 8.9″
