j5create ULTRADRIVEMINIDOCK Overview
- 1Description
- 2Designed to Sit Flush Against Microsoft Surface Pro 7
- 3MicroSD and SD UHS-I Ports
- 44k HDMI Port
- 5USB-C Gen 2 Data and Power Delivery
- 6Plug-and-Play Installation
Expand the connectivity of your Microsoft Surface Pro 7 with the Ultra Drive Minidock for Surface Pro 7 from j5create. Designed specifically for the Microsoft Surface Pro 7, this dock features two USB Type-A 3.1 Gen 2 ports capable of 10 Gb/s transfer speeds, allowing for quick transfer of files between any USB device, such as external hard drives. In addition, there is also a USB 3.1 Gen 2 Type-C port with 60W power delivery and data transfer for external devices. The Ultra Drive Minidock also features a SD and microSD card reader and writer for transferring photos, videos, and more. The HDMI output scales up to 4k viewing with compatible monitors and televisions.

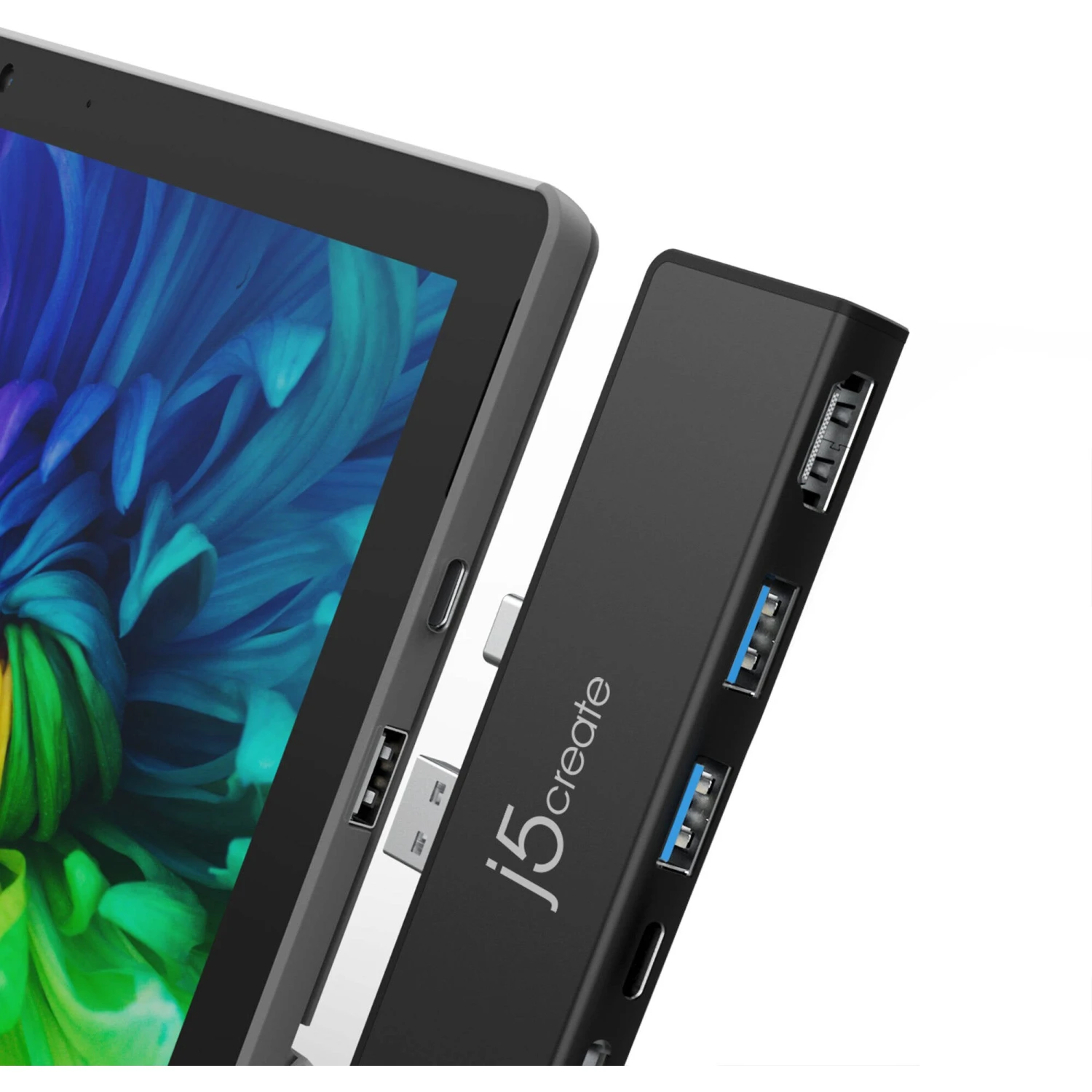

Designed to Sit Flush Against Microsoft Surface Pro 7
MicroSD and SD UHS-I Ports

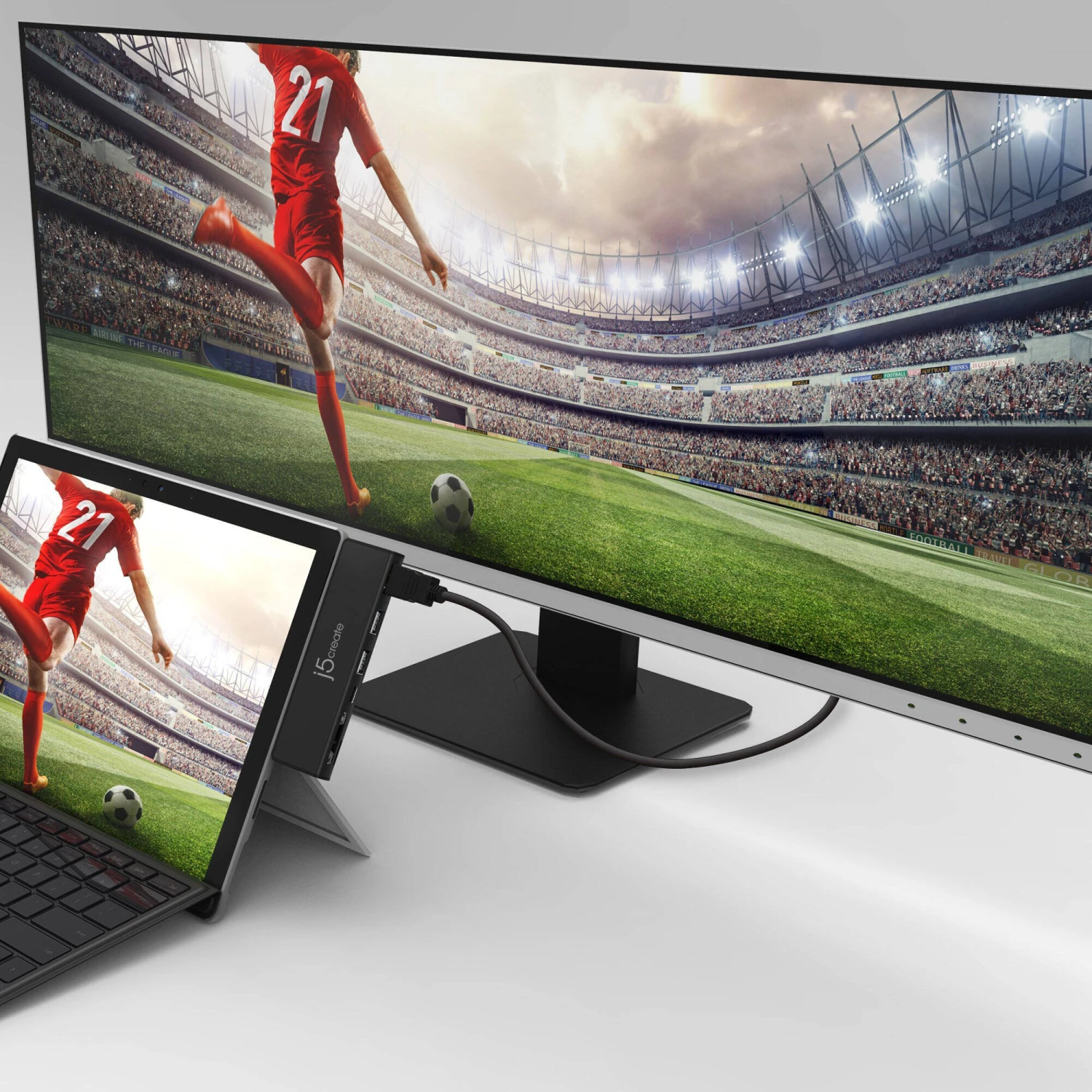

4k HDMI Port
USB-C Gen 2 Data and Power Delivery
Plug-and-Play Installation
In the Box
- j5create Ultra Drive Minidock for Surface Pro 7 (Black)
- Limited 2-Year Warranty
- Description
- Designed to Sit Flush Against Microsoft Surface Pro 7
- MicroSD and SD UHS-I Ports
- 4k HDMI Port
- USB-C Gen 2 Data and Power Delivery
- Plug-and-Play Installation
j5create ULTRADRIVEMINIDOCK Specs
| USB | 2 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C |
| Thunderbolt | None |
| Ethernet | None |
| FireWire | None |
| Display | 1 x HDMI |
| Audio | None |
| Memory Card Slots | 1 x microSD (Unspecified Type) 1 x SD (Unspecified Type) (UHS-I [104 MB/s]) |
| System Connection | 1 x USB 3.1 / USB 3.2 Gen 2 Type-C Male 1 x USB (Unspecified Version) Type-A Male |
| Connection Type | Detachable Cable |
| Interface Max Data Rate | 10 Gb/s |
| Number of Displays Supported | 1 |
| Maximum Resolution Supported | 3840 x 2160 |
| Compatibility | Microsoft Surface Pro 7 |
| Operating System Support | Windows |
| UASP Support | No |
| Power Source | Bus Powered |
| Maximum Power Consumption | 0.4 W (Bus Power) |
| Total Current Output | 3 A |
| Operating Temperature | 116°F / 46°C |
| Operating Humidity | 85% (Non-Condensing) |
| Storage Temperature | 155°F / 68°C |
| Storage Humidity | 85% |
| Enclosure Material | Aluminum |
| Lock Slot | No |
| Dimensions | 4.65 x 1.44 x 0.37″ / 118.11 x 36.58 x 9.4 mm |
| Weight | 1.68 oz / 48 g |
| Package Weight | 0.205 lb |
| Box Dimensions (LxWxH) | 6.15 x 3.8 x 1.35″ |
