j5create ScreenCast Overview

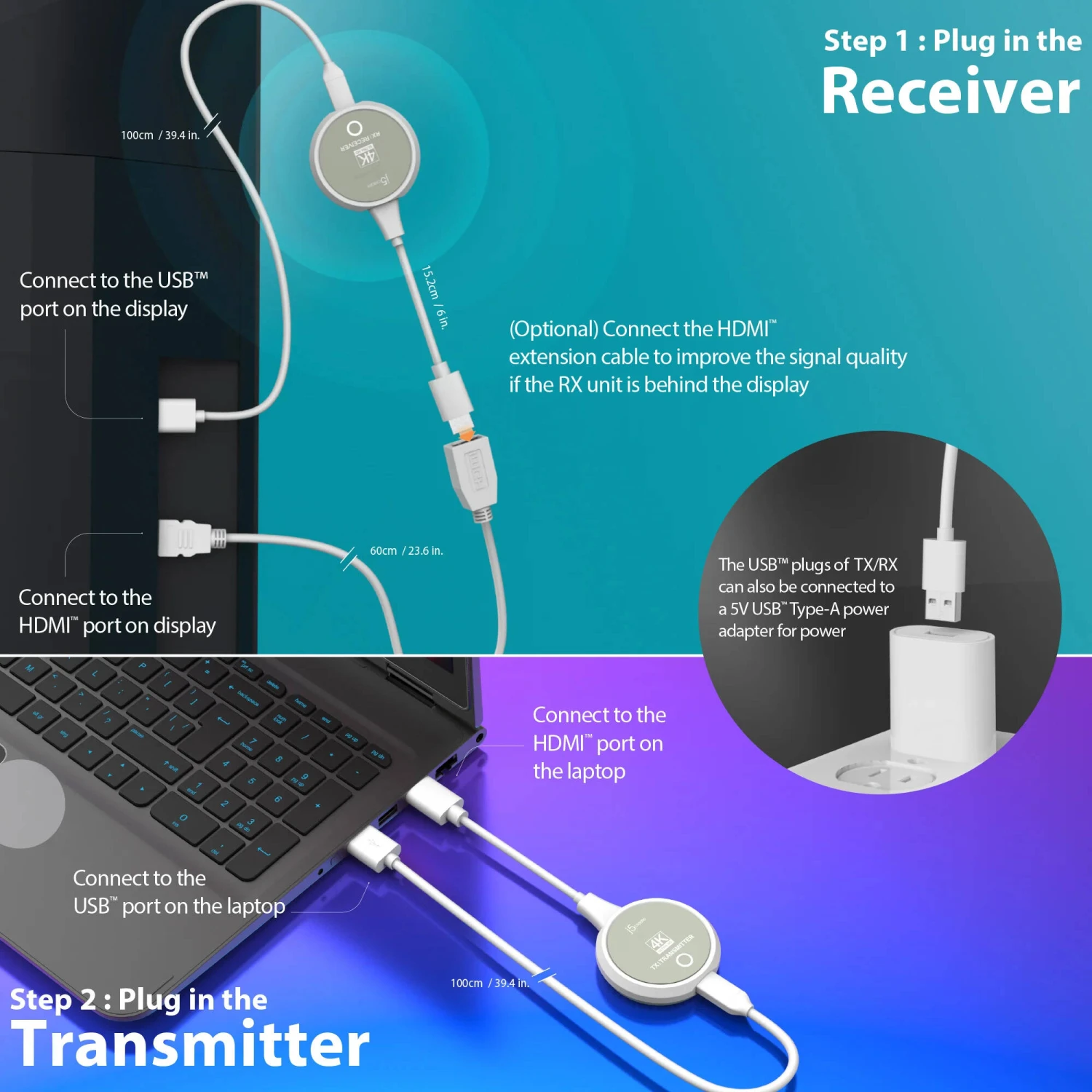

Wirelessly share up to UHD 4K video from your mobile device or computer to a TV or larger display with the j5create ScreenCast UHD 4K Wireless Display HDMI Extender. The extender system features a receiver unit and a transmitter unit, both with HDMI and USB-C connectivity. To facilitate setup, connect your receiver to your display of choice via USB-C to USB-A power cable. You can even improve the signal quality with the HDMI extension cable if your receiver is behind the display. The unit then receives video via dual-band 2.4/5 GHz wireless from a range of 32.3 to 98.4′ away from the transmitter unit, which connects to the HDMI and USB ports on your laptop. Both units are powered via USB-C via the included power cables and are compatible with Miracast, AirPlay, and Google Chromecast.
Items Included

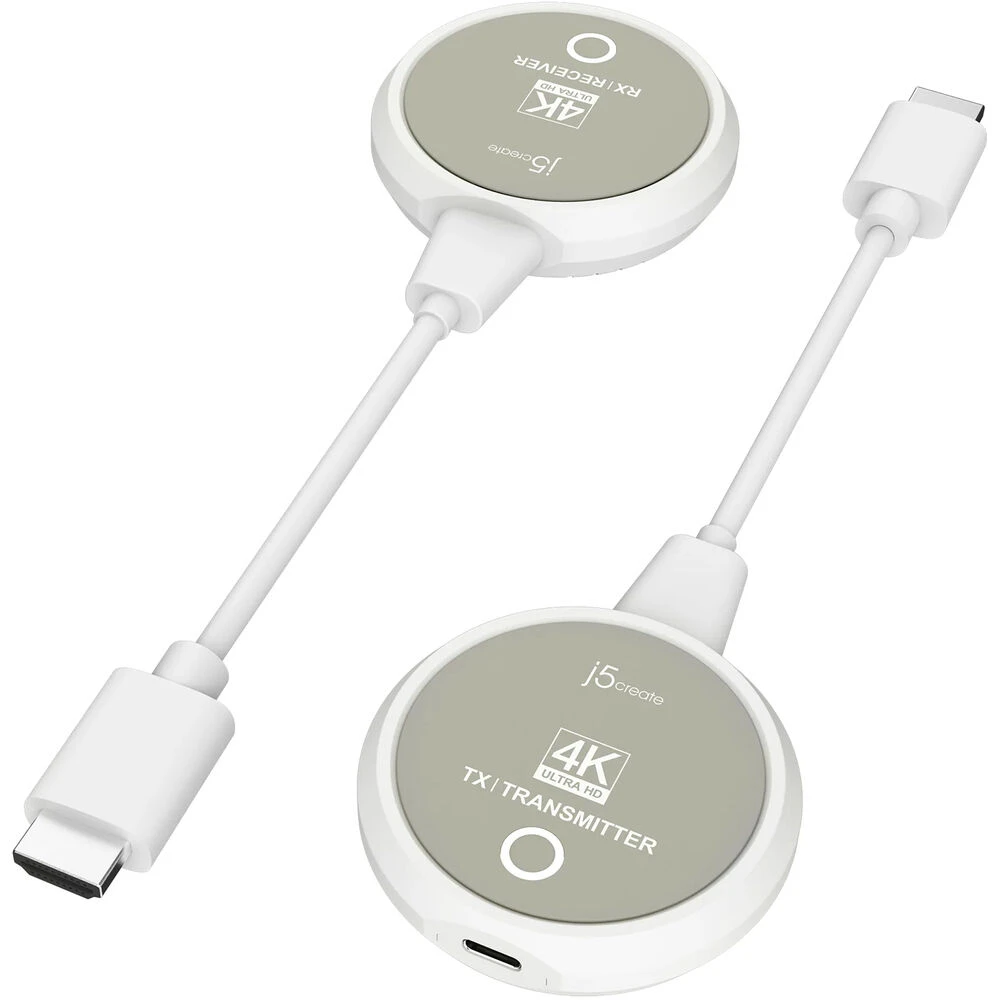

- j5create ScreenCast UHD 4K Wireless Display HDMI Extender

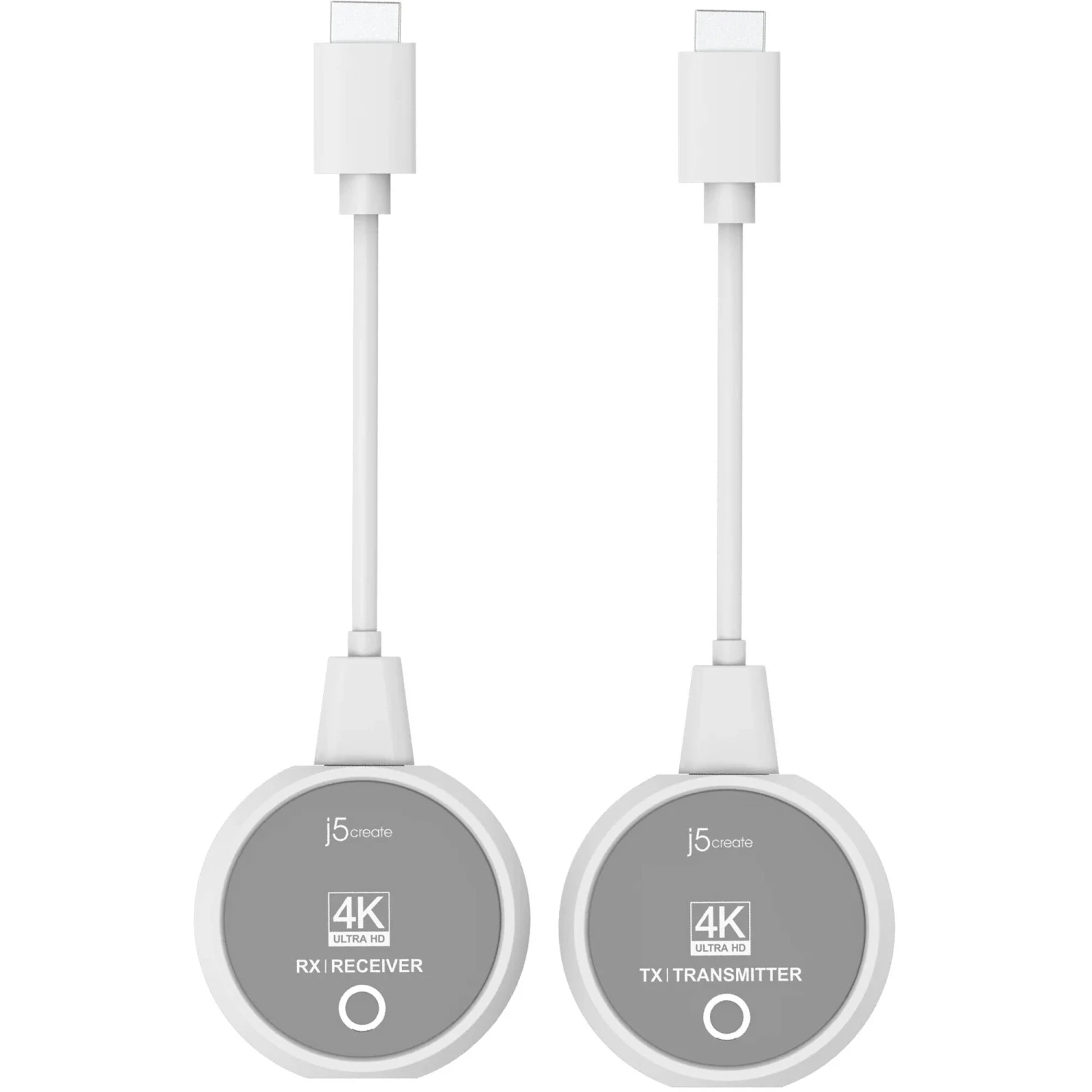

- Transmitter
- Receiver
- 2 x USB-C to USB-A Power Cable (3.3′)
- HDMI Extension Cable (2′)
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
4.9 MB
j5create ScreenCast Specs
| USB I/O |
2 x USB-C Female Input |
| Video I/O |
1x HDMI Input 1x HDMI Output |
| Wireless |
2.4 GHz Radio/RF / 5.8 GHz Radio/RF *Built-In |
| Security |
WPA2 |
| Wireless Range |
32.8 to 98.4′ / 10 to 30 m |
| Supported Resolutions |
UHD 4K at 30 Hz 1920 x 1080 at 60 Hz 1280 x 720 at 60 Hz |
| Power Source |
USB |
| Color |
White / Gray |
| Material of Construction |
Plastic |
| Cable Length |
3.3′ / 100 cm (USB) 2′ / 60 cm (HDMI) |
| Dimensions |
2.6 x 2.4 x 0.7″ / 66 x 61.5 x 17 mm (per Unit) |
| Weight |
2.2 oz / 63 g |
| Package Weight |
0.725 lb |
| Box Dimensions (LxWxH) |
8.55 x 5 x 1.75″ |
