j5create JCD620 Overview

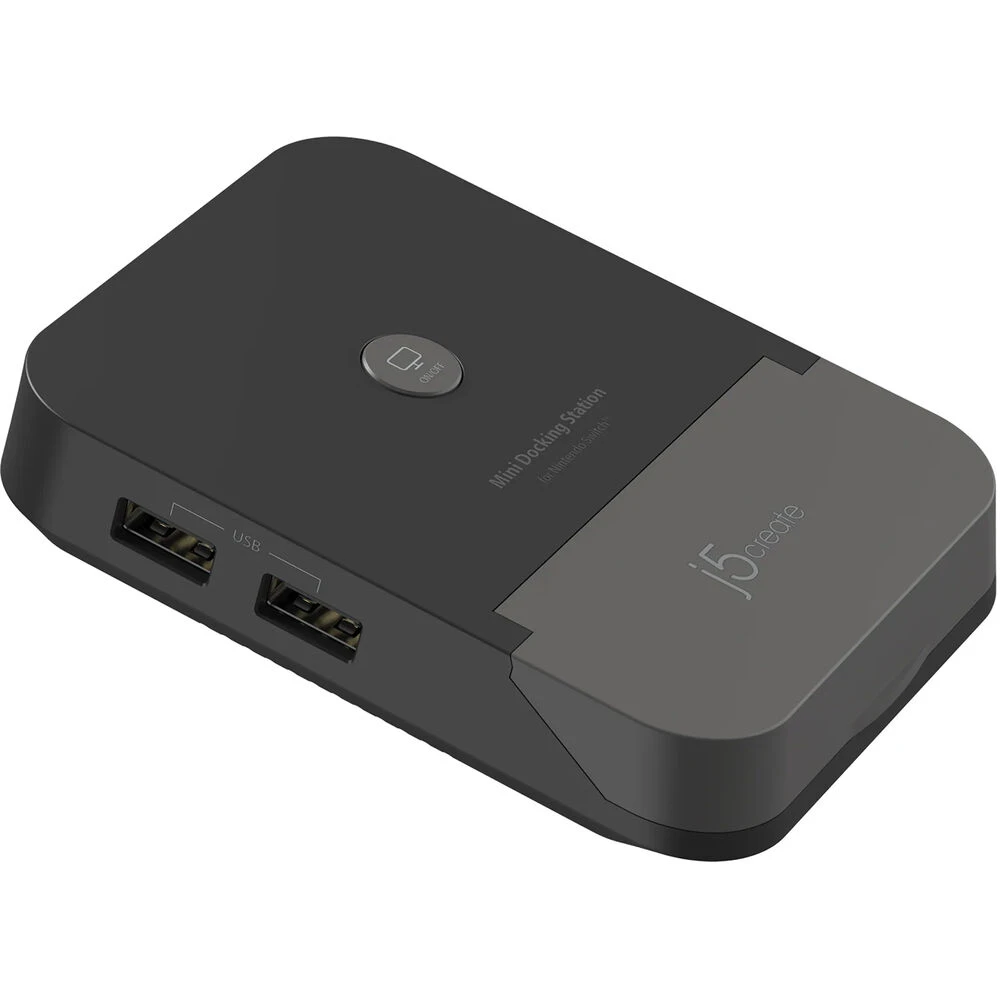

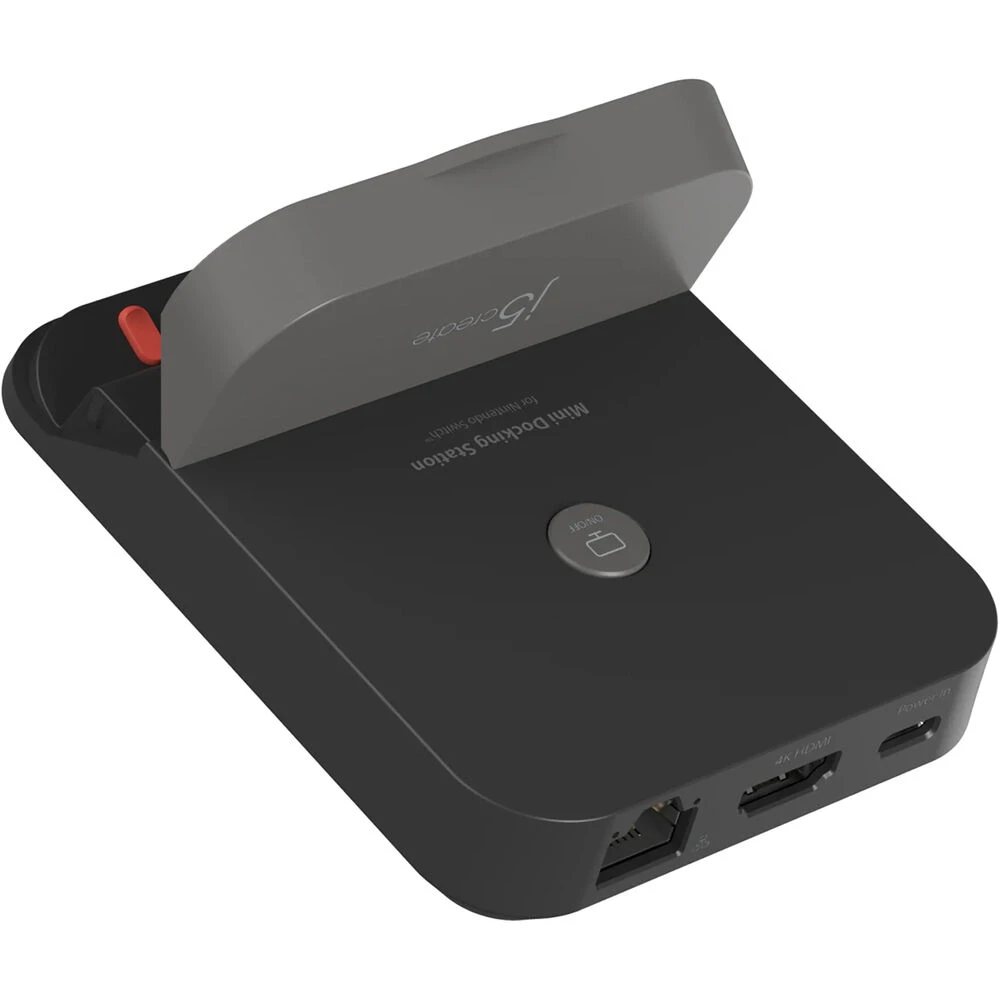

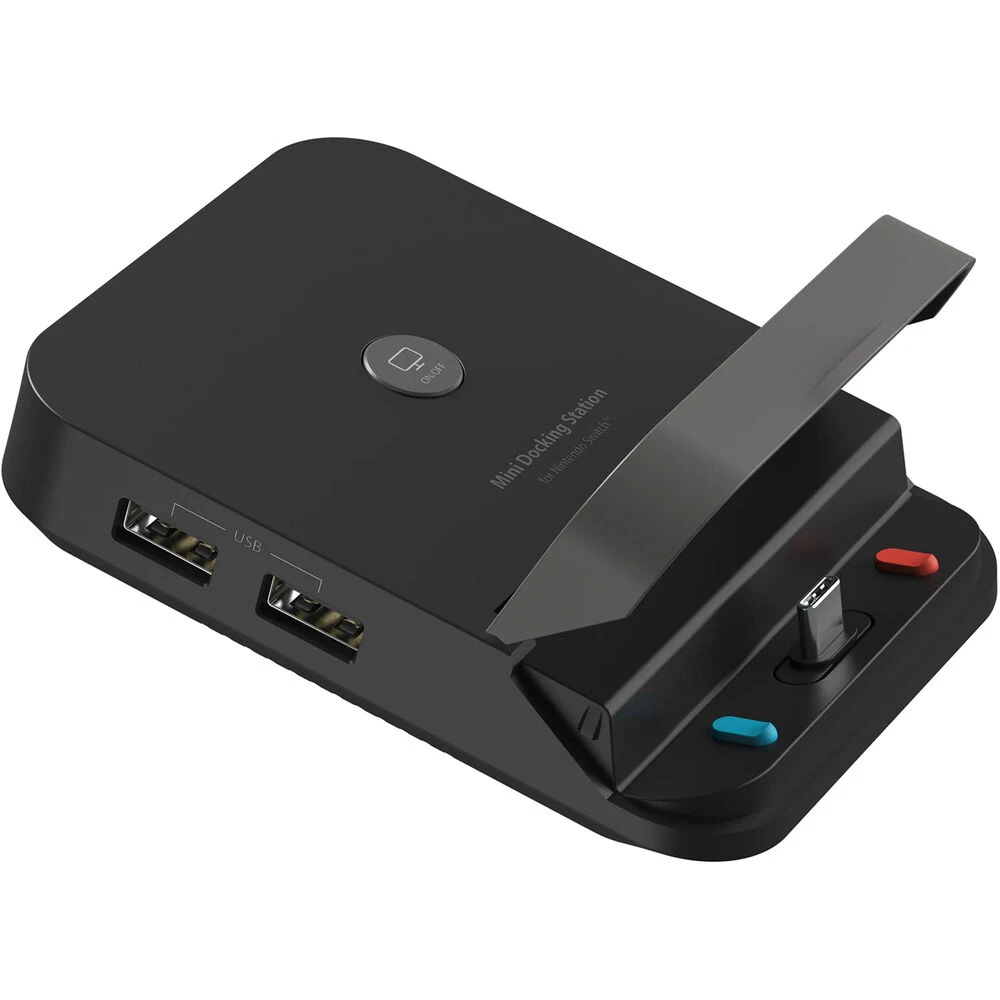

Keep your Nintendo Switch and Switch OLED charged and play your games on larger screens with the j5create Mini Docking Station. Sporting a compact and lightweight design, travelers can easily pack this docking station for use in hotels or have a second one for other rooms around the home.

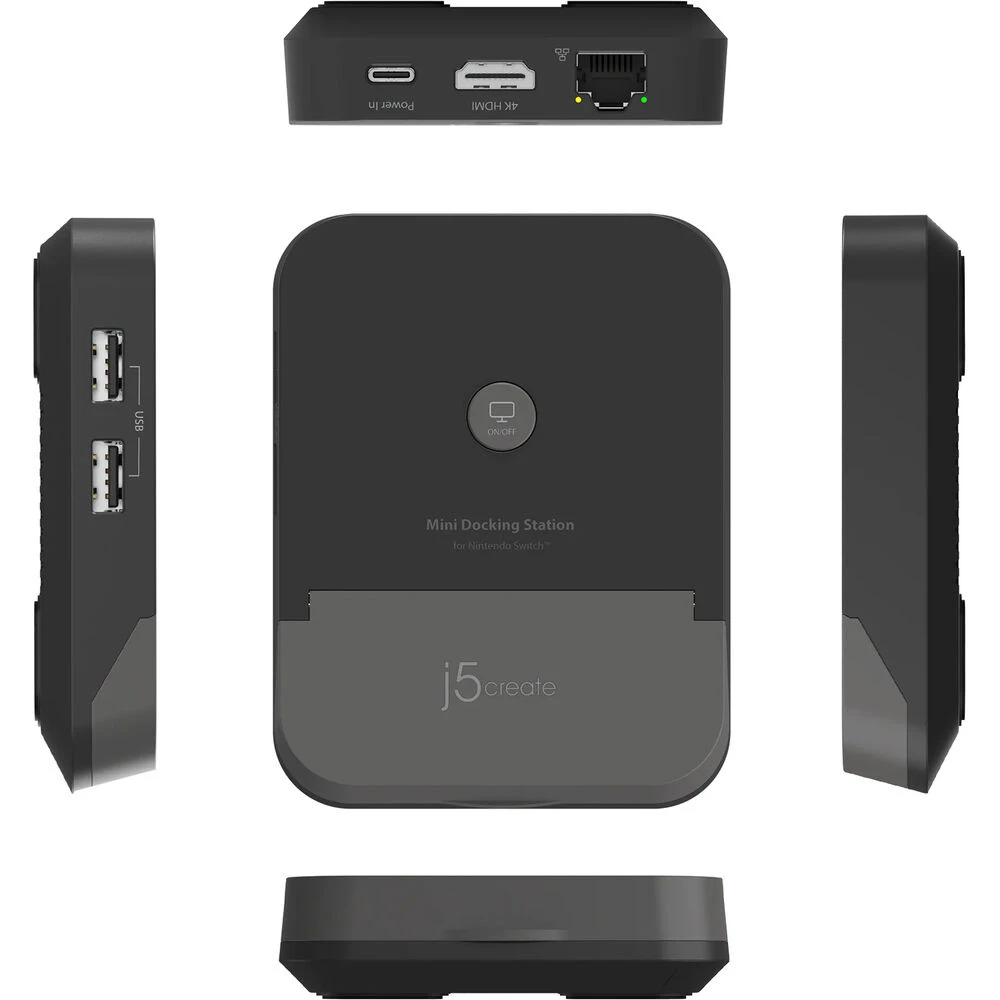

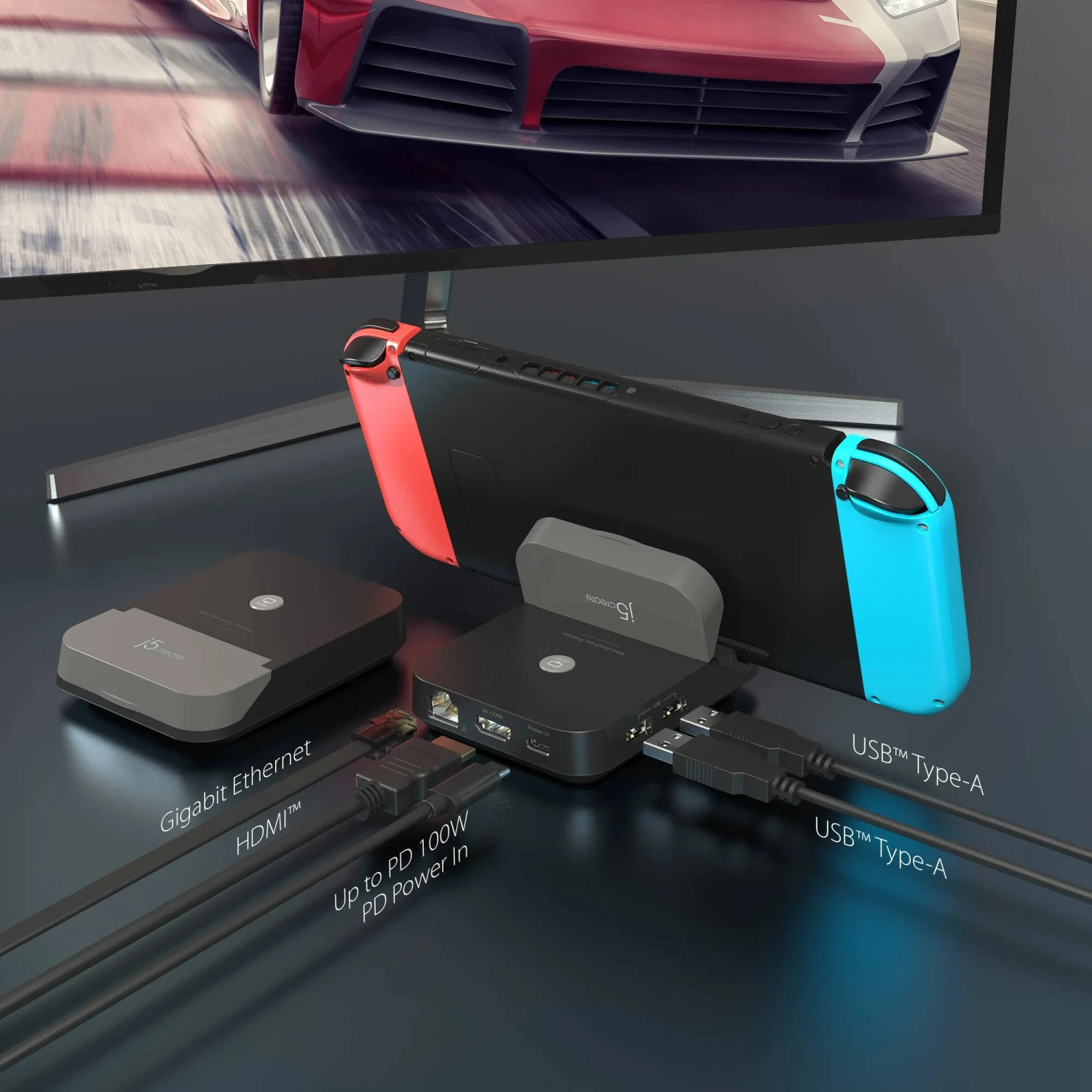

Equipped with multiple ports and utilizing a plug-and-play design, you have plenty of support for various devices such as a wide number of peripherals thanks to the dual USB-A 2.0 ports. A single HDMI video output supports 4K displays with 30 Hz refresh rate or 1080p displays at 60 Hz refresh rate, giving you a clear and smooth view of your favorite games. A single USB-C port supports up to 100W of Power Delivery, allowing you to pair the original Nintendo Switch AC adapter so you can charge your device while in use. Additionally, there is a single RJ45 Ethernet port, giving you a strong and reliable hardwired network connection so you can play online and download your favorite games quicker. A display swap summary allows you to switch which display is active, allowing you to play on your TV or on the Switch with a single press. Additionally, the Mini Docking Station is compatible with USB-C smartphones and a built-in flap covers the USB-C male port when not in use.
Items Included
- j5create Mini Docking Station (Black)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
j5create JCD620 Specs
| Compatibility |
Nintendo Switch / Switch OLED |
| USB I/O |
1 x USB-C (Charging Only) Female Input 1 x USB-C Integrated Male Input 2 x USB-A 2.0 Female Input |
| Video I/O |
1x HDMI Output |
| Power Source |
AC Input (Not Included) |
| DC Input Power |
20 VDC |
| Power Consumption |
500 mW |
| Operating Current |
4.75 A |
| Storage Temperature |
1 to 154°F / -17 to 68°C |
| Color |
Black |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
4.1 x 3.1 x 0.8″ / 104 x 80 x 21 mm |
| Weight |
4.9 oz / 138 g |
