IOptron Photron 250mm F/8 Ritchey-Chretien Catadioptric Telescope (OTA Only)(Ioptron Photron 250mm F 8 Ritchey Chretien Catadioptric Telescope Ota Only)

IOptron Photron 250mm F/8 Ritchey-Chretien Catadioptric Telescope (OTA Only)(Ioptron Photron 250mm F 8 Ritchey Chretien Catadioptric Telescope Ota Only)

Original price was: $333.00.Current price is: $97.99.

SKU: DGFUB 62414422032 Categories: Optics, Optics & Surveillance Tags: IOptron 6113, New-arrivals, Optics, Telescopes

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Utilizing the same hyperbolic primary and secondary mirror design used in the Hubble Space Telescope, the Keck telescopes, and the ESO Very Large Telescope, the iOptron Photron 250mm f/8 Ritchey-Chretien Catadioptric Telescope represents the medium-aperture in the series and is ideally suited for both star-gazing and astrophotography. Despite its larger mirror and long focal length, it delivers views that are free from off-axis comas, or spherical and chromatic aberrations, yet maintains a highly-portable form factor. The low thermal-expansion quartz primary and secondary mirrors are treated with highly-reflective dielectric coatings that, when combined with internal knife-edge baffles, limit distortion as the mirrors heat while limiting stray internal light and maximizing light transmission. All this translates to bright and sharp high-contrast images with accurate color fidelity across the entire distortion-free field of view.

Unlike other catadioptric designs, this RCT has a fixed primary mirror to eliminate the image-shift that is common with conventional configurations that move the mirror forward and back to focus the image. With the primary mirror fixed in-place, iOptron installed a precise two-speed Crayford-style focuser with a 10:1 reducer that allows for fast coarse and precise fine focusing without the backlash that occurs in the more common rack-and-pinion design � essential for astrophotography or splitting objects that are close together, like binary stars. To ensure complete coverage of today’s imaging sensors, the focuser has a 2″ drawtube and comes with three extension rings to help users achieve the proper back-focus distance. The larger drawtube also allows the use of large eyepieces which generally have longer eye reliefs to make visual observations much more comfortable; and comes with a 1.25″ reducer to enable the smaller and more common-sized eyepieces and accessories to be easily used.

Intended for those who have a reliable support system, iOptron offers the RCT here as an OTA-only option. A long Losmandy-style dovetail plate is factory-installed to make it compatible with a wide variety of heavier-duty alt-azimuth, equatorial, and GoTo mounts that can carry a minimum payload of at least 35 pounds. To make adding accessories, such as a smaller guide scope, or to piggy-back imaging or DSLR cameras for wide-field photography, a smaller Vixen-style dovetail plate is also pre-installed on the top of the OTA.

Optical Tube Assembly

Large 250mm (9.8″) clear aperture provides performance while keeping the OTA portable; 110mm secondary mirror
Long 2000mm focal length provides a high magnification potential and moderate focal ratio for astrophotography
Moderate f/8 focal ratio allows for shorter exposure times for imaging than slower OTAs
Ritchey-Chrétien catadioptric design delivers views free from off-axis comas, or spherical and chromatic aberrations
Low thermal-expansion quartz primary and secondary mirrors limit distortion as the mirrors heat
Highly reflective dielectric mirror coatings transmit more than 99% of incoming light to ensure bright and clear images
Ten internal knife-edge baffles diminish stray light, improving contrast for visual and imaging applications
Fixed-position primary mirror eliminates image-shift common in other catadioptric designs
Three integrated primary mirror cooling fans reduces acclimation time and helps to eliminate distortion due to mirror heating; runs on eight user-supplied AA batteries
Resolution: 0.46 arcsec

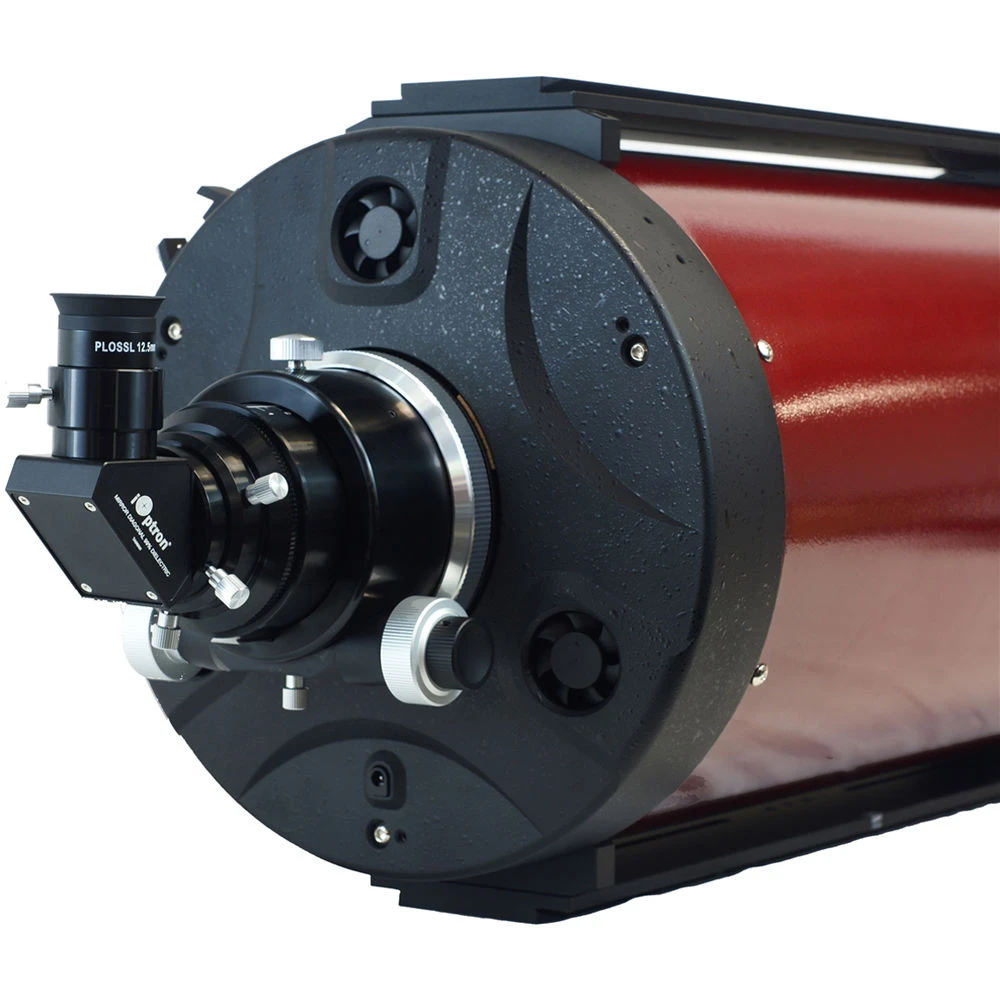

10:1 dual-speed linear-bearing Crayford focuser allows for fast coarse and precise fine focus without backlash for tack-sharp focusing; with tension-adjustment knob and drawtube lock-knob
Oversized 3.3″ drawtube ensures complete coverage of imaging sensors to eliminate or limit vignetting; and terminates in a 2″ eyepiece holder that allows the use of larger eyepieces to make viewing easier and more comfortable; with etched scale in inches and millimeters for precise repeatability
Factory-installed mounting plate for user-supplied finder

Mounting

Optical tube assembly only – mount and tripod required for proper use
Long Losmandy-style dovetail plate is compatible with many alt-az, equatorial, and GoTo mounts
Weight: 35 pounds
Secondary upper Vixen-style dovetail plate enables easy mounting of smaller guide-scopes or to piggy-back imaging or DSLR cameras for wide-field astrophotography

Included Accessories

Reducer Adapter:

2″-to-1.25″ reducer allows the use of the smaller, more common-sized accessories and eyepieces in the larger focuser drawtube

Extension Rings:

Three focuser rings allow for increased back-focus distance to ensure the focal plane properly lands on imaging sensors or specialized visual equipment
Rings can be used one at a time, or stacked as needed
Simple screw-together design requires no tools or permanent modification
Includes two (2) 1″ tubes and one (1) 2″ tube

UPC: 813578010629

250mm Ritchey-Chretien Catadioptric OTA
2000mm Focal Length, f/8 Focal Ratio
Low Thermal-Expansion Quartz Mirrors
Dielectric Mirror Coatings
Ten Internal Knife-Edge Baffles
10:1 Dual-Speed Crayford Focuser
Primary Mirror Cooling Fan System
Three Back-Focus Extension Rings
Losmandy-Style Dovetail Mounting Plate
OTA Only – Mount and Tripod Required

In the Box

iOptron Photron 250mm f/8 Ritchey-Chretien Catadioptric Telescope (OTA Only)

Battery Holder
2″ Extension Ring
2 x 1″ Extension Rings
Limited 1-Year Warranty

Optical Design	Ritchey-Chretien catadioptric
Aperture	250mm
Focal Length	2000mm
Focal Ratio	f/8
Eyepiece Barrel Diameter	2″ 1.25″ with included reducer
Diagonal	None
Finderscope	None
Tripod	None
Mount Type	Losmandy-style dovetail plate
Power Source	8 x AA batteries for cooling fans
Optical Tube Length	28.4″ / 72.1 cm
Weight	35.0 lb / 15.9 kg
