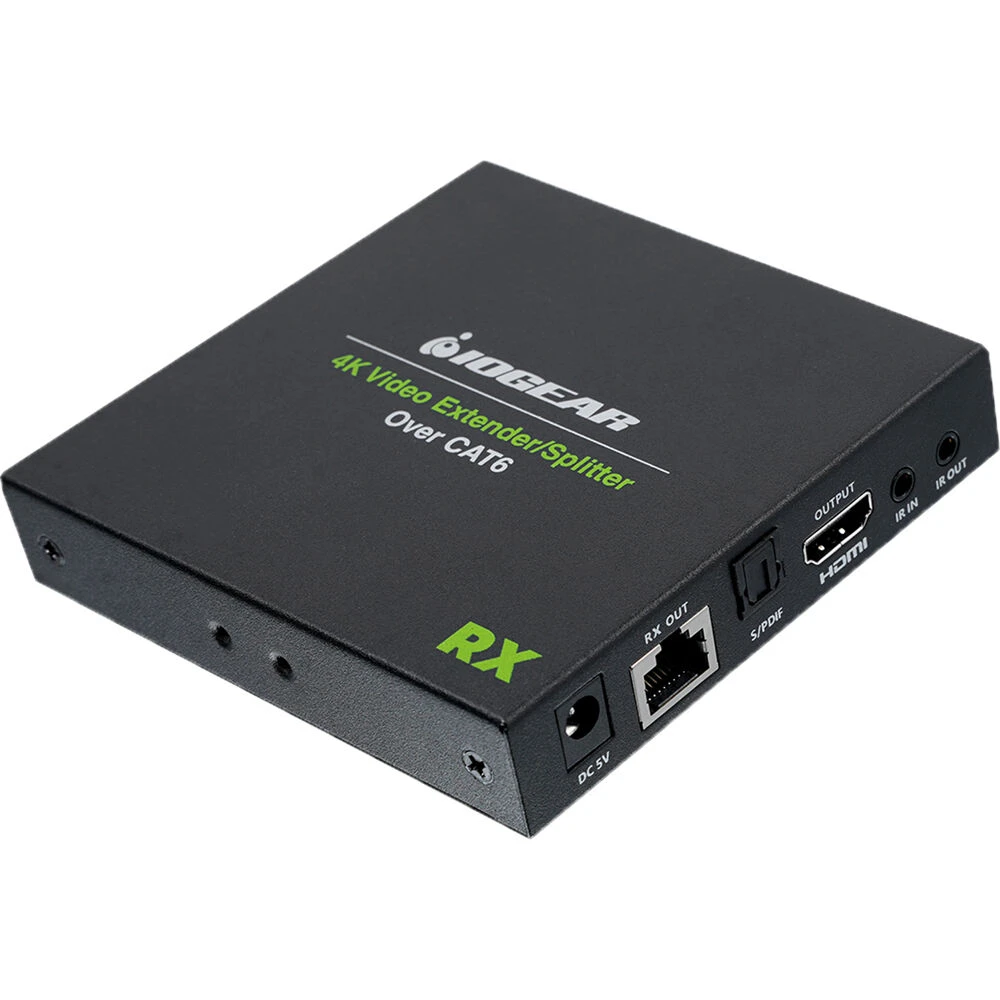

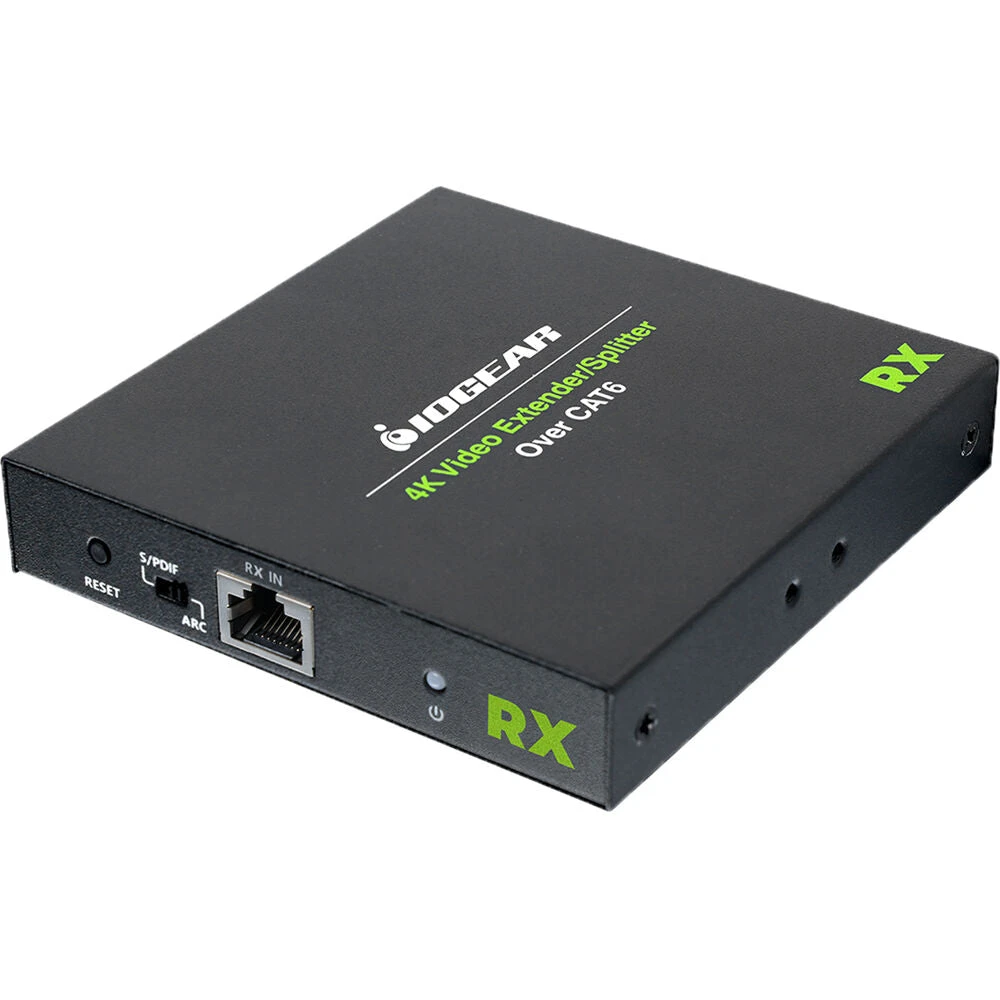

IOGEAR GVE4K60RX Overview
- 1Description
- 2Long-Range Transmission
- 3Bi-Directional IR
- 4Additional Features
Utilize Splitter Mode and transmit to an additional display with this Receiver for GVE4K60KIT 4K Video Extender/Splitter Kit from IOGEAR. With this additional receiver, you can transmit the same HDMI signal to two different displays. It’s ideal for a commercial or corporate space needed to blanket a location with advertising or other public-facing information. The entire system supports up to 10 receivers maximum, and can receive a 4K signal (3840 x 2160) at 60 Hz with 4:4:4 chroma subsampling over a Cat 60 network with near zero latency (1 ms).
- Supports a maximum resolution of up to 4K (4096 x 2160) at 30 Hz
- S/PDIF digital audio output with support for LPCM, DTS-HD, DTS, Dolby TrueHD 7.1, and Dolby Digital 5.1
- HDMI ARC Support
- Aluminum housing for improved heat dissipation
- Electrostatic surge protection
- Supports HDMI CEC
- Meets CE, FCC, and RoHS certification standards
In the Box
- IOGEAR Receiver for GVE4K60KIT 4K Video Extender/Splitter Kit
- IR Extension Cable
- Power Adapter
- Mounting Kit
- Description
- Long-Range Transmission
- Bi-Directional IR
- Additional Features
IOGEAR GVE4K60RX Specs
| Max Transmission Distance | 4K UHD at 60 Hz: 230′ / 70.1 m (via Cat 6) 4K DCI at 30 Hz: 230′ / 70.1 m |
| Video Format | HDMI 4K UHD: 60p HDMI 4K DCI: 30p |
| Audio Format | S/PDIF: 1-Channel Dolby Digital, DTS, Dolby TrueHD, DTS-HD, PCM Audio |
| Inputs | 1 x RJ45 (LAN) Female 1 x 1/8″ / 3.5 mm (IR) Female |
| Outputs | 1 x HDMI Female 1 x RJ45 (LAN) Female 1 x TOSLINK Optical (S/PDIF) Female 1 x 1/8″ / 3.5 mm (IR) Female |
| HDCP Support | None |
| EDID Support | Yes |
| Power Connector | 1 x Barrel (5 VDC) Input |
| Dimensions | 4.13 x 4.13 x 0.75″ / 10.49 x 10.49 x 1.91 cm |
| Weight | 0.55 lb / 0.25 kg |
| Package Weight | 1.22 lb |
| Box Dimensions (LxWxH) | 7.9 x 6 x 3.2″ |
