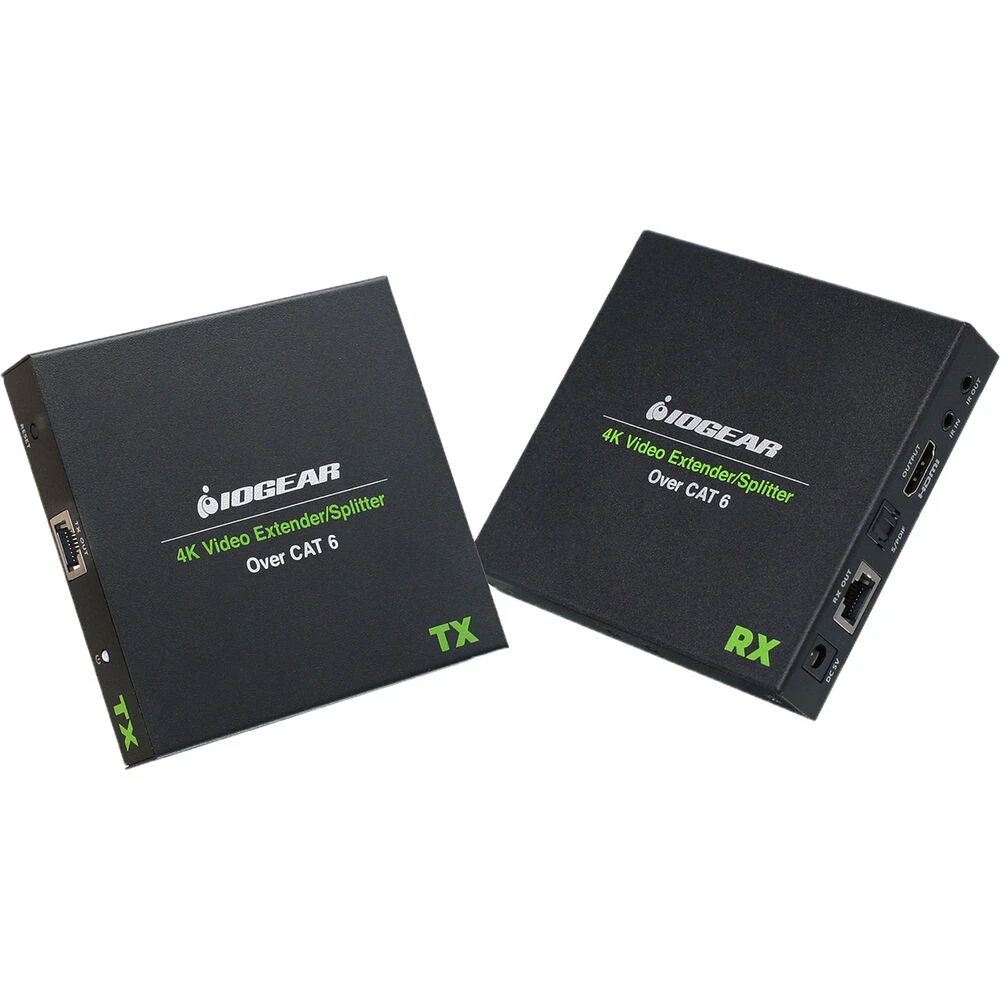

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit(Iogear Gve4k60kit 4k Video Extender Splitter Over Cat 6 Kit)

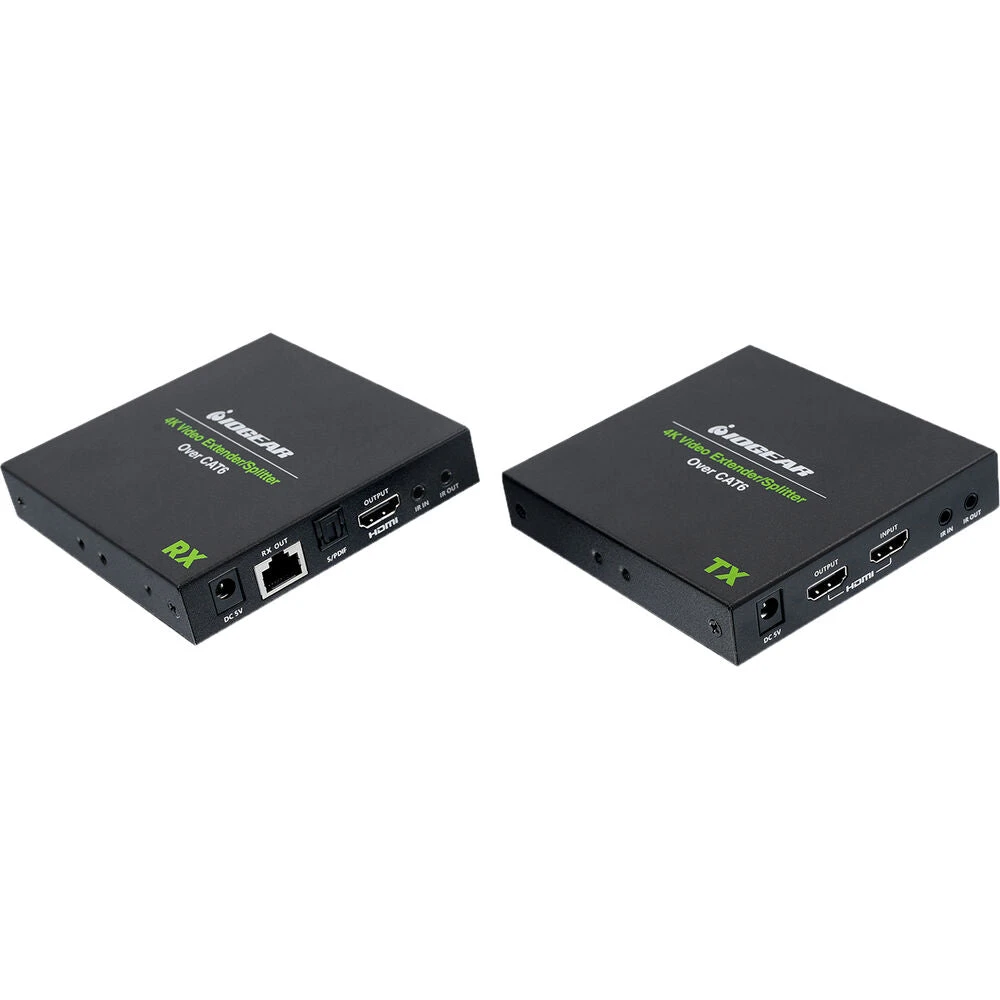

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit(Iogear Gve4k60kit 4k Video Extender Splitter Over Cat 6 Kit) - Image 2

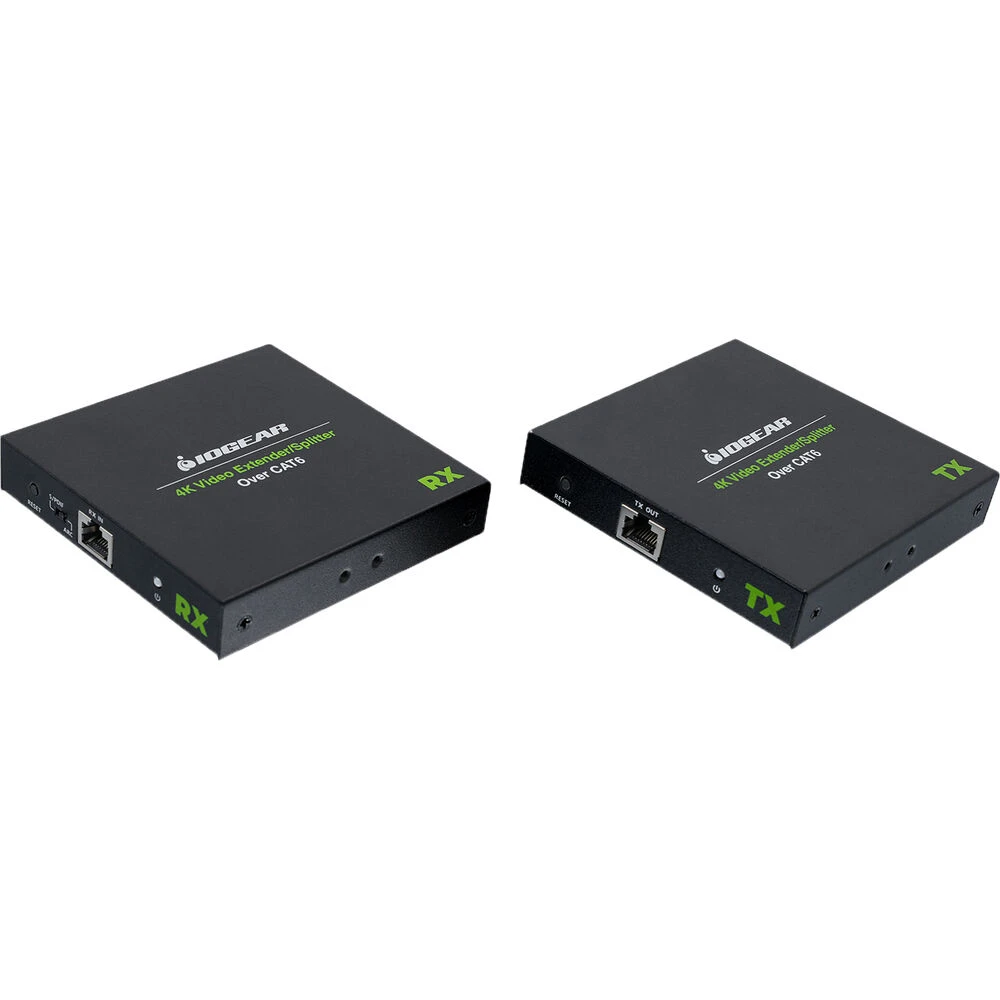

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit(Iogear Gve4k60kit 4k Video Extender Splitter Over Cat 6 Kit) - Image 3

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit(Iogear Gve4k60kit 4k Video Extender Splitter Over Cat 6 Kit) - Image 4

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit(Iogear Gve4k60kit 4k Video Extender Splitter Over Cat 6 Kit)

Original price was: $281.14.Current price is: $95.99.

SKU: DGFUB 6898878021717 Categories: Switchers, TV & Entertainment, TV & Mobile Tags: HDMI Signal Extenders, IOGEAR GVE4K60KIT, Switchers, TVs Entertainment

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

IOGEAR GVE4K60KIT Overview

1Description
2Extend or Split
3Long-Range Transmission
4Bi-Directional IR
5Additional Features

Transmit a UHD-quality signal over long distances with the GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit from IOGEAR. The kit is an ideal solution for a home theater, but can be expanded to accommodate commercial applications. The transmitter can send a 4K signal (3840 x 2160) at 60 Hz with 4:4:4 chroma subsampling over a Cat 6 network with near zero latency (1 ms). This is ideal for smooth movie playback and responsive gaming. With up to nine additional receiver units (not included), you can split a singular signal across multiple displays.

Extend or Split

With this kit as-is, you can extend an HDMI signal over Cat 6 in 1-to-1 Mode, which is great for watching a movie on Blu-ray when your player is in a media cabinet in a separate room from your TV or projection screen. With optional additional receivers, you can use Splitter Mode to send the same signal to multiple displays. This is ideal for showcasing advertising or other public-facing information in a large area.

Long-Range Transmission

Utilizing Cat 6 cabling across a network, you can send a signal up to 230′ away to the first receiver. When using additional receivers, the distance between cascading receivers remains decently long at up to 165′.

Bi-Directional IR

Control goes both way with this IOGEAR extender/splitter kit. The playback source can be controlled from a display-side receiver, and the receiver-side display can be controlled from the source.

Additional Features

Supports a maximum resolution of up to 4K (4096 x 2160) at 30 Hz
S/PDIF digital audio output with support for LPCM, DTS-HD, DTS, Dolby TrueHD 7.1, and Dolby Digital 5.1
HDMI ARC Support
Aluminum housing for improved heat dissipation
Electrostatic surge protection
Supports HDMI CEC
Meets CE, FCC, and RoHS certification standards

UPC: 881317520425

In the Box

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit
Transmitter
Receiver
2 x IR Extension Cables
2 x Power Adapters
2 x Mounting Kits

Table of Contents

Description
Extend or Split
Long-Range Transmission
Bi-Directional IR
Additional Features

IOGEAR GVE4K60KIT Specs

Transmission

Max Transmission Distance	4K DCI at 30 Hz: 230′ / 70.1 m (via Cat 6) 4K UHD at 60 Hz: 230′ / 70.1 m (via Cat 6)
Video Format	HDMI 4K DCI: 30p HDMI 4K UHD: 60p
Audio Format	S/PDIF: Dolby Digital, DTS, Dolby TrueHD, DTS-HD, PCM Audio

Transmitter Interfaces

Input Connectors	1 x HDMI Type A Female 1 x 1/8″ / 3.5 mm (IR) Female
Outputs	1 x RJ45 (LAN) Female 1 x HDMI (Loop-Through) Female 1 x 1/8″ / 3.5 mm (IR) Female

Receiver Interfaces

Inputs	1 x RJ45 (LAN) Female 1 x 1/8″ / 3.5 mm (IR) Female
Outputs	1 x HDMI Female 1 x RJ45 (LAN) Female 1 x TOSLINK Optical (S/PDIF) Female 1 x 1/8″ / 3.5 mm (IR) Female

Standards

HDCP Support	None
EDID Support	Yes

Power

Transmitter Power Connector	1 x Barrel (5 VDC) Input
Receiver Power Connector	1 x Barrel (5 VDC) Input

General

Certifications	CE, FCC, RoHS *as per Manufacturer
Transmitter Dimensions	4.13 x 4.13 x 0.75″ / 10.49 x 10.49 x 1.91 cm
Receiver Dimensions	4.13 x 4.13 x 0.75″ / 10.49 x 10.49 x 1.91 cm
Transmitter Weight	1.1 lb / 0.5 kg
Receiver Weight	1.1 lb / 0.5 kg

Packaging Info

Package Weight	2.03 lb
Box Dimensions (LxWxH)	9.7 x 7.2 x 3.3″

IOGEAR GVE4K60KIT Reviews
