IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station)

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station) - Image 2

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station) - Image 3

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station) - Image 4

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station) - Image 5

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station) - Image 6

IOGEAR Dock Pro Universal Dual View Docking Station(Iogear Dock Pro Universal Dual View Docking Station)

Original price was: $331.43.Current price is: $99.99.

SKU: DGFUB 6981172396117 Categories: Computer & Presentation, Computer Solutions, Notebook Accessories Tags: Computers, Docking Stations, IOGEAR Dock Pro Universal, Notebook Accessories

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

IOGEAR Dock Pro Universal Overview

1Description
2
3A Universal Dual 4K Experience
410 Gb/s USB-C 3.2 Gen 2 / 3.1 Gen 2 and USB-A 3.2 Gen 1
5Up to 100W of Power via Power Delivery 3.0
6Power Button and Lock
7Choose from HDMI/DisplayPort Displays

By Photo’s

John-Paul Palescandolo

Dock a USB-C laptop and expand its connectivity by 9 ports with the
Dock Pro Universal Dual View Docking Station from
IOGEAR, which is compatible with Windows and Mac. A 10 Gb/s USB-C 3.2 Gen 2 port let you connect up to two USB 3.2 Gen 2, Thunderbolt 3, or Thunderbolt 4 systems, with up to 100W of power available to keep your device powered via Power Delivery 3.0. The dock itself is powered using an included 150W AC adapter. Also featured is one 10 Gb/s USB-C 3.2 Gen 2 port, three 5 Gb/s USB-A 3.2 Gen 1 ports, one of which supports up to 2.4A of charging power, a Gigabit Ethernet port, a 3.5mm combo jack. There are also two DisplayPort ports and two HDMI ports, so you’ll be able to connect up to two 4K/60 Hz displays to this dock.

A Universal Dual 4K Experience

Mirror or extend your displays with support for up to two simultaneous 4K/60 Hz monitors using DisplayPort or HDMI, with up to 9 total ports available that combine USB-C 3.2 Gen 2 host connectivity, USB-C 3.2 Gen 2, USB-A 3.2 Gen 1, Gigabit Ethernet, 3.5mm combo, dual DisplayPort, and dual HDMI ports.

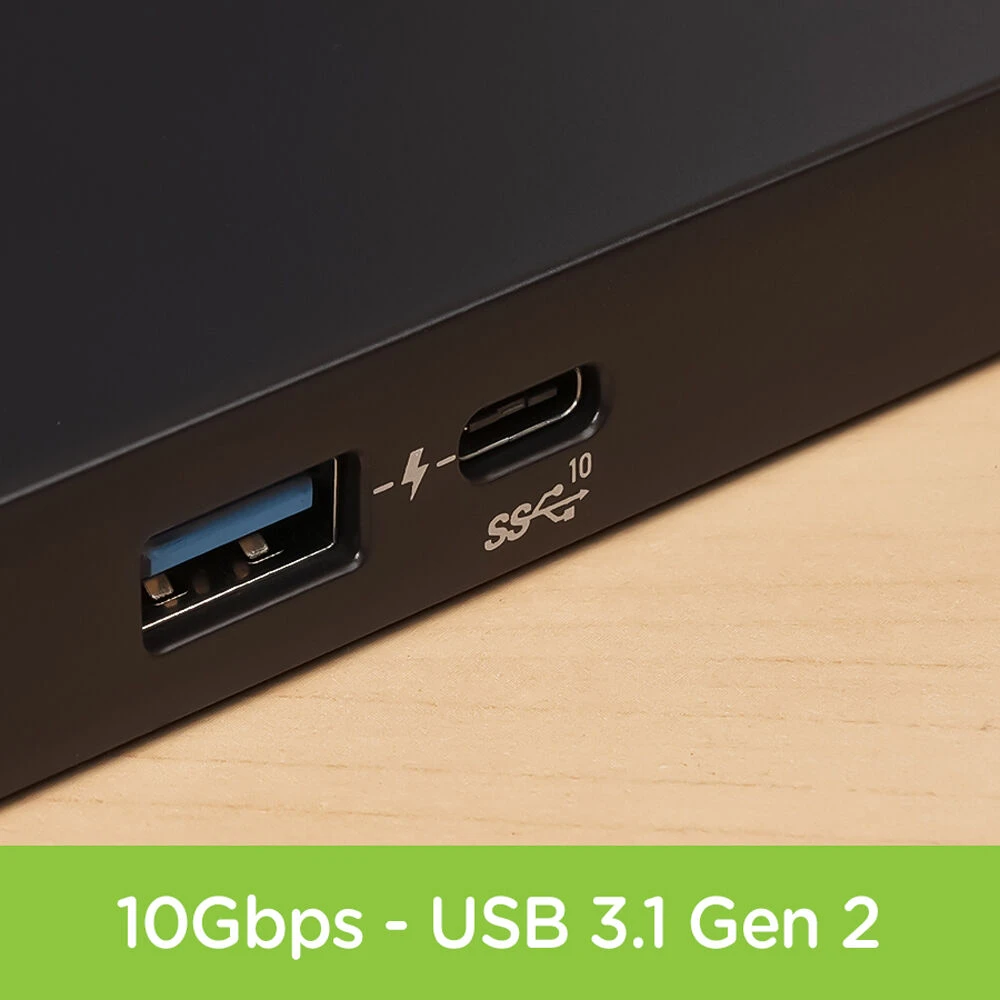

10 Gb/s USB-C 3.2 Gen 2 / 3.1 Gen 2 and USB-A 3.2 Gen 1

This dock features one 10 Gb/s USB-C 3.2 Gen 2 port and three 5 Gb/s USB-A 3.2 Gen 1 ports for connecting peripherals. One of the USB-A ports supports device charging, with up to 2.4A of power.

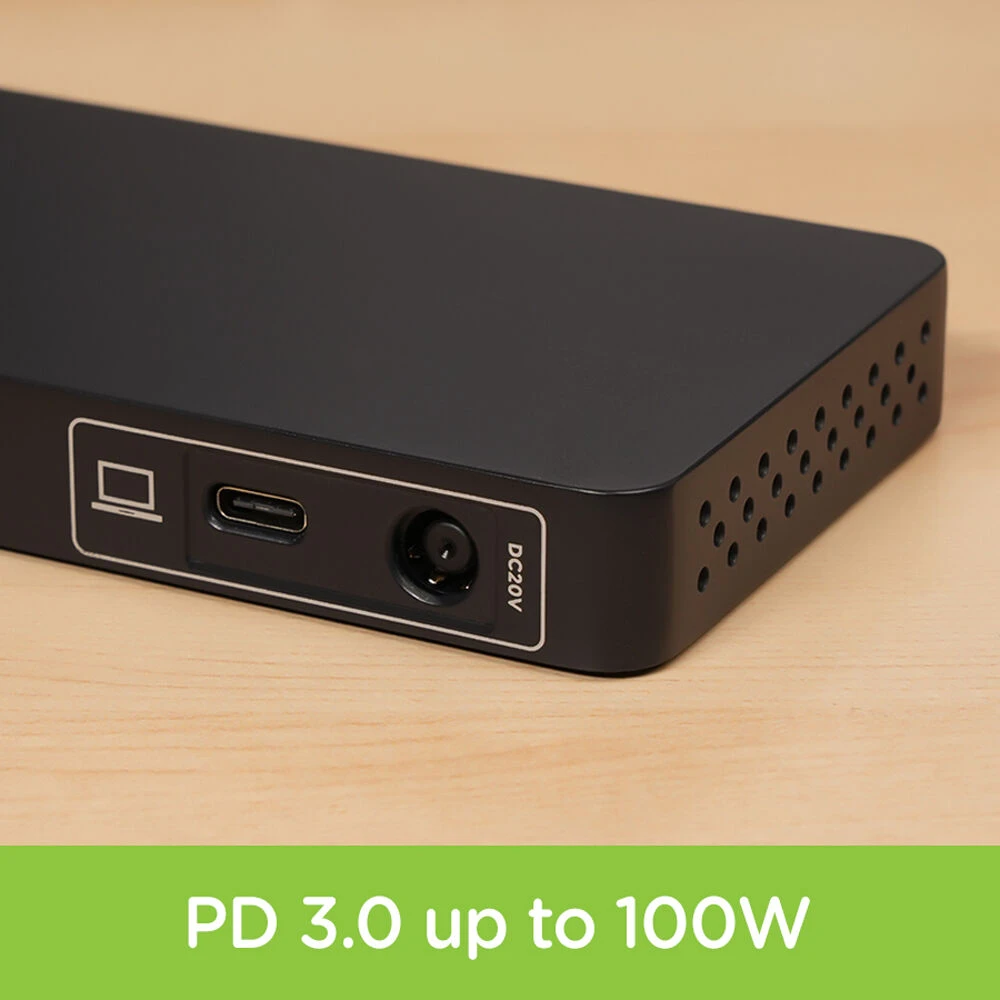

Up to 100W of Power via Power Delivery 3.0

Your connected system receives up to 100W of power via the USB-C port and Power Delivery 3.0.

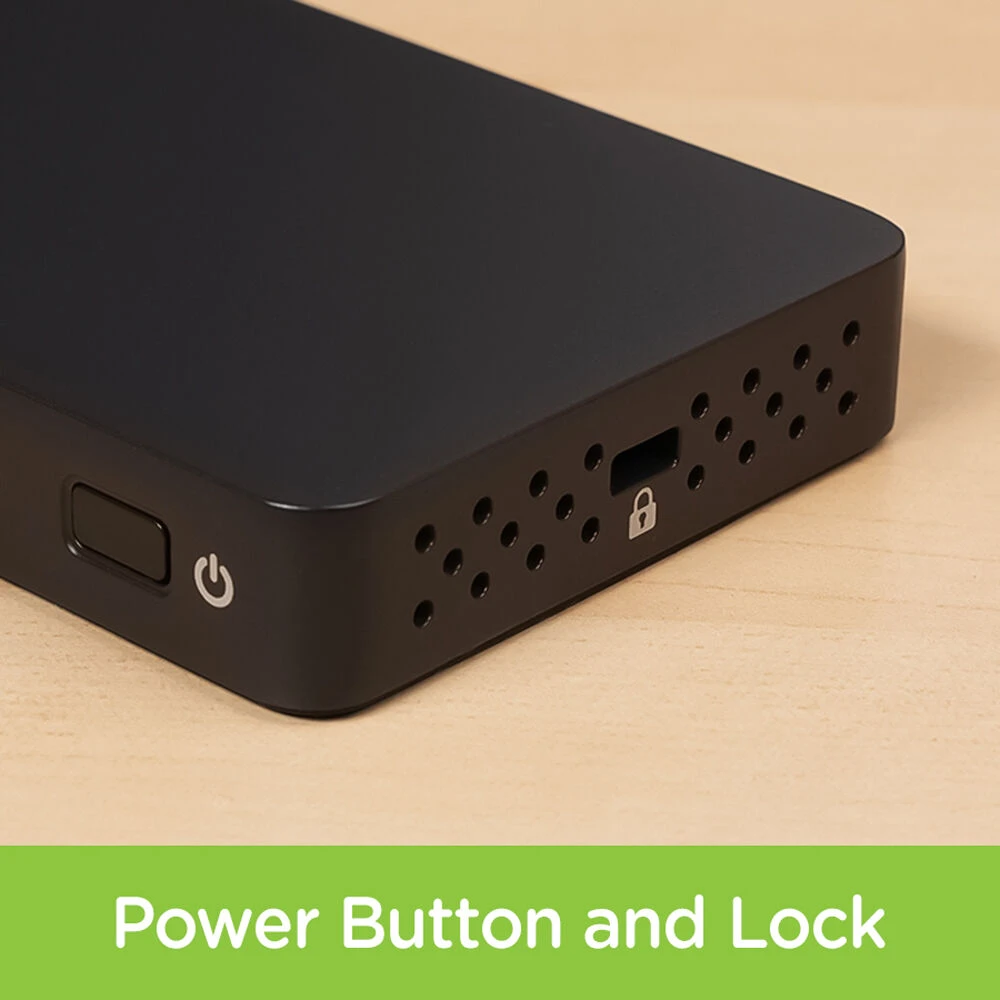

Power Button and Lock

Turn the dock on and off using the power summary and guard it from being stolen using the Kensington lock slot.

Choose from HDMI/DisplayPort Displays

There are two groups of video ports, each of which contains one DisplayPort and one HDMI port. This dock supports two 4K/60 Hz displays. One port from each group may be used.

Host Device Requirements

USB-C (Thunderbolt 3/4) compatible device
Windows 10 or 11
macOS 10.13 or later
DisplayLink Driver installation

In the Box

IOGEAR Dock Pro Universal Dual View Docking Station
USB-C to USB-C Cable
Power Adapter
Limited 1-Year Manufacturer Warranty

User Manual

0.3 MB

Table of Contents

Description
A Universal Dual 4K Experience
10 Gb/s USB-C 3.2 Gen 2 / 3.1 Gen 2 and USB-A 3.2 Gen 1
Up to 100W of Power via Power Delivery 3.0
Power Button and Lock
Choose from HDMI/DisplayPort Displays

IOGEAR Dock Pro Universal Specs

Key Specs

USB	1 x USB-C 3.1/3.2 Gen 2 2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x USB-A 3.0 / 3.1/3.2 Gen 1 / Supports 2.4 A Output
Ethernet	1 x RJ45 (10/100/1000 Mb/s)
Display	2 x DisplayPort 2 x HDMI
Audio	1 x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack
Media Card Reader	No
Host Connection	USB-C (Thunderbolt 3), USB-C (Thunderbolt 4), USB-C 3.1/3.2 Gen 2

Ports

USB	1 x USB-C 3.1/3.2 Gen 2 2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x USB-A 3.0 / 3.1/3.2 Gen 1 / Supports 2.4 A Output
Ethernet	1 x RJ45 (10/100/1000 Mb/s)
Display	2 x DisplayPort 2 x HDMI
Audio	1 x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack
Media Card Reader	No

Host Connections

Host Connection	USB-C (Thunderbolt 3), USB-C (Thunderbolt 4), USB-C 3.1/3.2 Gen 2
Connection Type	Detachable Cable
Powered Connection	100 W USB Power Delivery 3.0

General

Maximum Resolution Supported	4096 x 2160 at 60 Hz
HDCP Support	No
OS Compatibility	macOS 10.13 or Later Windows 10 to 11 *As of June, 2023: Check with manufacturer for the most up-to-date compatibility
UASP Support	No

Power

Power Source	AC Adapter
Power I/O	Barrel Connector (Unspecified Diameter) (Input)
Maximum Power Consumption	150 W
DC Input Power	20 VDC at 6 A

Environmental

Certifications

TAA

Physical

Color	Black
LED Indicator	No
Lock Slot	Yes
Dimensions	3.6 x 2.8 x 0.7″ / 9.1 x 7 x 1.7 cm
Weight	0.84 lb / 0.38 kg

Packaging Info

Package Weight	2.335 lb
Box Dimensions (LxWxH)	10.4 x 7.6 x 2.4″
