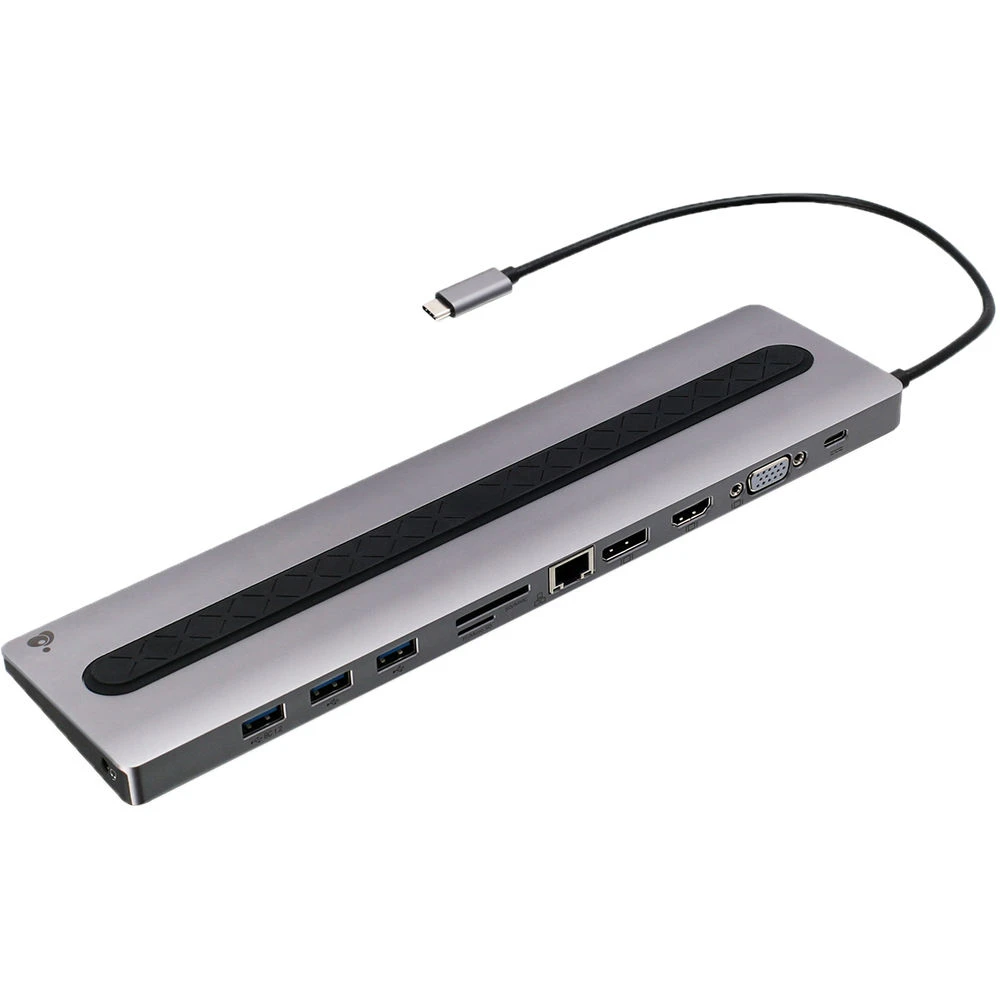

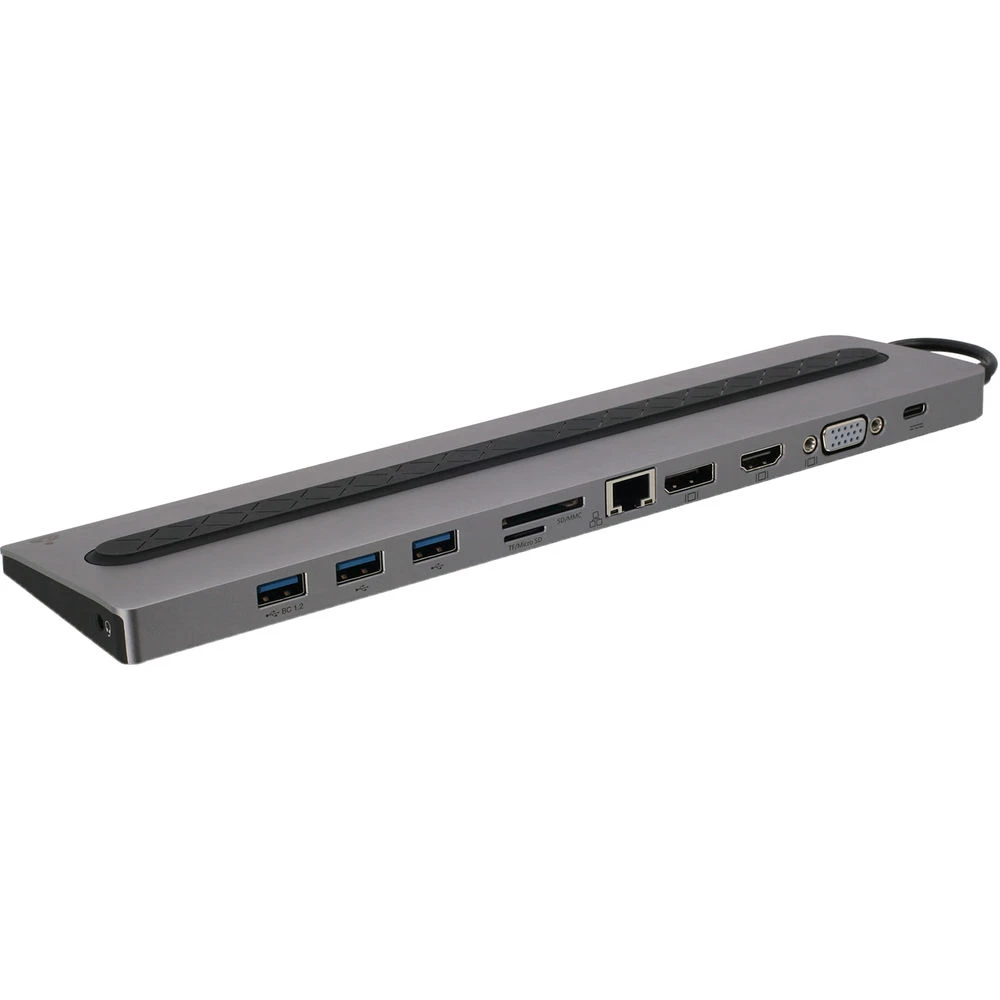

IOGEAR Dock Pro 100 USB Type-C 4K Ultra-Slim Docking Station(Iogear Dock Pro 100 Usb Type C 4k Ultra Slim Docking Station)

Instantly Dock Up to 8 DevicesConnects to Laptop via 1 x USB-C CableHook Up Single 4K or Dual 1080p DisplaysPD 3.0 100W Pass-Through for Charging

Turn your laptop into a full desktop workstation with the Dock Pro 100 USB Type-C 4K Ultra-Slim Docking Station from IOGEAR . With a single USB Type-C connection to your Windows laptop, MacBook, or Chromebook, you can gain access to a myriad of ports and the devices connected to them. Hook up external 4K monitors, USB hard drives and peripherals, headphones or microphone, memory cards, and your local Gigabit network. You can even recharge your notebook while docked with USB Type-C Power Delivery 3.0 100W pass-through.

Connectivity Here is a full rundown of the connectivity options the Dock Pro 100 provides:

• 1 x DisplayPort
• 1 x HDMI
• 1 x VGA
• 3 x USB 3.0 Type-A (One is BC 1.2 compatible for device charging)
• 1 x 3.5mm Audio (Listen to music on headphones, or record audio with a microphone)
• 1 x Gigabit RJ-45 Ethernet
• 1 x microSD Card Slot
• 1 x SD/MMC Card Slot
• 1 x USB Type-C PD 3.0 100W Pass-Through

External Monitors Whether you’re working or gaming, the Dock Pro 100 gives you a host of different options for connecting to larger external displays. The DisplayPort and HDMI port each support displays up to 4K resolution, and the VGA port supports displays up to 1080p. Depending on your operating system, you can setup one or two displays in different configurations.

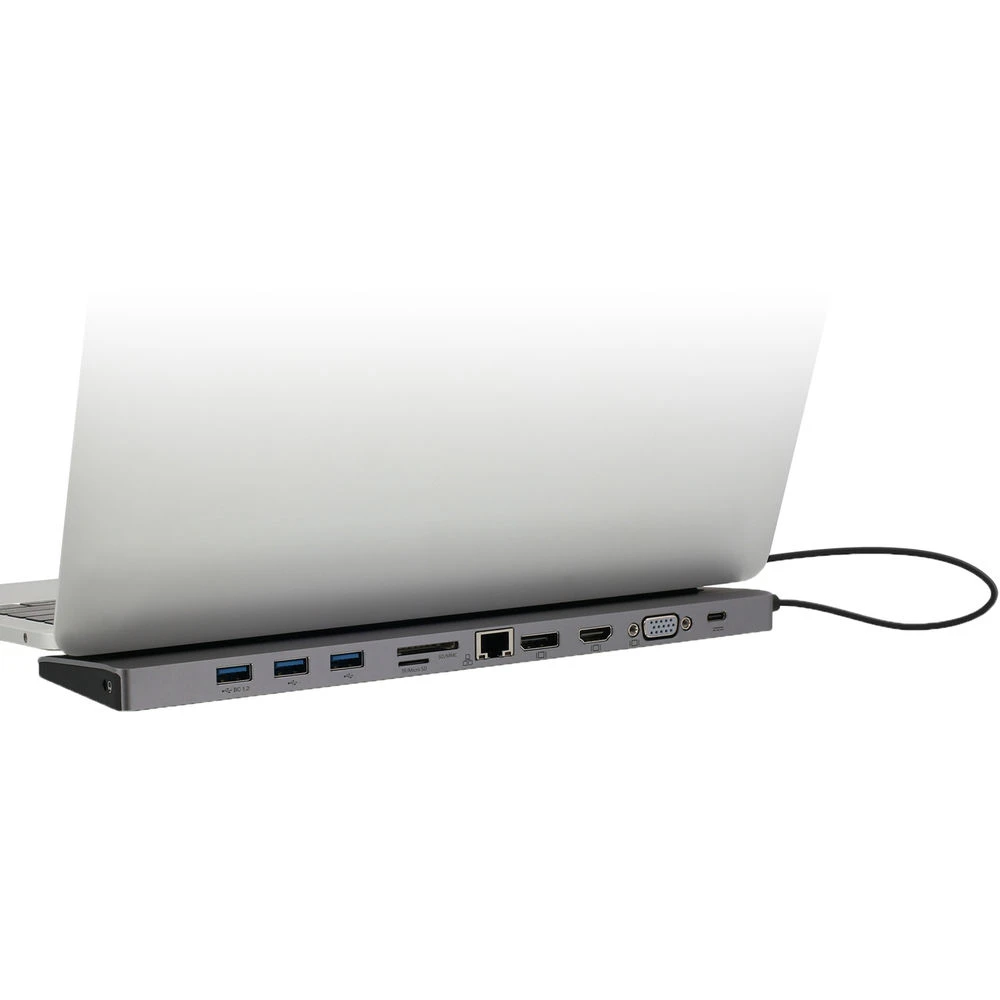

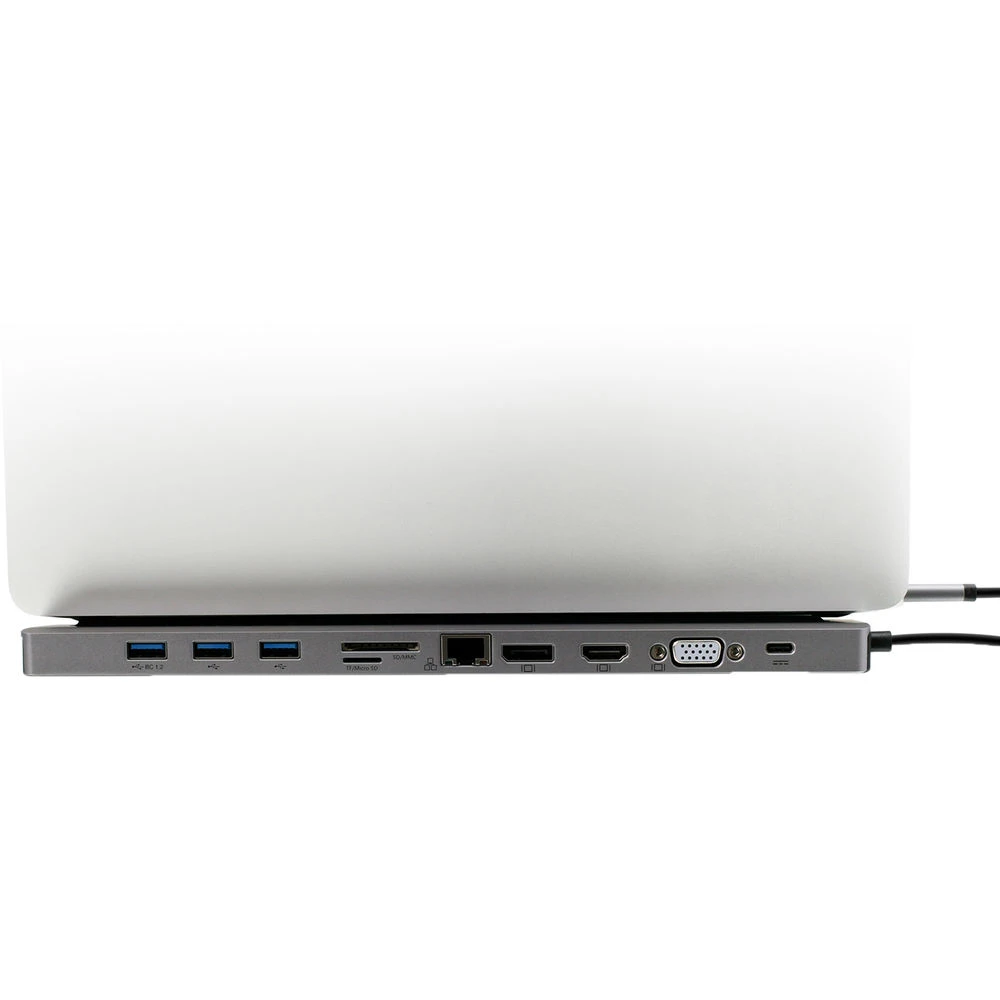

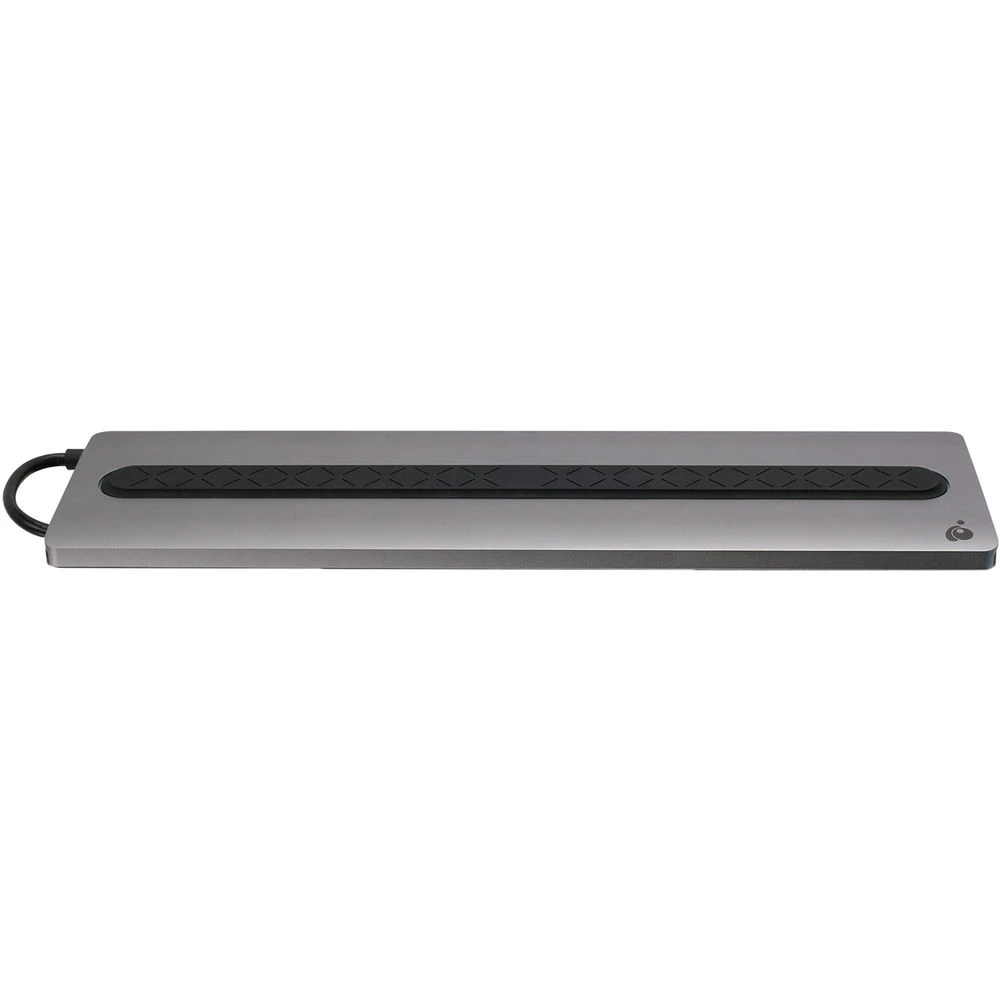

With Windows 10 you can connect a single monitor or create a dual monitor setup. For a single monitor you can use either HDMI, DisplayPort, or VGA. For dual monitors, you must use both the HDMI and DisplayPort. In a dual monitor setup the docking station support up to 1080p resolution for each monitor. With either option you can mirror your current notebook’s desktop or extend it for more efficient multitasking. If you have a MacBook or Chromeboook, you can only extend your desktop to one external display. Charge While Docked On the back of the docking station is a USB Type-C pass-through port. This lets you connect your notebook’s USB Type-C AC power adapter to recharge both your laptop and connected devices while docked. The port utilizes Power Delivery 3.0 technology to transfer up to 100W of power. Please note that your laptop can only receive a maximum of 85W. 15W is deducted from the maximum for the docking station. Slim & Stable Design The docking station is wedge-shaped and meant to sit underneath your notebook. The non-slip silicone rubber pad keeps your computer stable as you work. The tilted angle of the dock provides an enhanced, ergonomic typing experience, which is meant to relieve strain on your hands and wrists. Additional Features Compatible with USB Type-C and Thunderbolt 3 laptops
Bus-powered when AC adapter is not available
Access data from both memory card slots simultaneously
DP++ Mode for using active display adapters
HDCP 1.4 compliant
Works with iPad Pro (USB Type-C) in mirror-mode

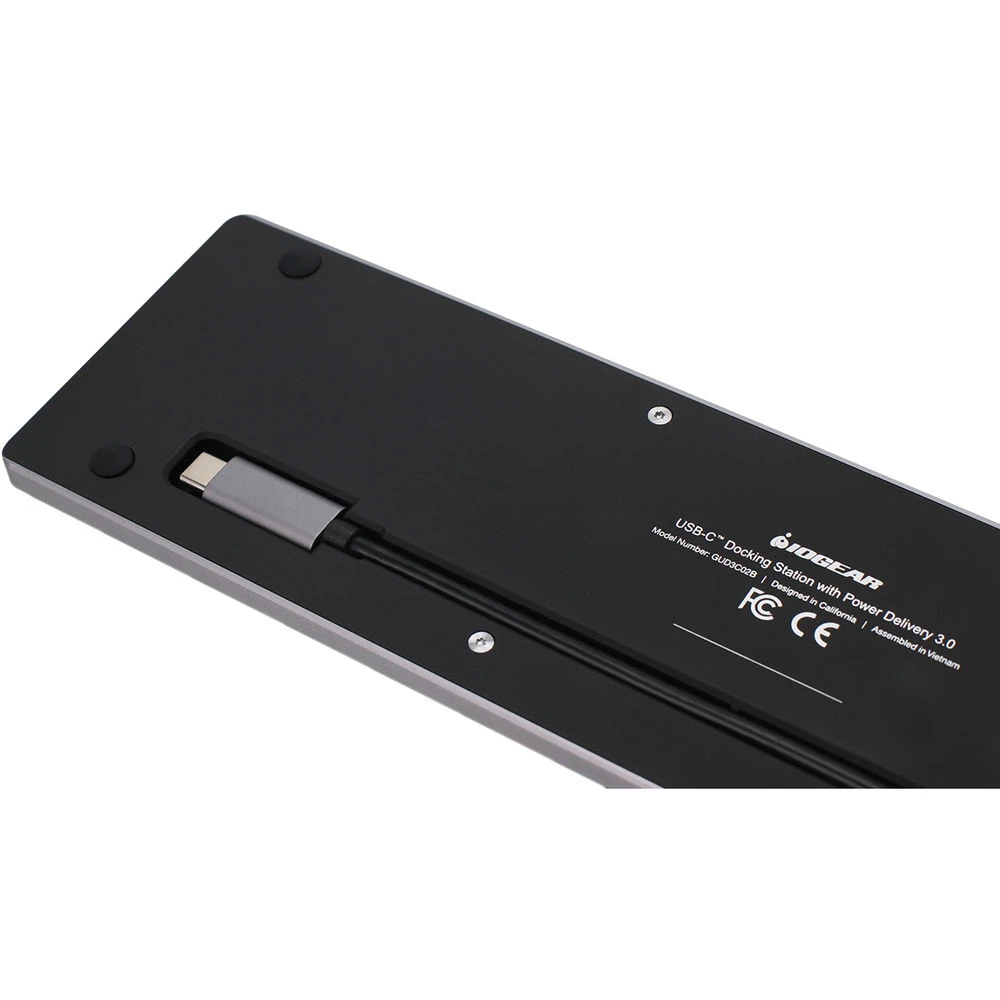

Built-in storage for integrated USB Type-C Cable UPC: 881317519276

USB	3 x USB 3.1 / USB 3.2 Gen 1 Type-A 1 x USB (Charging Only) Type-C
Thunderbolt	None
Ethernet	1 x RJ45 (10/100/1000 Mb/s)
FireWire	None
Display	1 x HDMI 1.4 (Female) 1 x DisplayPort 1.2 (Female) 1 x VGA (Female)
Audio	1 x 1/8″ / 3.5 mm Headphone/Microphone Combo
Memory Card Slots	1 x microSD (Unspecified Type) (UHS-I [104 MB/s]) 1 x SD (Unspecified Type) (UHS-I [104 MB/s])

System Connection	1 x USB (Unspecified Type) Type-C Male
Connection Type	Integrated Cable

Number of Displays Supported	2
Maximum Resolution Supported	3840 x 2160 at 30 Hz (Single Display) 1920 x 1200 at 60 Hz (Dual Display)
Data Transfer Rate	5 Gb/s USB 3.0/USB 3.1 Gen 1
Compatibility	Apple MacBook Chromebook
Operating System Support	Windows, macOS/OS X
UASP Support	No

Power Source	AC Adapter
Power Port	USB Type-C (Output)
Maximum Power Consumption	100 W (AC Adapter)

Cable Length	1′ / 0.3 m
Lock Slot	No
Dimensions	11.02 x 2.95 x 0.55″ / 28 x 7.5 x 1.4 cm
Weight	0.65 lb / 0.29 kg

Package Weight	0.9 lb
Box Dimensions (LxWxH)	13.3 x 4.6 x 1.5″
