IOGEAR Dock Pro Overview
- 1Description
- 2Dock & Add Multiple Devices to Your USB Type-C Laptop
- 3Mirror or Extend Your Monitors
- 4Charge Your Laptop While Docked

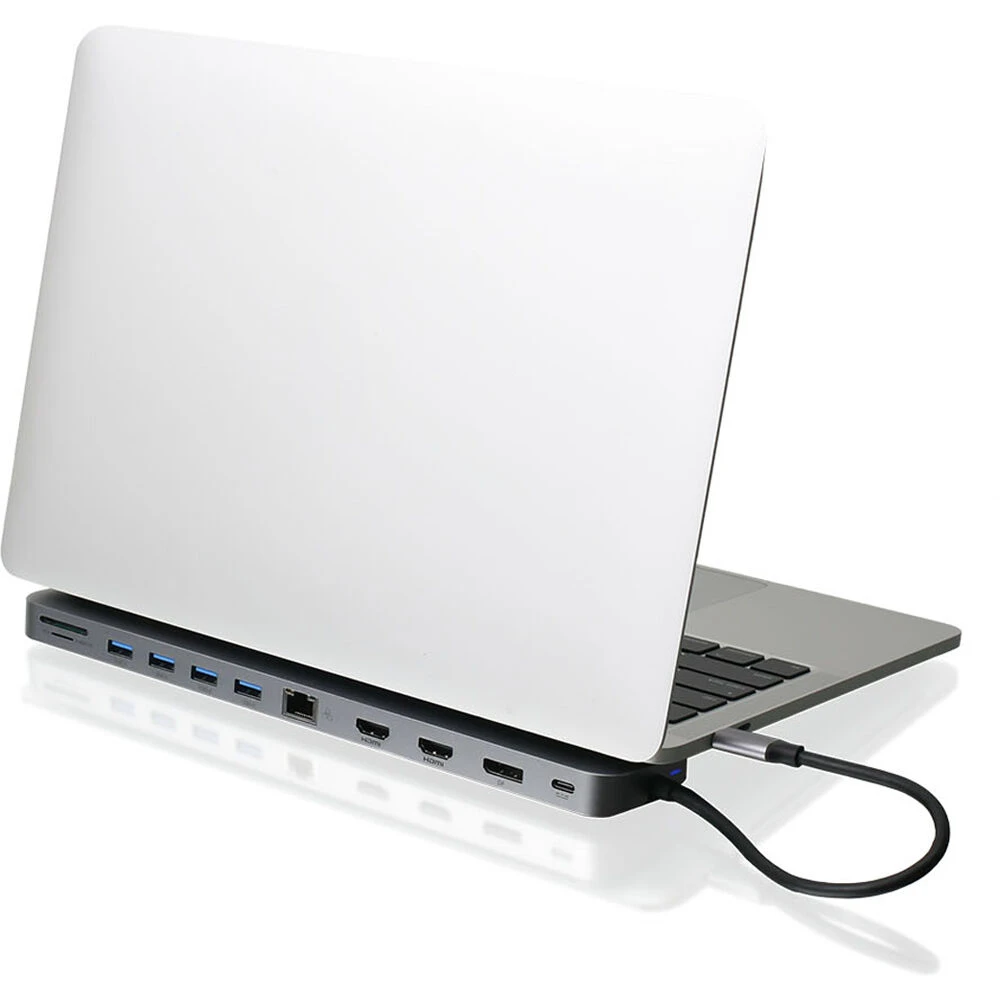

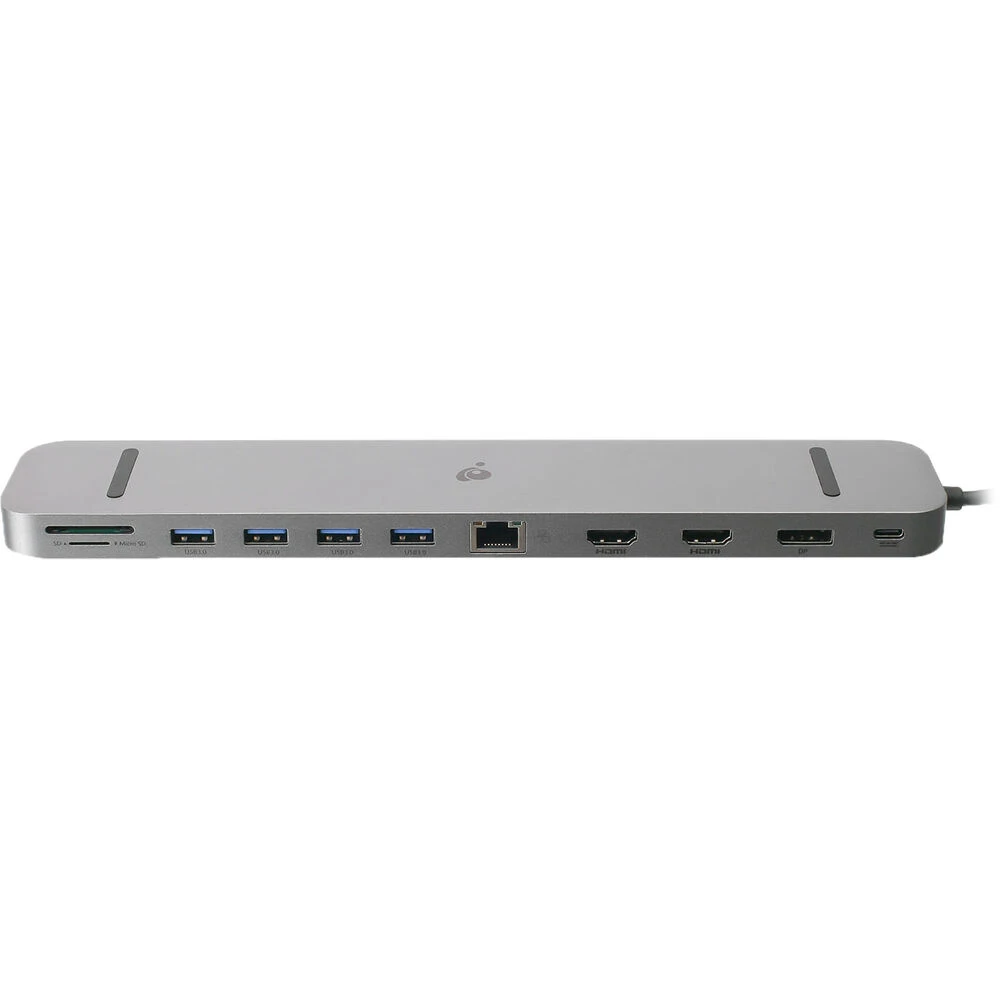

Connect multiple displays, external storage drives, Gigabit Ethernet, and more to a USB Type-C capable laptop with the 13-Port Dock Pro USB Type-C Triple HD Dock with Power Delivery 3.0 from IOGEAR. This dock connects to your host system using an integrated USB Type-C cable and comes equipped with a USB 3.1 Gen 1 Type-C port with up to 100W of Power Delivery, four 5 Gb/s USB Type-A ports, two HDMI ports, a DisplayPort 1.4 port, a Gigabit Ethernet port, a 3.5mm audio and microphone combo port, and an SD and MicroSD card reader.
Using this dock, you can connect up to three FHD (1920 x 1080) displays, or connect a single 4K (3840 x 2160) resolution display at 60 Hz when using DisplayPort 1.4 host. This dock requires a USB Type-C compatible laptop with DisplayPort Alt-Mode support.
- Description
- Dock & Add Multiple Devices to Your USB Type-C Laptop
- Mirror or Extend Your Monitors
- Charge Your Laptop While Docked
IOGEAR Dock Pro Specs
| USB | 4 x USB-A USB 3.0 / 3.1/3.2 Gen 1 1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 1 x USB-C USB (Charging Only) |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Display | 2 x HDMI (Female) 1 x DisplayPort (Female) |
| Audio | 1 x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader | 1 x SD (Unspecified Type) |
| Host Connection | USB-C 3.0 / 3.1/3.2 Gen 1 |
| Connection Type | Integrated Cable |
| Powered Connection | 100 W USB Power Delivery 3.0 |
| Number of Displays Supported | 3 |
| Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Dual Display) |
| OS Compatibility | Windows macOS *As of February, 2022: Check with manufacturer for the most up-to-date compatibility |
| UASP Support | No |
| Power Source | Bus Powered |
| Power I/O | USB-C |
| Cable Length | 9.5″ / 24.1 cm |
| LED Indicator | None |
| Lock Slot | No |
| Dimensions | 10.9 x 2.1 x 0.59″ / 27.7 x 5.3 x 1.5 cm |
| Weight | 0.39 lb / 0.18 kg |
| Package Weight | 0.685 lb |
| Box Dimensions (LxWxH) | 12.7 x 3.6 x 0.9″ |
