InFocus SP2234ST Overview
Frank Abbate

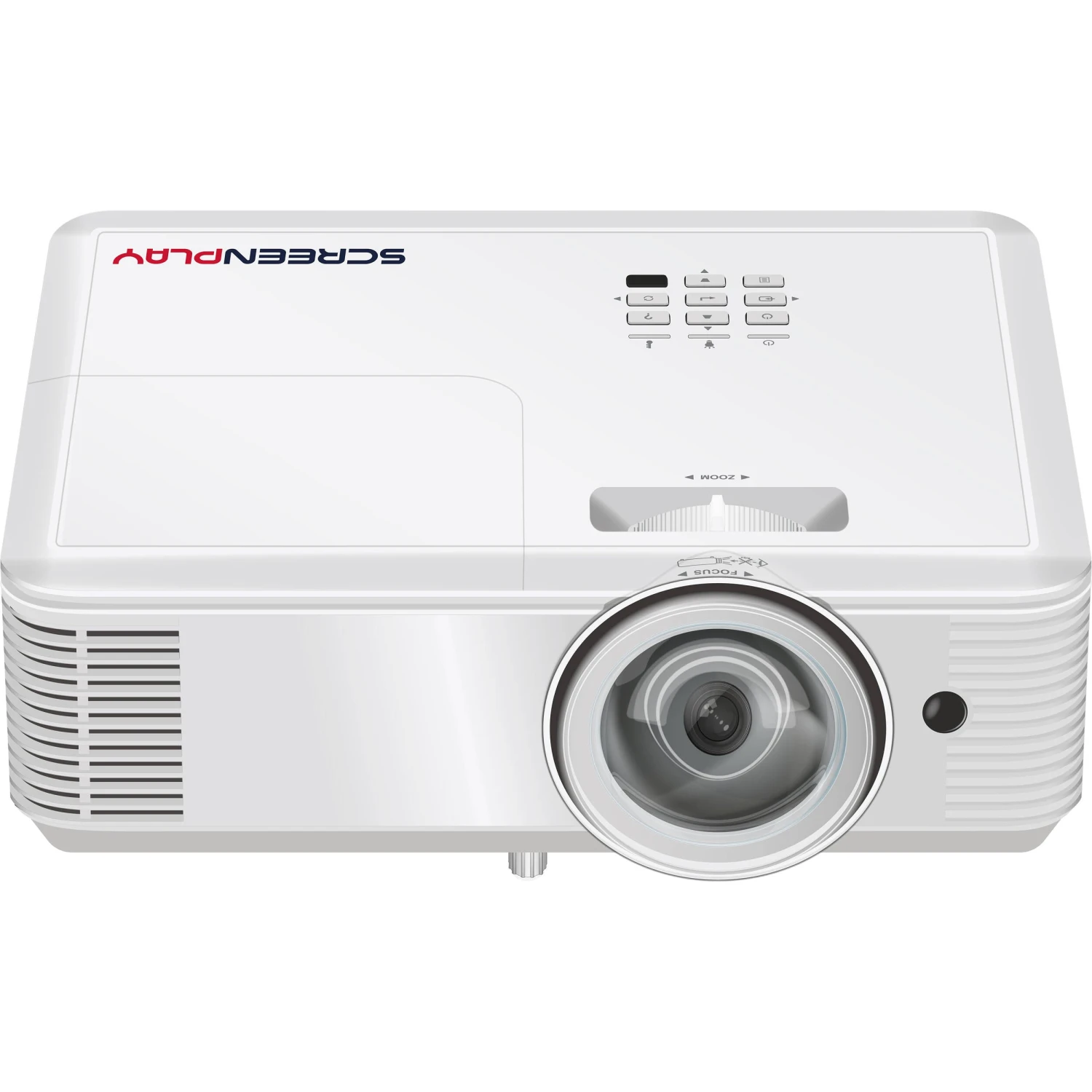

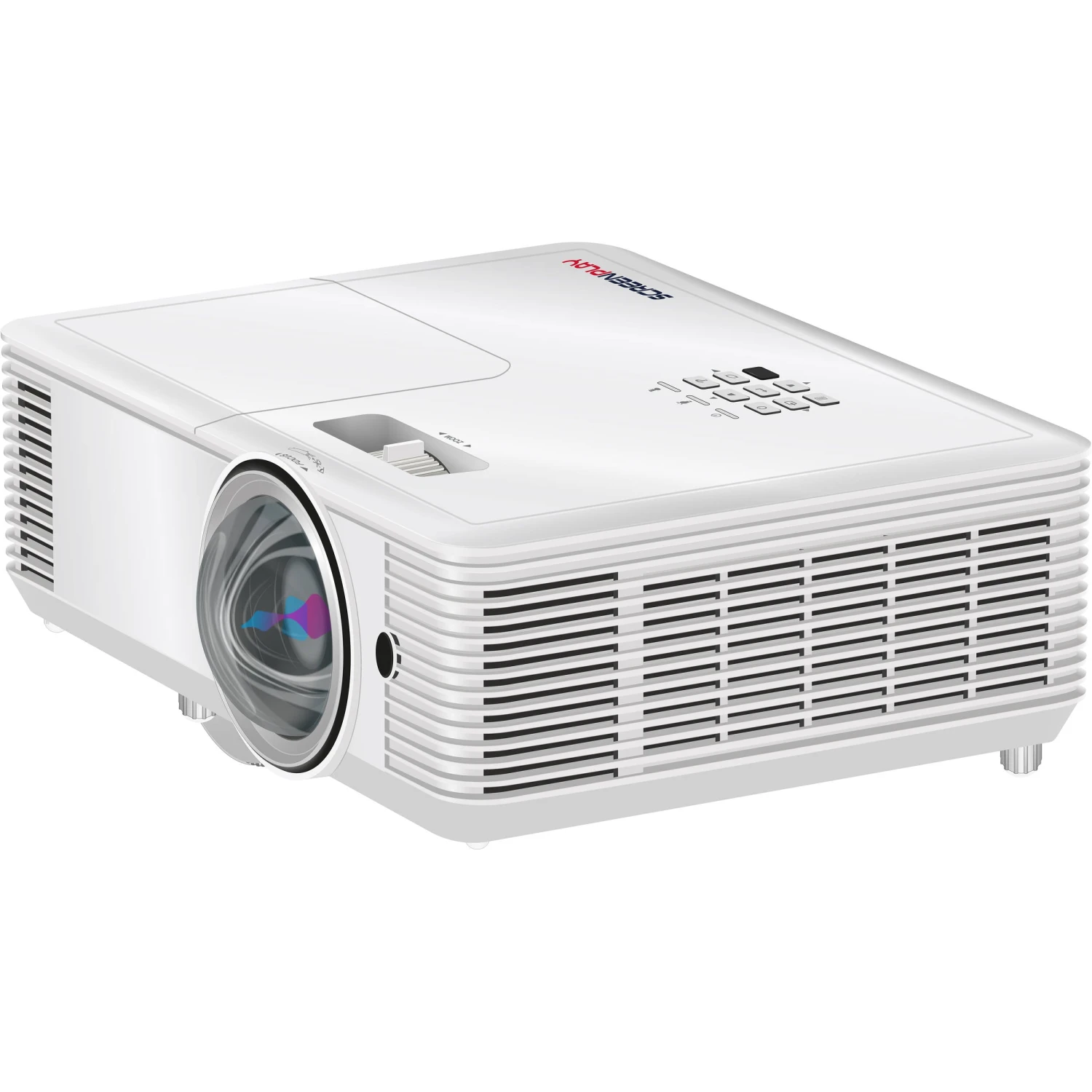

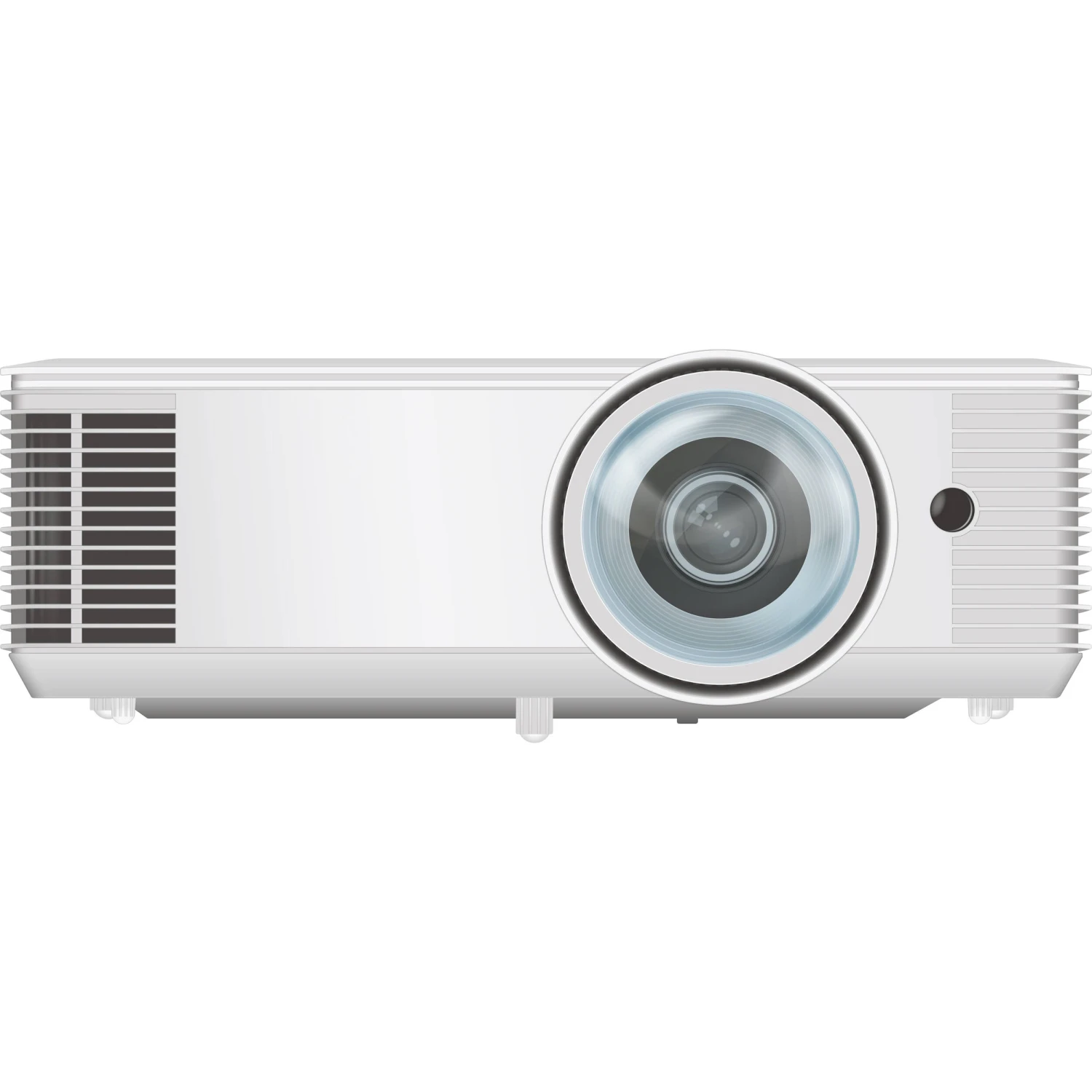

The InFocus ScreenPlay Vista SP2234ST 4200-Lumen XGA Short-Throw DLP Projector is a compact and capable projector with RS-232 and LAN control options, making it well suited to office and business applications. The integrated short-throw lens can fill a 120″ diagonal, 4:3 screen, from just 5′ away, ideal for areas with limited space. Experience industry-leading lamp life with up to 15,000 hours when used in Dynamic mode. Connect devices via HDMI, VGA, and S-video inputs, including 3D sources, such as Blu-ray players or game consoles.
- Full 3D support
- USB-A to power HDMI dongles like Google Chromecast
- Meets the communication standards for the Crestron Connected Network Communication Protocols
- Compatible with the Crestron XiO Cloud Service
- Compatible with network protocol standards including PJ Link, AMX, Extron, and others
- No filter to replace
- Digital edge masking and image shift
- RS-232 controllable
- 24/7 operation capable
Items Included
- InFocus ScreenPlay Vista SP2234ST 4200-Lumen XGA Short-Throw DLP Projector
- Power Cable
- VGA Cable
- Remote Control
- Limited 2-Year Manufacturer Warranty (On Projector)
- Limited 1-Year Manufacturer Warranty (Or 1000 Hours on Original Lamp)
Additional Resources
User Manual
1.7 MB
InFocus SP2234ST Specs
| Display System |
1-Chip 0.55″ DMD DLP |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
4200 Lumens |
| Throw Ratio |
0.617:1 (120″ Screen Size @ 5′ / 1.5 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| HDR Support |
No |
| Inputs/Outputs |

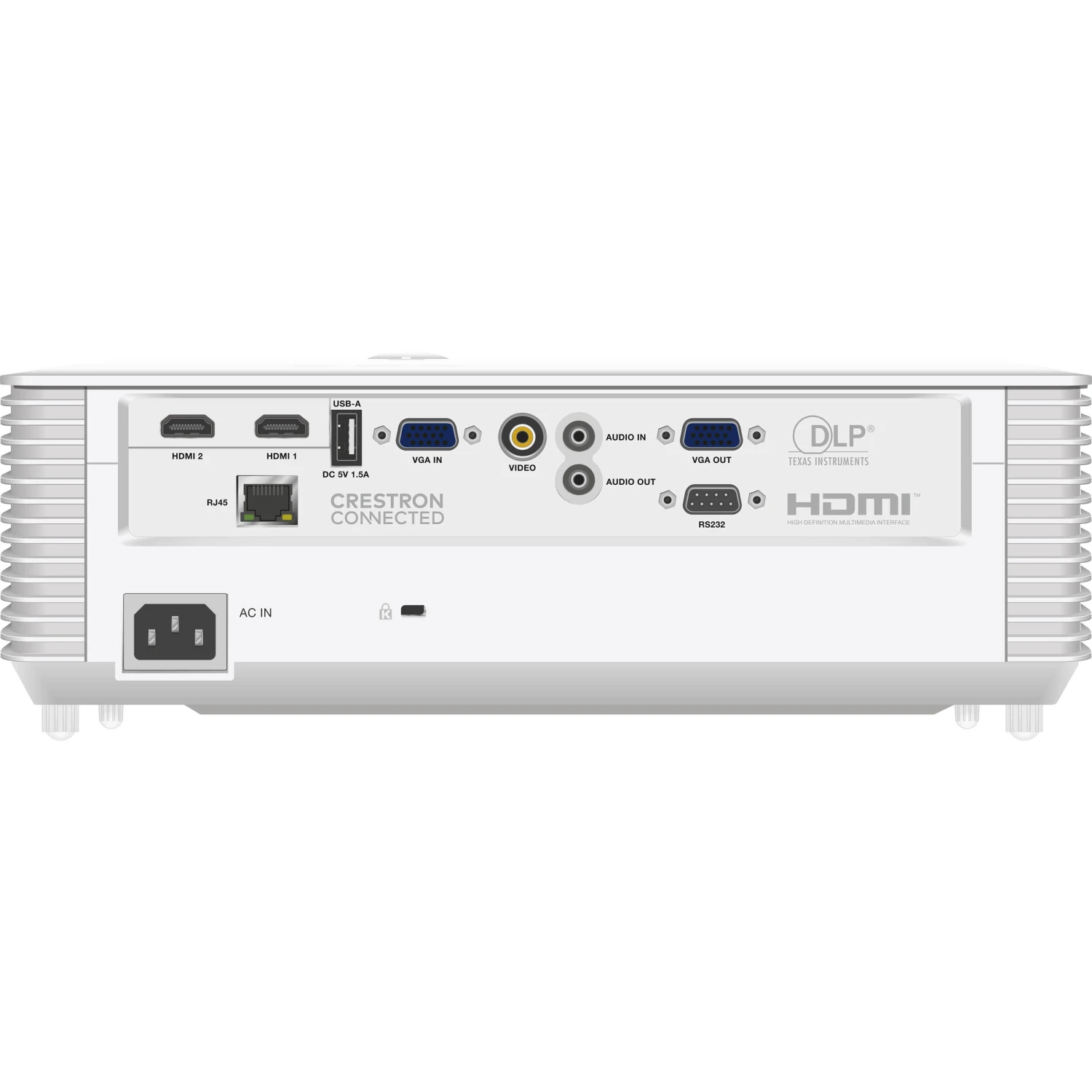

2x HDMI 1.4 Audio, Video Input 1x 4-Pin DIN (S-Video) Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x RJ45 (Ethernet) Control, LAN Input 1x DE-9/DB-9 (RS-232) Control Input |
| Light Source |
Lamp (1 x UHP) |
| Display System |
1-Chip 0.55″ DMD DLP |
| Native Resolution |
1024 x 768 |
| Supported Resolutions |
Maximum: 1920 x 1200 |
| Maximum Brightness |
4200 Lumens |
| Uniformity |
80% |
| Offset |
115% |
| Aspect Ratio |
Native: 4:3 Supported: 16:9 Supported: 16:10 |
| Dynamic Contrast Ratio |
30,000:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Top Bottom Side by Side Frame Sequential |
| Scan |
Horizontal: 15 to 97.55kHz Vertical: 54 to 85Hz |
| Includes Lens |
Yes |
| Focus |
Manual |
| Aperture |
f/2.8 |
| Focal Length |
7.15mm |
| Optical Zoom |
No |
| Throw Distance |
1.3 to 12.5′ / 0.4 to 3.8 m |
| Throw Ratio |
0.617:1 (120″ Screen Size @ 5′ / 1.5 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| Keystone Correction |
Manual to Vertical: ± 20° |
| HDR Support |
No |
| Digital Zoom |
2x |
| Multi-Input Support (PIP/PBP) |
No |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
10 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 1.4 Audio, Video Input 1x 4-Pin DIN (S-Video) Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x RJ45 (Ethernet) Control, LAN Input 1x DE-9/DB-9 (RS-232) Control Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Lamp (1 x UHP) |
| Expected Lamp Life |
Low Brightness: 15,000 Hours |
| Fan Noise |
Medium Brightness: 27 dB |
| Security |
Cable Lock Slot Keypad Lock |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: < 267 W Low Brightness: 210 W Standby Mode (Lamp Off): < 0.5 W |
| Certifications |
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS |
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 85% Humidity |
| Storage Conditions |
14 to 140°F / -10 to 60°C at 10 to 85% Humidity |
| Dimensions (W x H x D) |
12.3 x 3.8 x 9.3″ / 313.0 x 96.4 x 236.0 mm |
| Weight |
6.4 lb / 2.9 kg |
