Iluminar WLC99 Series Short-Range White Light Illuminator (99′, 15°, Black)(Iluminar Wlc99 Series Short Range White Light Illuminator 99 15 Deg Black)

Original price was: $354.48.Current price is: $96.99.

SKU: DGFUB 8903939664 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Illuminators, Iluminar WLC99-15-24, Surveillance, Surveillance Video

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

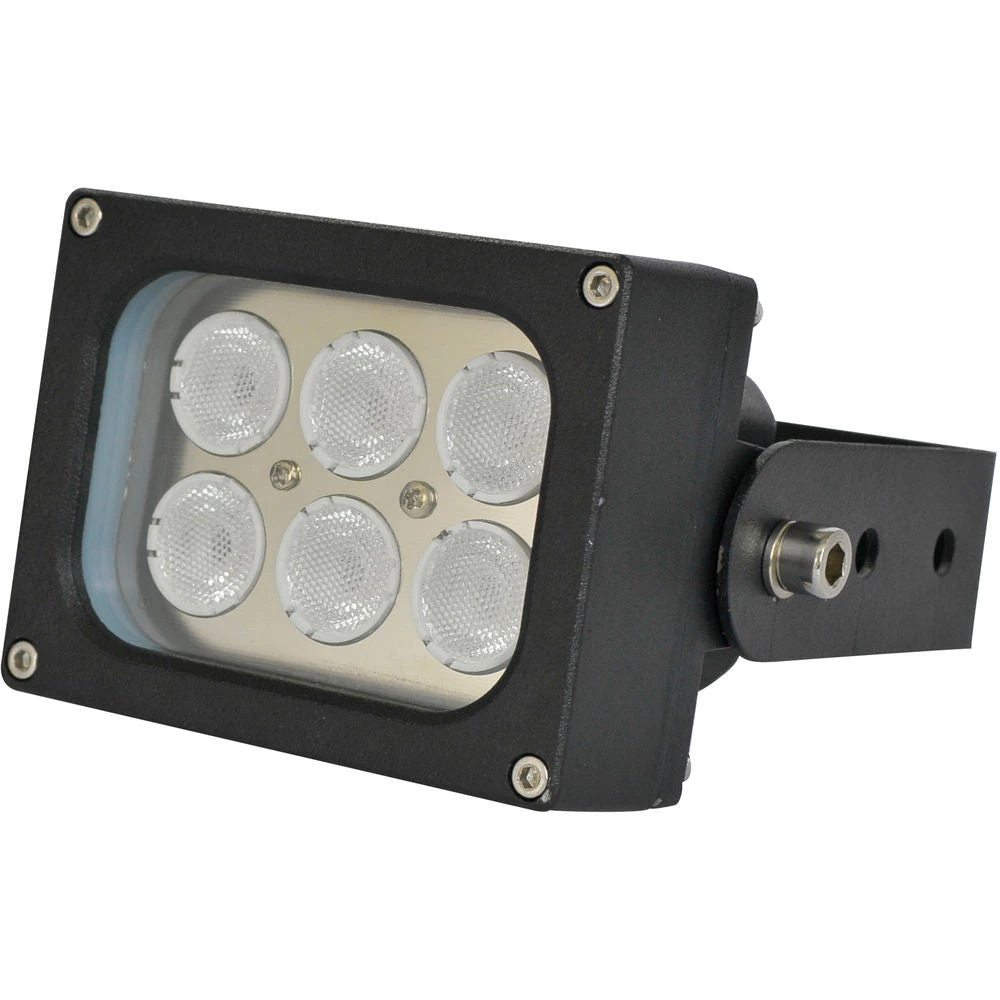

The black powder coated WLC99 Series Short-Range White Light Illuminator from Iluminar is designed to provide visible lighting for color CCTV cameras. It employs 6 SMT (Surface Mount Technology) white LEDs that provide illumination up to 99′ (30m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122ï¿½F (-40 to 50ï¿½C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell.

Short-range wide-angle white light illuminator for color CCTV cameras

Illumination distance up to 99′ (30m) and illumination angle of 15ï¿½

Low power consumption of 12W

IP66-rated weatherproof

Automatic light on/off via built-in photocell

12 VDC or 24 VAC power input

Black powder coated stainless steel wall mount

In the Box

Iluminar WLC99 Series Short-Range White Light Illuminator (99′, 15ï¿½, Black)

M6 Allen Key
Limited 3-Year Warranty

White LEDs
Number of LEDs	6
Type	SMT (Surface Mount Technology) white LEDs
Color Temperature	6000 K
Luminous Flux	720 lumens
Illumination Angle	15ï¿½
Illumination Distance	Up to 99′ (30 m) Tested using Sony 1/3″ CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications.

Electrical
Input Voltage	12 VDC or 24 VAC
Input Current	1.0 A @ 24 VAC or 2.0 A @ 12 VDC
Power Consumption	12 W

Certifications
Safety	Electrical Safety: EN60598:2004 Laser Eye Safety EN60825-1
IP Rating	IP66 in accordance with EN60529:1992
EMC	EN61000, FCC part 15.107, 15.108 class B
Others	WEEE 202/96/EC, RoHS 202/95/EC

General
Construction	Die-cast aluminum
Front Window	Tempered glass panel
Power Cable	17.6″ (45.0 cm)
Mount	Stainless steel wall mount adjustable via M6 Allen key (included)
Temperature	-40 to 122ï¿½F (-40 to 50ï¿½C)
Dimensions	4.3 x 3.4 x 3.5″ (11.0 x 8.5 x 8.8 cm)
Weight	2.2 lb (1.0 kg)
