Iluminar WLC200 Series Long-Range White Light Illuminator (99′, 60°)(Iluminar Wlc200 Series Long Range White Light Illuminator 99 60 Deg)

Original price was: $384.00.Current price is: $96.99.

SKU: DGFUB 8903952720 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Additional Accessories, Illuminators, Iluminar WLC200-60-24, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

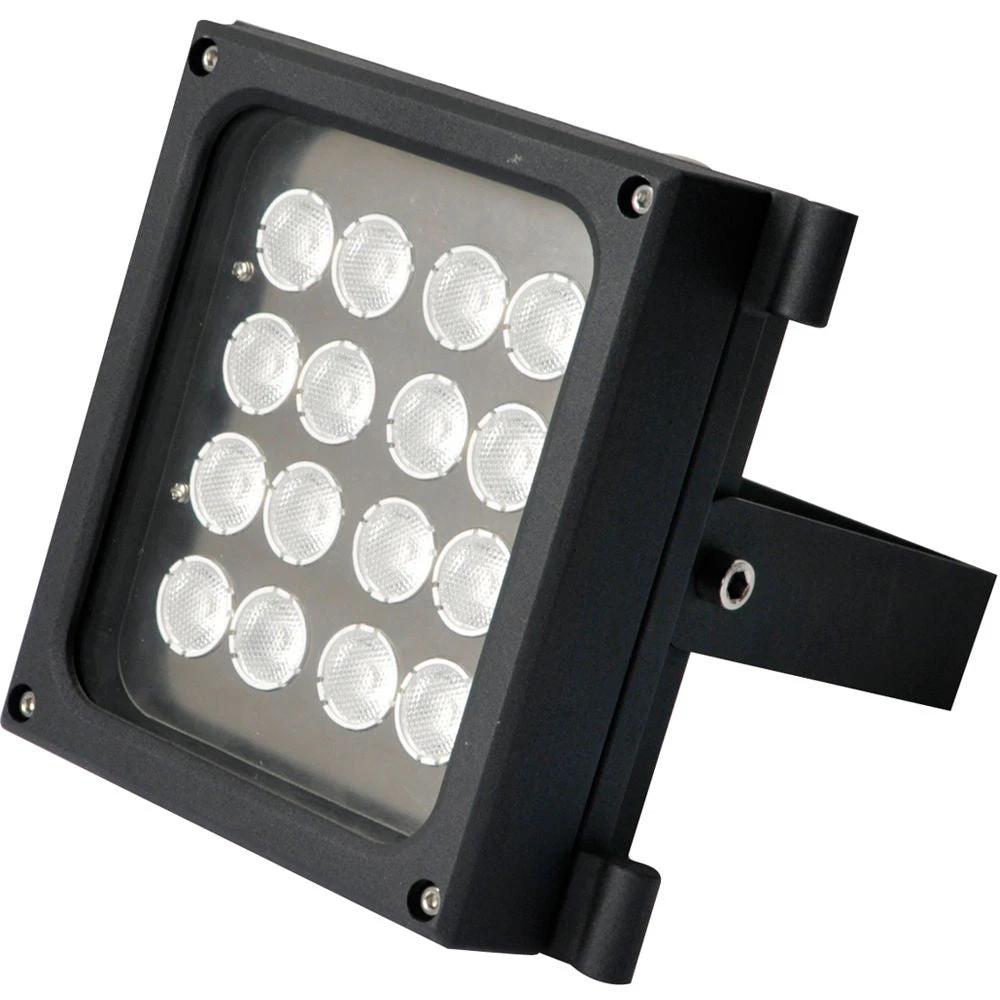

The black powder coated WLC200 Series Long-Range White Light Illuminator from Iluminar is designed to provide visible lighting for CCTV cameras. It employs 16 SMT (Surface Mount Technology) white LEDs that provide illumination up to 99′ (30m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122ï¿½F (-40 to 50ï¿½C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell.

Long-range white light illuminator for color CCTV cameras

Illumination distance up to 99′ (30m) and illumination angle of 60ï¿½

Low power consumption of 32W

Even illumination

IP66-rated weatherproof

Automatic light on/off via built-in photocell

12 VDC or 24 VAC power input

Black powder-coated stainless steel wall mount

In the Box

Iluminar WLC200 Series Long-Range White Light Illuminator (99′, 60ï¿½)

M6 Allen Key
Wall Mount
Limited 3-Year Warranty

White LEDs
Number of LEDs	16
Type	SMT (Surface Mount Technology) white LEDs
Color Temperature	6000-K
Luminous Flux	1920 lumens
Illumination Angle	60ï¿½
Illumination Distance	Up to 99′ (30 m) Tested using Sony 1/3″ CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications.

Electrical
Input Voltage	12 VDC/24 VAC
Input Current	1.6 A @ 24 VAC/3.2 A @ 12 VDC
Power Consumption	32 W

Certifications
Safety	Electrical Safety: EN60598:2004 Laser Eye Safety EN60825-1
IP Rating	IP66 in accordance with EN60529:1992
EMC	EN61000, FCC part 15.107, 15.108 class B
Others	WEEE 202/96/EC, RoHS 202/95/EC

General
Construction	Die-cast aluminum
Front Window	Tempered glass panel
Power Cable	17.6″ (45.0 cm)
Mount	Stainless steel wall mount, adjustable via M6 Allen key (included)
Temperature	-40 to 122ï¿½F (-40 to 50ï¿½C)
Dimensions	8.3 x 6.7 x 4.9″ (21 x 17 x 12.4 cm)
Weight	3.5 lb (1.6 kg)
