Iluminar WLC150-PoE Series Medium-Range White Light Illuminator (150′, 15°, Black)(Iluminar Wlc150 Poe Series Medium Range White Light Illuminator 150 15 Deg Black)

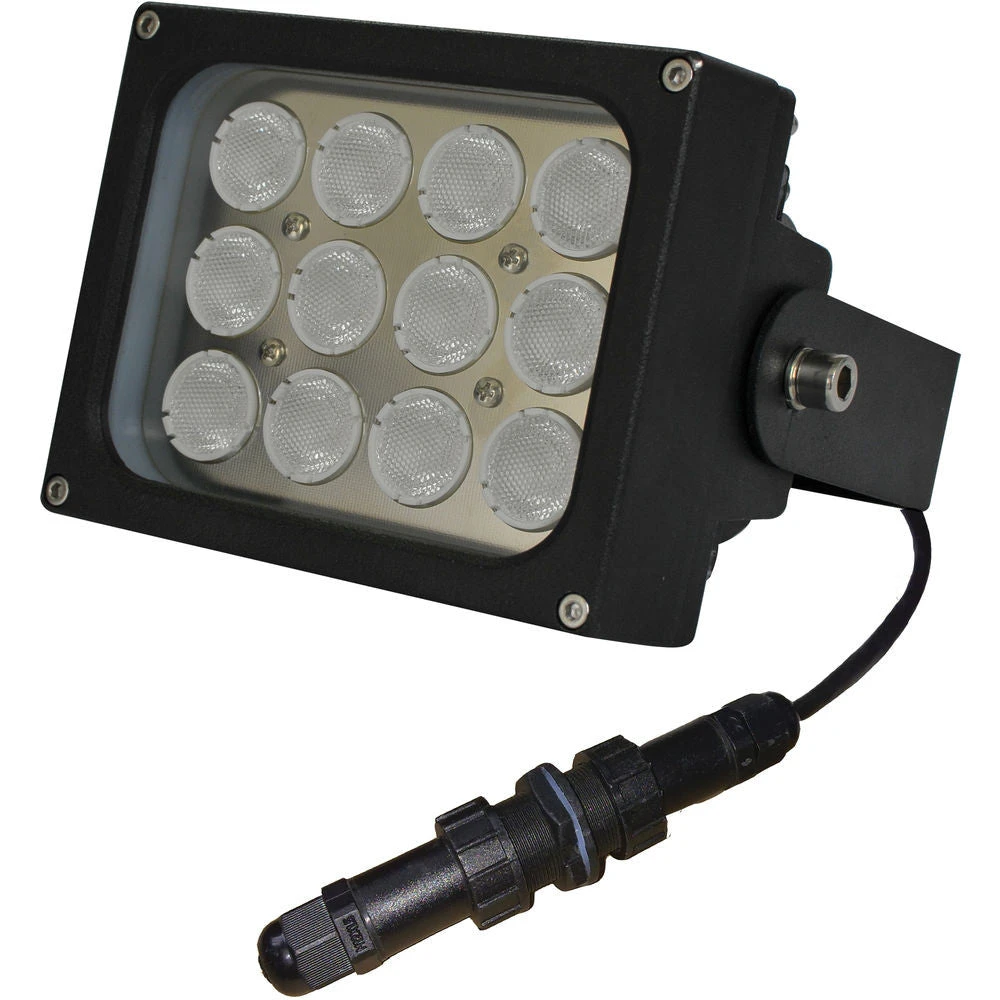

The black powder coated WLC150-PoE Series Medium-Range White Light Illuminator from Iluminar is designed to provide visible lighting for color network cameras via PoE (Power over Ethernet)-enabled network infrastructure. It employs 12 SMT (Surface Mount Technology) white LEDs that provide illumination up to 150′ (45m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122�F (-40 to 50�C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell.

Iluminar WLC150-PoE Series Medium-Range White Light Illuminator (150′, 15�, Black)

White LEDs
Number of LEDs	12
Type	SMT (Surface Mount Technology) white LEDs
Color Temperature	6000 K
Luminous Flux	1440 lumens
Illumination Angle	15�
Illumination Distance	Up to 150′ (45 m) Tested using Sony 1/3″ CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications.

Electrical
Input Voltage	High Power over Ethernet (PoE+); IEEE.802.3at standard
Power Consumption	24 W

Certifications
Safety	Electrical Safety: EN60598:2004 Laser Eye Safety EN60825-1
IP Rating	IP66 in accordance with EN60529:1992
EMC	EN61000, FCC part 15.107, 15.108 class B
Others	WEEE 202/96/EC, RoHS 202/95/EC

General
Construction	Die-cast aluminum
Front Window	Tempered glass panel
Power Input Connection	IP66 rated RJ45 jack and CAT5e cable
Mount	Stainless steel wall mount adjustable via M6 Allen key (included)
Temperature	-40 to 122�F (-40 to 50�C)
Dimensions	5.4 x 4.4 x 3.5″ (13.7 x 11.1 x 8.9 cm)
Weight	2.9 lb (1.3 kg)
