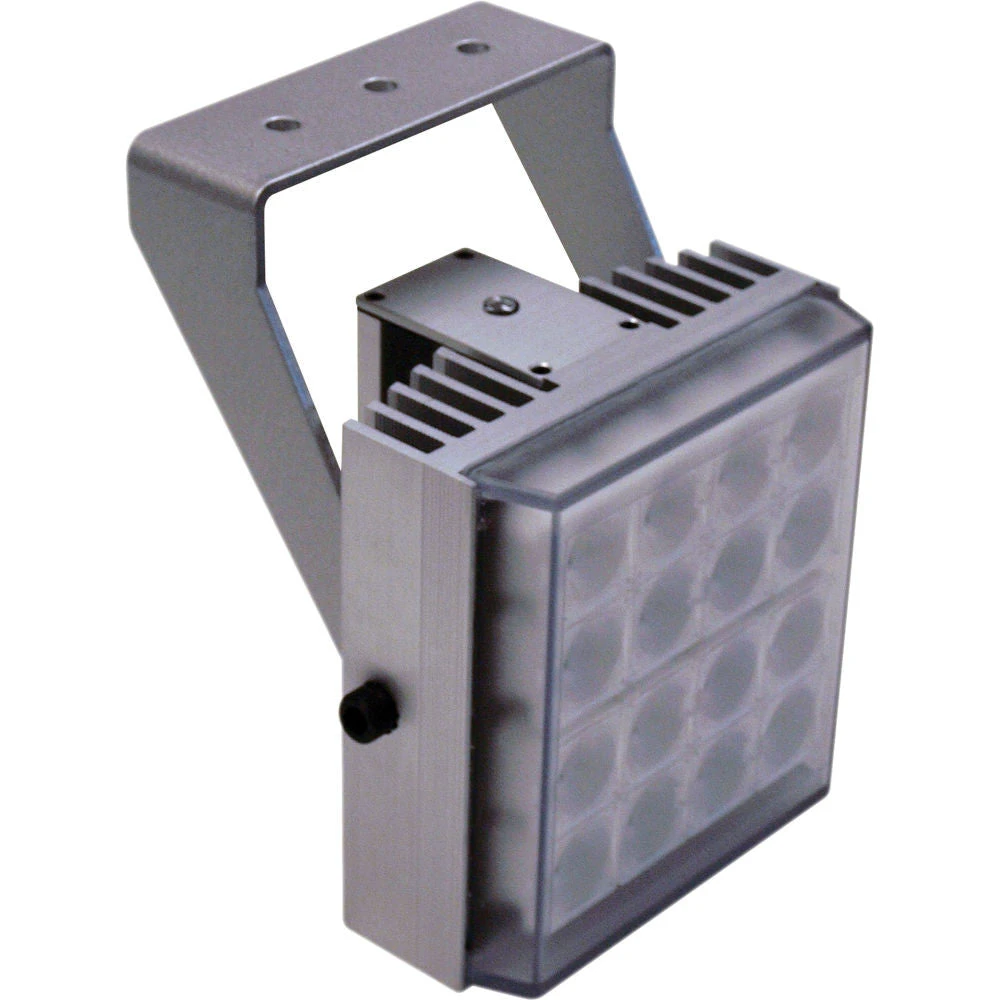

Iluminar WL220-2 Series 30° Medium-Range White Light Illuminator (115′, Silver)(Iluminar Wl220 2 Series 30 Deg Medium Range White Light Illuminator 115 Silver)

Original price was: $347.00.Current price is: $99.99.

SKU: DGFUB 9000707792 Category: Optics & Surveillance Tags: Additional Accessories, Camera Accessories, Surveillance, Surveillance Video

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Visible Light for Color CCTV Cameras
16 SMT-Enabled LEDs
30ï¿½ Illumination Angle
Built-in Photocell (IR On / Off)
Illumination Range up to 115′
62′ Horizontal Field of View
Photocell Following Contact
Telemetry Input for Remote Switching
IP67 Weatherproof Rating

The silver WL220-2 Series Medium-Range White Light Illuminator from Iluminar is a visible light illuminator for surveillance cameras. This illuminator features high-power SMT-enabled (Surface Mount Technology) LEDs with current-limited integral control circuitry. It provides illumination to a distance of 115′ (35m) at an angle of 30ï¿½. It also has a built-in photocell and comes with a wall mounting bracket.

The IP67-rated and vandal-resistant illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140?F (-50 to 60?C).

Medium-range white light illuminator with SMT LED technology

Provides visible light for surveillance cameras

Illumination distance up to 115′ (35m) at an angle up to 30ï¿½

62′ (19m) horizontal field of view

Energy efficient with low power consumption of 26W

IP67 weatherproof rating

Built-in photocell with IR on/off

Photocell following contact

Telemetry input for remote switching

Pressure equalization vent prevents thermal expansion & pressure cycling

Silver anodized finish

Black powder-coated stainless steel wall mount

In the Box

Iluminar WL220-2 Series 30ï¿½ Medium-Range White Light Illuminator (115′, Silver)

M6 Allen Key
Limited 5-Year Warranty

Illumination Angle	30ï¿½
Illumination Distance	115′ (35 m)
Horizontal Field-of-View	62′ (19 m)
Lumen Output	1856 lumens
Wavelength	Visible Spectrum (400 to 750 nm)
Color Temperature	6500K
Color Rendering Index	74-80+
Electronics	High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry
Number of SMT LEDs	16
Photocell	Adjustment via remote
Illumination	Adjustment via remote
Mount	Black, powder-coated stainless steel wall mount Adjustable via M6 Allen key (included)
Construction	Aluminum extrusion
Front Window	Polycarbonate high transmittance protective (vandal-proof) clear
Telemetry	Following contact via cable
Power Cable	9′ (3 m)
Input Voltage	12 to 32 VDC or 24 VAC
Input Current	1 A at 24 VAC
Power Consumption	24 W
IP Rating	IP67 in accordance with EN60529:1992
Certifications	Safety: EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: EN61000, FCC part 15.107 15.108 Class B WEEE directive 202/96/EC RoHS directive 202/95/EC
Operating Temperature	-58 to 140?F (-50 to 60?C)
Dimensions	4.33 x 4.33 x 3.15″ (11 x 11 x 8 cm)
Weight	2.2 lb (1 kg)

Packaging Info
Package Weight	4.0 lb
Box Dimensions (LxWxH)	12.0 x 8.0 x 8.0″
