Iluminar WL220-2 Series 120° Medium-Range White Light Illuminator (46′, Silver)(Iluminar Wl220 2 Series 120 Deg Medium Range White Light Illuminator 46 Silver)
Original price was: $321.00.$98.99Current price is: $98.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
- Visible Light for Color CCTV Cameras
- 16 SMT-Enabled LEDs
- 120� Illumination Angle
- Built-in Photocell (IR On / Off)
- Illumination Range up to 46′
- 159′ Horizontal Field of View
- Photocell Following Contact
- Telemetry Input for Remote Switching
- IP67 Weatherproof Rating

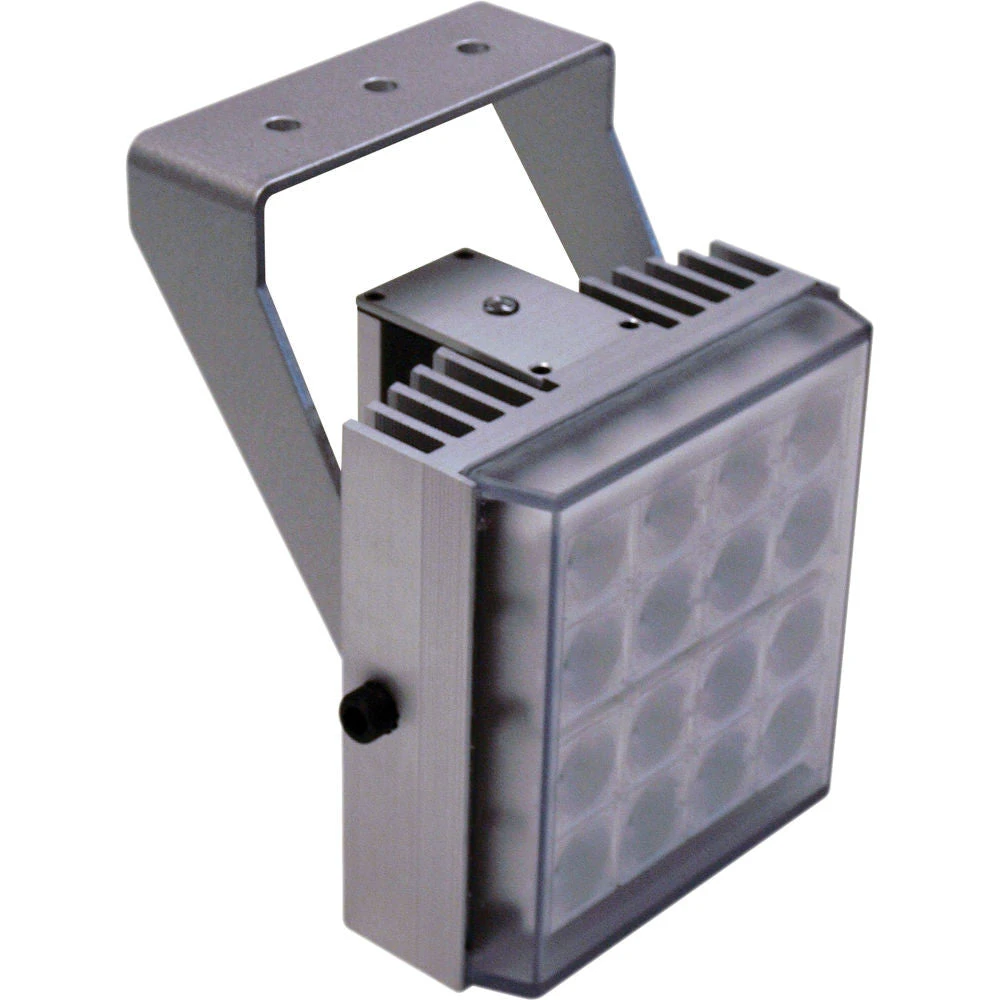

The silver WL220-2 Series Medium-Range White Light Illuminator from Iluminar is a visible light illuminator for surveillance cameras. This illuminator features high-power SMT-enabled (Surface Mount Technology) LEDs with current-limited integral control circuitry. It provides illumination to a distance of 46′ (14m) at an angle of 120�. It also has a built-in photocell and comes with a wall mounting bracket.
The IP67-rated and vandal-resistant illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140?F (-50 to 60?C).
- Medium-range white light illuminator with SMT LED technology
- Provides visible light for surveillance cameras
- Illumination distance up to 46′ (14m) at an angle up to 120�
- 159′ (48m) horizontal field of view
- Energy efficient with low power consumption of 26W
- IP67 weatherproof rating
- Built-in photocell with IR on/off
- Photocell following contact
- Telemetry input for remote switching
- Pressure equalization vent prevents thermal expansion & pressure cycling
- Silver anodized finish
- Black powder-coated stainless steel wall mount
- M6 Allen Key
- Limited 5-Year Warranty
| Illumination Angle | 120� |
| Illumination Distance | 46′ (14 m) |
| Horizontal Field-of-View | 159′ (48 m) |
| Lumen Output | 1856 lumens |
| Wavelength | Visible Spectrum (400 to 750 nm) |
| Color Temperature | 6500K |
| Color Rendering Index | 74-80+ |
| Electronics | High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs | 16 |
| Photocell | Adjustment via remote |
| Illumination | Adjustment via remote |
| Mount | Black, powder-coated stainless steel wall mount Adjustable via M6 Allen key (included) |
| Construction | Aluminum extrusion |
| Front Window | Polycarbonate high transmittance protective (vandal-proof) clear |
| Telemetry | Following contact via cable |
| Power Cable | 9′ (3 m) |
| Input Voltage | 12 to 32 VDC or 24 VAC |
| Input Current | 1 A at 24 VAC |
| Power Consumption | 24 W |
| IP Rating | IP67 in accordance with EN60529:1992 |
| Certifications | Safety: EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: WEEE directive 202/96/EC RoHS directive 202/95/EC |
| Operating Temperature | -58 to 140?F (-50 to 60?C) |
| Dimensions | 4.33 x 4.33 x 3.15″ (11 x 11 x 8 cm) |
| Weight | 2.2 lb (1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.25 lb |
| Box Dimensions (LxWxH) | 9.2 x 7.2 x 4.6″ |
