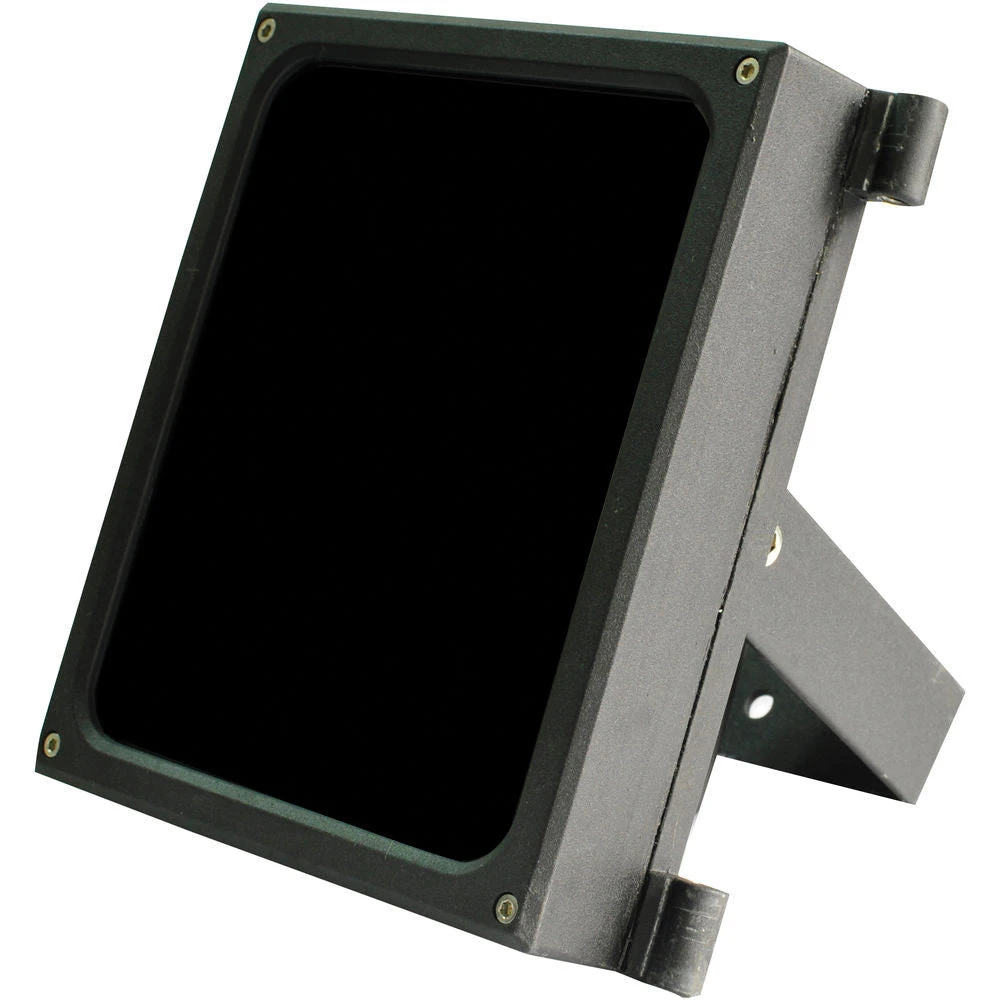

Iluminar IRC430 Series Super Long Range IR Illuminator (850nm, 120°, Black)(Iluminar Irc430 Series Super Long Range Ir Illuminator 850nm 120 Deg Black)

The black powder coated IRC430 Series Super Long Range IR Illuminator from Iluminar is designed to provide IR lighting for true day/night CCTV systems. It employs thirty 850nm IR LEDs that provide illumination up to 83′ (25m). This IP66-rated illuminator is vandal-resistant and can be installed outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122�F (-40 to 50�C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic IR on/off via built-in photocell.

Iluminar IRC430 Series Super Long Range IR Illuminator (850nm, 120�, Black)

IR LEDs
Number of LEDs	30
Wavelength	850 nm (semi-covert); faint red glow visible on illuminator only (no visible light)
Illumination Angle	120�
Illumination Distance	Up to 83′ (25 m) Tested using Sony 1/3″ CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications.

Electrical
Input Voltage	12 VDC or 24 VAC
Input Current	2.5 A @ 24 VAC or 5.0 A @ 12 VDC
Power Consumption	60 W

Certifications
Safety	Electrical Safety: EN60598:2004 Laser Eye Safety EN60825-1
IP Rating	IP66 in accordance with EN60529:1992
EMC	EN61000, FCC part 15.107, 15.108 class B
Others	WEEE 202/96/EC, RoHS 202/95/EC

General
Construction	Die-cast aluminum
Front Window	Tempered glass panel
Power Cable	17.6″ (45.0 cm)
Operating Temperature	-40 to 122�F (-40 to 50�C)
Mount	Stainless steel wall mount adjustable via M6 Allen key (included)
Dimensions	8.3 x 8.4 x 4.9″ (21.0 x 21.3 x 12.4 cm)
Weight	7.3 lb (3.3 kg)
