- Snaps onto 15mm LWS Rods
- Distributes 12 to 24VDC over 4 x XLR
- 10 Amp Chassis Mount Fuse

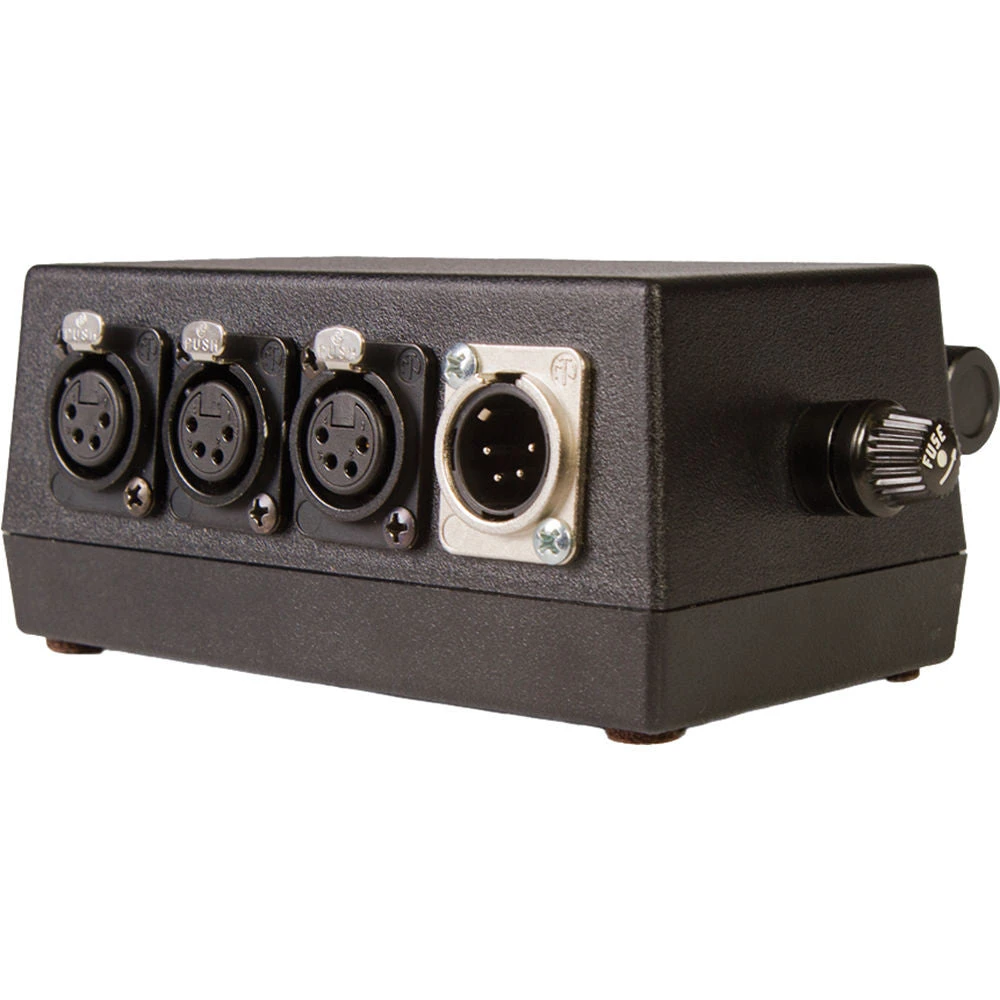

The KPDM-100 Power Distribution Module from ikan snaps onto 15mm LWS rods, and provides 4 XLR power outputs from a single fused 4-pin XLR input. This allows you to power multiple devices from a single power source, while minimizing cable clutter. It supports 12 to 24VDC power input, and comes with a replaceable 10 amp fuse.
- Supports 12 to 24VDC
- Mounts to 15mm LWS (Light Weight Standard) rods with a snap on clamp, so you don’t have to slide the module on the rods from the ends. You can just snap it onto the rods. The clamp allows you to top mount or undersling the module.
- The Unit features a chassis mount fuse, and comes with a 10 amp fuse. You can replace the fuse with a lower rated fuse to suit your specific needs.

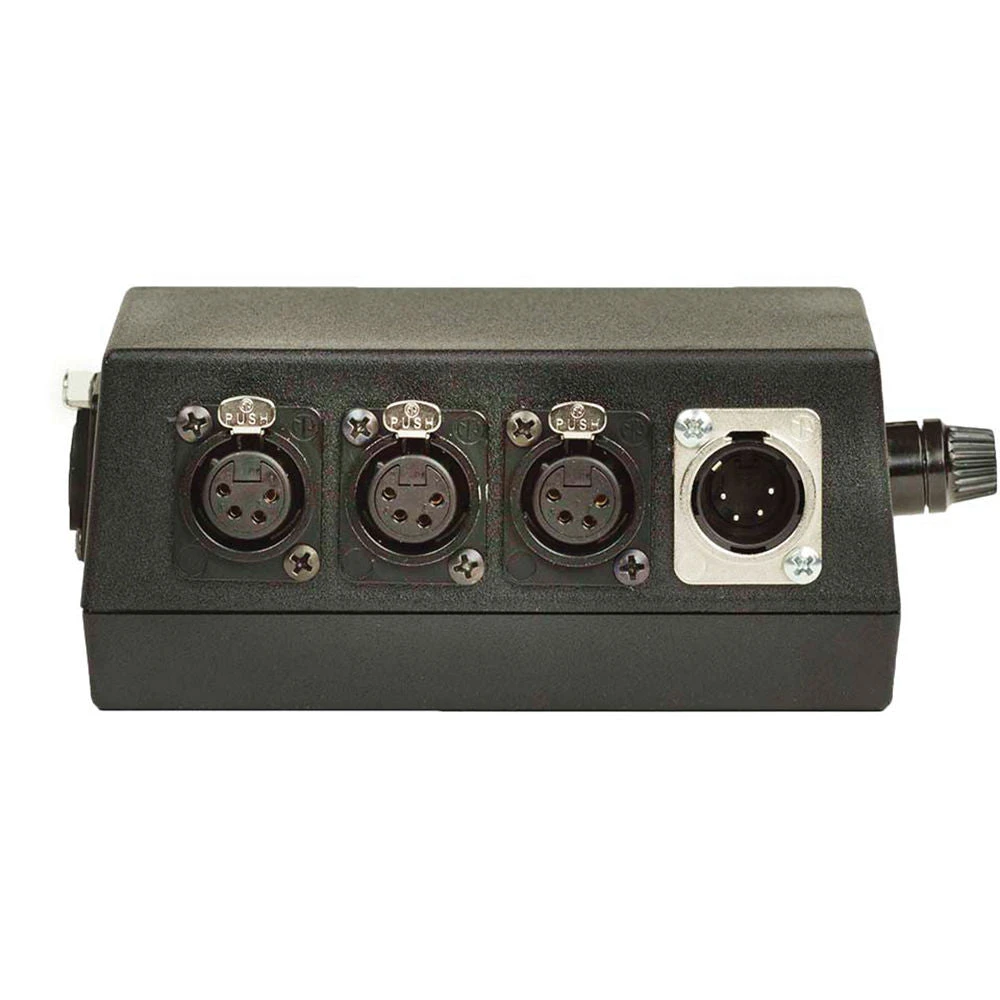

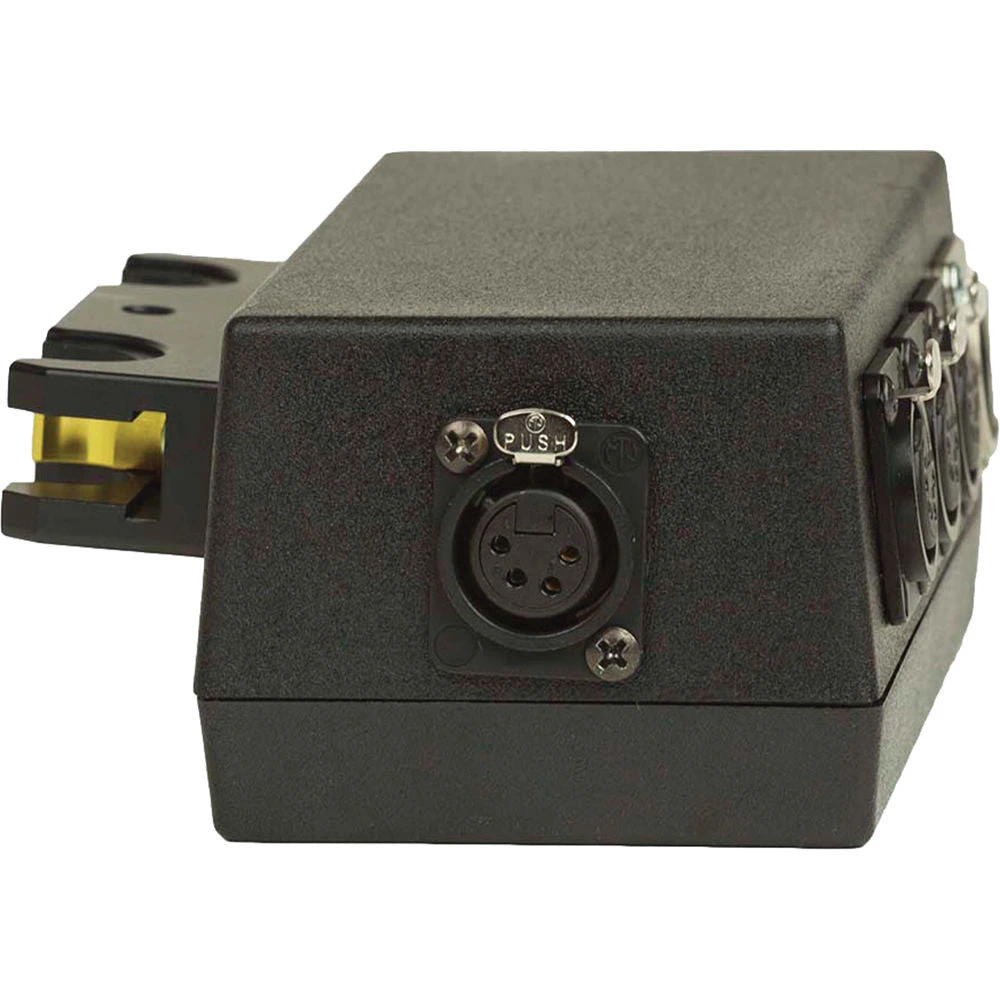

- Three outputs are lined up next to the single XLR input; one XLR output is positioned on the side.
- Limited 1-Year Warranty
| Power | 1 x 4-Pin XLR Input (Male) 4 x 4-Pin XLR Outputs (Female) |
| Fuse | 1 x 10 A Chassis Mount Fuse |
| Rod Clamps | Snap on LWS 15mm |
| Dimensions | 3.9 x 9.0 x 6.9″ (9.9 x 22.9 x 17.5 cm) |
| Weight | 15.5 oz (440 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 9.0 x 7.0 x 4.0″ |
