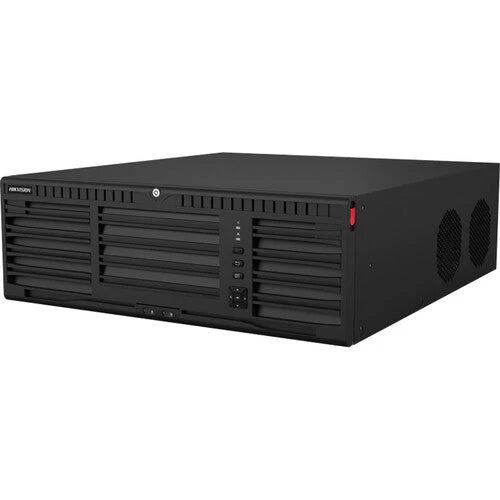

Hikvision M Series DS-9664NI-M16/R 64-Channel 8K NVR (No HDD)(Hikvision M Series Ds 9664ni M16 R 64 Channel 8k Nvr No Hdd)

Original price was: $391.00.Current price is: $98.99.

SKU: DGFUB 6980917166165 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Hikvision DS-9664NI-M16/R, Network Video Recorders (NVRs), Surveillance, Video Recorders & Hard Drives

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-9664NI-M16/R Overview

Record from and manage up to 64 cameras with the M Series DS-9664NI-M16/R 64-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with sixteen SATA ports that each support an HDD up to 14TB, for a maximum capacity of 224TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.

This NVR supports two-way audio. Compliance with ONVIF profiles S and T enables interoperability with a wide range of network cameras. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).

Recording resolution up to 32MP

Dual-stream recording saves bandwidth

TLS encryption for secure transmission stream

16-channel synchronous playback

Smooth streaming technology

Hik-Connect enables seamless network management

Supports web access without plug-in

Redundant power supply

Smart & POS Functions

Supports multiple VCA (Video Content Analytics) events

Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting

POS information overlay on live view and playback

POS-triggered recording and alarm

UPC: 842571147971

In the Box

Hikvision M Series DS-9664NI-M16/R 64-Channel 8K NVR (No HDD)
Limited 3-Year Manufacturer Warranty

Hikvision DS-9664NI-M16/R Specs

Key Specs

Number of Channels	64
Playback Resolution	HDMI (Output 1): 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz
Recording Resolution	1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
Throughput	400 Mb/s (Incoming) 400 Mb/s (Outgoing)
A/V I/O	2 x HDMI Output 2 x VGA Output 1 x BNC CVBS Output (1 V p-p, 75 Ohm) 2 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm)
Communication Inputs/Outputs	2 x RJ45 Gigabit Ethernet 1 x RS-485 (Full-Duplex) 1 x RS-232 2 x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2 x USB-A 2.0 (Rear)
Mobile App Compatible	Yes: Android & iOS App Name: Hik-Connect *As of March, 2023: Check with manufacturer for the most up-to-date compatibility

General

Number of Channels	64
Playback Resolution	HDMI (Output 1): 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz
Recording Resolution	1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
Throughput	400 Mb/s (Incoming) 400 Mb/s (Outgoing)
IP Camera Support	64
Decoding Resolution	2 Channels: 32 MP at 30 fps 8 Channels: 8 MP at 30 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps
2-Way Audio	Yes

Connectivity

A/V I/O	2 x HDMI Output 2 x VGA Output 1 x BNC CVBS Output (1 V p-p, 75 Ohm) 2 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm)
Communication Inputs/Outputs	2 x RJ45 Gigabit Ethernet 1 x RS-485 (Full-Duplex) 1 x RS-232 2 x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 2 x USB-A 2.0 (Rear)
Audio Inputs/Outputs	1 Input 2 Outputs
System Connection	16 x SATA 1 x eSATA
Network Protocols	DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI

Compatibility

Supported Video Codecs	H.264, H.264+, H.265, H.265+
Supported Audio Codecs	AAC, G.711A, G.711U, G.722, G.726, MP2L2, PCM

Computing

Optical Drive

System

Installed Drive	No
Max Capacity Supported	14 TB (Each Drive) 224 TB (Total)
Number of Bays	16 x Internal
RAID	RAID 0, 1, 10, 5, 6

Software System Requirements

OS Compatibility	Windows macOS *As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible	Yes: Android & iOS App Name: Hik-Connect *As of March, 2023: Check with manufacturer for the most up-to-date compatibility

Notifications

Alarm Inputs/Outputs	16 Inputs 9 Outputs
Event Trigger	Analytics

System Functions

Recording Modes	Alarm, Analytics
Dual Streaming	Yes
Multi-Screen Configuration	2 (Primary Display, Secondary Display)
Fisheye Dewarping	Yes

Electrical

Power Consumption	50 W (Without HDD)
Power Supply Type	External
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%

Physical

Built-In Display	No
Certifications	CE, FCC
LED Indicators	Yes
Rack Form Factor	3 RU
Dimensions (W x D x H)	17.5 x 19.5 x 5.9″ / 445.0 x 496.0 x 150.0 mm
Weight	27.6 lb / 12.5 kg

Packaging Info

Package Weight	33.985 lb
Box Dimensions (LxWxH)	25 x 23 x 13.1″
