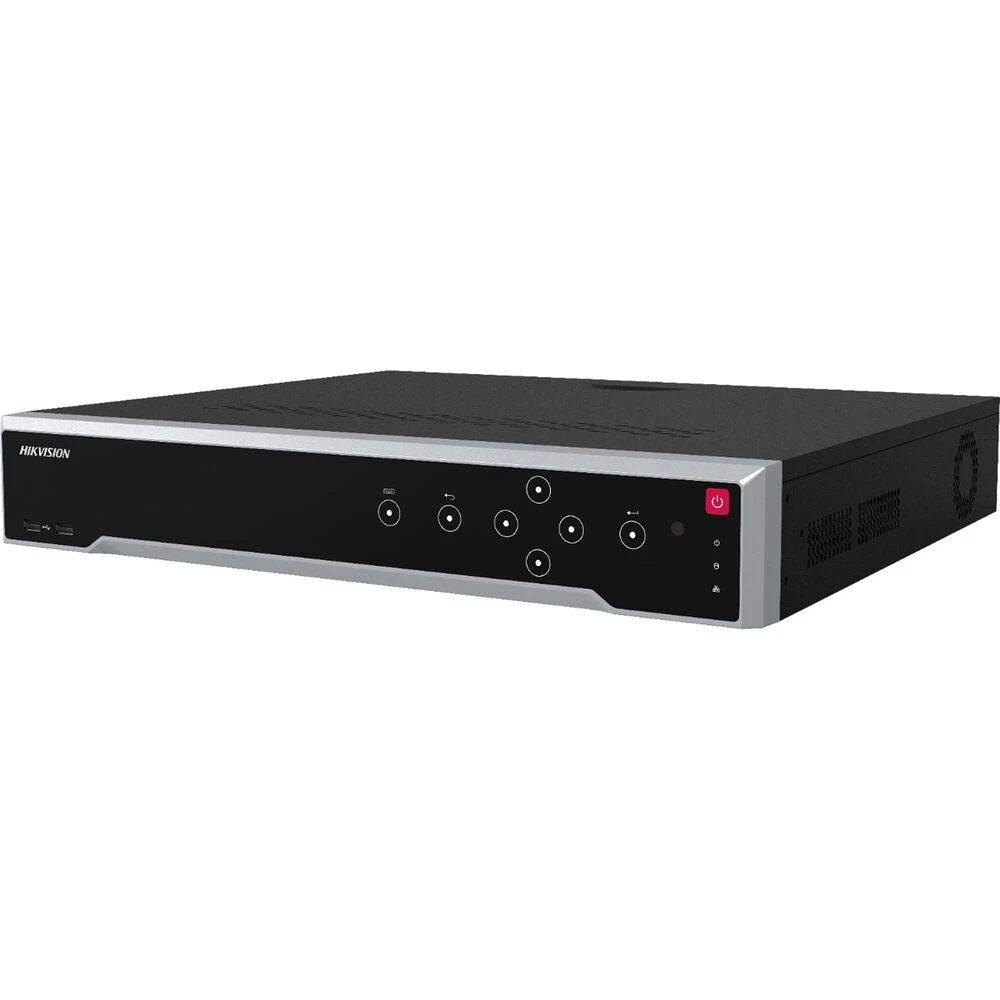

Hikvision M Series DS-7732NI-M4 32-Channel 8K NVR (No HDD)(Hikvision M Series Ds 7732ni M4 32 Channel 8k Nvr No Hdd)

Original price was: $400.00.Current price is: $95.99.

SKU: DGFUB 6954881056853 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Hikvision DS-7732NI-M4, Network Video Recorders (NVRs), Surveillance Video, Video Recorders & Hard Drives

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-7732NI-M4 Overview

Record from and manage up to 32 cameras with the M Series DS-7732NI-M4 32-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with four SATA ports that each support an HDD up to 14TB, for a maximum capacity of 56TB (HDDs available separately). H.265+/H.264+ and H.265/H.264 video compressions keep file sizes manageable while maintaining the best quality possible.

This NVR supports two-way audio. It has a VGA and two HDMI video outputs to connect to external monitors at up to 8K resolution (HDMI 1 output only).

Recording resolution up to 32MP

Simultaneous HDMI 1 and VGA output

Dual-stream recording saves bandwidth

TLS encryption for secure transmission stream

16-channel synchronous playback

Smooth streaming technology

Hik-Connect enables seamless network management

Supports web access without plug-in

Smart & POS Functions

Supports multiple VCA (Video Content Analytics) events

Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting

POS information overlay on live view and playback

POS-triggered recording and alarm

UPC: 842571145984

In the Box

Hikvision M Series DS-7732NI-M4 32-Channel 8K NVR (No HDD)
Limited 3-Year Manufacturer Warranty

User Manual

23.1 MB

Hikvision DS-7732NI-M4 Specs

General

Number of Channels	32
Playback Resolution	HDMI (Output 1): 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA: 1920 x 1080 at 60 Hz Analog, NTSC: 704 x 480 Analog, PAL: 704 x 576
Recording Resolution	1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP
Throughput	320 Mb/s (Incoming) 400 Mb/s (Outgoing)
IP Camera Support	32
Decoding Resolution	2 Channels: 32 MP, 24 MP at 30 fps 4 Channels: 12 MP at 20 fps 8 Channels: 8 MP at 25 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps
2-Way Audio	Yes

Connectivity

A/V I/O	2 x HDMI Output 1 x VGA Output 1 x BNC Output (1 V p-p, 75 Ohm) 1 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm)
Communication Inputs/Outputs	2 x RJ45 Gigabit Ethernet 1 x USB-A 3.0 / 3.1/3.2 Gen 1 2 x USB-A 2.0 2 x RS-485 (Half-Duplex) 1 x RS-232
Audio Inputs/Outputs	1 Input 1 Output
System Connection	4 x SATA 1 x eSATA
Wi-Fi	None
Bluetooth	None
Remote Connections	128
Network Protocols	DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI

Compatibility

Supported Video Codecs	H.264, H.264+, H.265, H.265+
Supported Audio Codecs	AAC, G.711A, G.711U, G.722, G.726, MP2L2

Computing

Optical Drive

None

System

Installed Drive	None
Max Capacity Supported	14 TB (Each Drive) 56 TB (Total)
Number of Bays	4 x Internal
RAID	None

Software System Requirements

OS Compatibility	Android iOS Windows macOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible	Yes: Android & iOS App Name: Hik-Connect *As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Notifications

Alarm Inputs/Outputs	16 Inputs 9 Output
Event Trigger	Analytics

System Functions

Recording Modes	Alarm, Analytics
Dual Streaming	Yes
Fisheye Dewarping	None

Electrical

Power Consumption	15 W (Without HDD)
Power Supply Type	External
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	12 VDC at 1 A

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%

Physical

Built-In Display	None
Certifications	CE, FCC *as per Manufacturer
LED Indicators	Yes
Rack Form Factor	1.5 RU
Dimensions (W x D x H)	17.5 x 15.7 x 3.0″ / 445.0 x 400.0 x 75.0 mm
Weight	11 lb / 5 kg (Without HDD)

Packaging Info

Package Weight	12.495 lb
Box Dimensions (LxWxH)	19.9 x 19.6 x 6.5″
