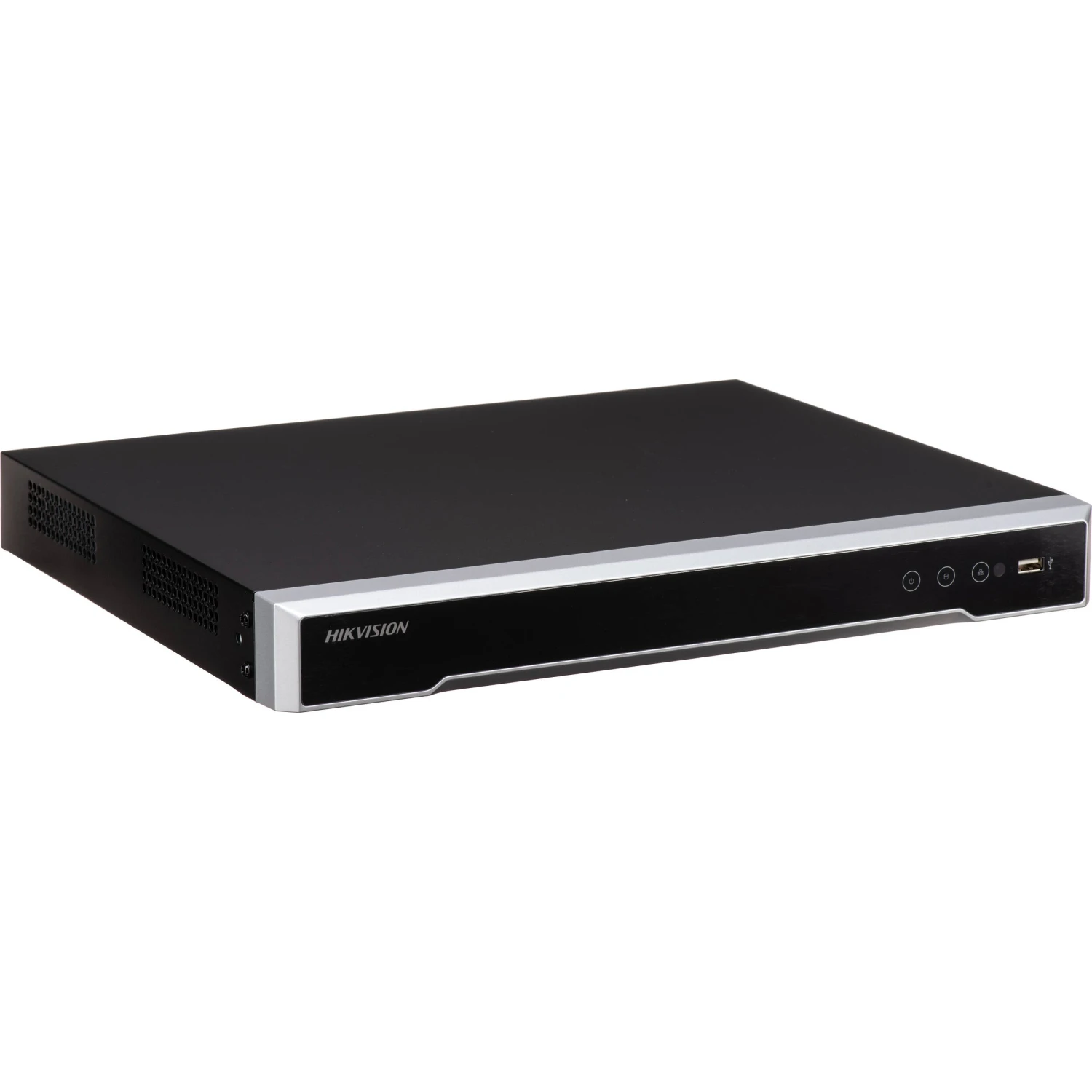

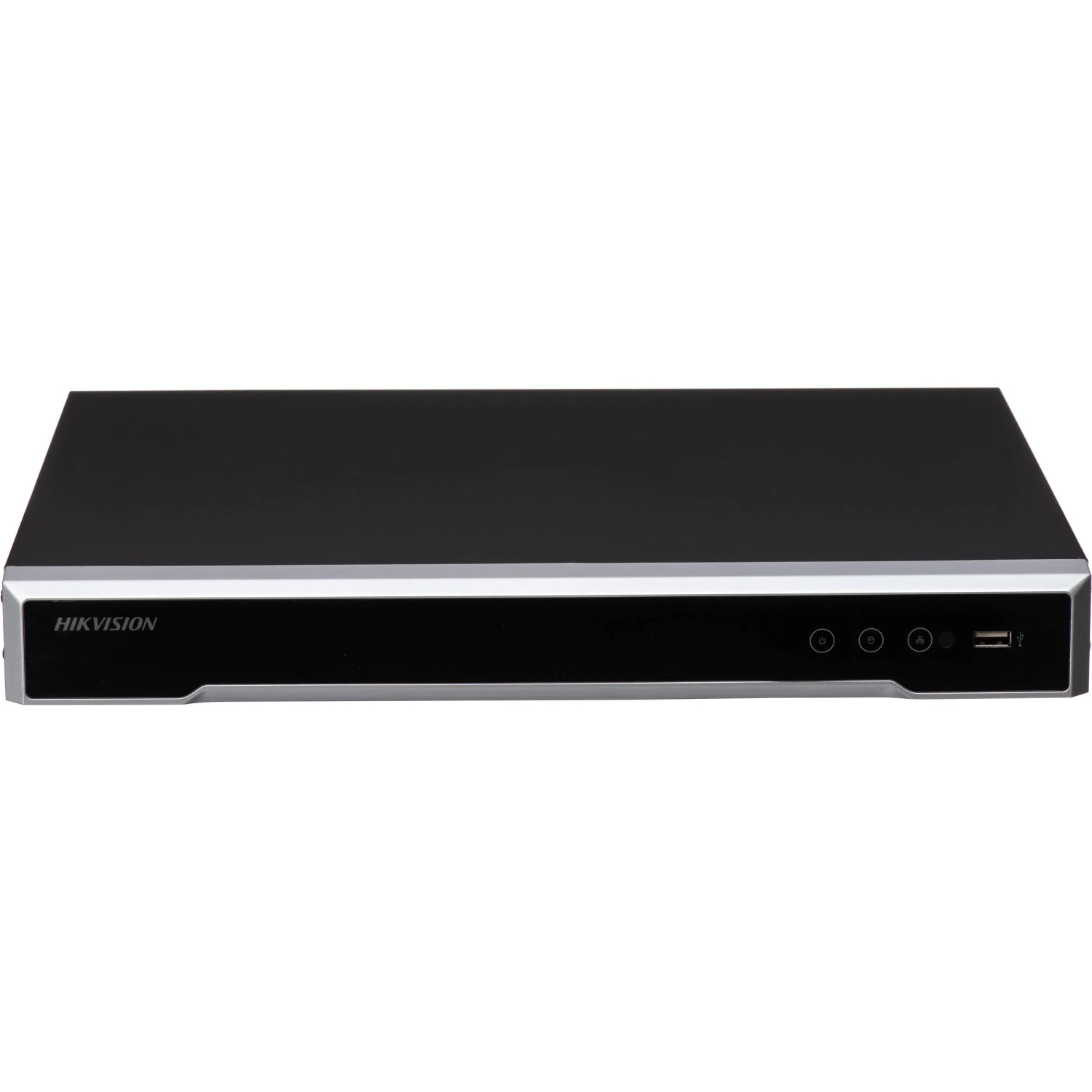

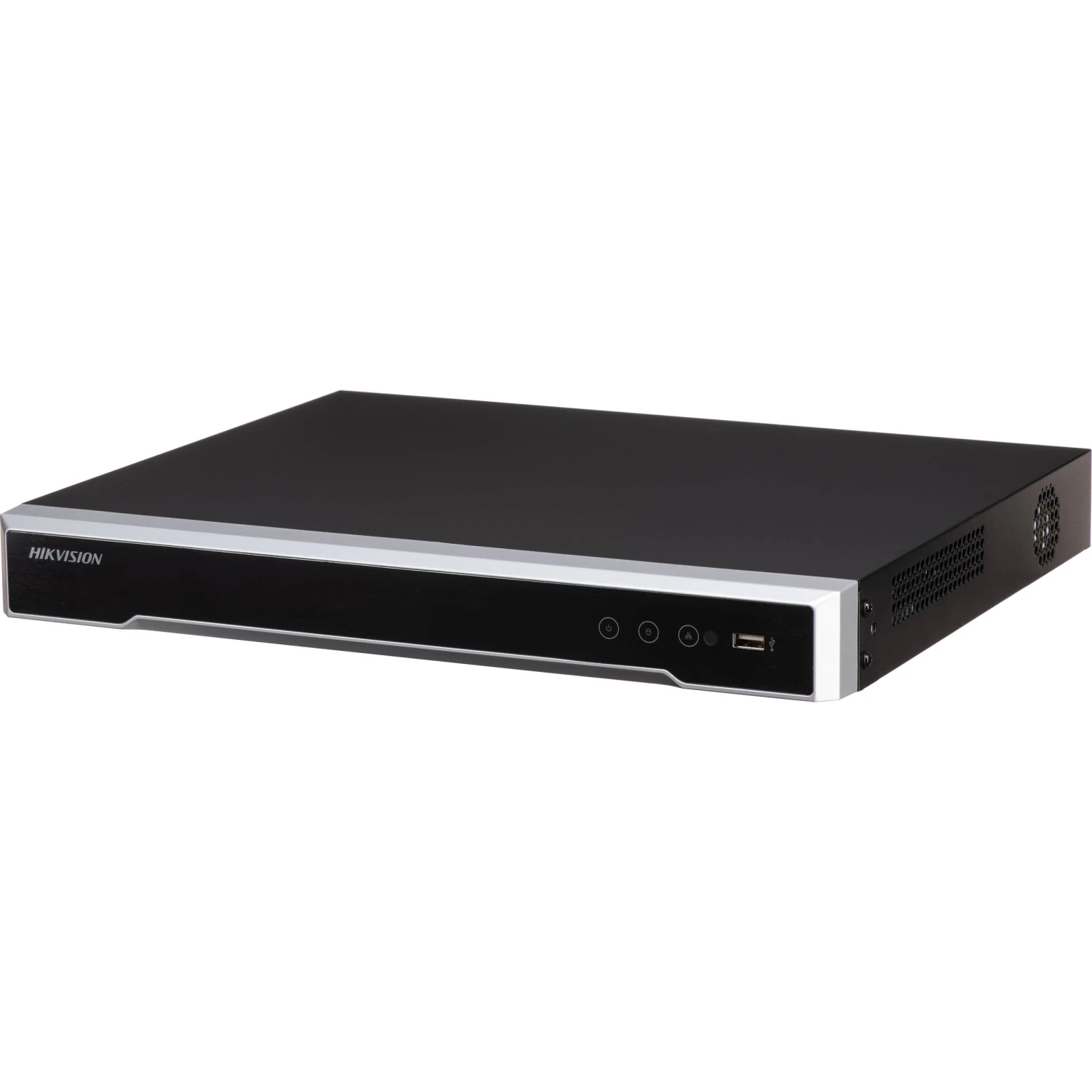

Hikvision DS-7608NI-M2 Overview
Record from and manage up to 8 cameras with the M Series DS-7608NI-M2/8P 8-Channel 8K NVR with 2TB HDD from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with two SATA ports that each support an HDD up to 14TB, for a maximum capacity of 28TB (2TB preinstalled). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor at up to 8K resolution (HDMI output only).
In the Box
- Hikvision M Series DS-7608NI-M2/8P 8-Channel 8K NVR with 2TB HDD
- Limited 3-Year Manufacturer Warranty
User Manual
7.7 MB
Hikvision DS-7608NI-M2 Specs
| Number of Channels | 8 |
| Playback Resolution | HDMI: 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution | 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP |
| Throughput | 128 Mb/s (Incoming) 256 Mb/s (Outgoing) |
| IP Camera Support | 8 |
| Decoding Resolution | 2 Channels: 32 MP, 24 MP at 30 fps 4 Channels: 12 MP at 20 fps 8 Channels: 8 MP at 25 fps |
| 2-Way Audio | Yes |
| A/V I/O | 1 x HDMI Output 1 x VGA Output 1 x BNC Output (1 V p-p, 75 Ohm) 1 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication Inputs/Outputs | 8 x RJ45 10/100 Mb/s Ethernet (Rear) PoE 1 x RJ45 Gigabit Ethernet (Rear) 1 x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1 x USB-A 2.0 (Front) |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 2 x SATA |
| Wi-Fi | None |
| Bluetooth | None |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI |
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | AAC, G.711A, G.711U, G.722, G.726, MP2L2 |
| Supported IEEE Standards | 802.3af, 802.3at |
| Optical Drive | None |
| Installed Drive | 2 TB Hard Drive |
| Max Capacity Supported | 14 TB (Each Drive) 28 TB (Total) |
| Number of Bays | 2 x Internal |
| OS Compatibility | Android iOS Windows macOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS App Name: Hik-Connect *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Alarm Inputs/Outputs | 4 Inputs 1 Output |
| Event Trigger | Analytics |
| Recording Modes | Alarm, Analytics |
| Dual Streaming | Yes |
| Fisheye Dewarping | None |
| Power Consumption | 15 W (Without HDD) |
| Power Supply Type | External |
| PoE Power Budget | 120 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Built-In Display | None |
| Certifications | CE, FCC *as per Manufacturer |
| LED Indicators | Yes |
| Dimensions (W x D x H) | 15.2 x 12.4 x 2.0″ / 385.0 x 315.0 x 52.0 mm |
| Weight | 6.6 lb / 3 kg (Without HDD) |
| Package Weight | 8.84 lb |
| Box Dimensions (LxWxH) | 17.2 x 15.7 x 5.2″ |
