Hikvision IDS-7332HUHI-M4/S TurboHD 32-Channel 8MP Analog HD DVR (No HDD)(Hikvision Ids 7332huhi M4 S Turbohd 32 Channel 8mp Analog Hd Dvr No Hdd)
Original price was: $392.00.$97.99Current price is: $97.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Hikvision IDS-7332HUHI-M4/S Overview

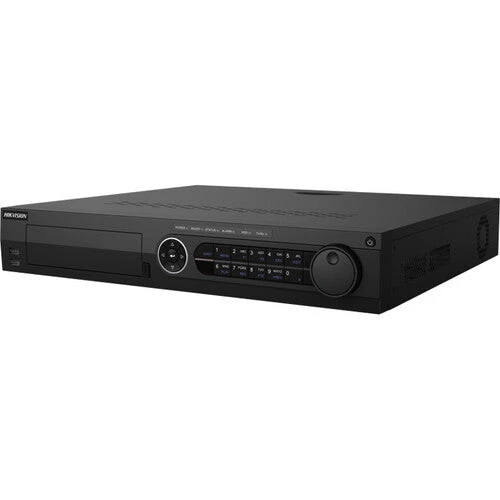

Record from and manage up to 32 analog cameras at resolutions up to 8MP with the iDS-7332HUHI-M4/S TurboHD 32-Channel 8MP Analog HD DVR (No HDD) from Hikvision. Additionally, this DVR supports up to 32 IP cameras. It is equipped with four SATA ports that each supports HDD storage up to 12TB for a total capacity of 48TB (HDDs available separately). H.265+/H.264+ and H.265/H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This DVR features 128 remote connections. It has a VGA and two HDMI video outputs to connect to external monitors.
In the Box
- Hikvision iDS-7332HUHI-M4/S TurboHD 32-Channel 8MP Analog HD DVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Hikvision IDS-7332HUHI-M4/S Specs
| Signal | AHD, Analog, HD-CVI, HD-TVI, IP |
| Number of Channels | 32 |
| Playback Resolution | HDMI (Output 1): 1080p at 60 Hz HDMI (Output 2): 4K UHD at 30 Hz 4 MP at 60 Hz VGA: 1080p at 60 Hz CVBS: 704 x 480 (NTSC) 704 x 576 (PAL) |
| Recording Resolution | 8 MP, 12 MP |
| Bit Rate | 32 kb/s to 10 Mb/s (Video) |
| IP Camera Support | 32 |
| Dual Streaming | Yes |
| Encoding Resolution | Main: 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP, 8 MP Sub Stream: 4CIF, CIF, WD1 |
| Decoding Resolution | 32 Channels: 1080p at 30 fps |
| 2-Way Audio | Yes |
| A/V Inputs/Outputs | AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 32 x BNC (1 V p-p, 75 Ohm) CVBS: 1 x BNC (1 V p-p, 75 Ohm) 2 x HDMI 1 x VGA 4 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 Ohm, Linear) |
| Communication Inputs/Outputs | 2 x RJ45 Gigabit Ethernet 1 x RS-485 (Full-Duplex) 1 x RS-232 2 x USB-A 2.0 1 x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Audio Inputs/Outputs | 4 Inputs 1 Output |
| System Connection | 4 x SATA 1 x eSATA |
| Wi-Fi | None |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, SNMP, TCP/IP, UPnP, iSCSI |
| Network Bandwidth | 320 Mb/s |
| Max Frame Rate | 30 fps (1080p) |
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | G.711U |
| Installed Drive | None |
| Max Capacity Supported | 12 TB (Each Drive) 48 TB (Total) |
| RAID | RAID 0, 1, 10, 5, 6 |
| OS Compatibility | Android iOS Windows macOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Alarm Inputs/Outputs | 16 Inputs 4 Outputs |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Without HDD: 55 W |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Built-In Display | None |
| Dimensions (W x D x H) | 17.5 x 15.7 x 2.8″ / 445.0 x 400.0 x 71.0 mm |
| Weight | 15.4 lb / 7 kg (Without HDD) |
| Package Weight | 15.025 lb |
| Box Dimensions (LxWxH) | 20 x 19.5 x 7.3″ |
