Hikvision DS-KIS702Y-P Video Intercom Two-Wire Bundle(Hikvision Ds Kis702y P Video Intercom Two Wire Bundle)

Original price was: $358.00.Current price is: $95.99.

SKU: DGFUB 6995639763029 Categories: Intercoms, Optics & Surveillance, Surviellance Tags: Hikvision DS-KIS702Y-P, Intercoms, Surveillance, Video Doorbells

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-KIS702Y-P Overview

1Description
2Hikvision DS-KD8003Y-IME2 Two-Wire Door Station
3Hikvision DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station
4Hikvision DS-KAD704Y Two-Wire Distributor

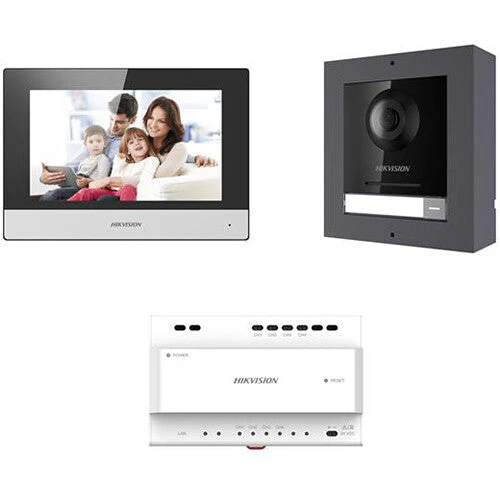

Install a two-wire video intercom and access control solution in your space with the DS-KIS702Y-P Video Intercom Two-Wire Bundle from Hikvision. This bundle includes a DS-KD8003Y-IME2 door station, a DS-KH6320Y-WTE2 7″ indoor station, a DS-KAD704Y distributor, a power supply unit, and a 16GB microSD card.

Hikvision DS-KD8003Y-IME2 Two-Wire Door Station

The DS-KD8003Y-IME2 Two-Wire Door Station from Hikvision combines two-wire video intercom and access control functionality in one unit. It has a built-in speaker and omnidirectional microphone with noise suppression and echo cancellation for the best possible audio. An integrated fisheye camera equipped captures 2MP resolution video from a 146° horizontal field of view. An IR supplement provides up to 9.8′ of illumination in low-light conditions.

A surface or flush mount enclosure is required for installation (available separately). This device is IP65 rated for safe outdoor use when mounted. A KAD704Y or KAD706Y series distributor is required for powering this device (available separately).

Modular door station that provides video intercom and access control functionality

KAD704Y or KAD706Y series distributor required for powering unit (available separately)

Embedded Linux OS and processor

Simple operation via physical summary

Integrated 2MP fisheye camera

IR supplement for low-light illumination

User capacity up to 2000

Linked indoor station capacity up to 500

Sub door station capacity up to 16

Built-in omnidirectional microphone and speaker

Noise suppression and echo cancellation

Adjustable volume control

Wide dynamic range

H.264 video compression

Tampering alarm

Supports sub-module access via RS-485 interface

UPC: 842571147018

Hikvision DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station

Implement remote access control and video intercom functionality in your surveillance system with the DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station from Hikvision. The DS-KH6320Y-WTE2 enables users to view live video from Hikvision door stations and external cameras. Additionally, this device can link CCTV systems and elevator access control.

This indoor station features a 7″ capacitive TFT LCD touchscreen with 1024 x 600 resolution, a built-in speaker and omnidirectional microphone with noise suppression and echo cancellation for the best possible audio, Wi-Fi connectivity, and an onboard memory card slot that supports microSD cards up to 128GB (available separately). A KAD704Y or KAD706Y series distributor is required for powering this device (available separately).

General Features

Embedded Linux OS

KAD704Y or KAD706Y series distributor required for powering unit (available separately)

Receive calls, open the door, and live view remotely

Live view of the door station and cameras in public areas

7″ TFT LCD touchscreen with 1024 x 600 resolution

Supports voice messages and alarm linkage

Hik-Connect mobile app for iOS and Android enables remote access control

Links CCTV systems and enables elevator access control

Configure the whole system via the unit’s touch screen

Easy wizard for quick setup

802.11b/g/n Wi-Fi

Built-in omnidirectional microphone and speaker for two-way talk

Noise suppression and echo cancellation

Adjustable volume

Capacity

Message capacity includes: 200 captured pictures (with microSD card), 200 alarm records, and 2MB RAM (without microSD card) reserved for events

200 notice capacity

16 linked network camera capacity

16 linked indoor extension capacity

17 linked doorphone capacity

UPC: 842571147582

Hikvision DS-KAD704Y Two-Wire Distributor

Designed for 2-Wire IP systems, the DS-KAD704Y Two-Wire Distributor from Hikvision features 4-port, 2-wire cascade interfaces with device power supply for seamless integration with other devices in an intercom or door station system.

4-port, 2-wire cascade interfaces with device power supply

2-wire interface (2 for cascading and 4 for devices)

2 cascade interfaces for DS-KAD704Y, DS-KAD706Y & DS-KAD706Y-S series

6 interface indicators

Reset summary

In the Box

Hikvision DS-KD8003Y-IME2 Two-Wire Door Station
- Limited 36-Month Manufacturer Warranty
Hikvision DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station
- Limited 36-Month Manufacturer Warranty
Hikvision DS-KAD704Y Two-Wire Distributor
- Limited 36-Month Manufacturer Warranty
PSU
16GB microSD Card

Table of Contents

Description
Hikvision DS-KD8003Y-IME2 Two-Wire Door Station
Hikvision DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station
Hikvision DS-KAD704Y Two-Wire Distributor

Hikvision DS-KD8003Y-IME2 Two-Wire Door Station Specs

General

Compatibility	Various CCTV, Door Stations/Intercoms & More
Video	Camera Resolution: 2 MP 146° Horizontal Field of View 82° Vertical Field of View Wide Dynamic Range IR Supplement Illumination up to 9.8′ / 3 m H.264 Video Compression
Languages	English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak

Inputs / Outputs

Interfaces

4 x Alarm Inputs (2 Exit Buttons & 2 Door Contacts by Default)
Tamper
2 x Exit Buttons (2 for Lock Control)
RS-485
2 x Lock Control Relays (30 VDC Maximum, 2 A)
2 x Door Contact Inputs
Two-Wire IP Interface

Power

Power Source	AC Input (Not Included)
Power Consumption	4 W

Environmental

Environmental Protection	Dust/Weather/Water-Resistant (IP65)
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	10 to 90%

Physical

Mounting	1 x Surface 1 x Flush
Color	Black
Cable Length	Not Specified by Manufacturer
Dimensions	3.9 x 3.9 x 1.7″ / 100 x 98 x 42 mm
Weight	0.84 lb / 0.38 kg

Hikvision DS-KH6320Y-WTE2 7″ 2-Wire Indoor Station Specs

General

Compatibility	Various CCTV, Door Stations/Intercoms, Elevator Control Systems & More
Network Protocols	TCP/IP, SIP, RTSP

Inputs / Outputs

Interfaces

8-Channel Alarm Inputs
RS-485
microSD Slot (128 GB Capacity)
2 x Relay Outputs (30 V Maximum)
2 x Lock Control Relay (30 VDC Maximum, 0.3 A)
Two-Wire IP Interface

Wireless

Wireless	Wi-Fi 4 (802.11n)
Wi-Fi	Wi-Fi 4 (802.11n); Single-Band (2.4 GHz)
Mobile App Compatible	Yes: Android & iOS App Name: Hik-Connect

Power

Power Source

AC Input (Not Included)

Environmental

Environmental Protection	No
Operating Temperature	14 to 122°F / -10 to 50°C
Operating Humidity	10 to 90%

Physical

Mounting	1 x Surface
Color	Black / Light Gray
Dimensions	7.9 x 5.5 x 0.9″ / 200 x 140 x 23.6 mm
Weight	0.73 lb / 0.33 kg

Hikvision DS-KAD704Y Two-Wire Distributor Specs

General

Compatibility	Various 2-Wire IP Systems
Buttons	Reset

Inputs / Outputs

Interface

RJ45

Power

Power Source	AC Input
DC Input Power	24 VDC
Power Consumption	10 W

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%

Physical

Mounting

1 x Din Rail
