Hikvision DS-KIS602 Modular IP Video Intercom Kit(Hikvision Ds Kis602 Modular Ip Video Intercom Kit)
Original price was: $306.00.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Hikvision DS-KIS602 Overview
- 1Description
- 2Hikvision DS-KD8003-IME1 Video Intercom Module Door Station
- 3Hikvision DS-KH6320-WTE1 7″ Indoor Video Intercom Station
- 4Hikvision DS-KD-ACW1 Surface Mount for One Door Station Module

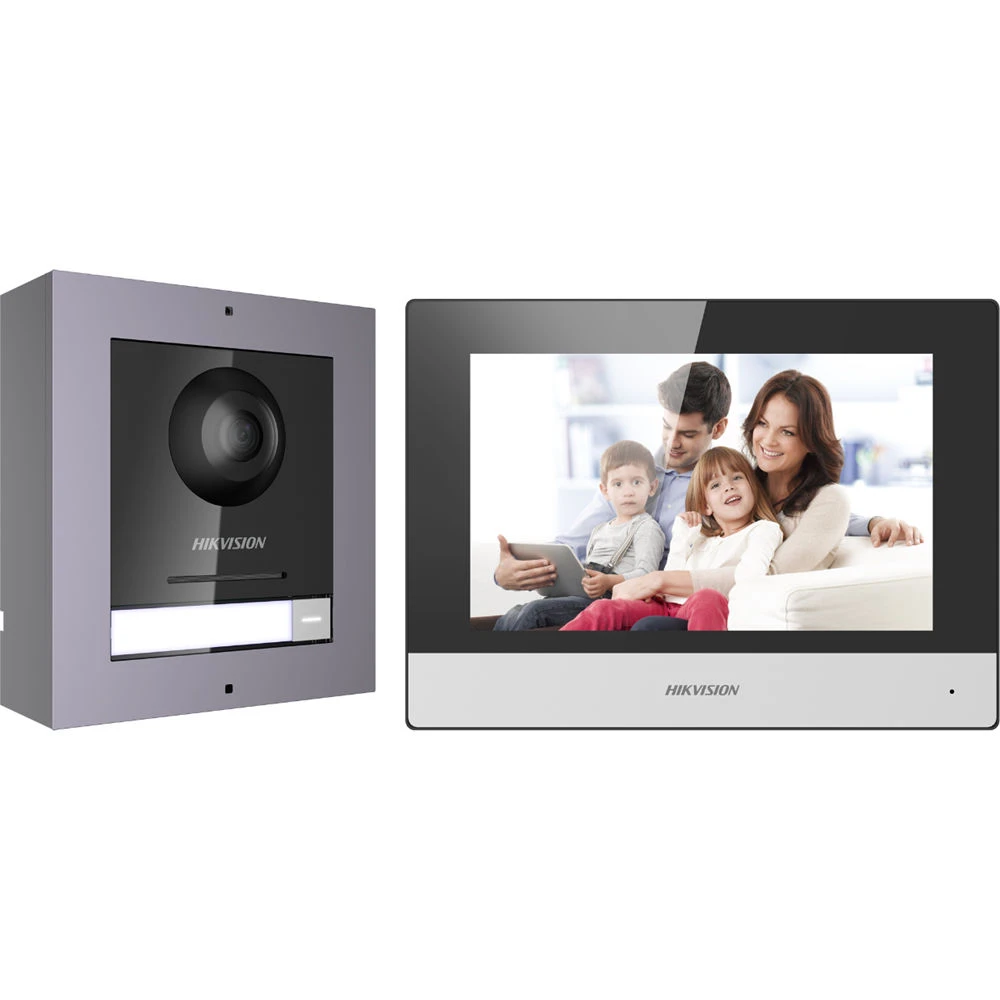

Install a video intercom and access control solution in your space with the DS-KIS602 Modular IP Video Intercom Kit from Hikvision. This kit includes a DS-KD8003-IME1 video intercom module door station, DS-KH6320-WTE1 7″ indoor video intercom station, DS-3E0105P-E/M PoE switch, DS-KD-ACW1 surface mount, power supply unit, and 16GB microSD card.
The DS-KD8003-IME1 Video Intercom Module Door Station from Hikvision combines video intercom and access control functionality in one unit. It has a built-in omnidirectional microphone and speaker with noise suppression and echo cancellation for two-way audio. An integrated fisheye camera equipped with a CMOS sensor captures 1920 x 1080 resolution video from a 180° horizontal field of view. An IR supplement provides illumination for low-light conditions.
A surface or flush mount enclosure is required for installation (available separately). This device is IP65 rated when mounted.
Implement remote access control and video intercom functionality in your surveillance system with the DS-KH6320-WTE1 7″ Indoor Video Intercom Station from Hikvision. The DS-KH6320-WTE1 enables users to view live video from Hikvision door stations and external cameras. It features a 7″ capacitive TFT LCD touchscreen with a 1024 x 600 resolution, a built-in speaker and omnidirectional microphone with noise suppression and echo cancellation for the best possible audio, Wi-Fi connectivity, and an onboard memory card slot that supports microSD cards up to 32GB (available separately).
The DS-KD-ACW1 from Hikvision is an aviation-grade aluminum surface mount accessory that is designed to support one modular door station module.
In the Box
- Hikvision DS-KD8003-IME1 Video Intercom Module Door Station
- Hikvision DS-KH6320-WTE1 7″ Indoor Video Intercom Station
- Limited 3-Year Warranty
- Hikvision DS-KD-ACW1 Surface Mount for One Door Station Module
- Mounting Hardware
- DS-3E0105P-E/M PoE Switch
- Power Supply Unit
- 16GB microSD Card
- Limited 2-Year Warranty for microSD Card
- Description
- Hikvision DS-KD8003-IME1 Video Intercom Module Door Station
- Hikvision DS-KH6320-WTE1 7″ Indoor Video Intercom Station
- Hikvision DS-KD-ACW1 Surface Mount for One Door Station Module
Hikvision DS-KD8003-IME1 Video Intercom Module Door Station Specs
| Processor | Embedded MCU |
| Operating System | Embedded Linux |
| Operation Method | Physical Button |
| Image Sensor | 2 MP CMOS Sensor |
| Video Compression | H.264 |
| Resolution | Main Stream: 1920 x 1080 Sub Stream: 720 x 480 |
| Image Enhancement | BLC, DNR, WDR |
| Anti-Flicker | 50/60 Hz |
| Field of View | Horizontal: 180° Vertical: 96° |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Omnidirectional Loudspeaker (>85 dB within 7.9″ / 20 cm) |
| Compression | G.711 U |
| Compression Rate | 64 kb/s |
| Audio Quality | Noise Suppression and Echo Cancellation |
| IR Illumination | IR Supplement |
| Ethernet | 100M Self-Adaptive Ethernet |
| Network Protocols | TCP/IP, RTSP |
| Tamper Alarm | 1 |
| Connectors | 1 x Module 4 x I/O 1 x Debug 2 x Relay(30 V, 1 A) |
| Power Supply | 12 VDC, PoE IEEE 802.3af |
| Power Consumption | ?10 W |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 95% Non-Condensing |
| IP Rating | IP65 (When Mounted in Enclosure) |
| Certifications | FCC, CE, cUL |
| Dimensions | 3.86 x 3.93 x 1.73″ / 98.0 x 99.8 x 43.9 mm |
| Package Weight | 1.18 lb |
| Box Dimensions (LxWxH) | 6.2 x 6.2 x 3.4″ |
Hikvision DS-KH6320-WTE1 7″ Indoor Video Intercom Station Specs
| Memory | 128 MB |
| Flash | 32 MB |
| Operating System | Embedded Linux |
| Size | 7″ / 17.8 cm |
| Resolution | 1024 x 600 |
| Type | TFT LCD Capacitive Touchscreen |
| Input | Built-In Omnidirectional Microphone |
| Output | Built-In Loudspeaker |
| Compression | G.711 U |
| Compression Rate | 64 kb/s |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Wired Network | 100M Self-Adaptive Network |
| Wireless Network | 802.11b/g/n |
| Protocols | TCP/IP, SIP, RTSP |
| Interface | 100M Self-Adaptive RJ45 Port |
| Alarm Inputs | 8 |
| Relay Outputs | 2 |
| RS-485 | 1 x RS-485 |
| Memory Card | Supports microSD Cards up to 32 GB (SD 2.0 or Lower) |
| Power | 802.3af, Standard PoE 12 VDC, 1 A |
| Power Consumption | ?6 W |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90%, Non-Condensing |
| Frame | Display Frame: Plastic |
| Dimensions | 7.9 x 5.5 x 0.6″ / 200 x 140 x 15.1 mm |
| Package Weight | 1.385 lb |
| Box Dimensions (LxWxH) | 10.2 x 7.3 x 2.2″ |
Hikvision DS-KD-ACW1 Surface Mount for One Door Station Module Specs
| Material | Aviation-Grade Alu |
