Hikvision DS-KD8003-IME1 Overview

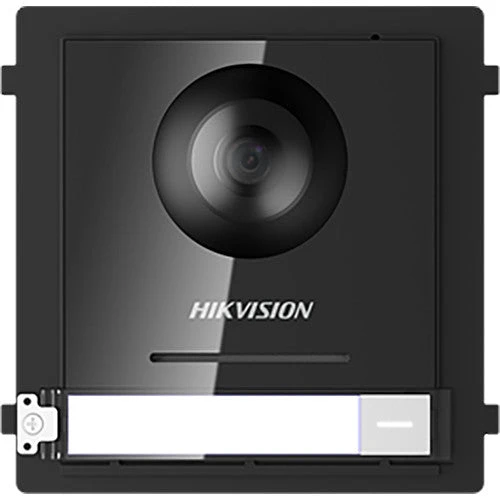

The DS-KD8003-IME1 Video Intercom Module Door Station from Hikvision combines video intercom and access control functionality in one unit. It has a built-in omnidirectional microphone and speaker with noise suppression and echo cancellation for two-way audio. An integrated fisheye camera equipped with a CMOS sensor captures 1920 x 1080 resolution video from a 180° horizontal field of view. An IR supplement provides illumination for low-light conditions.
A surface or flush mount enclosure is required for installation (available separately). This device is IP65 rated when mounted.
In the Box
Hikvision DS-KD8003-IME1 Specs
| Processor | Embedded MCU |
| Operating System | Embedded Linux |
| Operation Method | Physical Button |
| Image Sensor | 2 MP CMOS Sensor |
| Video Compression | H.264 |
| Resolution | Main Stream: 1920 x 1080 Sub Stream: 720 x 480 |
| Image Enhancement | BLC, DNR, WDR |
| Anti-Flicker | 50/60 Hz |
| Field of View | Horizontal: 180° Vertical: 96° |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Omnidirectional Loudspeaker (>85 dB within 7.9″ / 20 cm) |
| Compression | G.711 U |
| Compression Rate | 64 kb/s |
| Audio Quality | Noise Suppression and Echo Cancellation |
| IR Illumination | IR Supplement |
| Ethernet | 100M Self-Adaptive Ethernet |
| Network Protocols | TCP/IP, RTSP |
| Tamper Alarm | 1 |
| Connectors | 1 x Module 4 x I/O 1 x Debug 2 x Relay(30 V, 1 A) |
| Power Supply | 12 VDC, PoE IEEE 802.3af |
| Power Consumption | ?10 W |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 95% Non-Condensing |
| IP Rating | IP65 (When Mounted in Enclosure) |
| Certifications | FCC, CE, cUL |
| Dimensions | 3.86 x 3.93 x 1.73″ / 98.0 x 99.8 x 43.9 mm |
| Package Weight | 1.18 lb |
| Box Dimensions (LxWxH) | 6.2 x 6.2 x 3.4″ |
