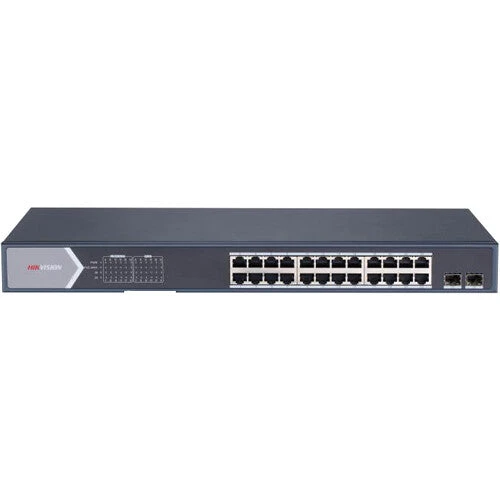

Hikvision DS-3E1526P-SI 24-Port Gigabit PoE+ Compliant Managed Switch(Hikvision Ds 3e1526p Si 24 Port Gigabit Poe Compliant Managed Switch)

Original price was: $391.00.Current price is: $97.99.

SKU: DGFUB 6995141296213 Categories: Computer & Presentation, Computer Solutions, Networking Tags: Bridges & Hubs, Computers, Network Switches, Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-3E1526P-SI Overview

Expand your business’s network to support IP cameras, access points, VoIP phones, and other PoE compatible devices with the DS-3E1526P-SI 24-Port Gigabit PoE+ Compliant Managed Switch from Hikvision. All 24 of the Gigabit Ethernet ports provide up to 30W of power with a total budget of 370W. When switched to Extend mode, you can power devices up to 984.3 feet away. There is also a Gigabit SFP port available for fiber uplinks.

With a 52 Gb/s switching capacity and 36.688 Mpps forwarding rate, this managed switch provides smooth data transfers between devices. The metal chassis and fanless design allows the switch to operate silently.

PoE Watchdog

Ports 1 to 24 auto detect and restart the cameras that do not respond.

UPC: 842571135633

In the Box

Hikvision DS-3E1526P-SI 24-Port Gigabit PoE+ Compliant Managed Switch
Power Adapter & Cable
Limited 3-Year Manufacturer Warranty

Hikvision DS-3E1526P-SI Specs

Key Specs

Inputs/Outputs	24 x RJ45 Gigabit Ethernet PoE+ 1 x SFP Gigabit Ethernet (WAN)
PoE Power Budget	370 W

Interfaces

Inputs/Outputs

24 x RJ45 Gigabit Ethernet PoE+
1 x SFP Gigabit Ethernet (WAN)

Protocols

Layer Services Supported	Layer 2
Supported Protocols	Auto-MDIX/MDI Link Aggregation
Queuing	Strict Priority, Weighted Round Robin (WRR)
Transmission Method	Store-and-Forward
MAC Address Table Size	8K
VLAN Groups	4094

Security

Security Features	Storm Control
SNMP Support	1, 2c

Standards

Supported IEEE Standards

802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3u, 802.3x, 802.3z

Performance

Forwarding Rate	36.68 Mpps
Switching Bandwidth	52 Gb/s
Packet Buffer	4.1 Mb

Electrical

Power Draw	400.00 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 6.5 A
PoE Power Budget	370 W
PoE per Port	30 W

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	5 to 95%
Storage Temperature	-40 to 185°F / -40 to 85°C
Storage Humidity	5 to 95%

General

Certifications	No
Cooling System	Passive
Material of Construction	Metal
Dimensions	17.3 x 8.7 x 1.7″ / 440 x 221 x 44 mm
Weight	6.55 lb / 2.97 kg

Packaging Info

Package Weight	8.045 lb
Box Dimensions (LxWxH)	21.1 x 12.2 x 5.2″
