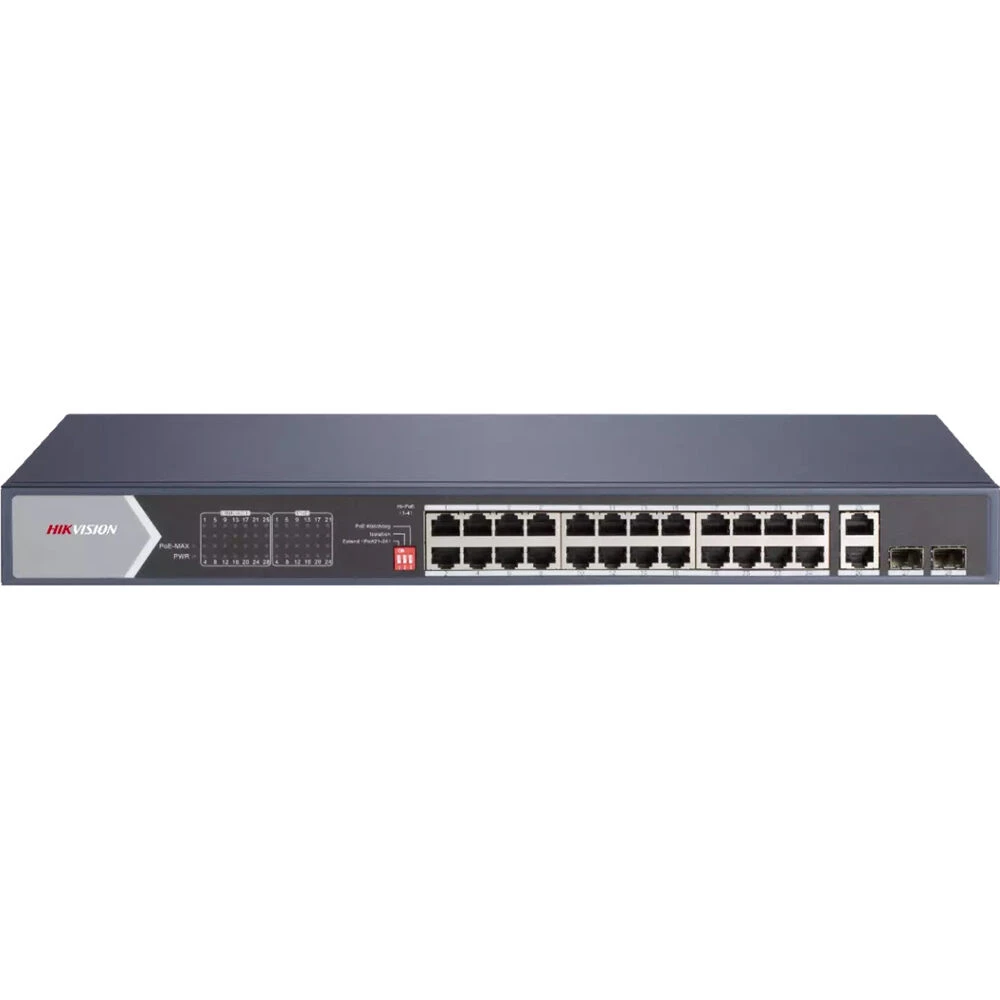

Hikvision DS-3E0528HP-E 24-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch(Hikvision Ds 3e0528hp E 24 Port Gigabit Poe Poe 4 Compliant Unmanaged Network Switch)

Original price was: $311.00.Current price is: $99.99.

SKU: DGFUB 6995327221845 Categories: Computer & Presentation, Computer Solutions, Networking Tags: Bridges & Hubs, Computers, Hikvision DS-3E0528HP-E, Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-3E0528HP-E Overview

1Description
2Smooth Performance
3PoE Watchdog
4Extended Range
5Port Isolation
6Silent Design

Quickly add support for powered devices such as advanced access points, IP security cameras, and VoIP phones by integrating the DS-3E0528HP-E 24-Port Gigabit PoE+ / PoE 4 Compliant Gigabit Unmanaged Switch from Hikvision into your business’s network. Built for ease of use, this rack mountable switch features 24 Gigabit Ethernet ports, 20 of which support 30W PoE+ while the other four support 90W. Two Gigabit Ethernet RJ45 uplink ports are also available alongside two Gigabit SFP ports for fiber connections. With a plug-and-play design and total power budget of 370W, all you need to do is connect your compatible devices. No complicated management is required.

Smooth Performance

A 56 Gb/s switching capacity and a 41.66 Mpps forwarding rate help to ensure fast and reliable data transfers.

PoE Watchdog

This switch automatically detects and restarts unresponsive cameras.

Extended Range

Configure the DIP switches to enable extended mode, which can transfer data at up to 10 Mb/s over a 984.25′ range using select ports.

Port Isolation

Separating data traffic between different ports helps to enhance network security.

Silent Design

The metal enclosure provides silent cooling, maintaining optimal performance without disturbing the environment.

UPC: 842571148282

In the Box

Hikvision DS-3E0528HP-E 24-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch
Power Cable
Limited 3-Year Manufacturer Warranty

Quick Start Guide

7.3 MB

Table of Contents

Description
Smooth Performance
PoE Watchdog
Extended Range
Port Isolation
Silent Design

Hikvision DS-3E0528HP-E Specs

Key Specs

Inputs/Outputs	20 x RJ45 Gigabit Ethernet PoE+ 4 x RJ45 Gigabit Ethernet PoE++ (Type 4) 2 x RJ45 Gigabit Ethernet 2 x SFP Gigabit Ethernet
PoE Power Budget	370 W

Interfaces

Inputs/Outputs

20 x RJ45 Gigabit Ethernet PoE+
4 x RJ45 Gigabit Ethernet PoE++ (Type 4)
2 x RJ45 Gigabit Ethernet
2 x SFP Gigabit Ethernet

Protocols

Supported Protocols	Auto-MDIX/MDI
Transmission Method	Store-and-Forward
MAC Address Table Size	8K

Standards

Supported IEEE Standards

802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x, 802.3z

Performance

Forwarding Rate	41.66 Mpps
Switching Bandwidth	56 Gb/s
Packet Buffer	4.1 Mb

Electrical

Power Draw	400.00 W (Max) 30.00 W (Idle)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 6.5 A
PoE Power Budget	370 W
Power Supply Type	Internal

Environmental

Operating Temperature	50 to 131°F / 10 to 55°C
Operating Humidity	5 to 95%
Storage Temperature	-40 to 185°F / -40 to 85°C
Storage Humidity	5 to 95%

General

Certifications	No
Cooling System	Passive
Material of Construction	Metal
Rack Form Factor	1 RU
Dimensions	17.3 x 8.7 x 1.7″ / 440 x 220.8 x 44 mm
Weight	6.57 lb / 2.98 kg

Packaging Info

Package Weight	8.005 lb
Box Dimensions (LxWxH)	21.1 x 13.2 x 3.4″
