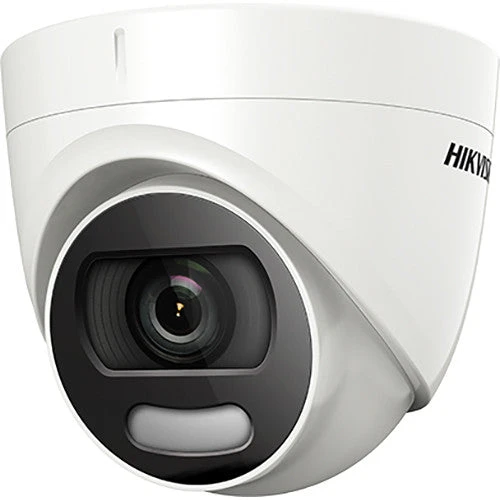

Hikvision DS-2CE72HFT-F ColorVu 5MP Outdoor Analog HD Turret Camera With Spotlight & 3.6mm Lens(Hikvision Ds 2ce72hft F Colorvu 5mp Outdoor Analog Hd Turret Camera With Spotlight 3 6mm Lens)

2560 x 1944 Resolution at 20 fpsAuto Spotlight Illuminates up to 65’3.6mm Fixed Lens80.1° Horizontal Field of View

Monitor an outdoor area with the ColorVu 5MP Outdoor Analog HD Turret Camera from Hikvision . This camera uses a 5MP progressive scan CMOS sensor to transmit 2560 x 1944 resolution video at 20 fps. A built-in spotlight provides up to 65′ of illumination. The camera’s 3.6mm fixed lens delivers an 80.1° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. A UTC (Up-the-Coax) connection allows for OSD control of the camera’s settings and spotlight.

This turret camera is housed in an IP67-rated enclosure that is suitable for outdoor use.

Features NTSC signal system Strobe light alarm True wide dynamic range (130 dB) Auto exposure modes include WDR, BLC, HLC, global, HLS, and anti-banding Camera pivots horizontally from 0 to 360° and vertically from 0 to 75° 0 to 360° rotation Slow shutter support (16x maximum) Automatic gain control Auto and manual white balance 3D-DNR Functions include brightness, sharpness, mirror, and smart light Privacy masking and motion detection for four programmable areas FCC, CE, and cUL certified UPC: 842571130171

Sensor	5 MP CMOS
Lens Mount	M16
Focal Length	3.6mm
Maximum Aperture	f/1
Lens Field of View	Horizontal: 80.1°
Day/Night	Yes
Minimum Illumination	Color: 0.0005 Lux
Shutter Speed	1/50,000 to 1/30 Seconds
Camera Angle Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75°

Video Output Connectors	1 x BNC (AHD / HD-CVI / HD-TVI / Composite)
Output Formats	AHD, HD-TVI: 2560 x 1944 at 20 fps AHD, HD-CVI, HD-TVI: 2688 x 1520 at 30 fps Composite: 640 x 480
Automatic Gain Control	Yes

Up-the-Coax Communication	Yes
Supported Control Protocols	HIKVISION-C

Analytics	Motion Detection
Event Trigger	None
Data Streaming	Yes

Operating Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	0 to 90%
IP Rating	IP67

Recording Media	None
Pan/Tilt	None
I/O Connections	1 x BNC 1 x Power
Supported Languages	English
Internal Storage	None
Power Source	DC
Power Consumption	DC: 3.5 W
Material of Construction	Metal (Unspecified Type), Plastic
Dimensions	ø: 4.3 x H: 3.4″ / ø: 109.8 x H: 85.6 mm
Weight	0.77 lb / 350 g
