Hikvision DS-2AE4225T-D3 Turbo 4-Inch 2MP Analog HD PTZ Dome Camera(Hikvision Ds 2ae4225t D3 Turbo 4 Inch 2mp Analog Hd Ptz Dome Camera)

Original price was: $348.00.Current price is: $96.99.

SKU: DGFUB 6899192660053 Category: Optics & Surveillance Tags: Hikvision TurboHD DS-2AE4225T-D, Security Cameras, Surveillance Video, Wired Analog & HD Cameras

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision DS-2AE4225T-D Overview

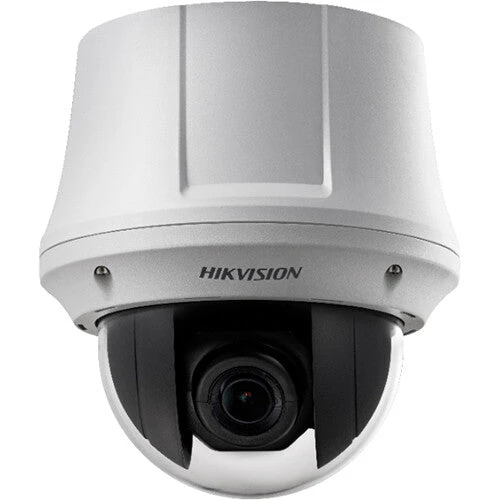

Monitor an indoor space with the DS-2AE4225T-D3 Turbo 4-Inch 2MP Analog HD PTZ Dome Camera from Hikvision. This unit uses a 1/2.8″ progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. An IR cut filter provides day and night functionality. The 4.8-120mm varifocal lens delivers a 57.6 to 2.5° horizontal field of view. The camera features endless panning, a -5 to 90° tilt range, and 25x optical zoom. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. UTC (Up-the-Coax) protocol enables OSD menu control.

IR cut filter for day and night functionality

Zoom speed of 3.6 seconds

0.4 to 59″ minimum working distance

3D intelligent positioning

White balance

Automatic gain control

3D-DNR

?120 dB wide dynamic range

Eight programmable privacy masks

Backlight compensation, highlight compensation, electric image stabilization, and regional focus

RS-485 interface

Two alarm inputs and one alarm output

FCC, CE, and cUL certified

TVS 4000V lightning, surge, and voltage transient protection

PTZ Functions

Endless panning
0.1 to 100°/s manual pan speed
100°/s preset pan speed
-5 to 90° tilt range (auto flip)
0.1 to 80°/s manual tilt speed
80°/s preset tilt speed
25x optical zoom
16x digital zoom
256 presets
10 patrols (up to 32 presets per patrol)
Five patterns (total recording time no less than 10 minutes
Support for proportional zoom, power-off memory, PTZ position display, and preset freezing
Park actions include preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, and night mode
Scheduled task includes preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, night mode, and zero calibration

UPC: 842571134322

Hikvision DS-2AE4225T-D Specs

Camera

Sensor	2 MP 1/2.8″ CMOS
Focal Length	4.8 to 120mm
Maximum Aperture	f/1.6 to 3.5
Zoom	Optical: 25x Digital: 16x
Lens Field of View	Horizontal: 57.6 to 2.5° Vertical: 34.4 to 1.4° Diagonal: 64.5 to 2.9°
IR Cut Filter	Mechanical
Day/Night	Yes
Minimum Illumination	Color: 0.005 Lux B&W: 0.001 Lux
Shutter Speed	1/10000 to 1 Seconds

Video

Automatic Gain Control	Yes
Video Outputs	1 x BNC
Output Formats	AHD, HD-CVI, HD-TVI: 1920 x 1080 at 30 fps Composite: 640 x 480

Pan & Tilt

Up-the-Coax Communication	Yes
Presets	256
Supported Control Protocols	Pelco-D Pelco-P RS-485 HIKVISION-C
Pan/Tilt	Manual Pan: 360° at 100°/s Manual Tilt: 95° (-5 to 90°) at 80°/s

Sensors & Alarms

Event Trigger	No
Alarm I/O	2 / 1

Hardware

Media/Memory Card Slot

None

Power

Power Source	DC
Power Consumption	16 W

Environmental

Operating Temperature	-22 to 149°F / -30 to 65°C
Operating Humidity	0 to 90%

General

Inputs/Outputs	1 x BNC 1 x Serial 9-Pin (RS-485)
Supported Languages	English
Dimensions	ø: 6.5 x H: 7.1″ / ø: 165.0 x H: 179.5 mm
Weight	4.4 lb / 2 kg
