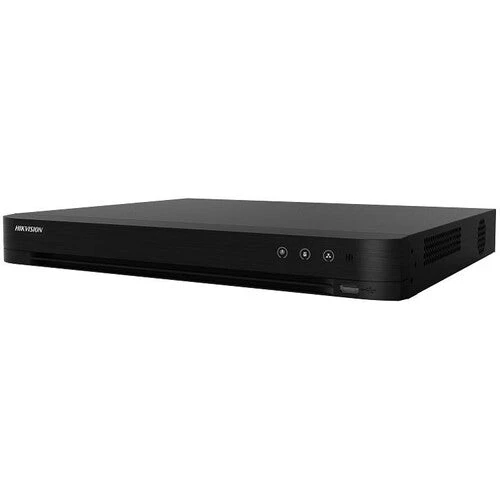

Hikvision AcuSense IDS-7204HQHI-M1/S TurboHD 4-Channel 6MP Analog HD DVR With 1TB HDD(Hikvision Acusense Ids 7204hqhi M1 S Turbohd 4 Channel 6mp Analog Hd Dvr With 1tb Hdd)

Original price was: $272.84.Current price is: $96.99.

SKU: DGFUB 6980578934869 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Digital Video Recorders (DVRs), Hikvision IDS-7204HQHI-M1/S, Surveillance Video, Video Recorders & Hard Drives

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Hikvision IDS-7204HQHI-M1/S Overview

Record from and manage up to four local analog cameras at resolutions up to 2MP with the AcuSense IDS-7204HQHI-M1/S TurboHD 4-Channel 6MP Analog HD DVR with 1TB HDD from Hikvision. This DVR instead supports up to two IP cameras if Enhanced IP Mode is enabled and no analog cameras are used. It is equipped with a SATA port that supports HDD storage up to 10TB (1TB preinstalled). H.265+, H.264+, H.265, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.

This DVR features motion detection and perimeter protection with human/vehicle analysis. It has VGA and HDMI video outputs to connect to external monitors.

Full channel recording at up to 1080p resolution

Smart search for efficient playback

Supports third-party cloud storage

Deep learning-based motion detection and perimeter protection (line crossing and intrusion detection)

Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

Hik-Connect and DDNS for easy network management

Output bandwidth limit configurable

4-channel synchronous playback support

In the Box

Hikvision AcuSense IDS-7204HQHI-M1/S TurboHD 4-Channel 6MP Analog HD DVR with 1TB HDD
Limited 3-Year Manufacturer Warranty

Hikvision IDS-7204HQHI-M1/S Specs

General

Signal	AHD, Analog, HD-CVI, HD-TVI, IP
Number of Channels	4
Playback Resolution	HDMI, VGA: 1080p at 60 Hz CVBS: 704 x 576 (PAL) 704 x 480 (NTSC)
Recording Resolution	1080p
PTZ Support	Yes
Bit Rate	32 kb/s to 6 Mb/s
IP Camera Support	2
Dual Streaming	Yes
Encoding Resolution	Main: 1080p, 960p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP Sub Stream: 4CIF, CIF, WD1
2-Way Audio	Yes

Connectivity

A/V Inputs/Outputs	AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 4 x BNC (1 V p-p, 75 Ohm) 1 x HDMI 1 x VGA 1 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 V p-p, 1 Kilohm, Linear)
Communication Inputs/Outputs	1 x RJ45 10/100 Mb/s Ethernet 1 x RS-485 (Half-Duplex) 1 x USB-A 2.0 (Front) 1 x USB-A 2.0 (Rear)
Audio Inputs/Outputs	1 Input 1 Output
System Connection	1 x SATA
Wi-Fi	Yes
Remote Connections	32
Network Protocols	DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
Max Frame Rate	30 fps (4 MP)

Compatibility

Supported Video Codecs	H.264, H.264+, H.265, H.265+
Supported Audio Codecs	G.711U

System

Installed Drive	1 TB Hard Drive
Max Capacity Supported	10 TB (Total) 10 TB (Each Drive)
Recording Modes	Analytics, Motion
Search Modes	Smart Search

Notifications

Event Trigger

Analytics, Motion

Electrical

Power Consumption

Without HDD: 12 VDC at 1.5 A (18 W)

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%

Physical

Built-In Display	No
Dimensions (W x D x H)	12.4 x 9.5 x 1.8″ / 315.0 x 242.0 x 45.0 mm
Weight	2.56 lb / 1.16 kg (Without HDD)
