HighPoint RS6618V 8-Bay Thunderbolt 3 RAID Enclosure(Highpoint Rs6618v 8 Bay Thunderbolt 3 Raid Enclosure)

Features

• Robust Thunderbolt 3 8-Bay RAID storage solutions for professional, personal, and SMB applications
• Dual Thunderbolt (USB-C) ports deliver 40 Gb/s transfer performance
• Daisy-chain support for up to six Thunderbolt devices, including additional RocketStor 661x Enclosures
• 8 x 2.5/3.5″ hot-swappable drive bays
• Integrated RAID engine supports 0, 1, 5, 10, 50, and JBOD configurations
• Easily Expand or Convert Storage Configurations without sacrificing existing data
• Advanced cooling system with adjustable fan control
• Integrated LCD panel with real-time storage & temperature monitoring
• Comprehensive, user-friendly RAID & storage management & monitoring suite
• For Windows, Mac, and Linux
• Built-in carry handle for easy portability

Rugged, Portable Storage Solution

The ruggedly constructed enclosures utilize a compact tower form factor comprised of a robust, cold-rolled steel core supplemented by an aluminum outer framework and paneling to reduce weight and maximize heat dissipation. Each unit weighs in under ten pounds, dry, and incorporates a frame-mounted carrying handle for easy, secure portability.

RAID & Storage Technology

RocketStor 661x Thunderbolt 3 RAID enclosures are powered by HighPoint’s RAID & Storage technology and are capable of supporting one more RAID 0, 1, 5,10, and 50 arrays, JBOD configurations, and single drives. Their RAID technology provides several advantages over purely-software driven RAID solutions.

Online Array Roaming

RocketStor 661x series enclosures support Online Array Roaming, which simplifies storage upgrade and replacement. Customers are free to move the enclosure to any system with Thunderbolt 3 connectivity and can even move the hosted drive media to other HighPoint series enclosures or controllers without having to start from scratch or recover an array. In addition, RocketStor 661x enclosures are also capable of recognizing arrays created with other HighPoint series products, even if drives are moved to different bays/ports.

Enhanced RAID Recovery

Provides a feature set typically associated with enterprise grade storage solutions and was designed to streamline service workflows. Unlike client-grades solutions, which typically employ a one-size-fits all approach to RAID recovery (regardless of the storage media or configuration), RocketStor RAID enclosures will dynamically adjust each recovery session to correspond with the specific fault or disk-related failure responsible for the break. The RocketStor driver was engineered to zero in on the problem areas, and will restrict activity to these particular sectors. This can shave countless hours off the expected recovery time, especially for arrays comprised of today’s largest 20TB+ hard disks.

Advanced Cooling System Maximizes the Reliability and Performance of Your Storage Investments

Built for professional applications and enterprise grade storage media, RocketStor 661x RAID enclosures are equipped with a highly advanced temperature monitoring and alert system designed to ensure hosted storage media deliver maximum performance and reliability. Two sets of powerful, low-decibel cooling fans�one for the storage media positioned directly behind the drive bays, and a second for the unit’s power supply.

Intelligent, Automated Fan Control

The system operates in a default Smart mode, and will dynamically adjust fan speed to keep temperatures in check. Customers that need a more controlled working environment can use the front panel LCD to manually select from four speed settings, including an option to completely disable all four cooling fans. The system can also be controlled via the unit’s software management interface from within the OS.

Configurable Temperature Thresholds

The WebGUI and CLI (command line interface) allow administrators to establish temperature thresholds for each hosted SSD or HDD. When a threshold is breeched, the enclosure can be configured to sound the audible alarm, and report the problem via pop-up messages and email notification.

Intelligent Fan Control

Automatically adjusts fans speeds to maintain consistent ambient temperatures while keeping unwanted noise to a minimum.

Audible Alarms

Enable audible alarm in case of overheating or device failure.

Configurable Event Notification

Get RAID storage health status updates anytime, anywhere, via e-mail.

Instant, Real-Time Storage Monitoring & Temperature Management System

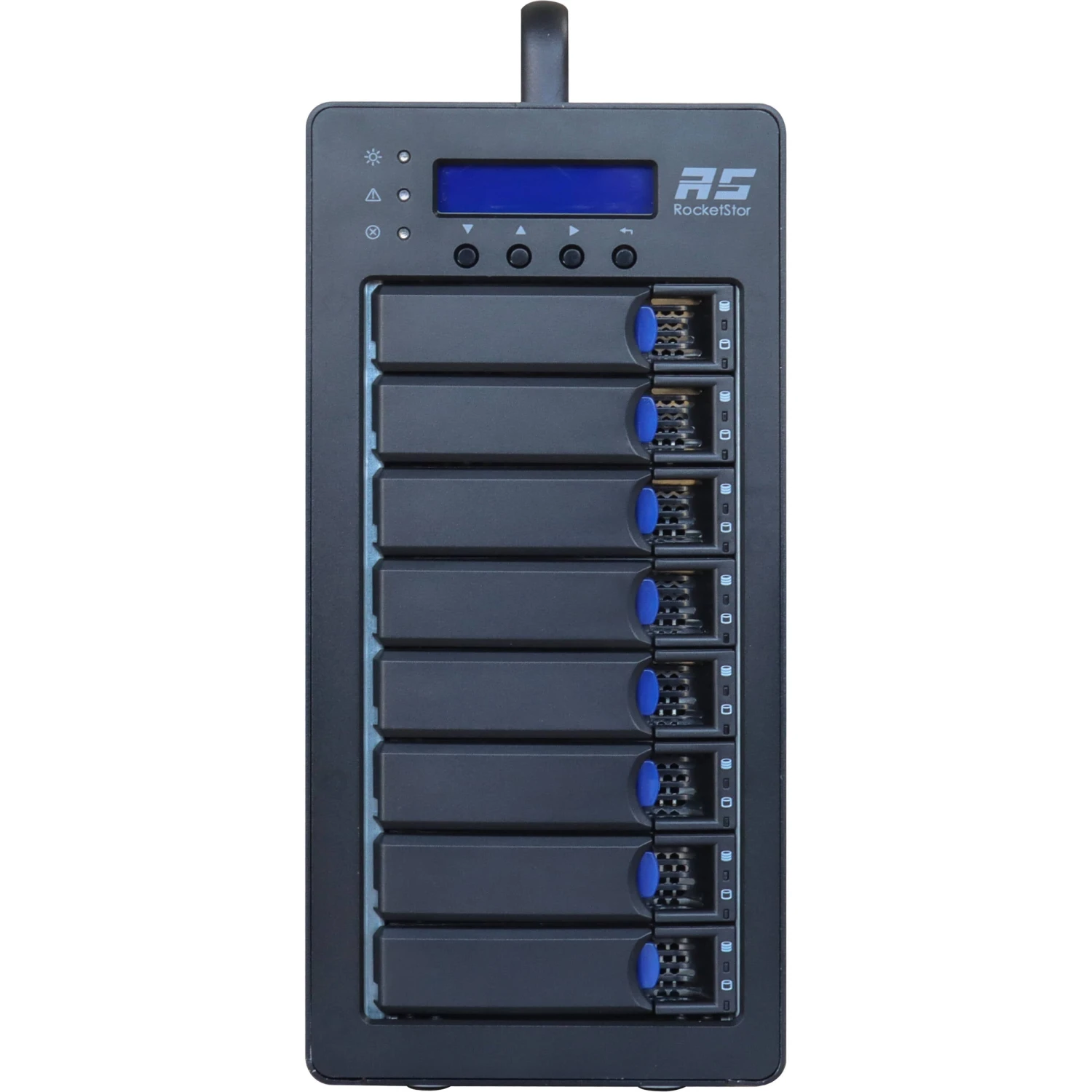

RocketStor 661x series Thunderbolt 3 RAID enclosures are equipped with a selection of proactive monitoring, alert, and management features designed to simplify administration in the field. The most prominent feature is the configurable 16×2 backlit LCD screen, which is an integral component of the enclosure’s advanced cooling system. It provides administrators with instant, real-time temperature monitoring and full suite of fan controls. Integrated LED indicators actively monitors the status of hosted storage devices with a simple and intuitive color-coding scheme: yellow for warning, red for failure/error, green for normal/optimal.

HighPoint 6618V Specs

RAID	Yes, Supported RAID Modes: 6 / 10 / 50 / 5 / JBOD / 0 / 1
Number of Bays	8x 2.5″/3.5″ SAS-3, SATA III
Inputs/Outputs	2x USB-C Thunderbolt 3 (40 Gb/s) 1x RJ45 10/100 Mb/s Ethernet

RAID	Yes, Supported RAID Modes: 6 / 10 / 50 / 5 / JBOD / 0 / 1

Number of Bays	8x 2.5″/3.5″ SAS-3, SATA III
Inputs/Outputs	2x USB-C Thunderbolt 3 (40 Gb/s) 1x RJ45 10/100 Mb/s Ethernet
Media Card Slots	No

OS Compatibility

Windows 11 (64-Bit Only) Windows 10 (64-Bit Only) Windows Server 2022 (64-Bit Only) Windows Server 2019 (64-Bit Only) Windows Server 2016 (64-Bit Only) macOS 10.13 to 14 Linux (64-Bit Only)

Encryption	No
Security Features	Kensington Security Slot

Input Power	100 to 240 VAC, 60 / 50 Hz
PSU Wattage	1 x 250 W

Operating Conditions	41 to 113°F / 5 to 45°C
Storage Conditions	-40 to 149°F / -40 to 65°C
Certifications	CE, FCC, RoHS, REACH, WEEE
Cooling	1x PWM Fan
Material of Construction	Aluminum
Cable Length	3.3′ / 1 m
Dimensions	13.83 x 10.24 x 5.77″ / 35.13 x 26.01 x 14.66 cm
Weight	16.1 lb / 7.3 kg (without Drives)

Package Weight	16.015 lb
Box Dimensions (LxWxH)	15.8 x 14 x 10.2″
