HighPoint Rocket R1104 Overview

Upgrade your storage to take on intensive tasks such as video editing by installing the Rocket R1104 PCIe 3.0 x16 4-Channel M.2 NVMe Host Controller from HighPoint into your desktop computer system’s available PCIe 3.0 x16 slot. This full height, high-performance host controller supports up to four single- or double-sided M.2 NVMe solid-state drives in 2242, 2260, 2280, and 22110 form factors. With support for OS-based RAID configurations, the Rocket R1104 is designed to deliver the performance needed for high-bandwidth applications. Its full-length anodized aluminum heatsink provides silent and efficient cooling to the installed drives to help maintain optimal performance. The Rocket R1104 is designed to work with Windows 10, Windows Server 2019, macOS 10.13 or later, and Linux 3.10 or later systems.

High-Speed, Intelligent Switch Chipset

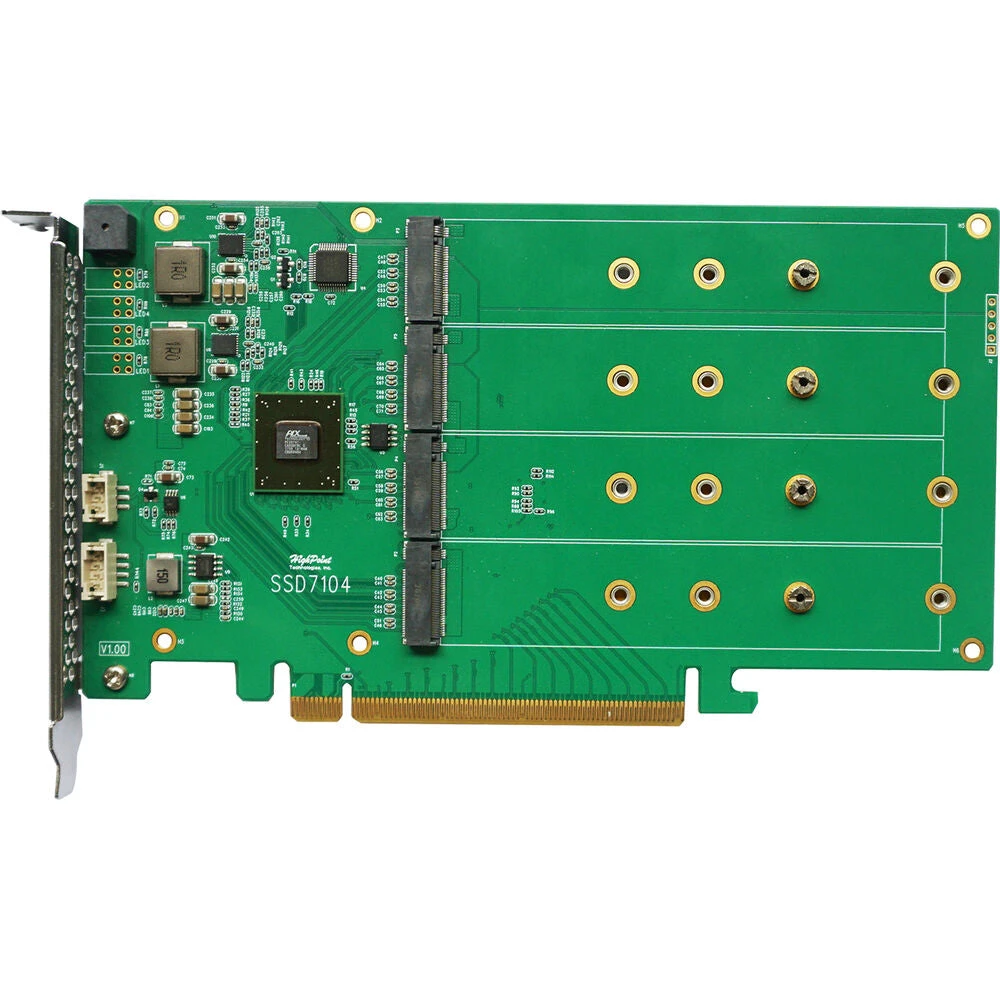

The integrated Broadcom PEX8747 intelligent PCIe switch chipset helps to ensure that the maximum transfer bandwidth is available at all times. Up to x4 lanes are dedicated to each installed M.2 NVMe SSD.

Silent Cooling System

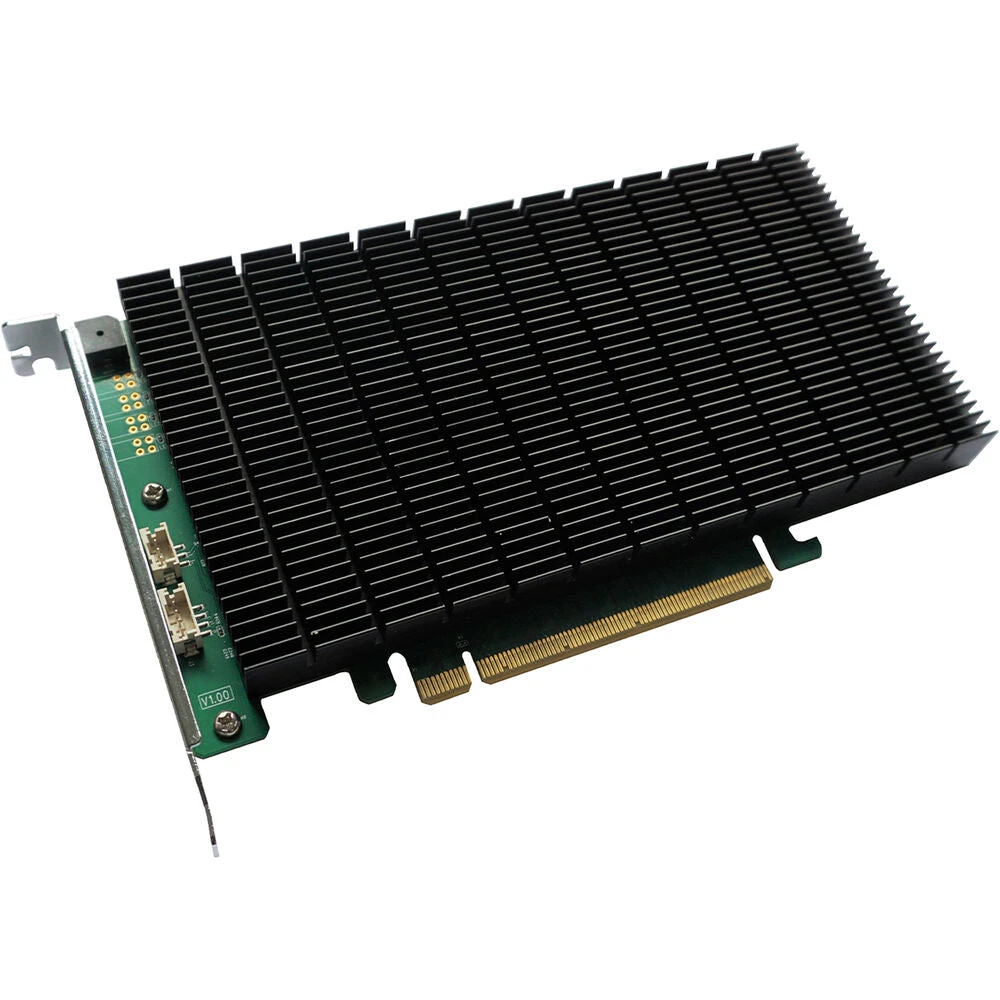

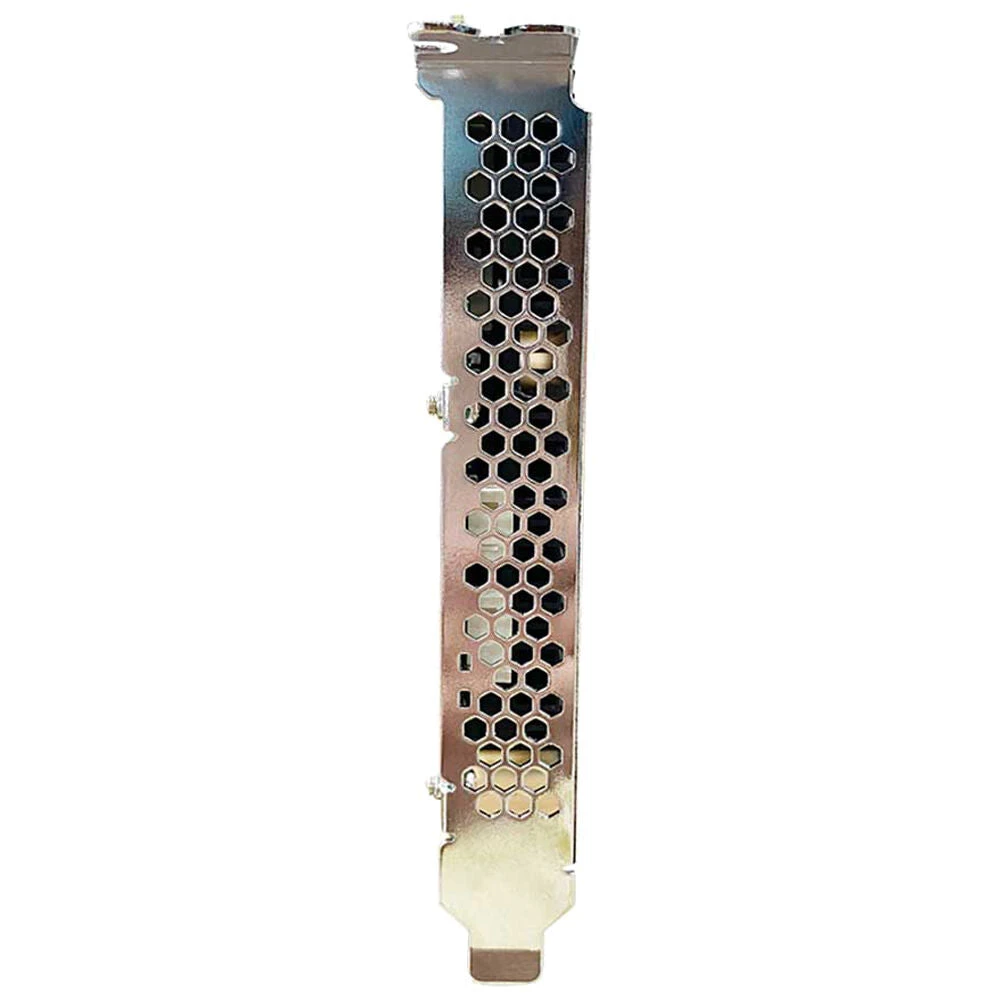

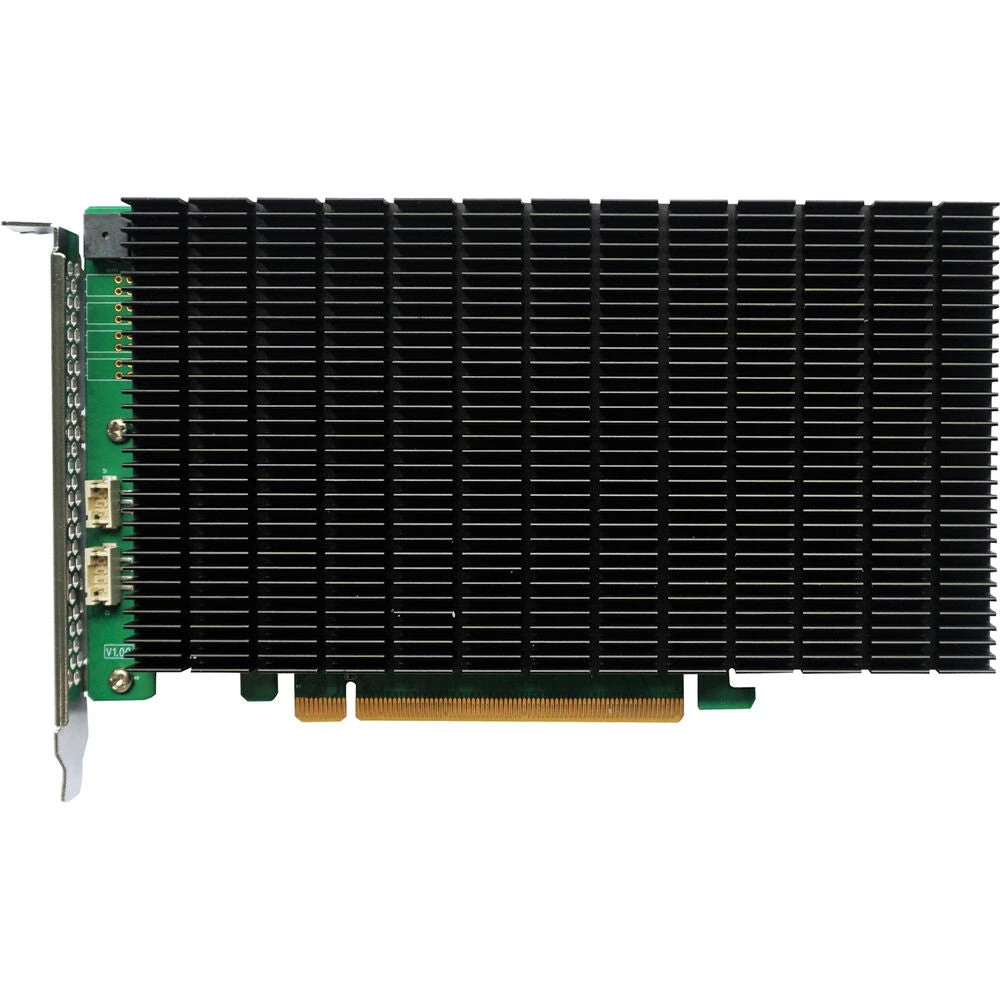

This host controller’s ventilated bracket, full-length anodized heatsink, and highly conductive thermal pad help to efficiently dissipate heat from the installed drives without disrupting low-noise environments.

UPC: 643653110414

In the Box

HighPoint Rocket R1104 PCIe 3.0 x16 4-Channel M.2 NVMe Host Controller
Limited 2-Year Warranty

HighPoint Rocket R1104 Specs

General

Host Interface	PCI Express 3.0 x16
M.2	4 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
OS Compatibility	Windows 10 or Later Windows Server 2019 Linux 3.10 or Later macOS 10.13 or Later FreeBSD 12.1 or Later

Power

Power Consumption

9.57 W

Environmental

Operating Temperature	41 to 95°F / 5 to 35°C
Storage Temperature	-4 to 176°F / -20 to 80°C

Physical

Form Factor	Full-Height
Status Monitoring	None
Material of Construction	Aluminum
Mean Time Between Failures (MTBF)	0.92 Million Hours
Dimensions	7.68 x 4.38 x 0.73″ / 195.07 x 111.25 x 18.54 mm
Weight	1.34 lb / 0.61 kg

Packaging Info

Package Weight	1.33 lb
Box Dimensions (LxWxH)	13.2 x 7.6 x 2.8″
