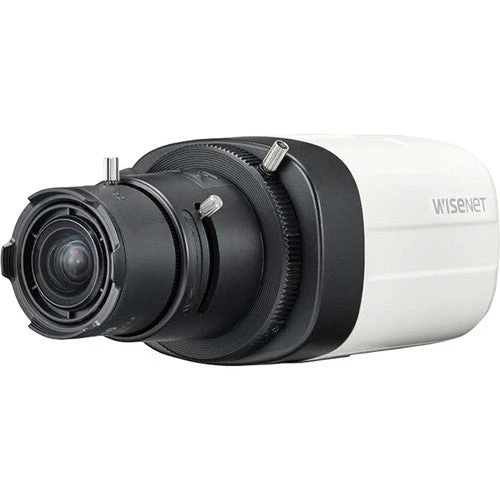

Hanwha Techwin WiseNet HD+ HCB-6000 2MP AHD Box Camera (No Lens)(Hanwha Techwin Wisenet Hd Hcb 6000 2mp Ahd Box Camera No Lens)

Original price was: $196.90.Current price is: $96.99.

SKU: DGFUB 9712051728 Categories: Optics & Surveillance, Surveillance, Surviellance Tags: Hanwha Techwin HCB-6000, Security Cameras, Surveillance Video, Wired Analog & HD Cameras

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

The ivory WiseNet HD+ HCB-6000 2MP AHD Box Camera from Hanwha Techwin features a 1/2.8″ CMOS sensor and supports a maximum resolution of 1920 x 1080. It also supports maximum transmission distance of 1640′. Its WDR function allows the camera to captures images under varied lighting conditions.

1920 x 1080 resolution at 30 fps

Day / night (ICR)

120 dB WDR (Wide Dynamic Range)

SSNRIV and motion detection

Supports plug-and-play operation

Dual power (24 VDC/ 12 VDC)

RS-485 port

In the Box

Hanwha Techwin WiseNet HD+ HCB-6000 2MP AHD Box Camera (No Lens)

Limited 3-Year Warranty

Video
Imaging Device	1/2.8″ progressive scan CMOS sensor, 2 MP
Total Pixels	2000 x 1121, 2.24 MP
Effective Pixels	1984 x 1105, 2.19 MP
Min. Illumination	Color: 0.09 lux (f/1.2, 1/30 sec) B&W: 0.009 lux (f/1.2, 1/30 sec)
S/N Ratio	52 dB (AGC Off, Weight On)
Video Output	BNC (AHD / TVI / CVI / CVBS selectable)
Resolution	1920 x 1080
Maximum Frame Rate	30 fps at 1080p

Lens
Mount Type	C/CS

Operational
On Screen Display	Multi-Language Support (16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Camera Title	Off / On (Displayed 15 characters)
Day & Night	Auto (ICR) / External / Color / B&W
Backlight Compensation	Off / User BLC / HLC
Wide Dynamic Range	120 dB
Digital Noise Reduction	SSNRIV (Off/On)
Defog	AUTO / MANUAL / OFF
Motion Detection	Off / On (4 zones)
Privacy Masking	Off / On (4 zones rectangle)
Gain Control	Off / Low / Middle / High / Very High
White Balance	ATW / Outdoor / Indoor / Manual / AWC (1800 to 10,500K)
Electronic Shutter Speed	1 sec to 1/12,000 sec
Reverse	Off / H-Rev / V-Rev / HV-Rev
Profile	Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm	1 x (MD) output 1 x External D/N
Remote Control Interface	Coaxial, RS-485
Protocol	Coax: Pelco C (coaxitron), ACP (AHD Coax Protocol) RS-485: Samsung T/E, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD
Transmission Distance	Video: (1640.4′) 500 m (5C2V Coaxial cable)

Environmental
Operating Temperature	14 to 131°F (-10 to 55°C)

Electrical
Input Voltage	Dual (24 VAC ±10% & 12 VDC ±10% )
Power Consumption	Maximum 3.5 W

Mechanical
Material	Plastic
Dimensions (W x H x D)	2.35 x 2.69 x 3.65″ (59.6x 68.4 x 92.7 mm)
Weight	8.1 oz (231 g)
