Hanwha Techwin SCB-6005 Overview

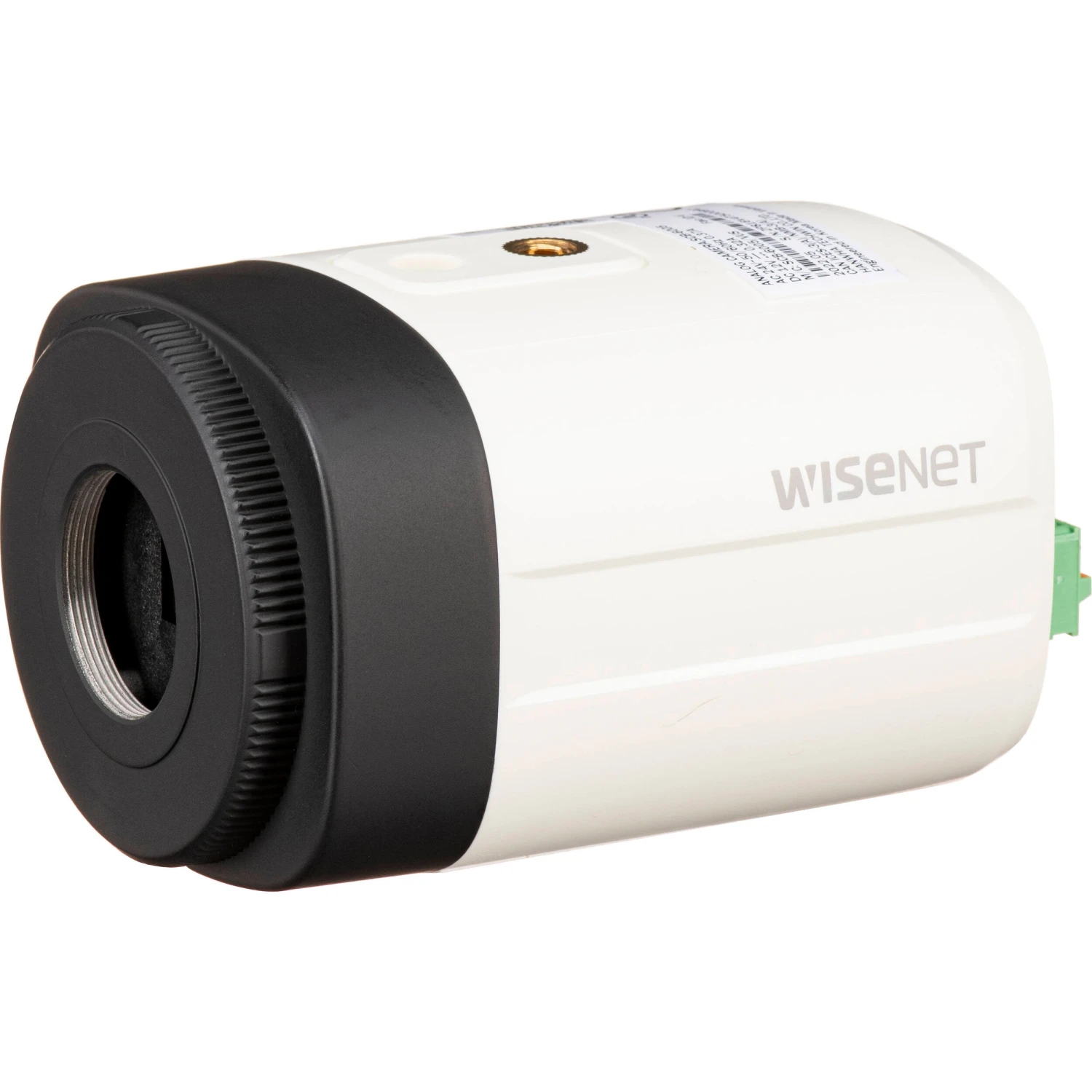

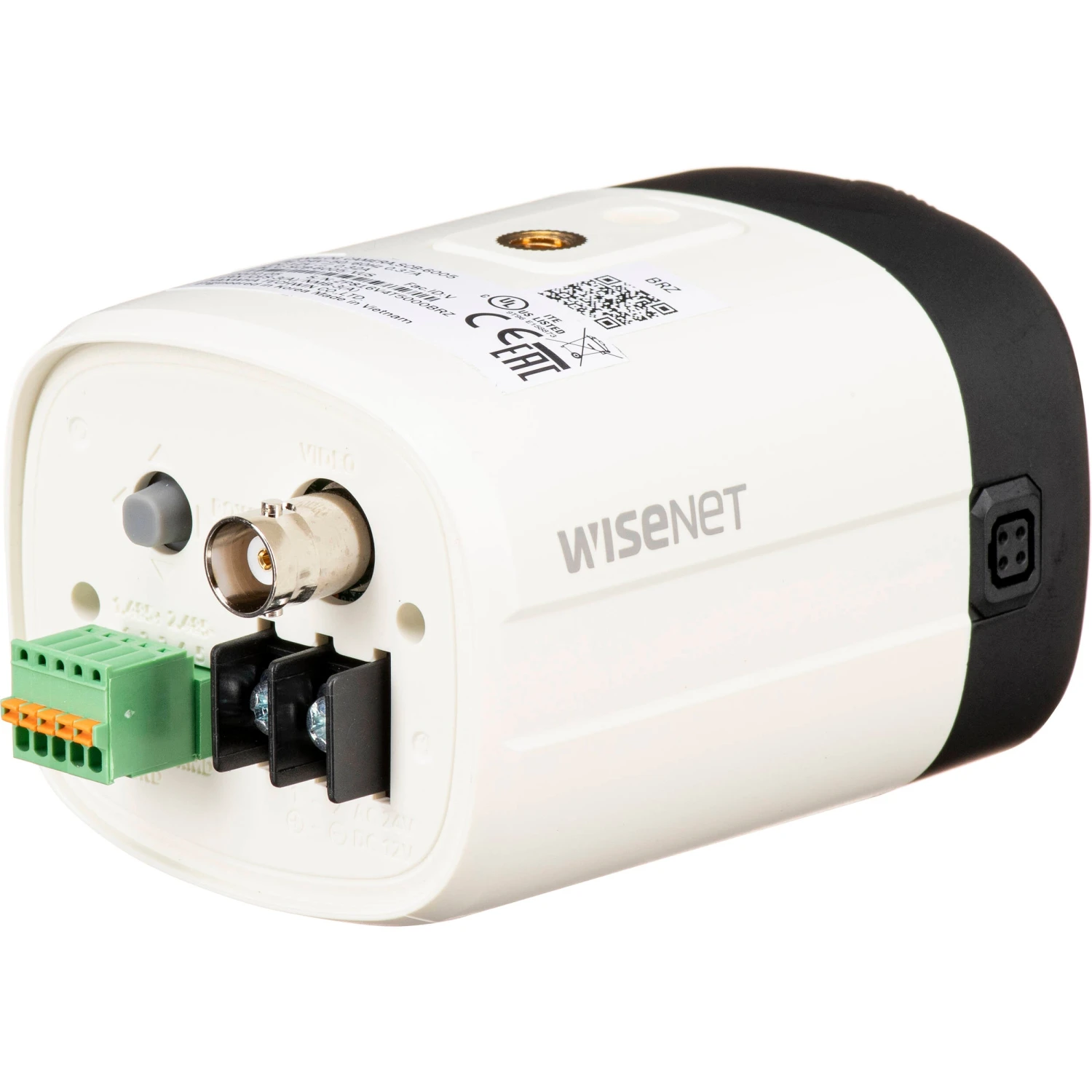

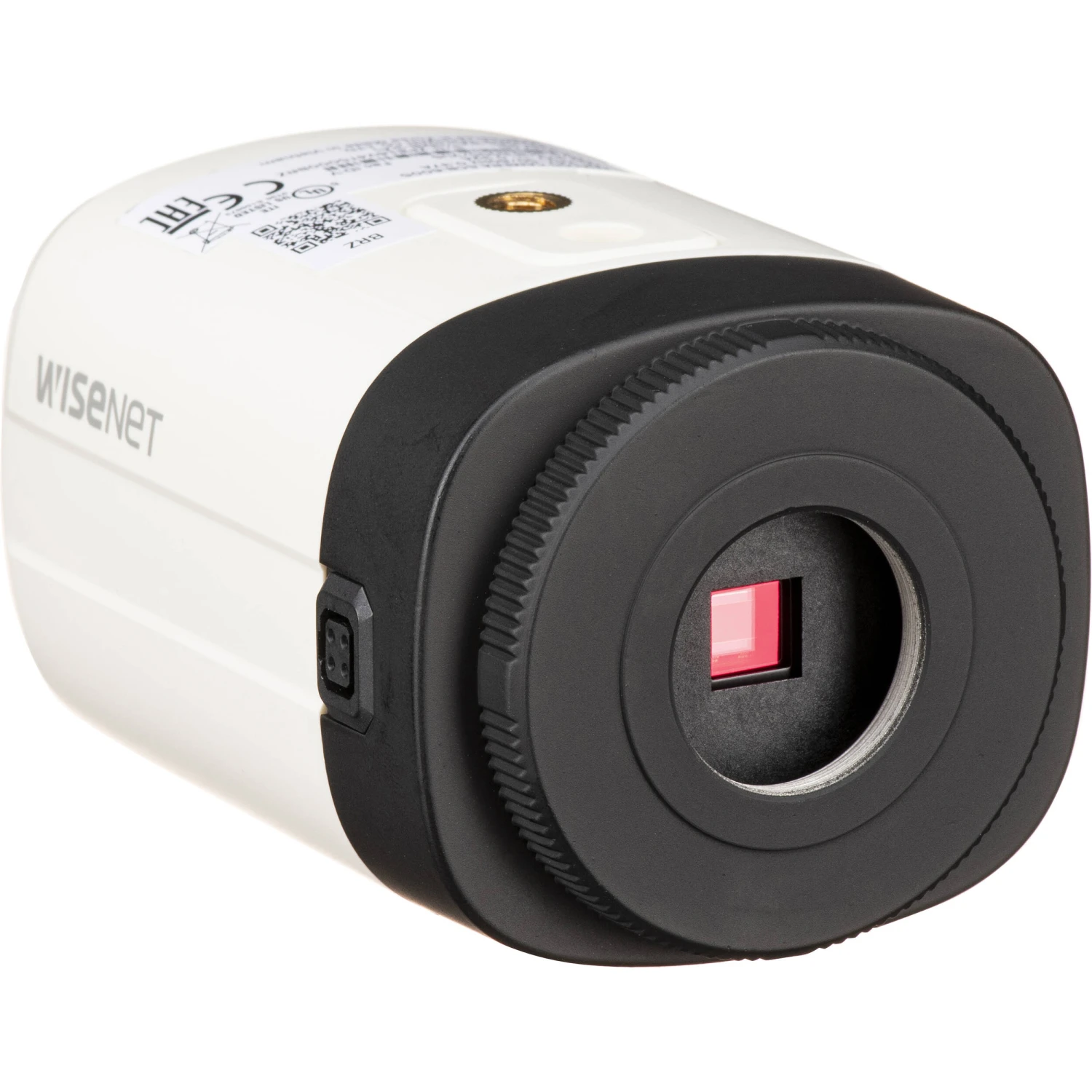

Capture HD video over coaxial cable with the SCB-6005 2MP Analog HD Box Camera (No Lens) from Hanwha Techwin. This camera uses a 1/2.8″ CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. AHD and CVBS signal outputs are supported. The camera has a video transmission range up to 1640′.
Hanwha Techwin SCB-6005 Specs
| Sensor | 2 MP 1/2.8″ CMOS |
| Lens Mount | CS |

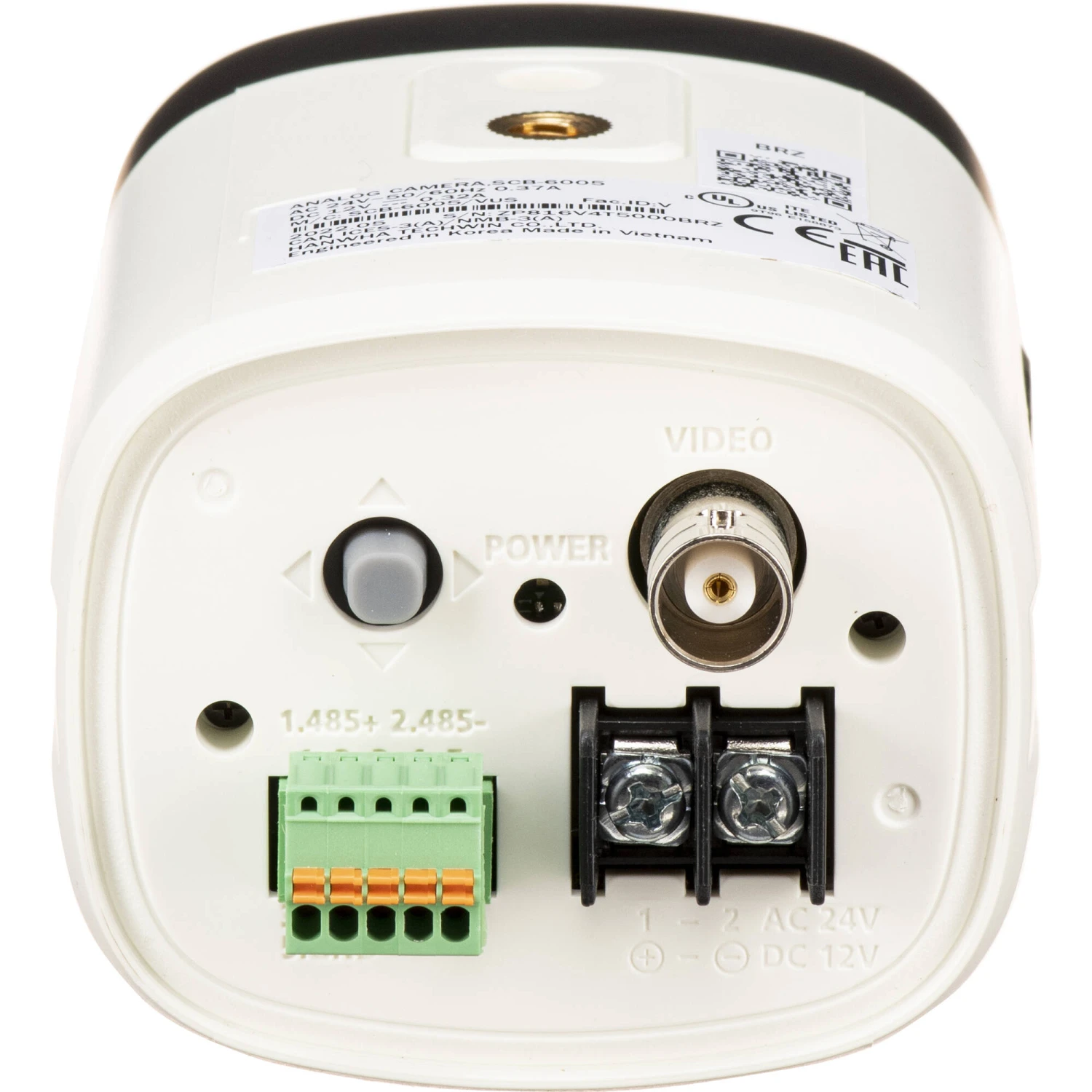

| Video Outputs | 1 x BNC (AHD / Composite) |
| Output Formats | AHD: 1920 x 1080 at 30 fps |
| Up-the-Coax Communication | Yes |
| Supported Control Protocols | Pelco-D Pelco-P RS-485 Samsung-T Samsung-E Panasonic Bosch Honeywell Vicon GE |
| Analytics | Motion Detection(4 Areas) |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | No |
| Alarm I/O | 1 / 1 |
| Media/Memory Card Slot | None |
| Power Source | AC, DC |
| Power Consumption | AC: 3.6 W DC: 3.5 W |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Inputs/Outputs | 1 x BNC |
| Material of Construction | Aluminum, Plastic |
| Dimensions | H: 2.3 x W: 2.6 x L: 3.6″ / H: 5.8 x W: 6.6 x L: 9.1 cm |
| Weight | 6.6 oz / 186 g |
| Package Weight | 0.635 lb |
| Box Dimensions (LxWxH) | 6.7 x 4.1 x 2.9″ |
