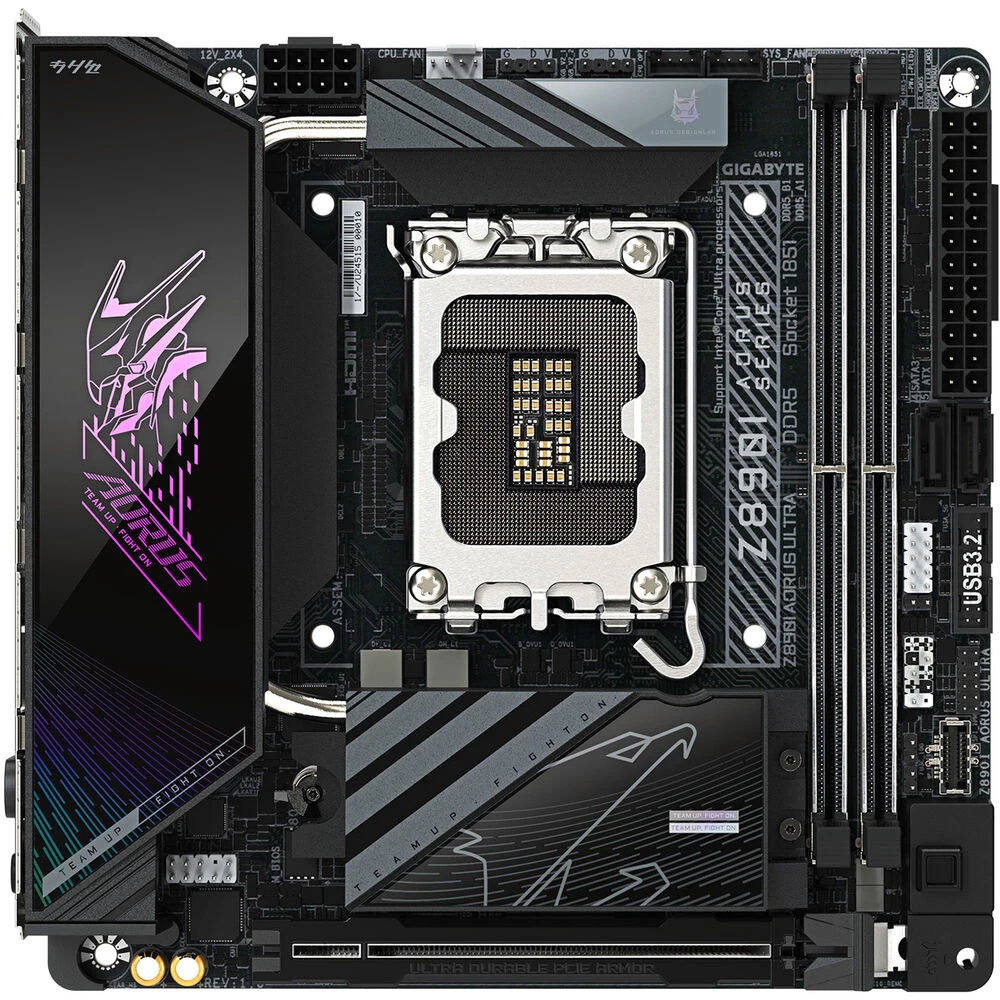

Gigabyte Z890I AORUS ULTRA Overview
Build your own mini-ITX gaming build with the matte black Gigabyte Z890I AORUS ULTRA LGA 1851 Mini-ITX Motherboard. This motherboard supports Intel Core Ultra Series 2 processors, thanks to the LGA 1851 socket and Intel Z890 chipset. With two DDR5 slots, one PCIe 5.0 x16 slot, two M.2 slots, and two SATA slots, you’ll be able to build a compact yet powerful gaming rig. With EZ-Latch Plus and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn’t require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 7. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.
Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.
With low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.
Easy ejection with a single slick for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Digital twin 8+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
Power Monitor in HWinfo for real-time monitoring on CPU power phases
Efficient thermals, thanks to VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING and M.2 Thermal Guard Ext.
Items Included
- Gigabyte Z890I AORUS ULTRA LGA 1851 Mini-ITX Motherboard (Matte Black)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Gigabyte Z890I AORUS ULTRA Specs
| Chipset |
Intel Z890 |
| CPU Socket |
LGA 1851 |
| Memory Slots |
2x 288-Pin |
| Memory Support |
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s |
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16 |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Form Factor |
Mini-ITX |
| Chipset |
Intel Z890 |
| CPU Socket |
LGA 1851 |
| USB |
3x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
1x Thunderbolt 4 |
| Display |
1x DisplayPort 1x HDMI |
| Audio |
2x 1/8″ / 3.5 mm |
| Ethernet / Controller |
1x Realtek 2.5Gigabit |
| Wi-Fi Antenna |
2x Connector |
| Buttons |
BIOS Flashback |
| Memory Slots |
2x 288-Pin |
| Memory Support |
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s |
| Maximum Capacity |
128 GB |
| Channel Architecture |
Dual Channel |
| ECC Support |
Non-ECC, ECC Unbuffered |
| SATA |
2x SATA III |
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Optane Memory Support |
No |
| RAID Support |
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA) |
| Expansion Slots |
1x PCIe 5.0 x16 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU 1x 4-Pin System |
| Liquid Cooling |
2x 4-Pin Pump |
| Power Connectors |
1x 24-Pin Mainboard 1x 8-Pin ATX |
| Security |
TPM Header |
| LED Header |
2x RGB |
| Audio |
1x S/PDIF |
| Diagnostics |
Clear CMOS, Reset |
| ROM |
256 Mb |
| Audio Codec |
Realtek (7.1-Channel) |
| DAC |
No |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Bluetooth |
5.4 |
| OS Compatibility |
Windows 11 |
| Form Factor |
Mini-ITX |
| Dimensions |
6.7 x 6.7″ / 170 x 170 mm |
| Package Weight |
2.805 lb |
| Box Dimensions (LxWxH) |
10 x 9.5 x 3.8″ |
