Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White)

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White) - Image 2

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White) - Image 3

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White) - Image 4

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White) - Image 5

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)(Gigabyte Z890 Aero G Lga 1851 Atx Motherboard Snow White)

Original price was: $382.00.Current price is: $97.99.

SKU: DGFUB 7075861921877 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computer Components, Computers, Gigabyte Z890 AERO G, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Gigabyte Z890 AERO G Overview

Designed for the Intel Core Ultra Series 2 Processors, the Gigabyte Z890 AERO G LGA 1851 ATX Motherboard features the LGA 1851 socket and Intel Z890 chipset for optimal performance. With four DDR5-5600 slots, two PCIe 5.0 x16 slots, one PCIe 4.0 x4 slot, five M.2 slots, and four SATA slots, you’ll be able to build a powerful gaming PC. Install a graphics card and M.2 SSDs with heat sinks without tools, thanks to EZ-Latch. The motherboard utilizes fast dual 2.5GbE LAN and Wi-Fi 7 (802.11be) for fast online connectivity.

AORUS AI SNATCH

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds. Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation – dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

Dual 2.5GbE LAN

Supercharge your online gaming with dual 2.5GbE RJ45 LAN jacks. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

EZ-Latch Designs

PCIe EZ-Latch Plus
Easy ejection with a single slick for graphics cards

M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs

Additional Key Features

Supports Intel Core Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
VisionLINK for Thunderbolt – one USB-C port for video, data transfer, and charging

UPC: 889523045190

Items Included

Gigabyte Z890 AERO G LGA 1851 ATX Motherboard (Snow White)
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Gigabyte Z890 AERO G Specs

Key Specs

Chipset	Intel Z890
CPU Socket	LGA 1851
Memory Slots	4x 288-Pin
Memory Support	DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots	1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified))
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x4 mode)
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor	ATX

CPU

Chipset	Intel Z890
CPU Socket	LGA 1851

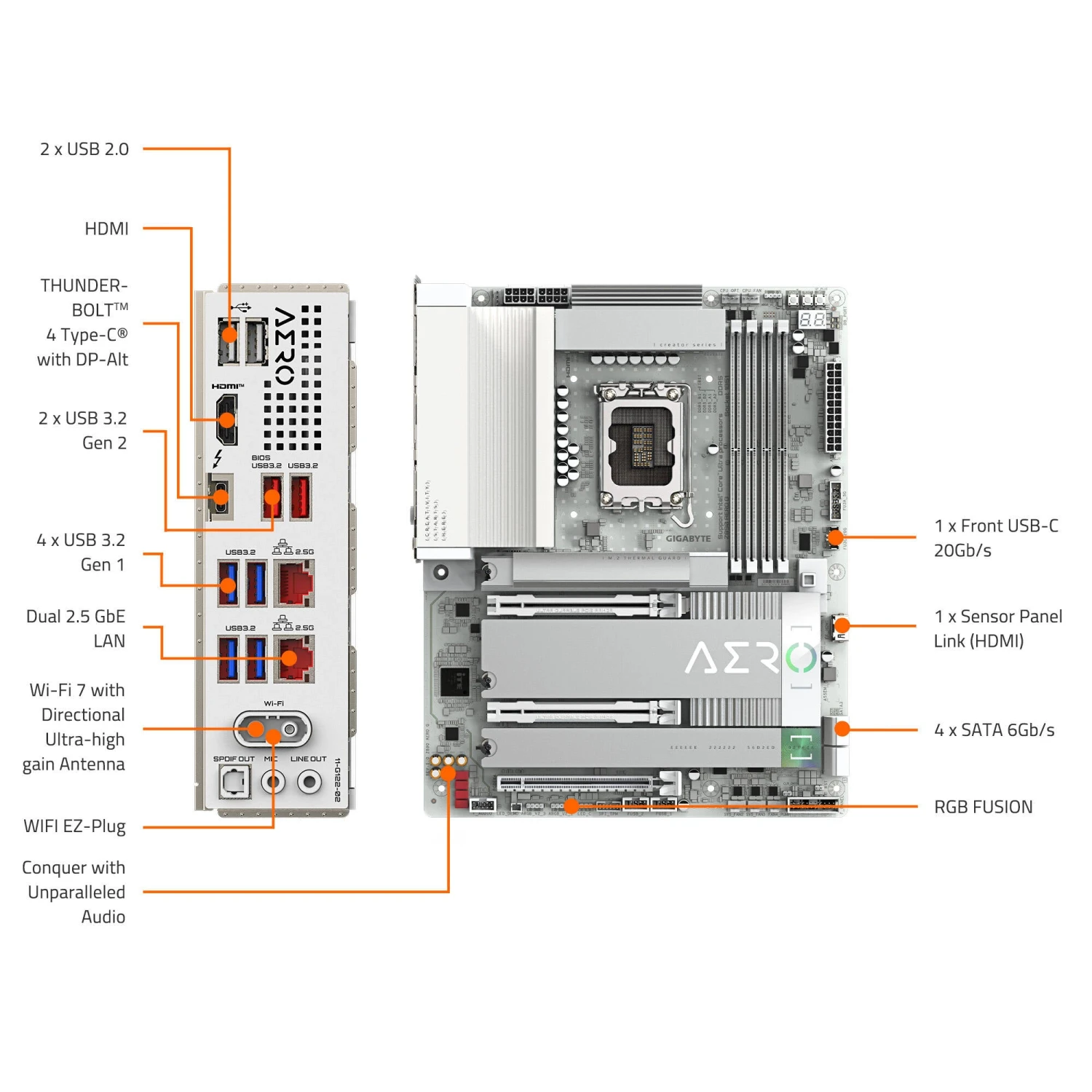

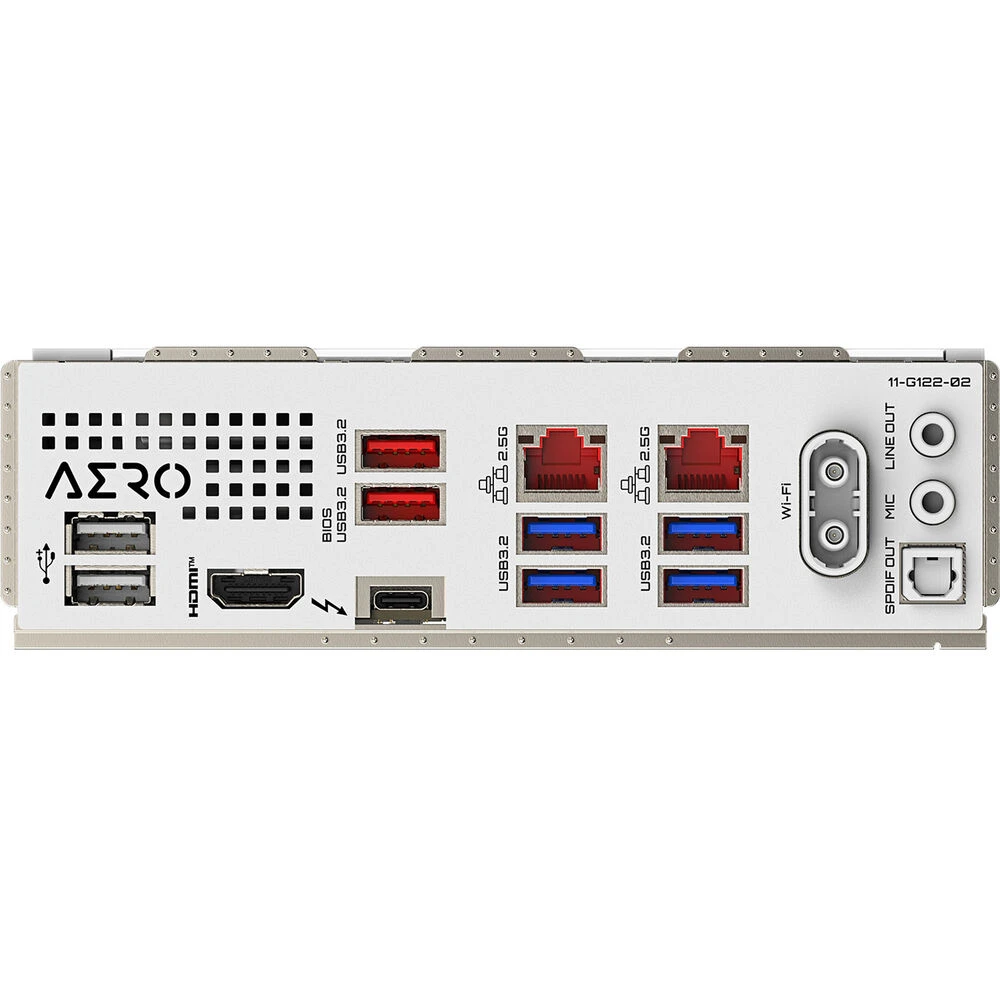

Back Panel I/O

USB	2x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	1x Thunderbolt 4
Display	1x HDMI
Audio	2x 1/8″ / 3.5 mm 1x S/PDIF
Ethernet / Controller	2x Intel 226 2.5Gigabit
Wi-Fi Antenna	2x Connector

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified))
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 5.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x4 mode)
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Power Connectors	1x 24-Pin Mainboard
Audio	1x S/PDIF

BIOS

ROM

256 Mb

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	5.4

Software

OS Compatibility

Windows

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6″ / 305 x 244 mm

Packaging Info

Package Weight	5.12 lb
Box Dimensions (LxWxH)	13.6 x 10.8 x 3.3″
