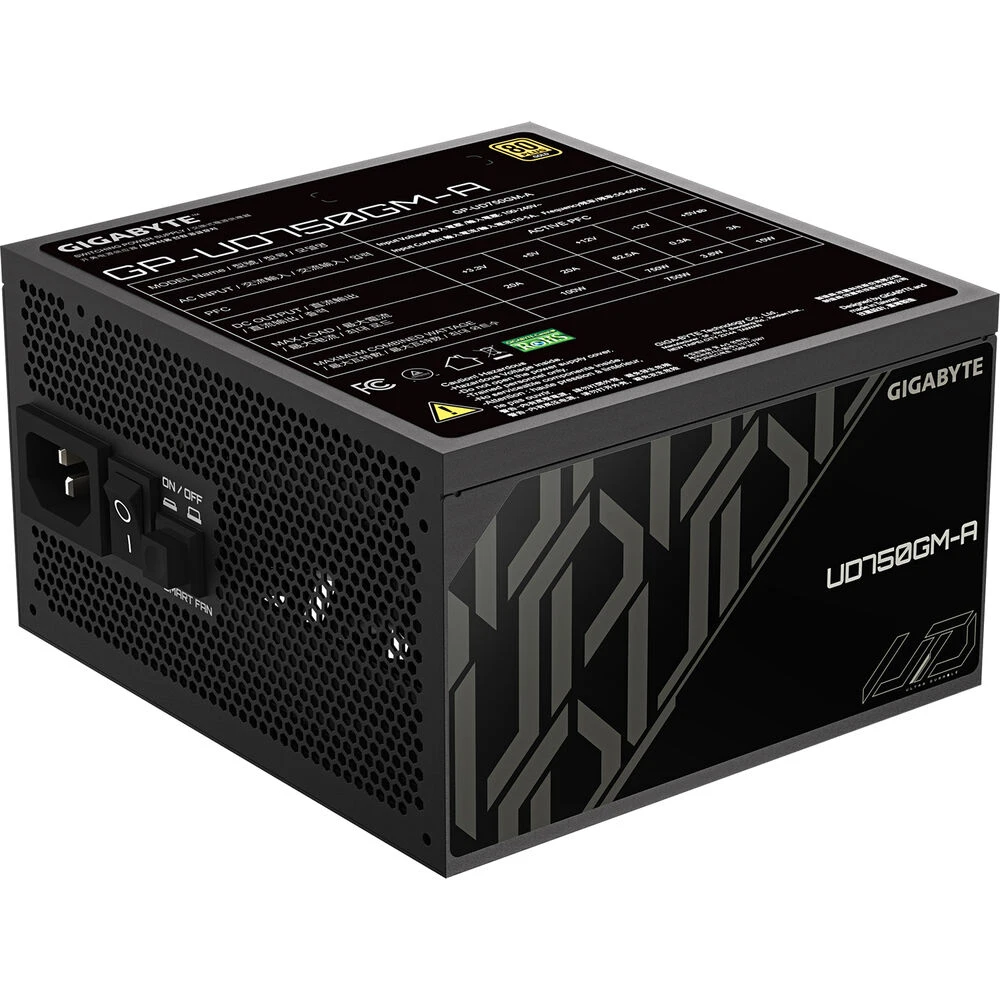

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply)

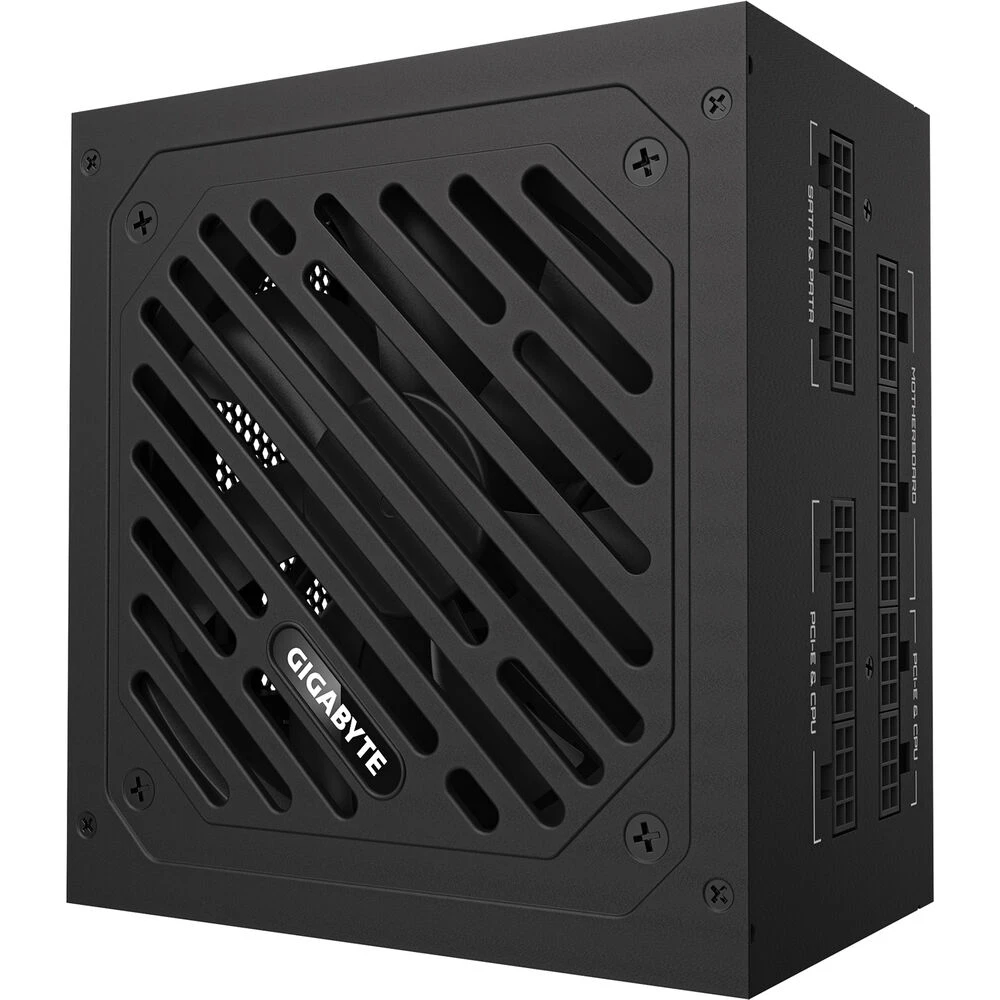

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 2

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 3

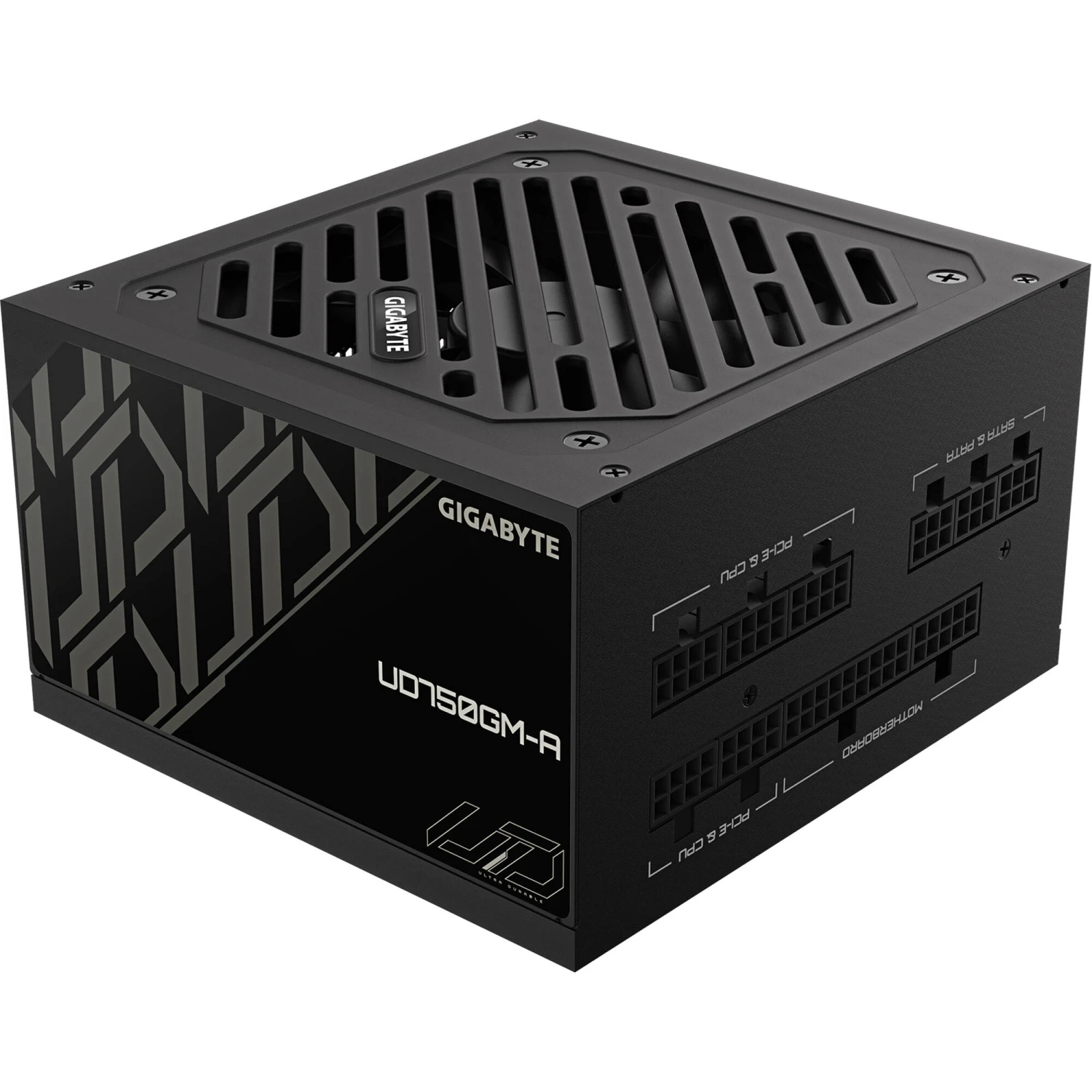

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 4

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 5

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 6

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply) - Image 7

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply(Gigabyte Ud750gm A 750w 80 Plus Gold Modular Atx Power Supply)

Original price was: $184.30.Current price is: $99.99.

SKU: DGFUB 7133548838997 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Gigabyte GP-UD750GM-A, Power Supplies

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Gigabyte GP-UD750GM-A Overview

Power your next build with the durable and reliable design of the Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply. It gives you ample connectivity options, thermal enhancements, and ample electrical protections to empower your high-end components so you can game with peace of mind.

The UD750GM-A operates on the Intel ATX12V version 2.52 standard, delivering 750W of power via single +12V rail, making this ideal for a wide range of gaming-focused components. Use only the cables you need with the modular design, saving space in your case. Flat low-profile cables make wire management and organization easier, allowing you to easily snake wires through any potentially tight areas. High-quality Japanese capacitors balance and drive power to your components while ensuring up to 90% efficiency at typical load, earning this PSU an 80 PLUS Gold certification.

80 PLUS Gold Certified

Designed to produce up to 90% efficiency at typical loads, the UD750GM-A is 80 PLUS Gold certified, ensuring the electrical load is properly managed.

Thermal Conditioning

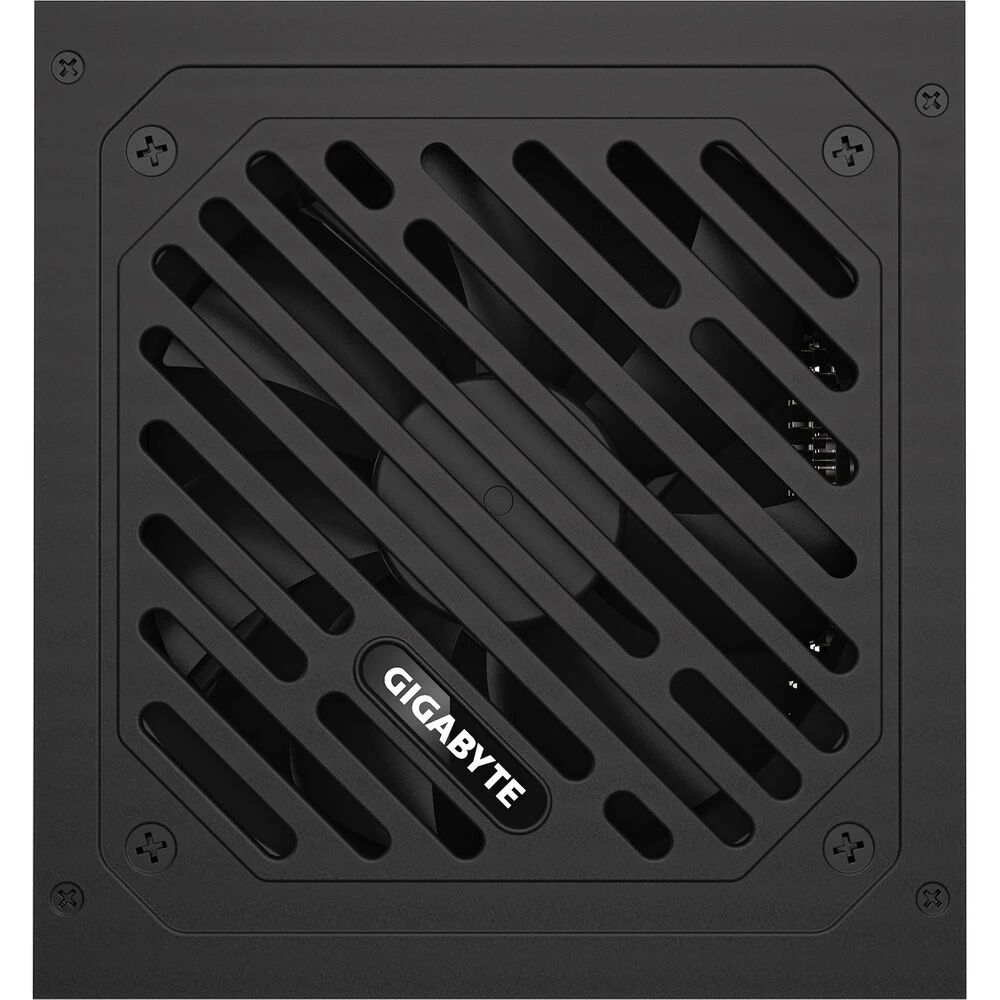

Keeping the internals safe during heavy loads is an enlarged heat sink and a 120mm smart hydraulic bearing fan, working together to provide you with a long-lasting system. If the current load is less than 20%, the fan stops, adding to the lifespan of the fan.

Protections

Designed for stability, Gigabyte added protection designs such as OCP, OTP, OVP, OPP, UVP, and SCP, ensuring proper operation of your system.

Compact Design

Gigabyte reduced the length of the power supply so it can be easily installed in a chassis without space constraints.

UPC: 810162140618

Items Included

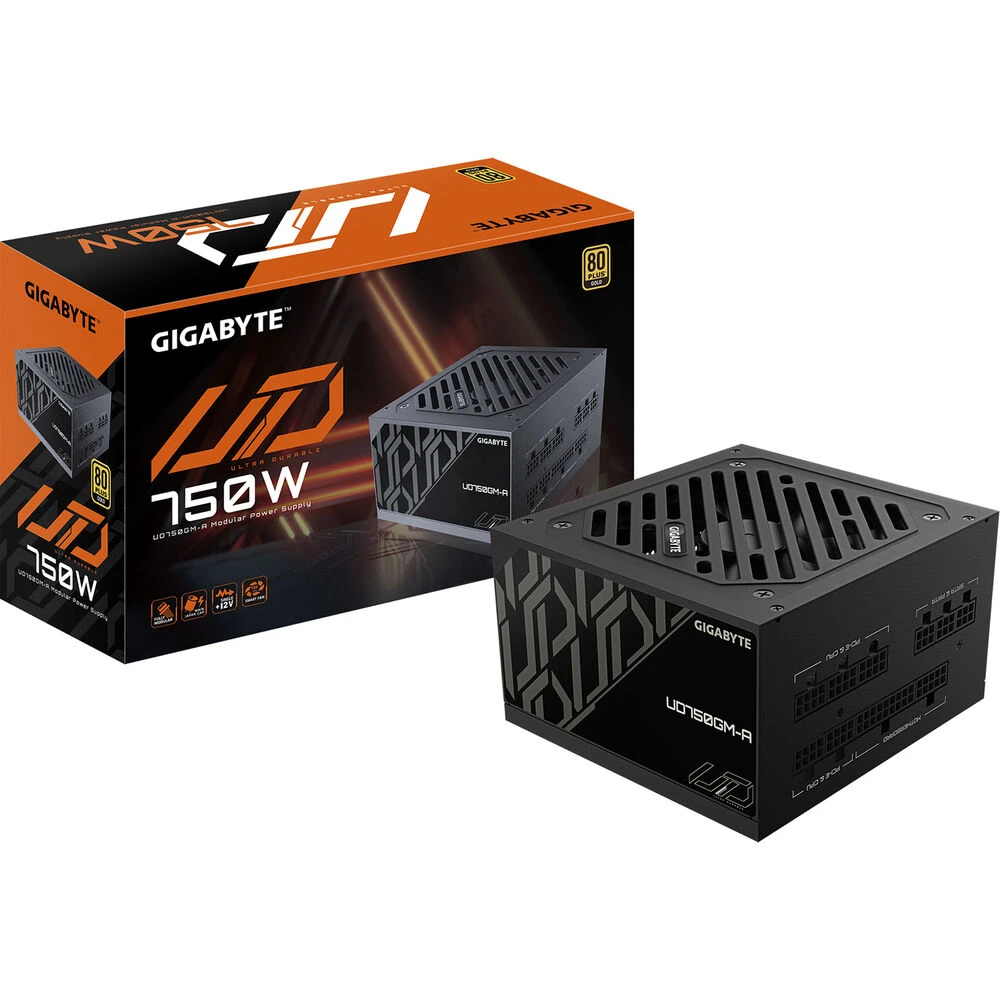

Gigabyte UD750GM-A 750W 80 PLUS Gold Modular ATX Power Supply
Limited 5-Year Manufacturer Warranty

Additional Resources

Pinout Diagram

0.6 MB

Gigabyte GP-UD750GM-A Specs

Key Specs

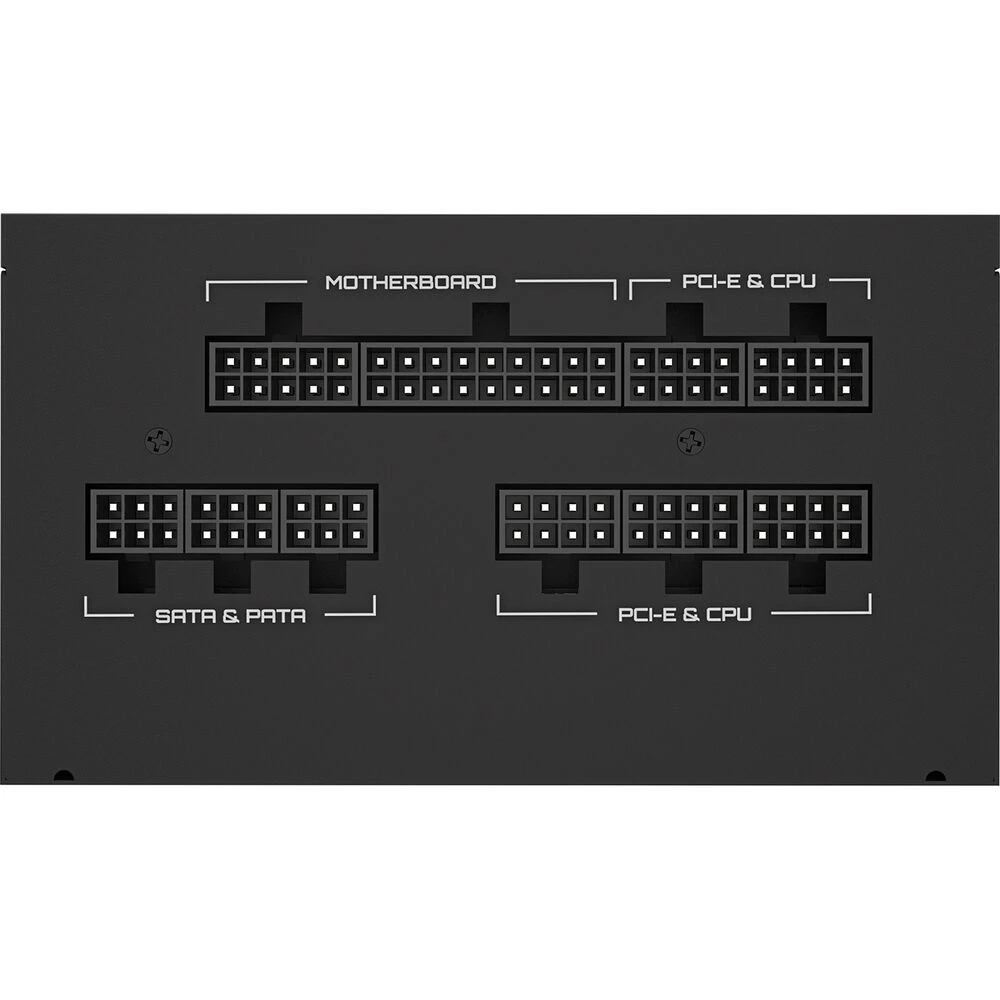

Total Connectors	1x 20+4-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA
Cable Design	Flat
Total Wattage	750 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Gold
Form Factor	ATX

Connectivity

Total Connectors	1x 20+4-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA
Cable Design	Flat
PCIe Connector Distances	25.6″ / 650 mm 29.5″ / 750 mm
SATA Connector Distances	23.6″ / 600 mm 29.5″ / 750 mm 35.4″ / 900 mm 41.3″ / 1050 mm
Peripheral Connector Distances	23.6″ / 600 mm 29.5″ / 750 mm 35.4″ / 900 mm 41.3″ / 1050 mm
ATX Connector Distance	25.6″ / 650 mm
EPS Connector Distances	25.6″ / 650 mm

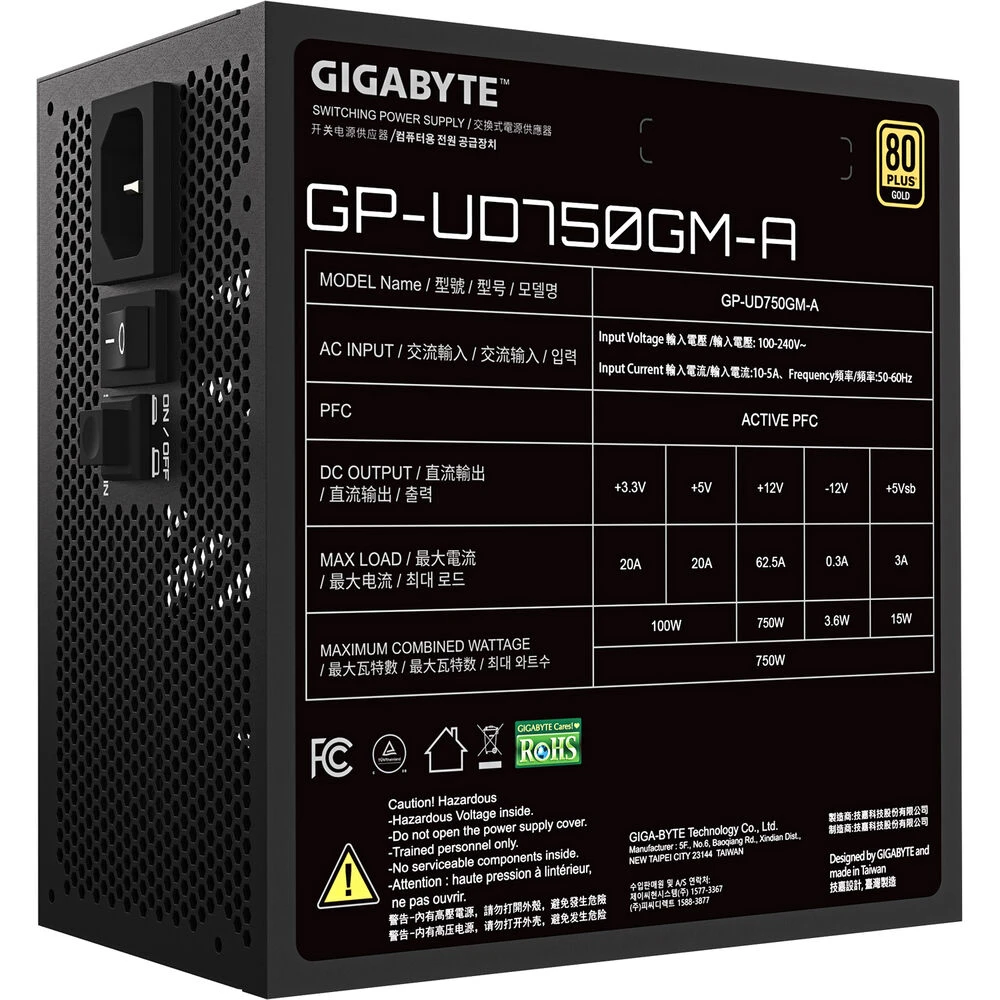

Electrical

Total Wattage	750 W
Number of +12 V Rails	1
Combined Power for +12 V	750 W
Max Load for +12 V	62.5 A
Combined Power for +3.3/+5 V	100 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes

Cooling

Fan Size	120 mm
Bearing Type	Hydraulic

Physical

Form Factor	ATX
Compliance	ATX 12 V v2.52
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Mean Time Between Failures (MTBF)	100,000 Hours
Dimensions	5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm

Packaging Info

Package Weight	6.31 lb
Box Dimensions (LxWxH)	12.6 x 8.5 x 4.7″
