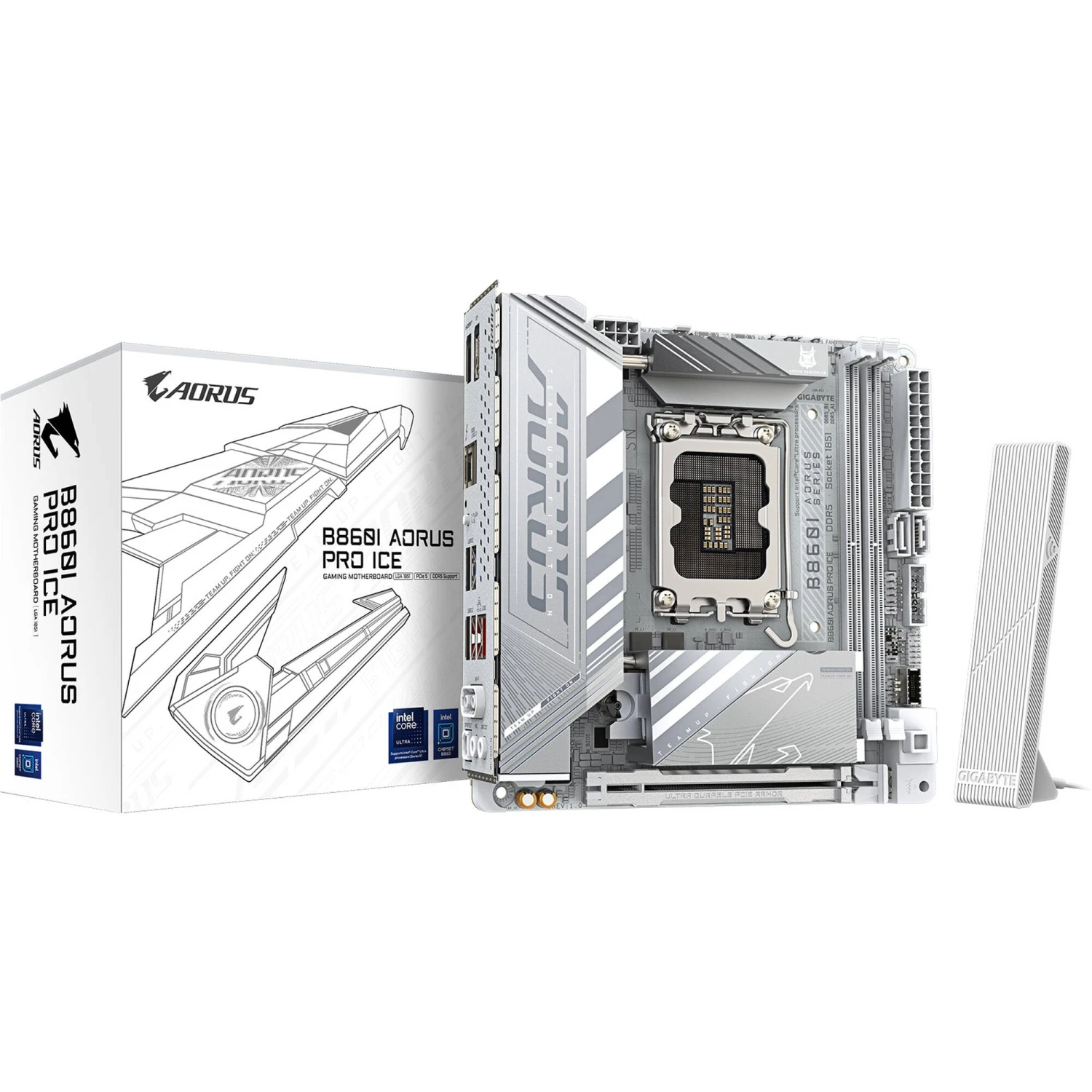

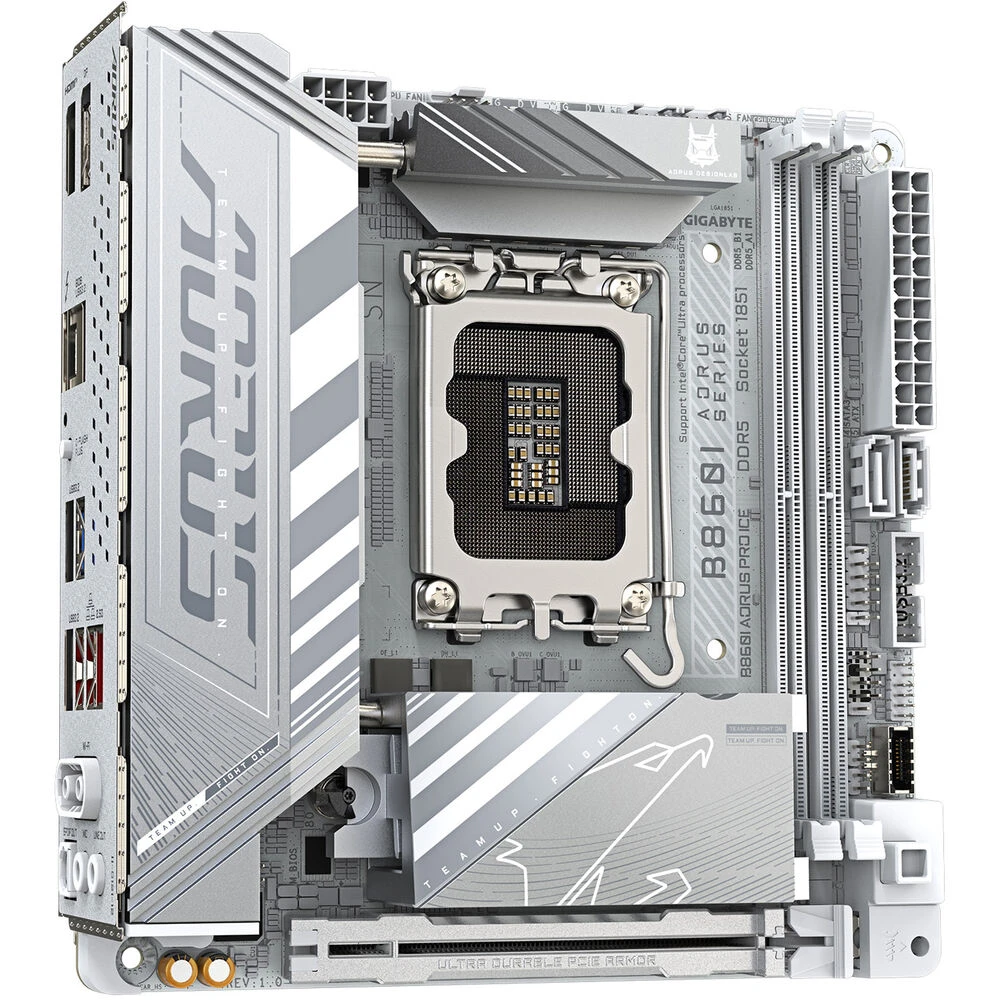

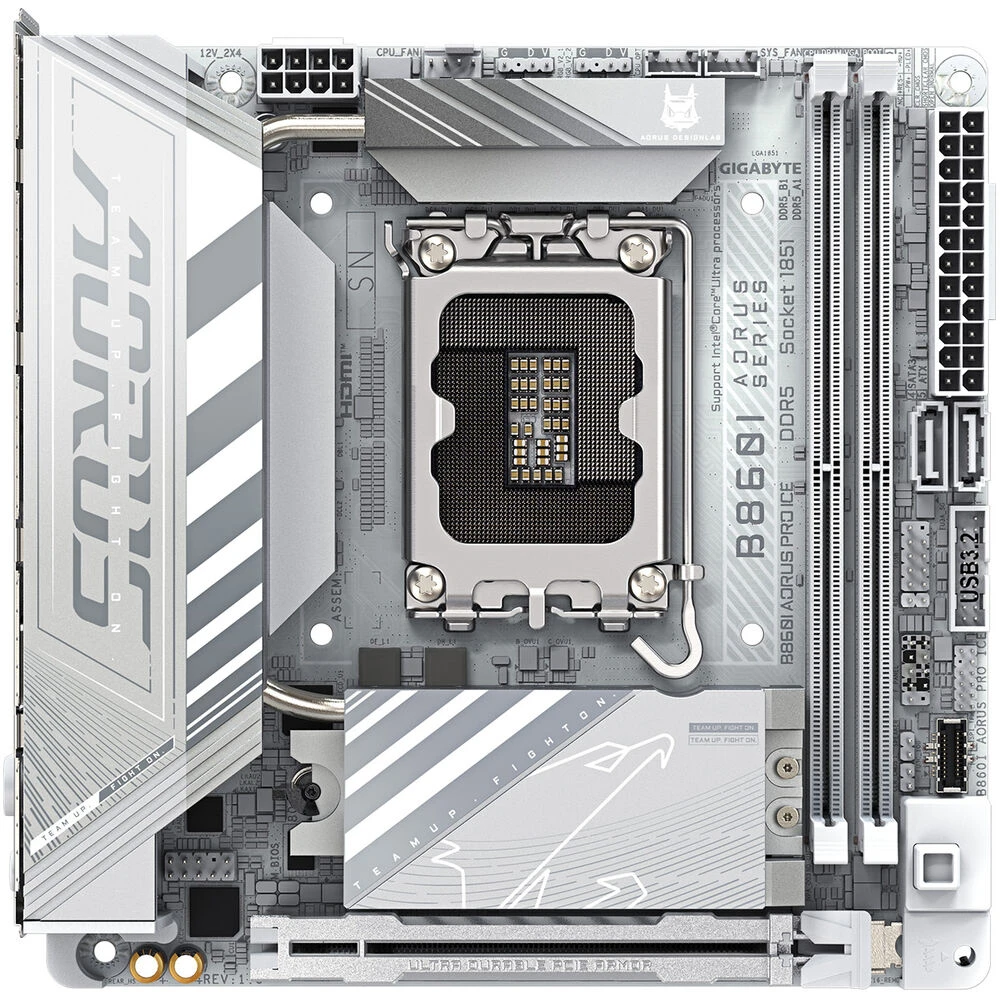

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard(Gigabyte B860i Aorus Pro Ice Lga 1851 Mini Itx Motherboard)

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard(Gigabyte B860i Aorus Pro Ice Lga 1851 Mini Itx Motherboard) - Image 2

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard(Gigabyte B860i Aorus Pro Ice Lga 1851 Mini Itx Motherboard) - Image 3

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard(Gigabyte B860i Aorus Pro Ice Lga 1851 Mini Itx Motherboard) - Image 4

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard(Gigabyte B860i Aorus Pro Ice Lga 1851 Mini Itx Motherboard)

Original price was: $376.52.Current price is: $97.99.

SKU: DGFUB 7132785999957 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computer Components, Computers, Gigabyte B860 AORUS ELITE WIFI7 ICE, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Gigabyte B860 AORUS ELITE WIFI7 ICE Overview

With the Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard, you’ll be able to build a compact PC that doesn’t take up too much space, but still provides lots of performance. This motherboard supports Intel Core Ultra processors (Series 2), which utilize the LGA 1851 socket. With support for DDR5, PCIe 5.0, M.2, and SATA, you’ll be able to build a powerful PC that can handle your favorite games. With EZ-Latch, installing certain components is user-friendly and doesn’t require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 7. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.

AORUS AI Snatch

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 8 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Wi-Fi EZ-Plug

The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.

Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7’s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation, dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

2.5GbE LAN

Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

PCIe UD Slot

The reinforced PCIe UD slot features Gigabyte’s one-piece stainless steel shielding design, providing the extra strength required to support heavy graphics cards. The UD power connector enhances power conductivity and thermal dissipation. The solid pins deliver optimal conductivity and signal transmission and reduce metal wear from repeated connections.

EZ-Latch Designs

PCIe EZ-Latch Plus

Easy ejection with a single click for graphics cards

M.2 EZ-Latch Click

Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus

Tool-less installation for M.2 SSDs

Gigabyte Control Center

With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.

UPC: 889523046722

Items Included

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

Gigabyte B860 AORUS ELITE WIFI7 ICE Specs

Key Specs

Chipset	Intel B860
CPU Socket	LGA 1851
Memory Slots	2x 288-Pin
Memory Support	DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
Storage Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 5.0 x16
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor	Mini-ITX

CPU

Chipset	Intel B860
CPU Socket	LGA 1851

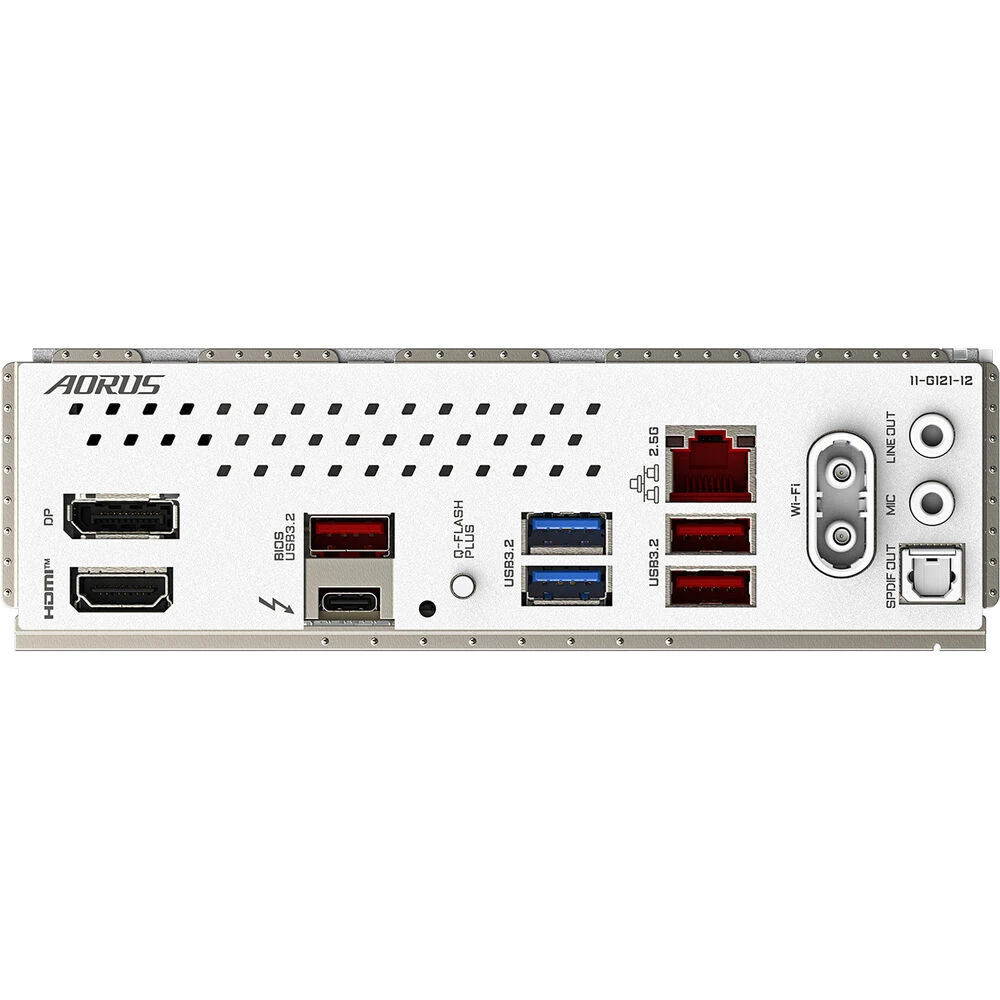

Back Panel I/O

USB	3x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	1x Thunderbolt 4
Display	1x HDMI Output 1x DisplayPort Output
Audio	2x 1/8″ / 3.5 mm
Ethernet / Controller	1x 2.5Gigabit
Wi-Fi Antenna	1x Connector

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	2x SATA III
Storage Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 1x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	TPM Header
Audio	No
Diagnostics	Clear CMOS, Flash BIOS, Reset

BIOS

ROM

256 Mb

Front Panel I/O

USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	5.4

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7″ / 17 x 17 cm

Packaging Info

Package Weight	2.89 lb
Box Dimensions (LxWxH)	10.1 x 9.1 x 3.9″
