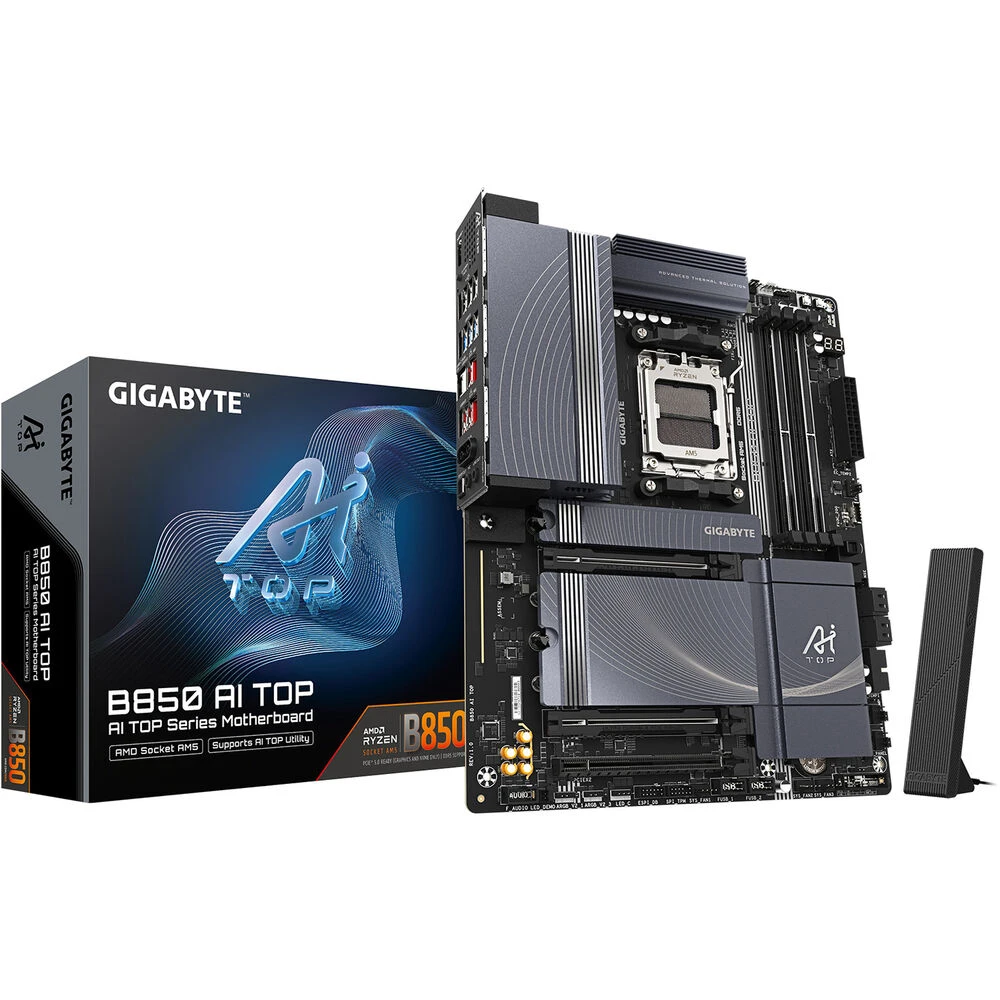

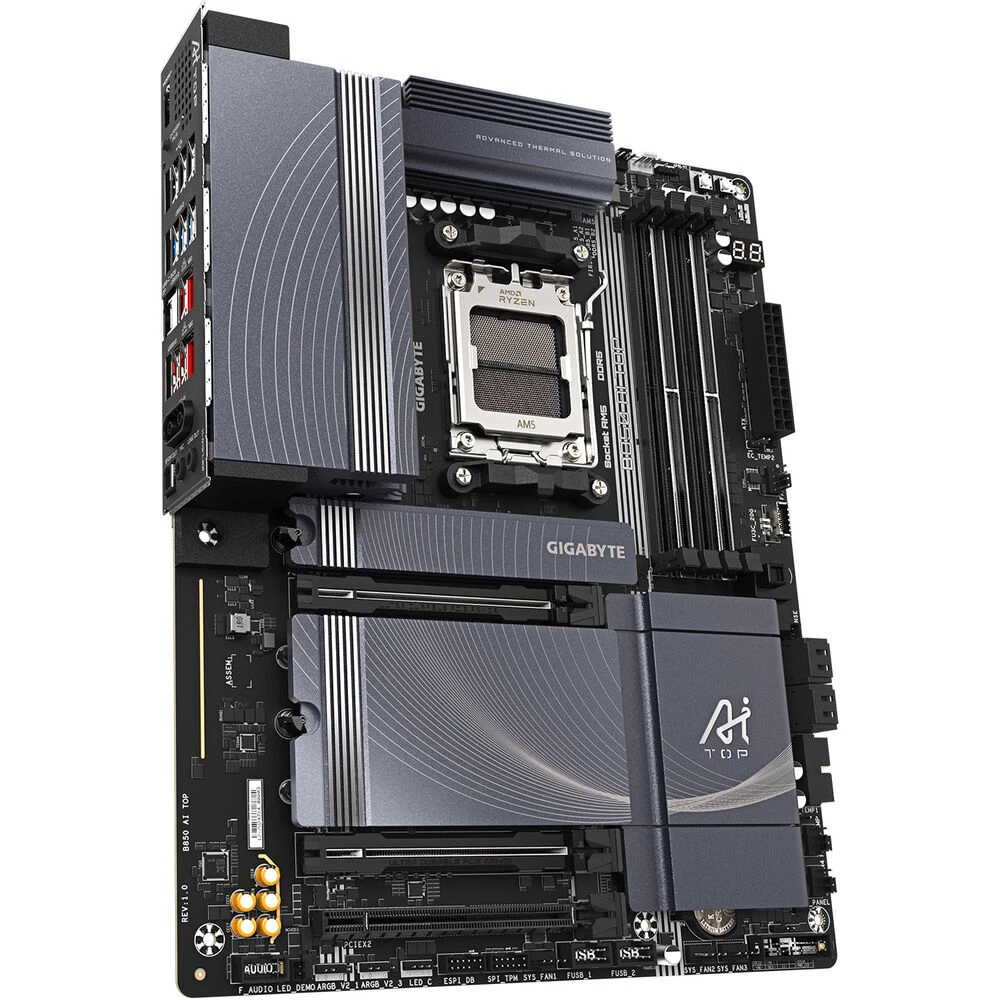

Gigabyte B850 AI TOP AM5 ATX Motherboard(Gigabyte B850 Ai Top Am5 Atx Motherboard)

Gigabyte B850 AI TOP AM5 ATX Motherboard(Gigabyte B850 Ai Top Am5 Atx Motherboard) - Image 2

Gigabyte B850 AI TOP AM5 ATX Motherboard(Gigabyte B850 Ai Top Am5 Atx Motherboard) - Image 3

Gigabyte B850 AI TOP AM5 ATX Motherboard(Gigabyte B850 Ai Top Am5 Atx Motherboard) - Image 4

Gigabyte B850 AI TOP AM5 ATX Motherboard(Gigabyte B850 Ai Top Am5 Atx Motherboard)

Original price was: $372.00.Current price is: $96.99.

SKU: DGFUB 7132785639509 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Gigabyte B850 AI TOP, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Gigabyte B850 AI TOP Overview

Train your own AI right at your desk with the Gigabyte B850 AI TOP AM5 ATX Motherboard and AI TOP Utility 2.0. This motherboard utilizes the AM5 socket and supports AMD 7000, 8000, and 9000 series processors. With support for DDR5, PCIe 5.0, M.2, and SATA, you’ll be able to build a powerful PC with this motherboard. With EZ-Latch, installing certain components is user-friendly and doesn’t require tools. For online connectivity, the motherboard provides fast 10GbE LAN and Wi-Fi 7. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.

X3D Turbo Mode

With one-click acceleration, X3D Turbo Mode’s unique optimization parameters allow even Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with this GIGABYTE’s BIOS innovation.

AORUS AI Snatch

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Digital Twin VRM Design

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 16 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phase provides reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Dual 10GbE LAN

Supercharge your online gaming with dual 10GbE RJ45 LAN jacks. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

EZ-Latch Designs

PCIe EZ-Latch Plus

Easy ejection with a single click for graphics cards

M.2 EZ-Latch Click

Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus

Tool-less installation for M.2 SSDs

Gigabyte Control Center

With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.

UPC: 889523045893

Items Included

Gigabyte B850 AI TOP AM5 ATX Motherboard
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Gigabyte B850 AI TOP Specs

Key Specs

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

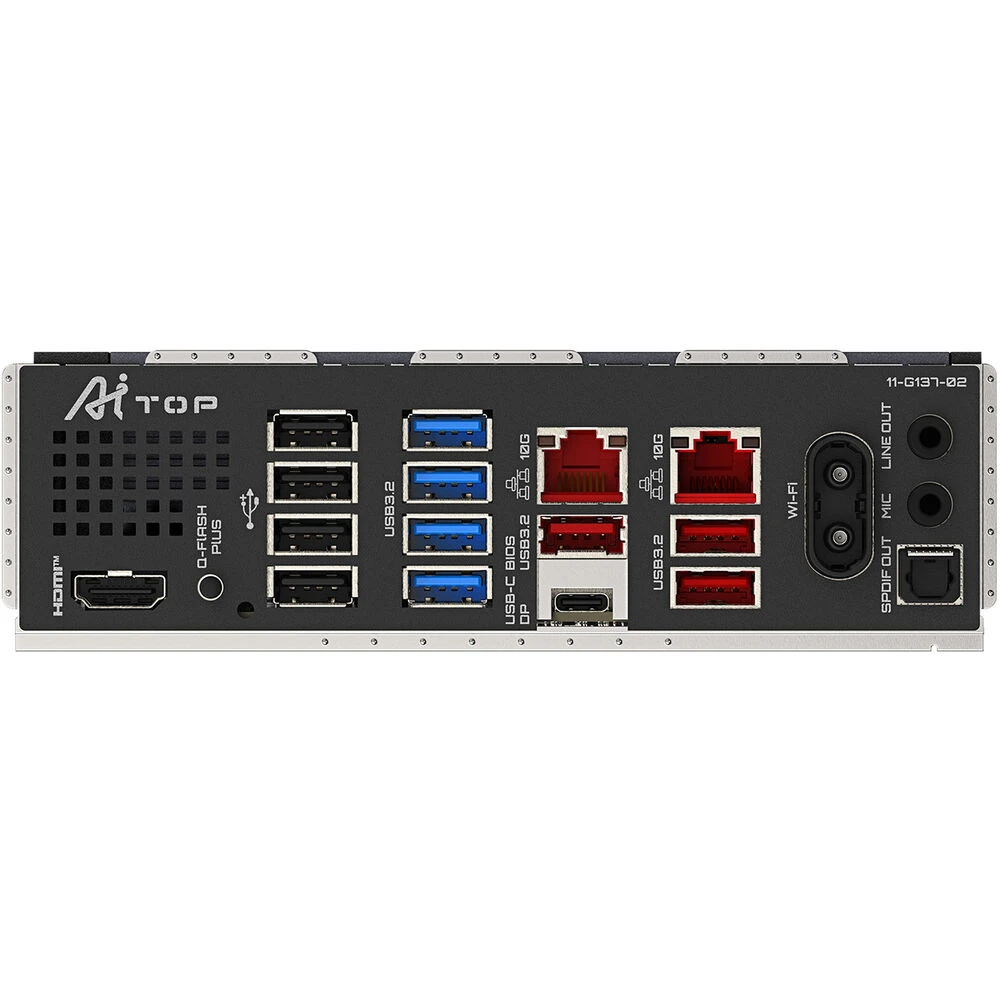

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI Output
Audio	2x 1/8″ / 3.5 mm 1x S/PDIF
Ethernet / Controller	2x 10GbE
Wi-Fi Antenna	1x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Diagnostics	Clear CMOS, Power, Reset

BIOS

ROM

256 Mb

Audio

Audio Codec	Realtek ALC1220 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.4

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6″ / 30.5 x 24.4 cm

Packaging Info

Package Weight	5.94 lb
Box Dimensions (LxWxH)	13.9 x 12.3 x 3.3″
